To make it easier to fi nd the information you need, the following symbols and conventions are used: This icon marks cautions, infor- mation that should be read be- fore use to prevent damage to the product. This icon marks notes, informa- tion that should be read before using the product.
For Your Safety To prevent damage to your Nikon product or injury to yourself or to others, read the following safety precautions in their entirety before using this equip- ment. Keep these safety instructions where all those who use the product will read them.
Page 5
(FAQs), and gen er al advice on digital imaging and pho tog ra phy. Ad di tion al information may be available from the Nikon rep re - sen ta tive in your area. For contact in for ma tion, visit http://nikonimaging.com/...
Before using the FJ-CP1 in or near water, test for leaks as described on pages 6–7 and 12 of this manual. • Before sealing the FJ-CP1, examine the seal and any parts of the case that are in contact with the seal carefully to ensure that they are free of dirt, hair, lint, dust, sand, and other foreign objects.
Page 7
• Place the supplied desiccant (silica gel) in the case with the camera as directed on page 10 of this manual. • Do not expose the FJ-CP1 to high temperatures by leaving it on the beach or in direct sunlight before entering the water.
For Your Safety ... i Cautions ... iii Notices ... vi Introduction... 1 Package Contents... 1 Parts of the FJ-CP1... 2 Overview... 4 Check for Leaks ... 6 Insert the Camera ... 8 1. Ready the Camera ... 8 2. Insert the Camera... 9 3.
( ing the product could result in irreparable damage to the camera, batteries, or memory card. Nikon will not be held liable for damages or lost profi ts that may result from leakage or product malfunction.
Thank you for your purchase of a FJ-CP1 fi eld jacket for compatible Nikon digital cameras. The FJ-CP1 is waterproof to a depth of 3 m (9 ft. 10 in.), al- lowing pictures to be taken underwater or in mist and rain. This manual has been written to help you enjoy taking pictures using the FJ-CP1.

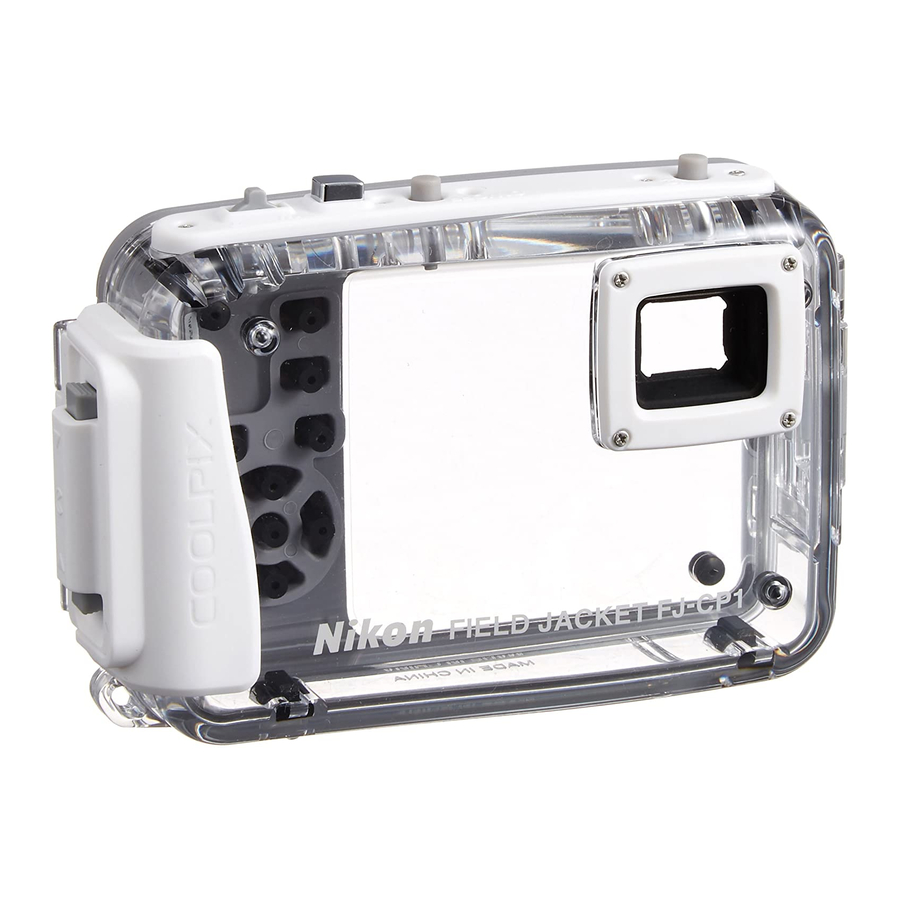

Parts of the FJ-CP1 Shutter-release button ( Zoom control Buckle 6, 9, 11) Seal/seal guide ( Notch ( : Performs same function as corresponding camera control. See camera Guide to Digital Photography for details. Power switch ( 10, 17–18) Camera guides (...
Page 12
MENU button ( Monitor window Multi selector ( FJ-CP1 The buttons on the case are used to press the camera rotary multi selector up, down, left, or right, not to rotate it. (shooting/playback) button Eyelet for strap ( Camera rotary multi selector...
Overview Using the FJ-CP1 Using the FJ-CP1 Follow these steps when using the FJ-CP1: Check for Leaks Check for Leaks Insert the Camera Insert the Camera 1. Ready the camera 4. Perform a fi nal check Important! To prevent water damage to the camera, be sure to check for leaks before placing the camera in the case.
Page 14
3. Take pictures 1. Wash the case in fresh water 2. Wipe dry 3. Remove the camera 4. Soak the FJ-CP1 in fresh water for 2–3 hours 5. Wipe dry 6. Let dry in the shade • Replacing the seal •...
Check for Leaks Important! Before placing the camera in the FJ-CP1, be sure that the camera is functioning normally and that the case does not leak. Failure to check for leaks before use could result in irreparable damage to the camera. Note that leaks may result if the case is cracked or damaged.
Page 16
Check for water inside the case Take the FJ-CP1 out of the water and check for water inside the case. If water has entered the case, check the seal ( 10).
Insert the Camera 1. Ready the Camera Insert the battery and memory card Before using the camera, check the battery level and number of exposures remaining. Batteries Make sure that the battery is undamaged. Failure to observe this precaution could result in fi re or in damage to the camera.
Do not open the case in areas exposed to blown sand or spray. To prevent water from entering the case, keep the FJ-CP1 upright, with the shut- ter-release button on top. Do not place the open case with the seal face down.
Replacing the Desiccant Used desiccant loses its ability to absorb moisture. We recommend replacing the desiccant each time the FJ-CP1 is used ( • Is the camera in the correct orientation? • Has the camera strap been removed? 19).
5. Close the Case Close the case After making sure that the seal is in place, clean, and unobstructed ( 10), slowly close the case, being careful not to pinch your fi ngers in the gap. Latch the case With front and rear halves of the case lightly touching, fl...
6–7). Check that the desiccant stays dry and that no water enters the case. If a leak is detected, immediately remove the FJ-CP1 from the water, dry the camera and case thoroughly, and check that the seal is undamaged and the case is fully closed.
The controls on the FJ-CP1 correspond to the following camera controls. For more information, see the camera Guide to Digital Photography. (One-touch portrait) button * The buttons on the FJ-CP1 are used to press the camera rotary multi selector up, down, left, or right, not to rotate it. Recording Movies In Movie mode, select Single AF if the sound of the camera focusing interferes with recording.
It may also refl ect from suspended materials, producing bright spots in the picture. Take a test shot and view the results in the monitor. The AF-assist lamp can not be used when the camera is in the FJ-CP1. Audio Playback Sound may be muffl...
To prevent water from entering the case, keep the FJ-CP1 upright, with the shutter- release button on top. Do not place the open case with the seal face down. If water does fall...
Page 25
Dry the case thoroughly with a soft, dry cloth. Do not use a cloth to which salt has adhered. Let the FJ-CP1 dry in the shade Leave the FJ-CP1 out to dry in a shady, well-ven- tilated area. Do Not Exposure to Sunlight or Heat Do not use a hair dryer or other heat source or place the case in direct sunlight.
Maintenance Replacing the Seal The seal is what keeps the FJ-CP1 watertight. Make sure that the seal is free of foreign matter before each use, and check the case for leaks before us- ing the camera under water. A leak may indicate that the seal is damaged, stretched, or has lost elasticity and should be replaced as described below.
Do not store the FJ-CP1 in direct sunlight or where it will be exposed to sudden changes in temperature or high levels of humidity. Do not store the FJ-CP1 under other objects, close to open fl ames, in the vicinity of fl ammable items, or with naphtha or camphor moth balls.
Technical Notes Specifi cations Maximum depth Camera operating temperature Dimensions Weight Optional Accessories Replacement seal Desiccant 3 m (9 ft. 10 in.) 0–40 °C (32–104 °F) Approx. 119× 80× 36mm/4.7 × 3.1 × 1.4 in. (W × H × D, excluding projections) Approx.
