Summary of Contents for DigiTech Mosaic

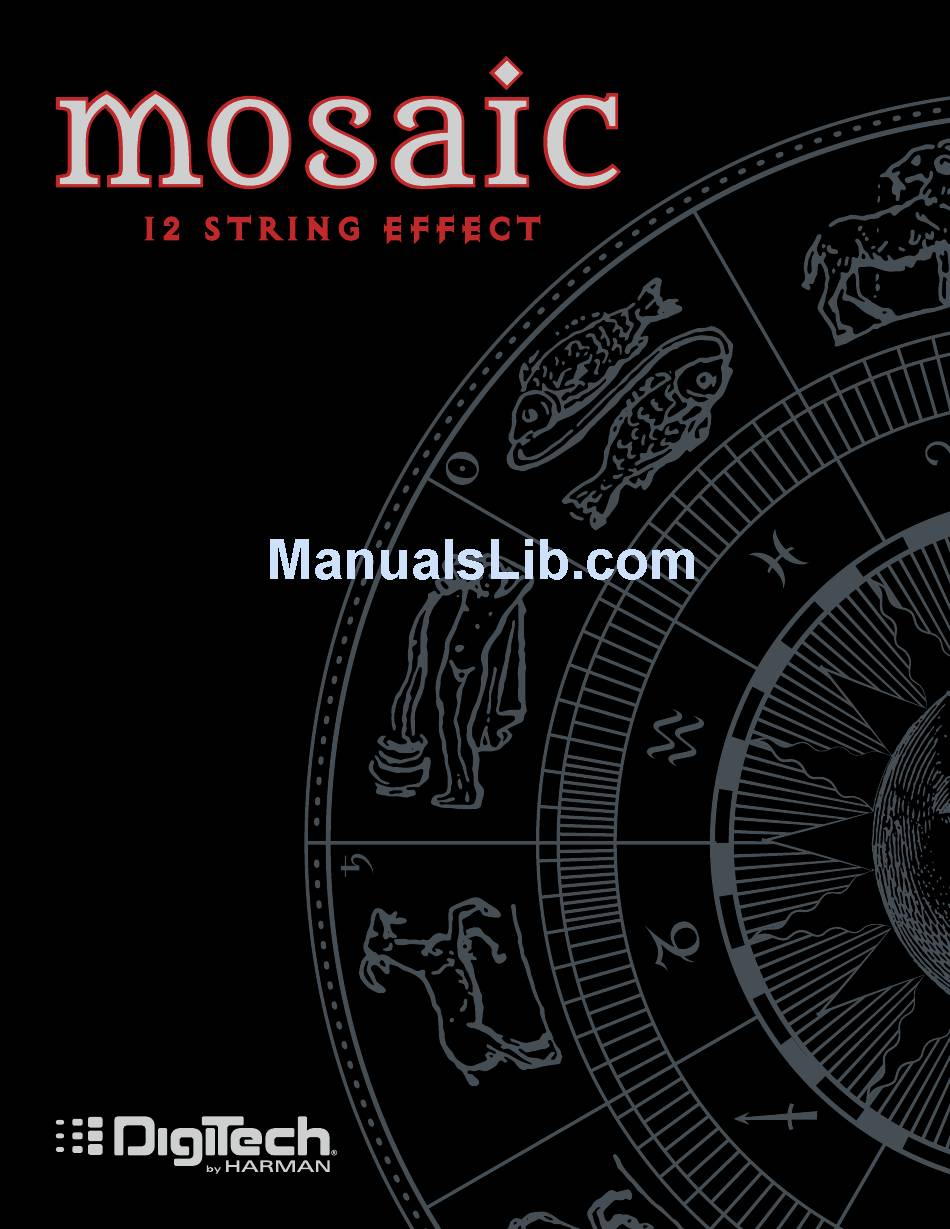

- Page 1 Owner’s Manual...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING FOR YOUR PROTECTION READ THE FOLLOWING: READ THESE INSTRUCTIONS. KEEP THESE INSTRUCTIONS. HEED ALL WARNINGS. FOLLOW ALL INSTRUCTIONS. The symbols shown above are internationally accepted symbols that warn of potential hazards with electrical products. The lightning flash with DO NOT USE THIS APPARATUS NEAR WATER. -
Page 3: Electromagnetic Compatibility
South Jordan, Utah 84095, USA BELOW. THE GREEN/YELLOW WIRE SHALL BE CONNECTED DIRECTLY TO THE UNITS CHASSIS. Date: July 10, 2014 WIRE COLOR CONDUCTOR Normal European Contact: Your local DigiTech Sales and Service Office or LIVE BROWN BLACK NEUTRAL BLUE... -
Page 4: Consignes De Sécurité Importantes
CONSIGNES DE SÉCURITÉ IMPORTANTES AVERTISSEMENT POUR VOTRE SÉCURITÉ LIRE ATTENTIVEMENT : LIRE CES CONSIGNES. CONSERVER CES CONSIGNES. RESPECTER TOUS LES AVERTISSEMENTS. SUIVRE TOUTES LES CONSIGNES. Les symboles illustrés ci-dessus sont des symboles acceptés NE PAS UTILISER CET APPAREIL PRÈS DE L’EAU. internationalement qui avertissent des dangers potentiels relatifs à... -
Page 5: Compatibilité Électromagnétique
DEVRA SE RÉFÉRER AU TABLEAU CI-DESSOUS. LE FIL VERT/JAUNE DOIT ÊTRE BRANCHÉ DIRECTEMENT South Jordan, Utah 84095, ÉTATS-UNIS AU CHÂSSIS DE L'APPAREIL. Date : 10 juillet 2014 COULEUR DU FIL CONNECTEURS normal Contact en Europe : votre revendeur DigiTech local et le bureau d'assistance de : PHASE MARRON NOIR NEUTRE BLEU BLANC... -
Page 6: Warranty
The foregoing is in lieu of all other warranties, expressed or implied, and DigiTech neither assumes nor authorizes any person to assume any obligation or liability in connection with the sale of this product. In no event shall DigiTech or its dealers be liable for special or consequential damages or from any delay in the performance of this warranty due to causes beyond their control. - Page 7 To use the Mosaic pedal, enable the effect with the Footswitch (the LED will light when the effect is enabled), turn the LEVEL knob to blend in the desired amount of effect, then adjust the TONE knob to dial-in the amount of high-frequency enhancement to be applied to the effect signal.
-
Page 8: User Interface
USER INTERFACE 1. Power Connector Connect the provided power adapter to this jack. Do not use any power adapter other than the one supplied. 2. Level Knob Adjusts the level of the effect signal. 3. Tone Knob As this knob is raised, the tone becomes brighter and more enhanced. 4. -
Page 9: Connection Diagram
OPTIONAL Use unbalanced TS instrument cables only. NOTE: The Mosaic should be the first pedal in your effects chain. Placing any effect in front of it may impact its pitch shifting performance. EXAMPLE SETTINGS Try these settings to get started. -
Page 10: Specifications
SPECIFICATIONS Electronic Sample Rate: 44.1 kHz Frequency Response: 20 Hz-11 kHz (Effect Enabled) Signal to Noise Ratio: > -105 dB (A weighted); ref = max level, 22 kHz bandwidth THD: 0.004% @ 1 kHz; ref = 1 dBu w/ unity gain A/D/A Conversion: 24-bit Input... - Page 11 PHONE: (801) 566-8800 WEB: digitech.com SUPPORT: digitech.com/en-US/support Mosaic Owner’s Manual PN: 5044262-A DigiTech is a registered trademark of Harman © 2014 Harman All rights reserved...
