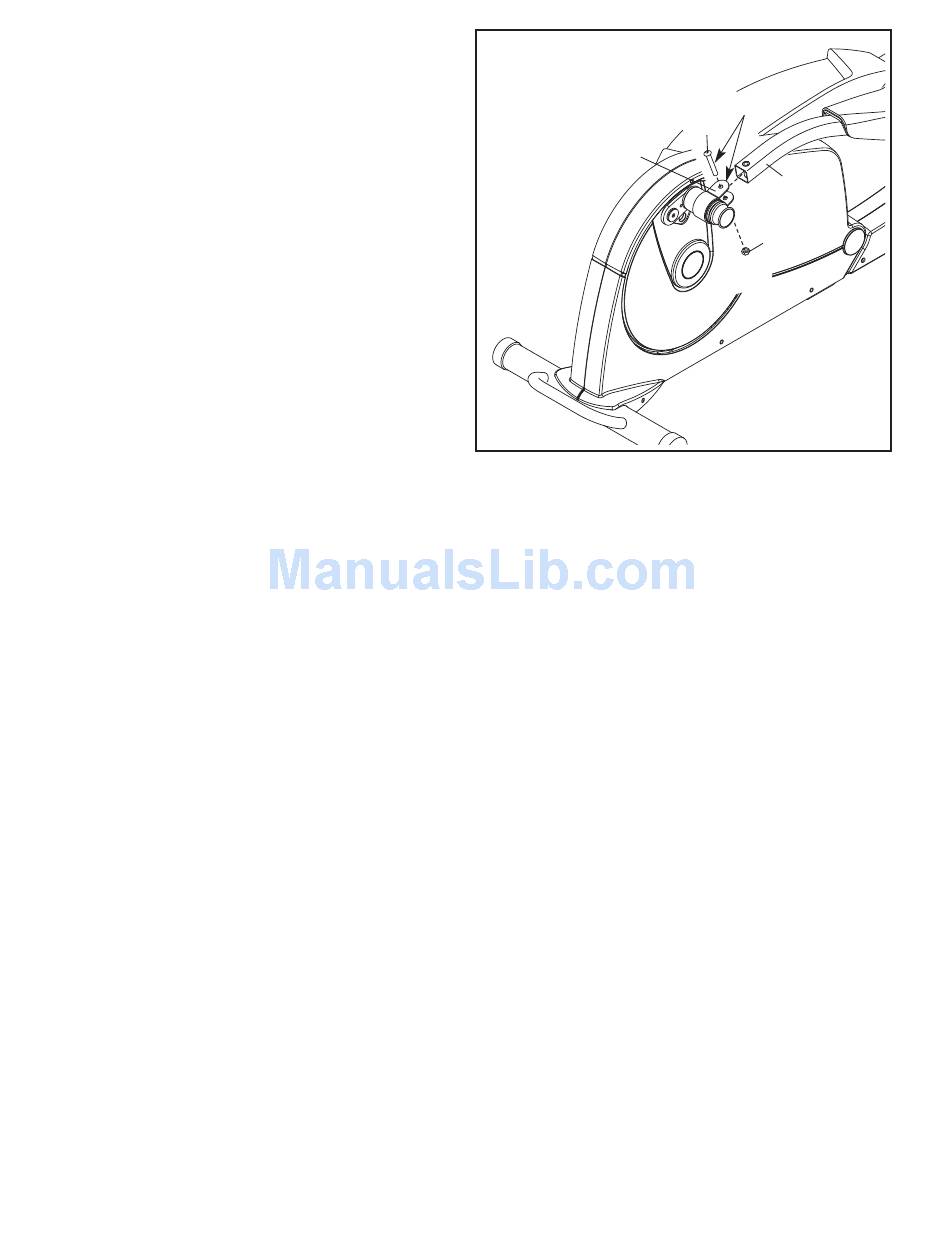

15. Apply a generous amount of grease to an M8 x
58mm Shoulder Bolt (104) and to the inside of
the right Link Arm Bracket (45).
Insert the end of the right Link Arm (30) into the
right Link Arm Bracket (45). Attach the right Link
Arm Bracket with the M8 x 58mm Shoulder Bolt
(104) and an M8 Locknut (94).
Repeat this step on the other side of the
elliptical exerciser.
16. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical exerciser.
15
45
13
Grease
104
30
94
