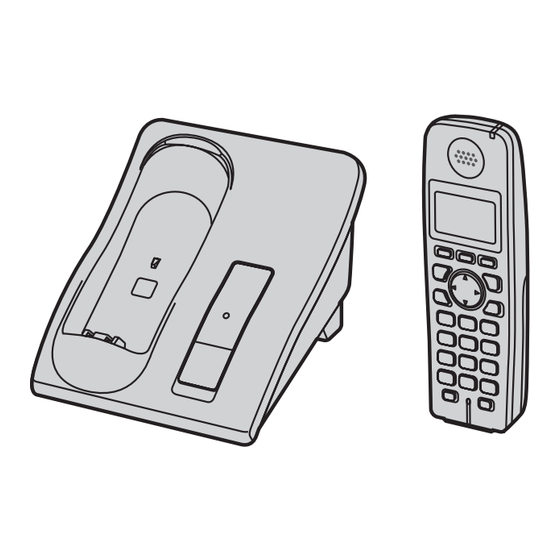

Model shown is KX-TG6021C.
This unit is compatible with Call Display. To use this feature, you must
subscribe to the appropriate service offered by your telephone service
provider.
Charge the handset battery for 7 hours before initial use.
Please read these Operating Instructions before using the unit and save for
future reference.
For assistance, please call 1-800-561-5505 or visit us at
www.panasonic.ca
Operating Instructions
5.8 GHz Expandable Digital Cordless Phone
Model No.
Model No.
Model No.
5.8 GHz Expandable Digital Cordless
Model No.
Model No.
Model No.
Model No.
Model No.
Model No.
5.8 GHz Digital Cordless
Model No.
KX-TG6021C
with 2 Handsets
KX-TG6022C
with 3 Handsets
KX-TG6023C
Answering System
KX-TG6031C
KX-TG6051C
with 2 Handsets
KX-TG6032C
KX-TG6052C
with 3 Handsets
KX-TG6033C
KX-TG6053C
Answering System
with 4 Handsets
KX-TG6034C
Advertisement
Table of Contents
Related Manuals for Panasonic KX-TG6021C
Summary of Contents for Panasonic KX-TG6021C
-
Page 1: Operating Instructions
Answering System with 4 Handsets KX-TG6034C Model No. Model shown is KX-TG6021C. This unit is compatible with Call Display. To use this feature, you must subscribe to the appropriate service offered by your telephone service provider. Charge the handset battery for 7 hours before initial use. -
Page 2: Table Of Contents
TG602X_603X_605XC(e).book Page 2 Tuesday, December 26, 2006 1:55 PM Table of Contents Introduction Registering a handset ... 42 Useful Information Product information ....3 Accessory information . -
Page 3: Introduction
TG602X_603X_605XC(e).book Page 3 Tuesday, December 26, 2006 1:55 PM Introduction Product information Thank you for purchasing a Panasonic cordless telephone. These operating instructions can be used for the following models: KX-TG6021 KX-TG6022 KX-TG6023 KX-TG6031/KX-TG6051 KX-TG6032/KX-TG6052 KX-TG6033/KX-TG6053 KX-TG6034 Important: L The suffix (C) in the following model numbers will be omitted in these instructions:... -
Page 4: Special Features
TG602X_603X_605XC(e).book Page 4 Tuesday, December 26, 2006 1:55 PM Introduction Notable feature differences among the following models Talking Intercom Answering ® Model no. Call Slow talk system \ ⇔ N N ⇔ N Display KX-TG6021 – – – – – KX-TG6022 –... -
Page 5: Accessory Information
TG602X_603X_605XC(e).book Page 5 Tuesday, December 26, 2006 1:55 PM Introduction Accessory information Included accessories Quantity KX-TG6021/ KX-TG6022/ KX-TG6023/ KX-TG6034 No. Accessory item KX-TG6031/ KX-TG6032/ KX-TG6033/ KX-TG6051 KX-TG6052 KX-TG6053 AC adaptor for base unit Telephone line cord Wall mounting adaptor Battery Handset cover Charger –... -
Page 6: Expanding Your Phone System
TG602X_603X_605XC(e).book Page 6 Tuesday, December 26, 2006 1:55 PM Introduction Expanding your phone system You can expand the phone system by Handset (optional): KX-TGA601C registering optional handsets to a single base unit. L A maximum of 4 total handsets (included and optional) can be registered to a single base unit. -
Page 7: Important Safety Instructions
TG602X_603X_605XC(e).book Page 7 Tuesday, December 26, 2006 1:55 PM Introduction 11. To reduce the risk of electric shock, do not disassemble the product. Important safety Take the product to an authorized instructions service centre when service is required. Opening or removing When using the product, basic safety covers may expose you to precautions should always be followed... - Page 8 TG602X_603X_605XC(e).book Page 8 Tuesday, December 26, 2006 1:55 PM Introduction WARNING: L Never touch uninsulated telephone wires or terminals unless the L To prevent the risk of fire or electrical telephone line has been shock, do not expose the product to disconnected at the network rain or any type of moisture.
-
Page 9: For Best Performance
The base unit and other compatible kitchen stoves, etc. It should not be Panasonic units use radio waves to placed in rooms where the communicate with each other. temperature is less than 5 °C (41 °F) L For maximum coverage and noise- or greater than 40 °C (104 °F). -
Page 10: Preparation
(A). Connect the AC adaptor cord (B) by pressing the plug firmly (C). To single-line telephone L Use only the included Panasonic AC jack (RJ11C) adaptor PQLV203. Noise filter To single-line Setting up the handset... -
Page 11: Battery Charge
Charge contacts L Model shown is KX-TG6021. Charger: Important: Available model: KX-TG6022/KX-TG6023/KX-TG6032/ L Use only the rechargeable Panasonic KX-TG6033/KX-TG6034/KX-TG6052/ battery noted on page 6. KX-TG6053 Attention: A nickel metal hydride battery that is recyclable powers the product you have Charge purchased. - Page 12 L When the battery needs to be and base unit. charged, the handset beeps Example: intermittently during use. Unit keys: {C}, {OFF} Panasonic battery performance Soft keys: {View CID}, Operation Operating time {Phonebook} While in use Up to 5 hours...
-
Page 13: Controls
TG602X_603X_605XC(e).book Page 13 Tuesday, December 26, 2006 1:55 PM Preparation Base unit (KX-TG6031/KX- Controls TG6032/KX-TG6033/KX- TG6034/KX-TG6051/KX- Base unit (KX-TG6021/KX- TG6052/KX-TG6053) TG6022/KX-TG6023) B C D A IN USE indicator A Speaker B {LOCATOR} B {GREETING REC} (Recording) C Charge contacts C {GREETING CHECK} D {ANSWER ON} ANSWER ON indicator E VOLUME {>} {<}... -
Page 14: Display
TG602X_603X_605XC(e).book Page 14 Tuesday, December 26, 2006 1:55 PM Preparation Using the navigator key Handset The handset navigator key can be used to navigate through menus and to select items shown on the display by pressing {^}, {V}, {<}, or {>}. Adjusting audio volume Press {^} or {V} repeatedly while talking. -
Page 15: Setting The Unit Before Use
TG602X_603X_605XC(e).book Page 15 Tuesday, December 26, 2006 1:55 PM Preparation Dialing mode Setting the unit before If you cannot make calls, change this setting according to your telephone line service. The default setting is “Tone”. “Tone”: For tone dial service. Important: “Pulse”: For rotary/pulse dial service. - Page 16 TG602X_603X_605XC(e).book Page 16 Tuesday, December 26, 2006 1:55 PM Preparation {^}, or {V} to move the cursor, then make the correction. L The date and time may be incorrect after a power failure. In this case, set the date and time again.
-
Page 17: Making/Answering Calls
TG602X_603X_605XC(e).book Page 17 Tuesday, December 26, 2006 1:55 PM Making/Answering Calls Erasing a number in the redial list Making calls {REDIAL} {V}/{^}: Select the desired phone Dial the phone number. number. L To correct a digit, press {Clear}. Press {C} or {Call}. {Erase} i {Yes} i {OFF} When you finish talking, press {OFF} PAUSE button (for PBX/long... -
Page 18: Answering Calls
TG602X_603X_605XC(e).book Page 18 Tuesday, December 26, 2006 1:55 PM Making/Answering Calls Answering calls Useful features during a call When a call is being received, the ringer indicator flashes rapidly. HOLD button Press {C} or {s}. This feature allows you to put an L You can also answer the call by outside call on hold. - Page 19 TG602X_603X_605XC(e).book Page 19 Tuesday, December 26, 2006 1:55 PM Making/Answering Calls Note: {V}/{^}: Select “Booster on” or “Booster off”. i {Select} L To change the flash time, see page Note: L When this feature is turned on, For Call Waiting service “BOOST”...
-
Page 20: Call Share
TG602X_603X_605XC(e).book Page 20 Tuesday, December 26, 2006 1:55 PM Making/Answering Calls Slow Talk Call share This feature allows the handset to join Available model: an existing outside call. KX-TG6031/KX-TG6032/KX-TG6033/ To join the conversation, press {C} KX-TG6034/KX-TG6051/KX-TG6052/ when the other handset is on an outside KX-TG6053 call. -
Page 21: Phonebook
TG602X_603X_605XC(e).book Page 21 Tuesday, December 26, 2006 1:55 PM Phonebook L To enter another character that is located on the same dial key, first Handset phonebook press {>} to move the cursor to the next space. You can add up to 50 items to the handset phonebook and search for Editing/correcting a mistake phonebook items by name. -
Page 22: Copying Handset Phonebook Items
TG602X_603X_605XC(e).book Page 22 Tuesday, December 26, 2006 1:55 PM Phonebook {MENU} in step 1 to change the Editing items in the dialing mode temporarily to tone. phonebook Copying handset Find the desired item (page 21). i {Option} phonebook items {V}/{^}: “Edit” i {Select} Edit the name if necessary (see the You can copy one or all of the character table, page 21). -
Page 23: Call Display Service
TG602X_603X_605XC(e).book Page 23 Tuesday, December 26, 2006 1:55 PM Call Display Service Custom name display Using Call Display When the Call Display number is received and it matches a phone service number stored in the phonebook, the stored name from the phonebook is This unit is Call Display compatible. -
Page 24: Visual Call Waiting Service
TG602X_603X_605XC(e).book Page 24 Tuesday, December 26, 2006 1:55 PM Call Display Service and there is a new message, the unit Visual Call Waiting service does not announce the caller’s name. If you subscribe to both Call Display and L When you receive a call while on the Visual Call Waiting services, the 2nd phone, the 2nd caller’s name is not caller’s information is displayed after... - Page 25 TG602X_603X_605XC(e).book Page 25 Tuesday, December 26, 2006 1:55 PM Call Display Service Displayed Displayed Function Function option option Answers the Conference Answers the Answer waiting call and waiting call, while combines it with keeping the 1st the current call to call on hold.
-
Page 26: Caller List
TG602X_603X_605XC(e).book Page 26 Tuesday, December 26, 2006 1:55 PM Call Display Service 2 Local phone number Example: Caller list 321-5555 3 Area code – Local phone number Viewing the caller list and Example: calling back 555-321-5555 {View CID} Press {V} to search from the most Note: recent call, or {^} to search from the L The number edited in step 3 will not... -
Page 27: Programming
TG602X_603X_605XC(e).book Page 27 Tuesday, December 26, 2006 1:55 PM Programming Programmable settings You can customize the unit by programming the following features using the handset. To access the features, there are 2 methods: – scrolling through the display menus (page 27) –... - Page 28 TG602X_603X_605XC(e).book Page 28 Tuesday, December 26, 2006 1:55 PM Programming Main menu Sub-menu 1 Sub-menu 2 Page – – Talking CallerID (KX-TG6051/ KX-TG6052/ KX-TG6053) – – Customer support Initial setting Set answering Ring count (KX-TG6031/ Recording time KX-TG6032/ KX-TG6033/ Remote code KX-TG6034/ KX-TG6051/ KX-TG6052/...
- Page 29 TG602X_603X_605XC(e).book Page 29 Tuesday, December 26, 2006 1:55 PM Programming Main menu Sub-menu 1 Sub-menu 2 Page Change language Voice prompt Initial setting (KX-TG6031/ KX-TG6032/ KX-TG6033/ KX-TG6034/ KX-TG6051/ KX-TG6052/ KX-TG6053) *1 If you program these settings using one of the handsets, you do not need to program the same item using another handset.
- Page 30 TG602X_603X_605XC(e).book Page 30 Tuesday, December 26, 2006 1:55 PM Programming Feature Feature Setting code System Page code setting {1}: <On> {0}: Off – – Key tone {0}{2} {1}–{6}: Level 1–6 <3> – – {0}{1} LCD contrast (Display contrast) {1}: On {0}: <Off> –...
- Page 31 TG602X_603X_605XC(e).book Page 31 Tuesday, December 26, 2006 1:55 PM Programming KX-TG6031/KX-TG6032/KX-TG6033/KX-TG6034/KX-TG6051/KX-TG6052/ KX-TG6053 only Feature Feature Setting code System Page code setting {1}: <English> – {0}{8}{1} Display (Change language) {2}: Français – – Message play {0}{6}{2} {1}: 1min {2}: 2min Recording time {3}: <3min>...
-
Page 32: Customer Support
TG602X_603X_605XC(e).book Page 32 Tuesday, December 26, 2006 1:55 PM Programming Alarm An alarm will sound once for 3 minutes at the set time. Set the date and time beforehand (page 15). {MENU} i {8} {V}/{^}: “Once” i {Select} L To turn off the alarm, select “Off”. i {Select} i {OFF} Set the desired date and time. -
Page 33: Answering System
TG602X_603X_605XC(e).book Page 33 Tuesday, December 26, 2006 1:55 PM Answering System – If you recorded your own greeting message, the same message is still Answering system announced to callers even though their messages are not recorded. Available model: KX-TG6031/KX-TG6032/KX-TG6033/ Turning the answering KX-TG6034/KX-TG6051/KX-TG6052/ KX-TG6053 system on/off... -
Page 34: Greeting Message
TG602X_603X_605XC(e).book Page 34 Tuesday, December 26, 2006 1:55 PM Answering System Greeting message Listening to messages using the base unit When the unit answers a call, callers are greeted by a greeting message. You When new messages have been can record your own greeting message recorded, the MESSAGE indicator on or use a prerecorded greeting the base unit flashes. -
Page 35: Listening To Messages Using The Handset
TG602X_603X_605XC(e).book Page 35 Tuesday, December 26, 2006 1:55 PM Answering System Operating the answering Listening to messages system using the handset You can also operate the answering system by pressing dial keys on the When new messages have been handset during playback. recorded: Operation –... -
Page 36: Remote Operation
TG602X_603X_605XC(e).book Page 36 Tuesday, December 26, 2006 1:55 PM Answering System Note: L If you do not press any dial keys Remote operation within 10 seconds after a voice guidance prompt, the unit Using a touch tone phone, you can call disconnects your call. -
Page 37: Answering System Settings
TG602X_603X_605XC(e).book Page 37 Tuesday, December 26, 2006 1:55 PM Answering System L You can hang up, or if you call from 3rd time. You can then hang up without a touch tone phone, you can enter being charged for the call. your remote code and begin {MENU} i {0}{6}{1} remote operation (page 36). -
Page 38: Message Alert
TG602X_603X_605XC(e).book Page 38 Tuesday, December 26, 2006 1:55 PM Answering System Caller’s recording time You can change the maximum message recording time allotted to each caller. The default setting is “3min”. {MENU} i {0}{6}{2} {V}/{^}: Select the desired setting. {Save} i {OFF} Message alert You can select whether or not the message indicator on the handset... -
Page 39: Voice Mail Service
TG602X_603X_605XC(e).book Page 39 Tuesday, December 26, 2006 1:55 PM Voice Mail Service Example: Using Voice Mail 1-222-333-4444 PPPP 8888 service VM access Pauses Password number Voice Mail is an automatic answering service offered by your telephone To erase the Voice Mail access service provider. - Page 40 TG602X_603X_605XC(e).book Page 40 Tuesday, December 26, 2006 1:55 PM Voice Mail Service Listening to Voice Mail Message alert messages You can select whether or not the message indicator on the handset The unit lets you know that you have flashes slowly when there are new new Voice Mail messages in the recorded messages in the Voice Mail following ways:...
-
Page 41: Multi-Unit Operation
TG602X_603X_605XC(e).book Page 41 Tuesday, December 26, 2006 1:55 PM Multi-unit Operation Answering an intercom call Intercom Handset Intercom calls can be made: – between handsets Press {C} or {s} to answer the – between the handset and base unit page. (KX-TG6031/KX-TG6032/ When you finish talking, press KX-TG6033/KX-TG6034/... -
Page 42: Transferring Calls Between Handsets, Conference Calls
TG602X_603X_605XC(e).book Page 42 Tuesday, December 26, 2006 1:55 PM Multi-unit Operation Transferring calls Registering a handset between handsets, The included handset and base unit are conference calls preregistered. If for some reason the handset is not registered to the base unit, register the handset. -
Page 43: Useful Information
TG602X_603X_605XC(e).book Page 43 Tuesday, December 26, 2006 1:55 PM Useful Information Tuck the telephone line cord inside the wall mounting adaptor and Wall mounting connect the cord. Mount the unit by inserting the mounting pins into the Base unit round openings on the adaptor (for pin 2, use round cut out at the Insert the hooks on the wall bottom of the adaptor if you are using... -
Page 44: Headset (Optional)
Headset (optional) While pushing down the lever (A), remove the adaptor (B). Connecting a headset to the handset allows hands-free phone conversations. We recommend using the Panasonic headset noted on page Charger Available model: KX-TG6022/KX-TG6023/KX-TG6032/ KX-TG6033/KX-TG6034/KX-TG6052/ KX-TG6053 L Headset shown is RP-TCA86. -
Page 45: Error Messages
TG602X_603X_605XC(e).book Page 45 Tuesday, December 26, 2006 1:55 PM Useful Information Error messages If the unit detects a problem, one of the following messages is shown on the display. Display message Cause/solution L 4 handsets have already been registered to the All handsets are base unit. -
Page 46: Troubleshooting
TG602X_603X_605XC(e).book Page 46 Tuesday, December 26, 2006 1:55 PM Useful Information Display message Cause/solution L Other units are in use and the system is busy. System is busy. Try again later. Please try again L Another user is listening to messages. Try again later. - Page 47 TG602X_603X_605XC(e).book Page 47 Tuesday, December 26, 2006 1:55 PM Useful Information Programmable settings Problem Cause/solution I cannot program items. L Programming is not possible while either the base unit or another handset is being used. Try again later. I cannot set the alarm. L In order to set the alarm, you must first set the date and time (page 15).
- Page 48 TG602X_603X_605XC(e).book Page 48 Tuesday, December 26, 2006 1:55 PM Useful Information Making/answering calls, intercom Problem Cause/solution Static is heard, sound cuts L Move the handset and base unit away from in and out. Interference other electrical appliances. from other electrical units. L Move closer to the base unit.
- Page 49 TG602X_603X_605XC(e).book Page 49 Tuesday, December 26, 2006 1:55 PM Useful Information Call Display Problem Cause/solution The handset does not L You have not subscribed to Call Display service. display the caller’s name Contact your telephone service provider to and/or phone number. subscribe.
- Page 50 TG602X_603X_605XC(e).book Page 50 Tuesday, December 26, 2006 1:55 PM Useful Information Problem Cause/solution The 2nd caller’s L In order to use Call Display, Call Waiting, or information is not displayed Visual Call Waiting, you must first contact your during an outside call. telephone service provider and subscribe to the (Visual Call Waiting feature desired service.
-
Page 51: Important Information
TG602X_603X_605XC(e).book Page 51 Tuesday, December 26, 2006 1:55 PM Useful Information Important information NOTICE: connected together. This precaution This equipment meets the applicable may be particularly important in rural Industry Canada Terminal Equipment areas. Technical Specifications. This is Caution: confirmed by the registration number. Users should not attempt to make The abbreviation, “IC:”, before the such connections themselves, but... - Page 52 TG602X_603X_605XC(e).book Page 52 Tuesday, December 26, 2006 1:55 PM Useful Information interference is experienced, move the cordless telephone further away from the TV or VCR. This will often reduce, or eliminate, interference. RF Exposure Warning: L This product complies with IC radiation exposure limits set forth for an uncontrolled environment.
-
Page 53: Specifications
TG602X_603X_605XC(e).book Page 53 Tuesday, December 26, 2006 1:55 PM Useful Information Specifications General Operating environment 5 °C – 40 °C (41 °F – 104 °F) Frequency 5.76 GHz – 5.84 GHz Base unit Approx. height 97 mm × width 120 mm × depth 144 mm Dimensions inches ×... -
Page 54: Warranty
5770 Ambler Drive, Mississauga, Ontario L4W 2T3 PANASONIC PRODUCT - LIMITED WARRANTY Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect for a period as stated below from the date of original purchase. -
Page 55: Index
TG602X_603X_605XC(e).book Page 55 Tuesday, December 26, 2006 1:55 PM Index Missed calls Mute Index Navigator key Pause Alarm Phonebook Answering calls Phonebook copy Answering system Power failure Erasing messages Pulse service Listening to messages Recording time Turning on/off Redial list Auto talk Registration Battery... - Page 56 5770 Ambler Drive, Mississauga, Ontario L4W 2T3 Copyright: This material is copyrighted by Panasonic Communications Co., Ltd., and may be reproduced for internal use only. All other reproduction, in whole or in part, is prohibited without the written consent of Panasonic Communications Co., Ltd.
