Related Manuals for Clarke BOS-18
Summary of Contents for Clarke BOS-18
- Page 1 Electronic Service Manuals This electronic document is provided as a service to our customers. We do not create the contents of the information contained in this docu- ment. Should you have detailed questions pertaining to the information contained in this document, you may contact Michco, or the manufac- turer which provided the original information in this electronic deliver- able.
- Page 2 This book has important information for the use and safe operation of this machine. Failure to read this book prior to operating or attempting any service or maintenance procedure to your Clarke machine could result in injury to you or to other personnel; damage to the machine or to other property could occur as well.
-
Page 3: Table Of Contents
Products in such environments. The Manufacturer disclaims any responsibility to advise purchasers of any specifi c requirements that may be applicable to the use of the Products in such environments. revised 2/10 ® -2- 71486A Operator's Manual (EN) - BOS-18 Clarke... -
Page 4: Operator Safety Instructions
• Failure to read the Owner’s Manual prior to operating or servicing your Clarke machine could result in injury to you or to other personnel; damage to the machine or to other property could occur as well. You must have training in the opera- tion of this machine before using it. -
Page 5: Introduction And Machine Specifi Cations

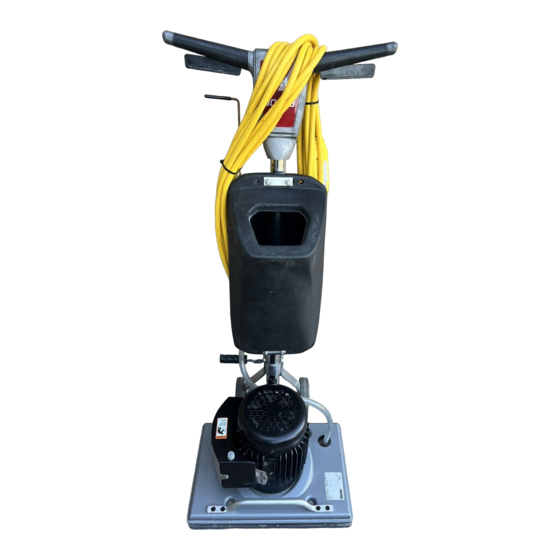

Introduction & Machine Specifi cations The BOS-18 can be used on a variety of surfaces. It is an ideal tool for wood fl ooring maintenance and restoration work. It is also suitable for cleaning hard surfaces such as tile or Terrazzo. -
Page 6: Machine Setup
3/8” (9.5 mm)or thinner. WARNING: Never put yourself or let others be in a position to get injured if the machine should tip or fall, while replacing the pad or changing abrasive. ® Operator's Manual (EN) - BOS-18 71486A - 5 - Clarke... -
Page 7: Operating Instructions
(2). To stop the machine, release the levers (2). See fi gure 4. CAUTION: To prevent damage to the fl ooring and to reduce swirling, keep the machine in motion while the motor is running. Figure # 4 ® -6- 71486A Operator's Manual (EN) - BOS-18 Clarke... -
Page 8: Troubleshooting
Locate power source closer to work site. Have voltage checked by a qualifi ed electrician. Bad connection. Contact an authorized Clarke Dealer. Defective motor. Contact an authorized Clarke Dealer. ® Operator's Manual (EN) - BOS-18 71486A - 7 - Clarke... - Page 9 Este manual contiene información importante acerca del uso y la seguridad de la máquina. Si no lee el manual antes de utilizar su máquina Clarke American Sanders o de intentar realizar los procedimientos de reparación o mantenimiento de la misma, usted o el resto del personal podrían sufrir lesiones; asimismo, podrían producirse daños a la máquina o a otras propiedades.
-
Page 10: Instrucciones De Seguridad Para El Operador
PELIGRO: Si no lee el manual de instrucciones antes de operar, reparar o realizar el mantenimiento de su máquina Clarke, el resultado puede ser que usted o el resto del personal sufra lesiones. Asimismo, pueden producirse daños a la máquina o a otras propiedades. -
Page 11: Introducción Y Especifi Caciones De La Máquina
Introducción y especifi caciones de la máquina La BOS-18 pueden utilizarse en una gran variedad de superfi cies. Por ello, se trata de una herramient a ideal para mantenimiento de pisos de madera y trabajos de restauración. También es adecuada para la limpieza de superfi cies duras como baldosas o terrazo. -
Page 12: Instalación De La Máquina
(ni deje que otras personas lo hagan) en una posición en la que pueda lesionarse si la máquina se inclina o cae. ® Manual del operador (ES) - BOS-18 71486A - 11 - Clarke... -
Page 13: Instrucciones De Funcionamiento
PRECAUCIÓN: para evitar daños al piso y reducir los remolinos, mantenga la máquina en movimiento mientras el motor esté funcionando. NOTA: para cortes de lija y papel de lija consulte la Figura 4 página 25. ® -12- 71486A Manual del operador (ES) - BOS-18 Clarke... -
Page 14: Resolución De Problemas
Póngase en contacto con un distribuidor Conexión defectuosa. autorizado de Clarke Technology. Póngase en contacto con un distribuidor autorizado de Clarke Technology. El motor es defectuoso. ® Manual del operador (ES) - BOS-18 71486A - 13 - Clarke... - Page 15 Ce Manuel contient des informations importantes concernant l’utilisation et le fonctionnement de cette machine dans des conditions de sécurité optimales. La non-lecture de ce manuel avant d’utiliser ou d’entretenir votre machine Clarke American Sanders risque de provoquer un accident ou d’endommager la machine ou son environnement. Vous devez avoir été...
-
Page 16: Consignes De Sécurité
DANGER: Si vous ne lisez pas le manuel d’utilisation avant d’utiliser ou réparer votre appareil Clarke, vous risquez de vous blesser ainsi que d’autres personnes. Vous risquez également d’endommager l’appareil et de causer divers dommages maté- riels. -
Page 17: Introduction Et Spécifi Cations De L'appareil
Introduction et spécifi cations de l’appareil Les appareils BOS-18 peuvent être utilisés sur une grande variété de surfaces. C’est un outil idéal pour l’entretien et la remise à neuf des parquets. Il permet également de nettoyer diverses surfaces dures, comme le carrelage en céramique et le granito. -
Page 18: Préparation De L'appareil
çage ou le papier abrasif, ne vous placez pas et ne laissez pas d’autres personnes se placer dans une position pouvant pro- voquer une blessure si l’appareil venait à basculer ou se renverser. ® Manuel de l’utilisateur (FR) - BOS-18 71486A - 17 - Clarke... -
Page 19: Utilisation De L'appareil
REMARQUE: Pour avoir des conseils sur le ponçage et le papier abrasif, voir en page 33. Figure 4 ® -18- 71486A Manuel de l’utilisateur (FR) - BOS-18 Clarke... -
Page 20: Dépannage
électrique plus proche du site. Faites vérifi er la tension électrique par un électricien. Mauvaise connexion. Contactez un détaillant Clarke agréé. Moteur défectueux. Contactez un détaillant Clarke agréé. ® Manuel de l’utilisateur (FR) - BOS-18 71486A - 19 - Clarke... - Page 21 NOTES...
- Page 22 BOS-18 Section II Parts and Service Manual (71486A)
-
Page 23: Section Ii Parts And Service Manual Assembly Drawing
® Clarke BOS-18 Assembly Drawing revised 2/10 ® -22- 71486A Operator's Manual - BOS-18 Clarke... -
Page 24: Assembly Parts List
NOTE 2: One red pad is included with machine. TABLE 1 Motor #27 Start Switch #25 44667A - Imperial (115V, 60 Hz) 56380670 40160A 44667A - Baldor (115V, 60 Hz) ® revised 2/10 Operator's Manual - BOS-18 71486A - 23 - Clarke... -
Page 25: Solution Tank Kit Drawing
® Clarke BOS-18 Solution Tank Kit (50026B) Drawing 4/08 ® -24- 71486A Operator's Manual - BOS-18 Clarke... -
Page 26: Solution Tank Kit Parts List
8. Mix cleaning solution according to instructions. 9. Fill solution tank with cleaning solution. 10. Pull up on handle to release solution to brush. 11. Proceed with polisher operating instructions. ® Operator's Manual - BOS-18 71486A - 25 - Clarke... -
Page 27: Electrical Schematics
® Clarke BOS-18 120v 60 Hz Electrical Schematic 4/08 ® -26- 71486A Operator's Manual - BOS-18 Clarke... - Page 29 14600 21st Avenue North Plymouth, MN 55447-3408 www.clarkeus.com Phone: 800-253-0367 Fax: 800-825-2753 ©2010 Nilfi sk-Advance, Inc. A Nilfi sk-Advance Brand...
