Technoline WS 7024 Instruction Manual

Suction cup window thermometer

Suction Cup Window Thermometer

Model No.: WS 7024

Instruction Manual

Battery Installation and °C/°F selection

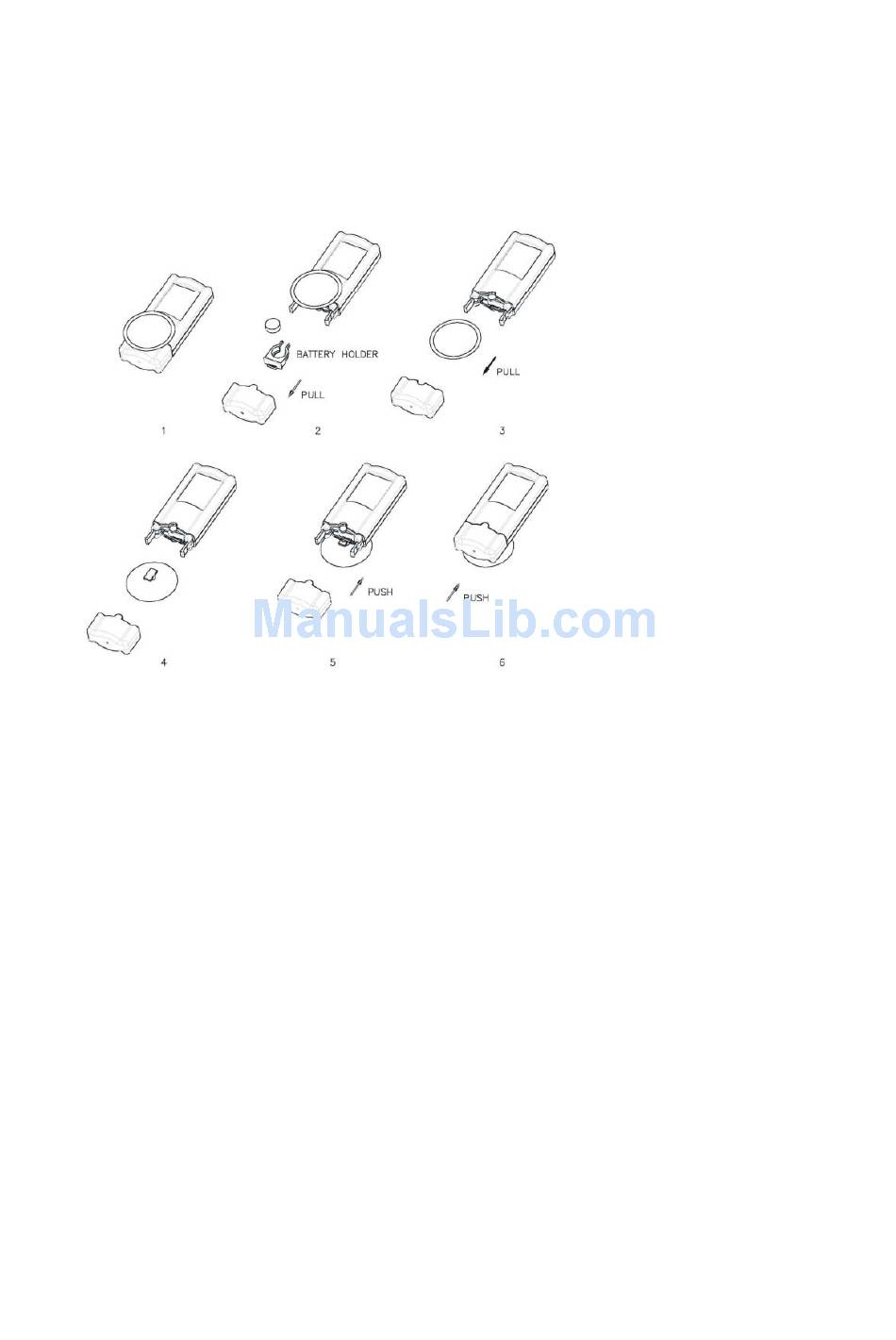

(See above illustrations 1~2)

- Pull the bottom housing and battery holder away from the top housing.

Insert the battery according to the polarity markings.

Slide the selector switch to either Fahrenheit or Celsius.

Re-attach the top and bottom housings.

Convert from Outdoor to Indoor Use (See above illustrations 3~6)

Your suction cup thermometer is assembled for outdoor use. If you want to

attach the thermometer to the inside of the window, follow these steps;

Pull the bottom housing away from the top housing.

Pull the suction cup away from the top housing.

Rotate the bottom housing and suction cup 180 degrees.

Push the suction cup into place.

Re-attach the top and bottom housings.

Table of Contents

Need help?

Do you have a question about the WS 7024 and is the answer not in the manual?

Page 1 Suction Cup Window Thermometer Model No.: WS 7024 Instruction Manual Battery Installation and °C/°F selection (See above illustrations 1~2) - Pull the bottom housing and battery holder away from the top housing. Insert the battery according to the polarity markings.
Page 2 The thermometer can be mounted to a window, mirror, or nay clean and smooth, non-porous surface. Suction cups will not hold on wood or plaster. Clean surface of any oils or other foreign matter. To attach the thermometer, press firmly the suction cup attaches to the housings, making sure the suction cup makes a tight bond with the mounting surface.
