INSTRUCTION MANUAL OF WS 9118

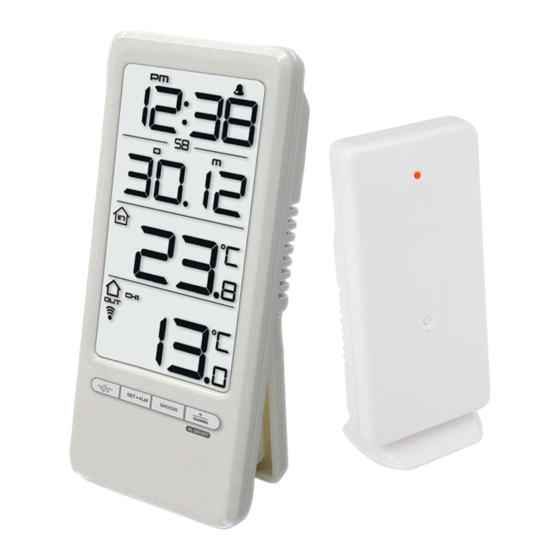

Wireless Indoor and Outdoor Thermometer-Clock

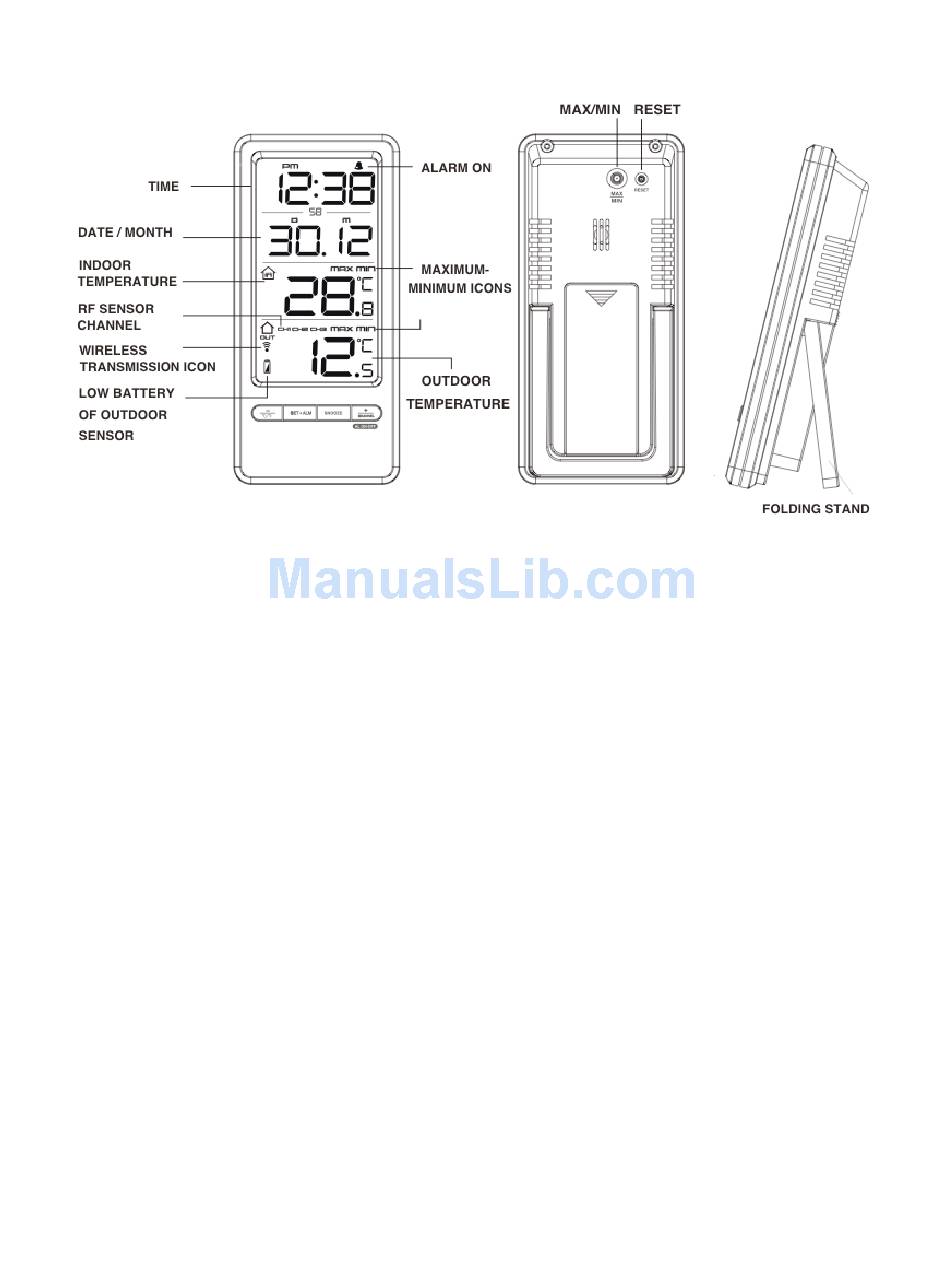

BUTTONS

- (C/F)
SET / ALARM
SNOOZE
+ / CHANNEL / ALM ON-OFF
MAX-MIN
RESET

QUICK START

1. Slide open the battery cover at the back of your wireless thermometer-clock.
2. Insert 2 x AAA batteries into the battery compartment by observing the correct + / - polarity
signs inside the battery compartment.
3. Replace the battery cover. In few seconds the LCD shows the default time, calendar and
the current indoor temperature and it starts to search for outdoor temperature signal.
4. Then insert 2 x AA batteries into the outdoor sensor. The outdoor temperature will be
displayed with "CH1" shown on the lower line of the LCD. Your Thermometer-
clock will be synchronized with outdoor sensor at Channel 1, the outdoor temperature will be
display.

TO SET CALENDAR, 12/24 TIME AND TIME

1. Press and hold SET / ALM SET for 2 seconds, time digits change to year "2008 YR" and
flash. Press + / - to set year.
2. Then press SET / ALM SET once again, month digits flash. Press +/- button to set month.
3. Then press SET / ALM SET once again, date digits flash. Press +/- button to set date.
4. Press SET / ALM SET once again, time digits change "24 Hr", press +/- to select
"12 Hr" time format or "24 Hr" time format. When "12 Hr" is selected, AM / PM icon will be
displayed.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WS 9118 and is the answer not in the manual?

Questions and answers

Summary of Contents for Technoline WS 9118

  • Page 1 INSTRUCTION MANUAL OF WS 9118 Wireless Indoor and Outdoor Thermometer-Clock BUTTONS - (C/F) SET / ALARM SNOOZE + / CHANNEL / ALM ON-OFF MAX-MIN RESET QUICK START 1. Slide open the battery cover at the back of your wireless thermometer-clock.
  • Page 2 5. Then press SET / ALM SET once again, time digits changes to “00”, press +/- to select your time zone. 6. Then press SET / ALM SET once again, time digits “0:00” show up and the hour digits flash. Press +/- to set the hours.
  • Page 3 When the minimum indoor-outdoor temperature and humidity are displayed, press and hold the MIN will clear the minimums and the unit will start to record and display fresh data again. TO SYNCHRONIZE YOUR CLOCK WITH MULTIPLE OUTDOOR SENSORS Your wireless thermometer-clock is equipped with one outdoor sensor. You could purchase second or third outdoor sensor to work with this thermometer-clock at the same time.
  • Page 4 Outdoor Temperature Interval every 1 minute Temperature Resolution 0.1°C Alarm Duration 2 minutes...
