Summary of Contents for INVENTOR MOB-GPC09AH

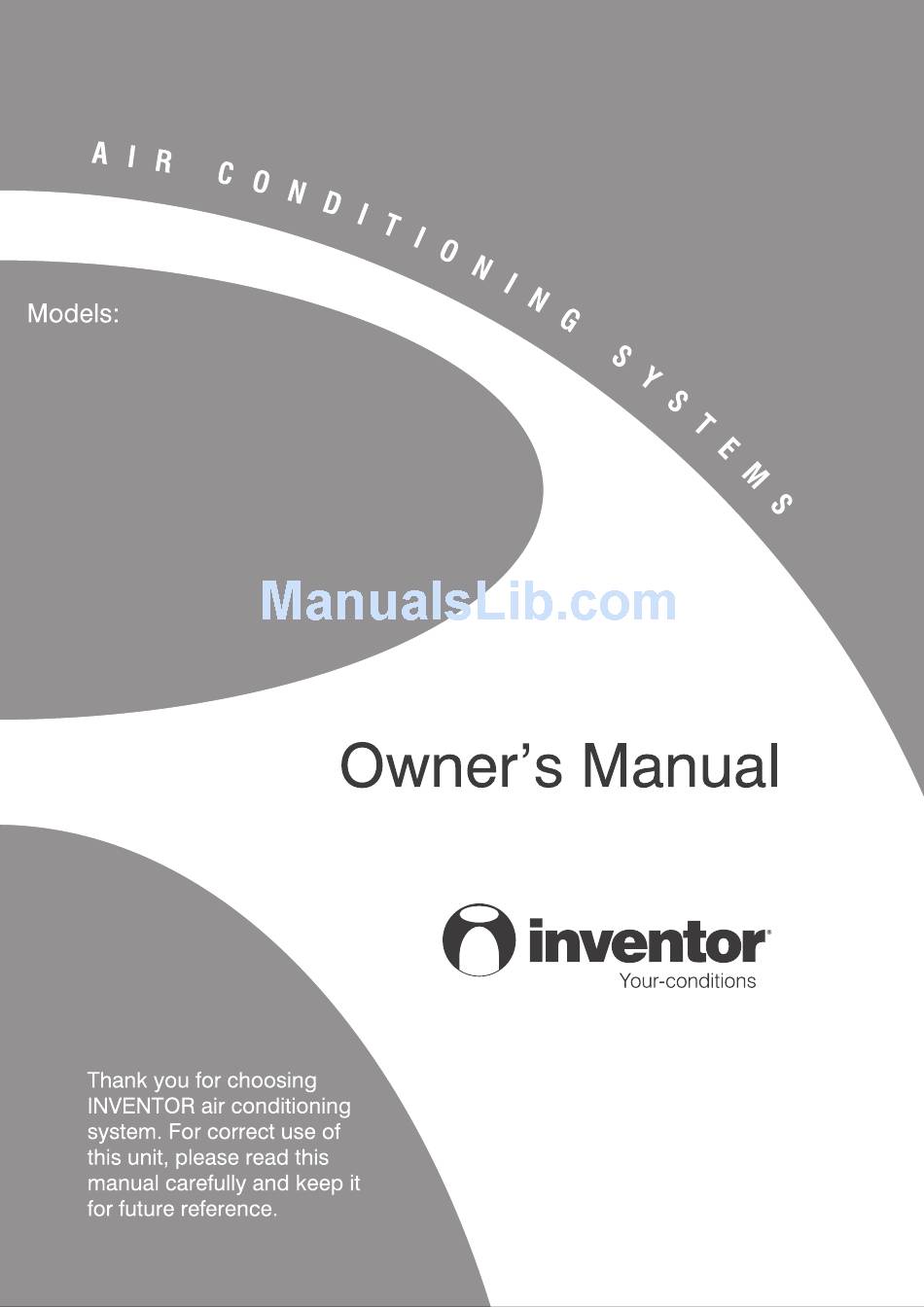

- Page 1 MOB-GPC09AH MOBILE AIR CONDITIONER...
-
Page 3: Table Of Contents
CONTENTS 1 SUMMARY 2 WORKING PRINCIPLE 3 STRUCTURE 4 OPERATING METHODS Functions and operation methods of control panel Environmental temperature Operation of wireless remote control Names and functions of wireless remote control Guide for operation- General operation Guide for operation- Optional operation Changing batteries and notices 5 DRAINAGE METHOD 6 ACCESSORIES AND INSTALLATION OF HEAT EXHAUST HOSE... - Page 4 Thank you for your selection, please read this instruction carefully before operating and keep it for consultation.
-
Page 5: Summary
SUMMARY Mobile Air Conditioner is a type of small multifunctional and movable air conditioner that contains func tions of COOL DRY and separate ventilation and it can be moved freely according to different location and occasion.it is suitable for office and houses especially those with many rooms. This product also contains the ad- vantages of compact configuration, excellent process, elegant appearance, convenient moving, low cost and low noise. - Page 6 When only used as dehumidifier, remember to take off heat window or wall discharge pipe from unit and install it onto unit when the unit is used as air conditioner. Since partial indoor air will be heated discharge pipe as heat air and discharged to outside by discharge pipe after cyc- Heated air ling then outdoor air will enter to maintain balance air pressure, cooled air...
-
Page 7: Structure
STRUCTURE Front Control panel Guide louver Swing louver Wheel Rear Remote conrtoller box Power cord Filters Upper air inlet grille Air outlet vent Lower air inlet grille... -
Page 8: Operating Methods
OPERATING METHODS Apply range for COOL and DRY The temp. range of this unit is 16 for cooli- ng and ranges from 16 -35 for dehumidifying Disposal requirement Place the unit on horizontal floor when using and ma- intain a distance for above 50cm from walls,surface of flammable objects or other obstructions. -
Page 9: Functions And Operation Methods Of Control Panel
Functions and operation methods of control panel WATER FULL light COOL mode light DRY mode light Receiver window FAN mode light LED screen MODE button Temperature selection button ON/OFF button Panel control When pressing key is valid,buzzer makes a sound,indicated light indicates relevant state,system will last for 2 seconds. -
Page 10: Environmental Temperature
Environmental temperature Usage environmental temperature of this unit is 16 35 . Cool 1 Install heat discharge pipe well, select a location near door and window, connect the heat discharge pipe to outside and note to leave an air return vent such as a window or door to guarantee the indoor air return normal. -
Page 11: Operation Of Wireless Remote Control
Operation of wireless remote control Names and functions of wireless remote control Note: Be sure that there are no obstructions between receiver and remote controller; Don't drop or throw the remote control; Don't let any liquid in the remote control and put the remote control directly under the sunlight or any place where is very hot. -
Page 12: Timer Button
Notice: This is a general use remote controller, it could be used for the air conditioners with multifunction; For some function, which the model dosen't have, if press the corresponding button on the remote controller that the unit will keep the original running status. -
Page 13: Guide For Operation- General Operation
Guide for operation- General operation 1. After powered on, press ON/OFF button, the unit will start to run.(Note: When it is powered off, the guide louver of main unit will close automatically.) 2. Press MODE button, select desired running mode, or press COOL or HEAT mode to enter into the corresponding operation directly. -
Page 14: Drainage Method
DRAINAGE METHOD When COOL or DRY is running,condensate will drain to water tank.When water tank is filled buz- zer will sound 8 timers for warn, water tank green indicated light on panel on with H8 displayed on display window and whole unit stop running.Plug out plug on drainage hose and take off the hose fro- m fixing clamp, then drain out water in tank.After that,plug the pipe plug onto pipe to prevent leaka- ge of condensate and fix drainage pipe fixing clamp as shown in following figure.The unit will resu-... - Page 15 Drain Hose Clip A. Drain port B. Attach drain hose clip with screw provided. 5. Snap the free end of the drain hose into the drain hose clip. Drain Hose A. Drain plug Drain hose clip B. Drain port Clamps C.
-
Page 16: Accessories And Installation Of Heat Exhaust Hose
ACCESSORIES AND INSTALLATION OF HEAT EXHAUST HOSE Length range of exhaust pipe should be 500mm-1500mm. It is recommended to use it with shortest length. ¡ñ When installing, exhaust pipe should be as flat as possible. Don't prolong the pipe or connect it with other exhaust pipe, or Correct installation is as shown in figure (When installing it on wall, height of hall should be about 40cm-130cm from floor). - Page 17 If the pipe are to be bent, please install it by considering following dimension. 55cm 55cm Wrong installation is shown in following figure (If the pipe is bent too much, it would easily cause malfunction.) 13 -...
-
Page 18: Maintenance
MAINTENANCE Mobile AC There are wheels at bottom of mobile air conditioner that enable the unit moves among rooms conveniently according to need. Warning Plug off power plug from socket and cut off power before any maintenance to prevent creepage occurs. Clean air filter If too much duct deposed on filter, performance of air conditioner will reduce, thus it is better to clean filter at least once 2 weeks. -
Page 19: Malfuction Analysis
MALFUCTION ANALYSIS If malfunction occur, please check the following before maintenance: Troubles Possible Causes Solutions The air conditioner doesn't start. The power supply is not connected well. 1. Insert the power plug tightly. The power plug is not inserted tightly. 2. -
Page 20: Safe Note And Notice
SAFE NOTE AND NOTICE Location Don't place the unit in narrow location. Guarantee better ventilation for unit to prevent malfunction occurs. Don't place the unit in where there is direct sunburn to prevent fade and re- duce of effect. The unit should be at least 50cm away from surface of flammable thing. Don't soak the unit or operate it in place where is easy to get wet to prevent creepage. -
Page 21: After Sales Service
For disposal there are several possibilities: a) The municipality has established collection systems, where electronic waste can be disposed of at least free of charge to the user. b) When buying a new product, the retailer will take back the old product at least free of charge. - Page 24 66129910245...
