INVENTOR APSI-09 / APSO-0 Owner's Manual

INVENTOR APSI-09 / APSO-0 Owner's Manual

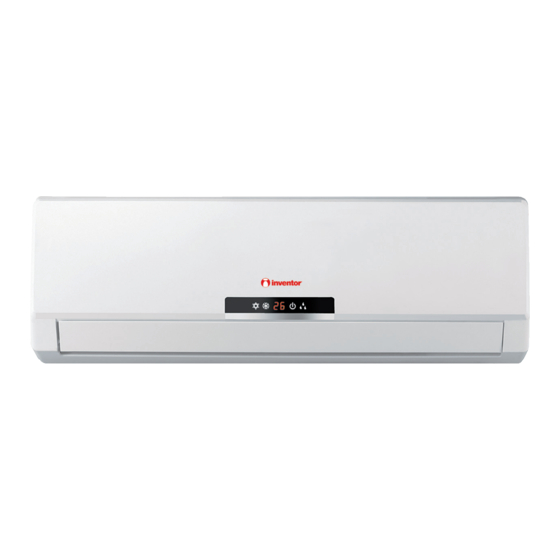

Wall mounted unit

Advertisement

66129903946
Models
APSI-09 / APSO-09
APSI-09 /
APSO-09
APSI-12 / APSO-12
APSI-18 / APSO-18
Owner's Manual
Thank you for choosing INVENTOR air
conditioning system. For correct use of this unit,
please read this manual carefully and keep it for
future reference.
Wall Mounted Unit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APSI-09 / APSO-0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for INVENTOR APSI-09 / APSO-0

  • Page 1 APSI-09 / APSO-09 APSO-09 APSI-12 / APSO-12 APSI-18 / APSO-18 Wall Mounted Unit Owner’s Manual Thank you for choosing INVENTOR air conditioning system. For correct use of this unit, please read this manual carefully and keep it for future reference. 66129903946...
  • Page 3 APSI-09 / APSO-09 APSI-09 / APSO-09 APSI-12 / APSO-12 APSI-18 / APSO-18...
  • Page 4: Table Of Contents

    Thank you for choosing Inventor air conditioner, please read this owner's manual carefully before operating the unit and keep it carefully for consulation. The products in this manual may be different with the real one, according to different models, some models have displayer and some models without displayer, the position and shape of the displayer please refer to the real one.
  • Page 5: Operation And Maintenance Notices For Operation

    Operation and maintenance-Notices for operation ★ ★ Earth: The ground Be sure to pull out the power ★ Select the most appropriate tem- be connected! plug when not using the air co- perature. nditioner for a long time. Keep room coo- er than outside about 5 degree.
  • Page 6: Notices For Operation

    Notices for operation ★ The airflow direction can be adjusted appro- ★ If the supply cord is damaged, it must be replaced priately. At operating, adjust the vertical airflow by the manufacturer or its service agent or a direction by adjusting the louvers of upward/do- similarly qualified person in order to avoid a wnward direction.
  • Page 7: Notices For Use

    Notices for use Working principle and special functions for cooling Principle: Air conditioner absorbs heat in the room and transmit to outdoor and discharged, so that indoorambient temperature decreased, its cooling capacity will increase or decrease by outdoor ambient temperature. Anti-freezing function: If the unit is running in COOL mode and in low termperature, there will be frost formed on ℃...
  • Page 8 Notices for use Gentle Breeze In the following situation, the indoor unit may blow gentle breeze, and the guide louver rotate to a certain position: 1. In “Heat” mode, the unit turned on, the compressor doesn’t arrive the starting condition 2.
  • Page 9: Specificate Model And Technical Data

    Specificate Model and Technical Data...
  • Page 10: Names And Functions Of Each Part

    Names and functions of each part Indoor unit Air in ⑴ ⑶ ⑸ Air out The pattern in displayer: :Cool ⑴ Power cable :Dry Wireless remote control ¢Æ :Heat Remote control : Front panel :Set temp. ¢È Filter Guide louver ¢Ê...
  • Page 11: Operation Of Wireless Remote Control

    Operation of wireless remote control Names and functions of wireless remote control Note: Be sure that there are no obstructions between receiver and remote controller; Don't drop or throw the remote control; Don't let any liquid in the remote control and put the remote control directly under the sunlight or any place where is very hot.
  • Page 12: Names And Functions Of Wireless Remote Control

    Operation of wireless remote control Names and functions of wireless remote control Notice: This is a general use remote controller, it could be used for the air conditioners with multifunction; For some function, which the model dosen't have, if press the ¡ñ...
  • Page 13 Operation of wireless remote control Guide for operation- General operation 1. After powered on, press ON/OFF button, the unit will start to run.(Note: When it is powered off, the guide louver of main unit will close automatically.) 2. Press MODE button, select desired running mode, or press COOL or HEAT mode to enter into the corresponding operation directly.
  • Page 14 Operation of wireless remote control ¡ï About new function of defrosting Under switch-off state, hold MODE key for 2 seconds to enter or exit defrost H1 function. After being energized, the defrost H1 function is defaulted off. When entering defrost H1 function, the double-8 nixie tube will display H1 under switch-off state.When adjusting to heat mode, the double-8 nixie tube will display in flash for 5 seconds at a frequency of 1 count / sec.
  • Page 15: Clean And Care

    Clean and care Caution before cleaning air conditioner, or it may cause electric shock. Disconnect the power supply ● ● Never sprinkle water on the indoor unit and the outdoor unit for cleaning because it can cause an ● electric shock. Volatile liquid (e.g.
  • Page 16 Clean and care Check before use ① Be sure that nothing obstructs the air outlet and intake vents. ② Check that whether ground wire is properly connected or not. ③ Check that whether the batteries of air conditioner are changed or not. ④...
  • Page 17: Troubleshooting

    Troubleshooting CAUTION Don't attempt to repair the air conditioner by yourself, it can cause an electric shock or fire. Please check the following items before asking for repair, it can save your time and money. Phenomenon Troubleshooting Not operate immediately when the air Once the air conditioner is stopped, it will ●...
  • Page 18 Troubleshooting Phenomenon Troubleshooting Has the power been shut down? ● The unit can not run. Is power plug loosed? ● Is the circuit protection device tripped off or not? ● Is voltage higher or lower? ● (Tested by professionals) Breaking off Is the TIMER correctly used? ●...
  • Page 19 Troubleshooting Phenomenon Troubleshooting Indoor unit cannot deliver air. In HEAT mode, when the temperature of indoor ● heat exchanger is very low, that will stop deliver air in order to prevent cool air. (Within 2min) In HEAT mode, when the outdoor temperature ●...
  • Page 20: Notices For Installation

    Notices for installation Important Notices The unit installation work must be done by qualified personnel according to the local rules and this manual. Before installating, please contact with local authorized maintenance center, if unit is not installed by the authorized maintenance center, the malfunction may not solved, due to discommodious contacts.
  • Page 21 Notices for installation Safety Requirements For Electric Appliances 1. The power supply should be used the rated voltage and AC exclusive circuit, the power cable diameter should be satisfied. 2. Don't drag the power cable emphatically. It should be reliably earthed, and it should be connected to the special earth device, the installation work should be operated by the professional.
  • Page 22: Installation Dimension Diagram

    Installation dimension diagram Installation dimension diagram Space to the ceiling Above Space to the wall Above Above Space to the wall Above Above Air outlet side Space to the floor ● The dimensions of the space necessary for correct installation of the appliance including the minimum permissible distances to adjacent structures The outdoor unit installation dimension...
  • Page 23: Install Indoor Unit

    Install indoor unit Install the rear panel 1.Always mount the rear panel horizontally. Due to the water tray of indoor unit has been adopted the both-way drainage design, the outlet of water tray should be adjusted slightly down when installing, that is taking the outlet of the water tray as the center of a circle, the included angle between the evaporator and level should be 0 or more, that is good for condensing water drainage.
  • Page 24 Install indoor unit NOTE: When connecting the electric wire if the wire length is not enough, please contact with the authorized service shop to buy a exclusive electric wire that is long enough and the joint on the wire are not allowed. The electric wiring must be correctly connected, wrong connection may cause spare parts ●...
  • Page 25: Install Outdoor Unit

    Install outdoor unit Electric wiring Disassemble the handle on the outdoor unit right side plate. Take off cord anchorage. Connect and fix power connect Handle cord (for cooling and heating unit,connect and fix power 、 connect cord and signal control wire)to terminal block. Heat pump type: N(1) 2 Fix the power connection cable with cord anchorage,...
  • Page 26: Check After Installation And Test Operation

    Check after installation and test operation Check after installation Items to be checked Possible malfunction Has it been fixed firmly? The unit may drop, shake or emit noise. It may cause insufficient cooling(heating) Have you done the refrigerant leakage test? capacity It may cause condensation and dripping.
  • Page 27: Installation And Maintenance Of Healthy Filter

    Installation and Maintenance of Healthy Filter Installation Instructions 1. Forcibly pull the panel for a specific angle from the two ends of the front panel according to the arrow direction. Then pull the air filter downwards to remove it. (See Fig.a) Fig.
