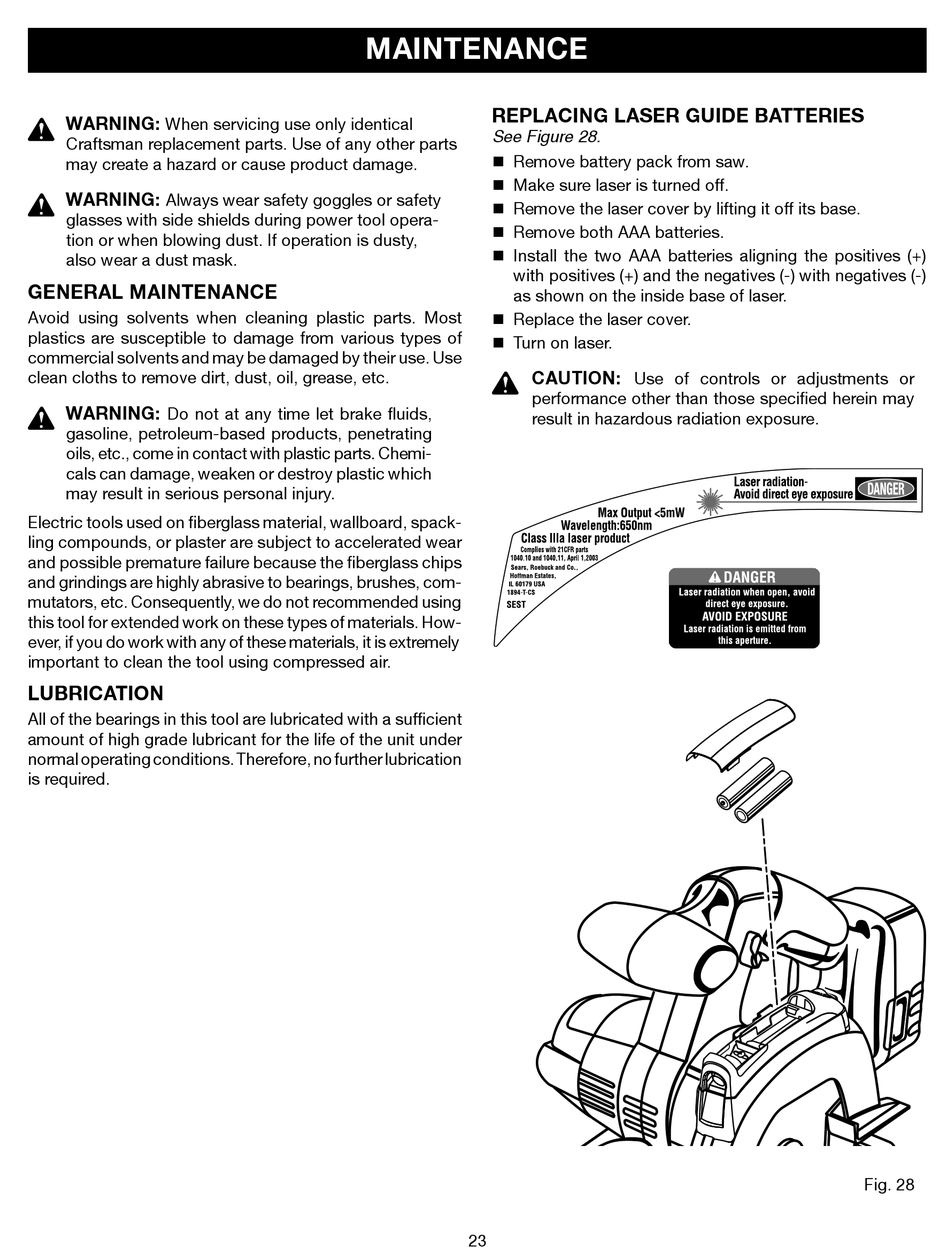

Maintenance; General Maintenance - Craftsman 315.115160 Operator's Manual

5-1/2 in., 19.2 volt cordless laser trim saw
Hide thumbs


Table of Contents
When servicing use only identical
Craftsman replacement parts. Use of any other parts
may create a hazard or cause product damage.
Always wear safety goggles or safety
glasses with side shields during power tool opera-
tion or when blowing dust. If operation is dusty,
also wear a dust mask.


Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use. Use
clean cloths to remove dirt, dust, oil, grease, etc.
Do not at any time let brake fluids,
gasoline, petroleum-based products, penetrating
oils, etc., come in contact with plastic parts. Chemi-
cals can damage, weaken or destroy plastic which
may result in serious personal injury.
Electric tools used on fiberglass material, wallboard, spack-
ling compounds, or plaster are subject to accelerated wear
and possible premature failure because the fiberglass chips
and grindings are highly abrasive to bearings, brushes, com-
mutators, etc. Consequently, we do not recommended using
this tool for extended work on these types of materials. How-
ever, if you do work with any of these materials, it is extremely
important to clean the tool using compressed air.
All of the bearings in this tool are lubricated with a sufficient
amount of high grade lubricant for the life of the unit under
normal operating conditions. Therefore, no further lubrication
is required.


See Figure 28.
n Remove battery pack from saw.
n Make sure laser is turned off.
n Remove the laser cover by lifting it off its base.
n Remove both AAA batteries.
n Install the two AAA batteries aligning the positives (+)
with positives (+) and the negatives (-) with negatives (-)
as shown on the inside base of laser.
n Replace the laser cover.
n Turn on laser.
performance other than those specified herein may
result in hazardous radiation exposure.
Use of controls or adjustments or
Fig. 28
