Basic User's Guide
MFC-8510DN
MFC-8520DN
Not all models are available in all countries.
Version 0
UK/IRE

Advertisement

Table of Contents
loading

Related Manuals for Brother MFC-8520DN

Summary of Contents for Brother MFC-8520DN

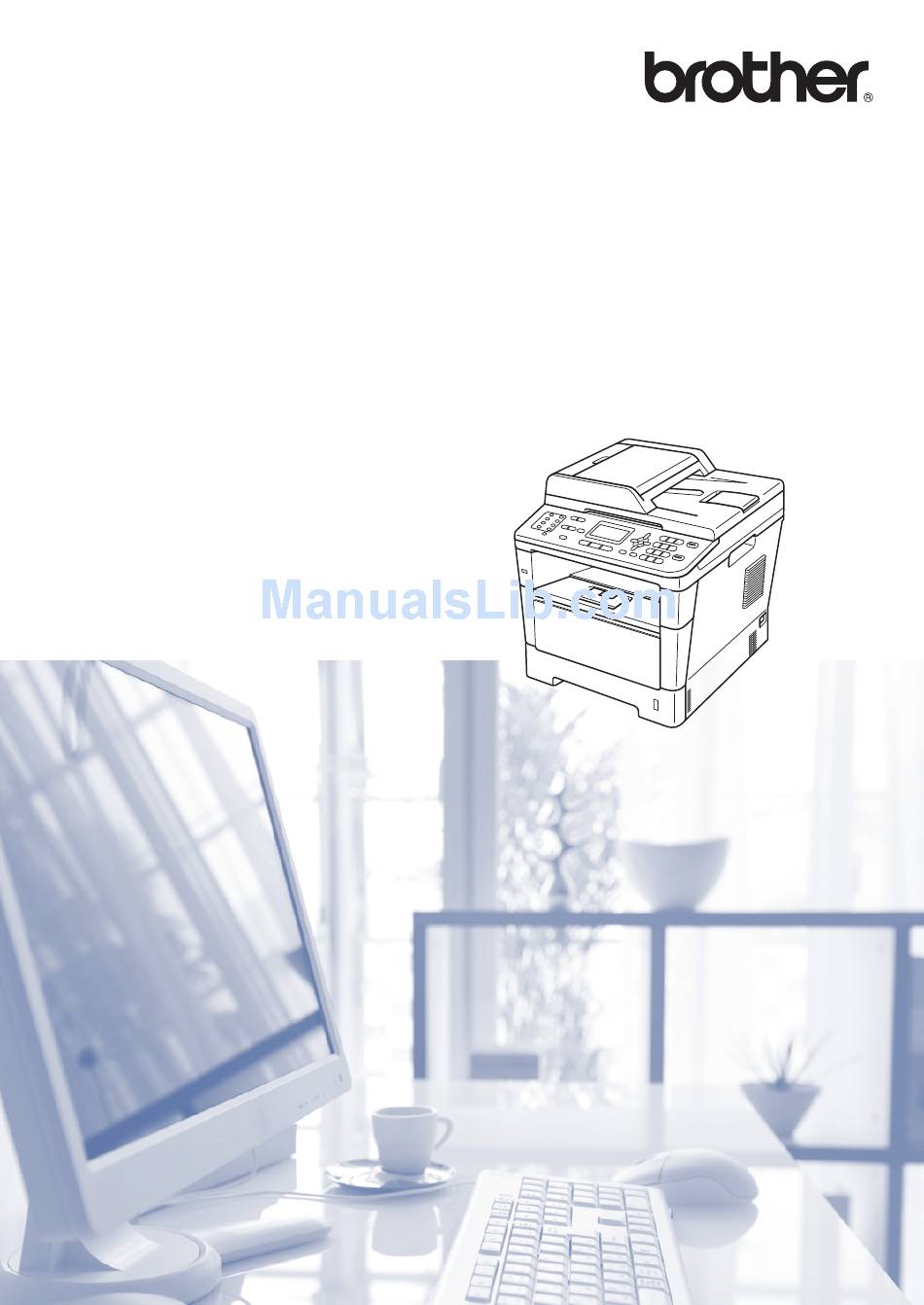

  • Page 1 Basic User’s Guide MFC-8510DN MFC-8520DN Not all models are available in all countries. Version 0 UK/IRE...
  • Page 2 The serial number is on the back of the unit. Retain this User’s Guide with your sales receipt as a permanent record of your purchase, in the event of theft, fire or warranty service. Register your product on-line at http://www.brother.com/registration/ © 2012 Brother Industries, Ltd. All rights reserved.
  • Page 3 Google Cloud Print This Guide provides details on how to PDF file / Brother Solutions Guide configure your Brother machine to a Google Center account and use Google Cloud Print services for printing over the Internet from devices using Gmail™ for mobile, GOOGLE DOCS™...

  • Page 4: Table Of Contents

    Viewing Documentation ...................2 How to access the User's Guides for Advanced Features........4 ® Accessing Brother Support (Windows ) ..............4 Accessing Brother Support (Macintosh) ..............5 Control panel overview ..................6 Data LED indications ..................8 Volume settings .....................9 Ring volume.....................9 Beeper volume ....................9 Speaker volume....................9...
  • Page 5 Connecting an external or extension telephone ..........38 Operation from external or extension telephones..........39 For Fax/Tel mode only................... 39 Using extension telephones (U.K. only) ............39 Using a non-Brother cordless external handset ..........40 Using Remote Codes ..................40 Dialling and storing numbers How to dial......................42 Manual dialling....................
  • Page 6 Making copies How to copy ......................52 Stop copying ....................52 Copy settings ....................52 Printing data from a USB Flash memory drive or digital camera supporting mass storage Creating a PRN file for direct printing ..............53 Printing data directly from the USB Flash memory drive or digital camera supporting mass storage ..................54 How to print from a computer Printing a document.....................57...
  • Page 7 Troubleshooting Identifying your problem ..................88 Error and maintenance messages............... 90 Transferring your faxes or Fax Journal report ..........97 Document Jams....................98 Document is jammed in the top of the ADF unit ..........98 Document is jammed under the document cover ..........98 Removing small documents jammed in the ADF...........
  • Page 8 Table of Contents (Advanced User's Guide) You can view the Advanced User's Guide on the Installer CD-ROM. The Advanced User's Guide explains the following features and operations. General Setup Making copies Memory storage Copy settings Automatic Daylight Saving Time Duplex (2-sided) copying Ecology features Routine maintenance Quiet mode feature...

  • Page 9: General Information

    Bold Bold style identifies keys on the documentation machine's control panel or on the computer screen. Thank you for buying a Brother machine! Italics Italicized style emphasizes an Reading the documentation will help you important point or refers you to make the most of your machine.

  • Page 10: Accessing The Advanced User's Guide, Software User's Guide And Network User's Guide

    CD-ROM by following the instructions below: Turn on your computer. Insert the Installer CD-ROM into your CD-ROM drive. Note If the Brother screen does not appear automatically, go to My Computer Double-click the Documentation icon. (Computer), double-click the CD-ROM If the model name screen appears, icon, and then double-click start.exe.
  • Page 11 (Macintosh users) Note Presto! PageManager must be downloaded and installed before use. For further instructions, see Accessing Brother Support (Macintosh) uu page 5.  The complete Presto! PageManager User’s Guide can be viewed from the Help section in the Presto! PageManager...

  • Page 12: How To Access The User's Guides For Advanced Features

    You can view and download these Guides Center) on the Installer CD-ROM. from the Brother Solutions Center at:  Click Brother Support on the main menu. http://solutions.brother.com/ The following screen will appear: Click Manuals on your model's page to download the documentation.

  • Page 13: Accessing Brother Support (Macintosh)

    Double-click the Brother Support icon. The following screen will appear:  To download and install Presto! PageManager, click Presto! PageManager.  To register your machine from the Brother Product Registration Page (http://www.brother.com/registration/), click On-Line Registration.  For the latest news and product support information (http://solutions.brother.com/), click...

  • Page 14: Control Panel Overview

    Chapter 1 Control panel overview MFC-8510DN and MFC-8520DN have the same keys. The illustration is based on the MFC-8520DN. 01/01/2012 15:00 Res:Standard Press b or Dial 1 One Touch keys 3 Error LED These 8 keys give you instant access to 16 Blinks in orange when the LCD displays an previously stored numbers.
  • Page 15 General information 01/01/2012 15:00 Res:Standard Press b or Dial 6 Menu Keys: 9 Start Clear Lets you start sending faxes or making copies. Deletes entered data or lets you cancel the 10 Mode keys: current setting. Menu Puts the machine in FAX mode. Lets you access the Menu to program your settings or retrieve information from the SCAN...

  • Page 16: Data Led Indications

    Chapter 1 Data LED indications The Data LED (light emitting diode) will flash depending on the machine’s status. Machine Status Description Ready Mode The machine is ready to print, in Sleep mode, there is no print data, or the power switch is off. Receiving Data The machine is either receiving data from the computer, processing data in memory, or printing data.

  • Page 17: Volume Settings

    General information Volume settings Speaker volume You can choose a range of speaker volume Ring volume levels, from High to Off. Press Menu, 1, 3, 3. You can choose a range of ring volume levels, from High to Off. Press a or b to choose Low, Med, High While in FAX mode press to adjust or Off.

  • Page 18: Loading Paper

    Loading paper Loading paper and Printing on plain paper, thin paper or recycled paper from Tray 1 and Tray 2 print media Pull the paper tray completely out of the machine. The machine can feed paper from the standard paper tray, optional lower tray or multi-purpose tray.
  • Page 19 Loading paper Fan the stack of paper well to avoid Lift up the support flap (1) to prevent paper jams and misfeeds. paper from sliding off the face-down output tray, or remove each page as soon as it comes out of the machine. Put paper in the tray and make sure: ...

  • Page 20: Loading Paper In The Multi-Purpose Tray (Mp Tray)

    Chapter 2 Loading paper in the Pull out the MP tray support (1) and unfold the flap (2). multi-purpose tray (MP tray) You can load up to 3 envelopes or special print media in the MP tray or up to 50 sheets of plain paper.
  • Page 21 Loading paper Printing on thick paper, labels and Lift up the support flap to prevent paper from sliding off the face-down output envelopes from the MP tray tray, or remove each page as soon as it Before loading, press the corners and sides comes out of the machine.
  • Page 22 Chapter 2 Open the MP tray and lower it gently. Put paper, labels or envelopes in the MP tray. Make sure:  The number of envelopes in the MP tray does not exceed 3. The paper, labels or envelopes stay ...

  • Page 23: Unscannable And Unprintable Areas

    Loading paper Unscannable and unprintable areas The figures below show maximum unscannable and unprintable areas. These areas may vary depending on the paper size or settings in the application you are using. Note When using BR-Script3 emulation, the edges of the paper that cannot be printed on are 4.2 mm.

  • Page 24: Paper Settings

    Chapter 2 Paper settings Paper Size Note Paper Type You can use four sizes of paper for printing faxes: A4, Letter, Legal or Folio. Set up the machine for the type of paper you are using. This will give you the best print You can use ten sizes of paper for printing quality.

  • Page 25: Tray Use In Copy Mode

    Loading paper Tray Use in COPY mode Tray Use in FAX mode You can change the priority tray that the You can change the default tray that the machine will use for printing copies. machine will use for printing received faxes. When you choose Tray#1 Only, MP Only When you choose Tray#1 Only, MP Only or Tray#2 Only...

  • Page 26: Tray Use In Print Mode

    Chapter 2 Tray Use in print mode You can change the default tray the machine will use for printing from your computer and for Direct print. Press Menu, 1, 6, 3. Press a or b to choose Tray#1 Only, , MP Only, Tray#2 Only or T1>T2 MP>T1>T2...

  • Page 27: Acceptable Paper And Other Print Media

    Loading paper Acceptable paper and Recommended paper and print media other print media Print quality may vary according to the type of Paper Type Item paper you are using. Plain paper Xerox Premier TCF 80 g/m You can use the following types of print Xerox Business 80 g/m media: plain paper, thin paper, thick paper, thicker paper, bond paper, recycled paper,...
  • Page 28 Chapter 2 Paper capacity of the paper trays Paper size Paper types No. of sheets Standard Paper Tray A4, Letter, Legal, B5, Plain paper, Thin paper, up to 250 (80 g/m (Tray 1) Executive, A5, Recycled paper A5 (Long Edge), A6, B6, Folio Multi-purpose Tray Width: 76.2 to 215.9 mm...

  • Page 29: Handling And Using Special Paper

    • that is multipart or carbonless • that is designed for inkjet printing If you use any of the types of paper listed above, they may damage your machine. This damage is not covered under any Brother warranty or service agreement.
  • Page 30 • that were previously printed by a laser machine. This damage may not be machine covered under any Brother warranty or service agreement. • that are pre-printed on the inside Occasionally you may experience paper •...
  • Page 31 Loading paper Labels Types of labels to avoid The machine will print on most types of labels Do not use labels that are damaged, curled, designed for use with a laser machine. Labels wrinkled or an unusual shape. should have an adhesive that is acrylic-based since this material is more stable at the high temperatures in the fuser unit.

  • Page 32: Loading Documents

    Loading documents How to load Note documents • To scan documents that are not suitable for the ADF, see Using the scanner glass uu page 25. You can send a fax, make copies, and scan from the ADF (Automatic Document Feeder) •...

  • Page 33: Using The Scanner Glass

    Loading documents How to load documents Adjust the paper guides (1) to fit the width of your document. Note To use the scanner glass, the ADF must be empty. Lift the document cover. Using the document guidelines on the left and top, place the document face down in the upper left corner of the scanner glass.

  • Page 34: Sending A Fax

    To send the document, go to fax send or receive settings, press the Step d. (FAX) key to illuminate it in blue. (MFC-8520DN) Do one of the options below:  If you want to send a single-sided document, go to Step e.
  • Page 35 Faxing from the ADF (uu Advanced User's Guide: Sending a fax)  The machine starts scanning the Duplex Scan (2-sided fax layout)  document. (For MFC-8520DN)  Faxing from the scanner glass Contrast   The machine starts scanning the first Fax Resolution page.

  • Page 36: Faxing Letter Size Documents From The Scanner Glass

    Chapter 4 Faxing Letter size documents Transmission Verification from the scanner glass Report When faxing Letter size documents, you will You can use the Transmission Verification need to set the scan glass size to Letter; Report as proof that you sent a fax. otherwise, a portion of your faxes will be (uu Advanced User's Guide: Transmission missing.
  • Page 37 Sending a fax Note • If you choose On+Image or Off+Image, the image will only appear on the Transmission Verification Report if Real Time Transmission is set to Off. (uu Advanced User's Guide: Real Time Transmission) • If the transmission is successful, OK will appear next to RESULT on the Transmission Verification Report.

  • Page 38: Receiving A Fax

    Receiving a fax Receive modes Note You can use four sizes of paper for printing faxes: A4, Letter, Legal or Folio. You must choose a receive mode depending on the external devices and telephone services you have on your line. Choosing the receive mode By default, your machine will automatically receive any faxes that are sent to it.

  • Page 39: Using Receive Modes

    Receiving a fax Using receive modes Manual Manual mode turns off all automatic Some receive modes answer automatically answering functions unless you are using the (Fax Only and Fax/Tel). You may want to BT Call Sign feature. change the Ring Delay before using these modes.

  • Page 40: Receive Mode Settings

    Chapter 5 Receive Mode settings F/T Ring Time (Fax/Tel mode only) Ring Delay When somebody calls your machine, you and your caller will hear the normal telephone ring The Ring Delay setting sets the number of sound. The number of rings is set by the Ring times the machine rings before it answers in Delay setting.

  • Page 41: Fax Detect

    Receiving a fax Fax Detect If Fax Detect is On: The machine can receive a fax automatically, even if you answer the call. When you see Receiving on the LCD or hear a click on the phone line through the handset you are using, just replace the handset.

  • Page 42: Using Pc-Fax

    • Before you can set up PC-Fax Receive From the Windows Start menu, select you must install the MFL-Pro Suite All Programs, Brother, MFC-XXXX, software on your PC. Make sure your PC PC-Fax Receiving, and select Receive. is connected and turned on. (uu Software (XXXX is your model name.)

  • Page 43: Pc-Fax Send

    Using PC-FAX PC-FAX Send The Brother PC-FAX feature lets you use your PC to send a document from an application as a standard fax. You can send a file created in any application on your PC as a PC-FAX. You can even attach a cover page.

  • Page 44: Telephone And External Devices

    Telephone and external devices Telephone line Note services • You can use the numbers 0 to 9, #, l and !. (Press Tel/R to display “!”.) Setting the telephone line • If you choose On, pressing Tel/R (the type screen displays “!”.) will let you access an outside line.

  • Page 45: Connecting An External Tad

    Telephone and external devices Connecting an external Connections The external TAD must be connected as shown in the illustration below. You can connect an external Telephone Answering Device (TAD) to the same line as your machine. When the TAD answers a call, your machine will “listen”...

  • Page 46: Recording An Outgoing Message (Ogm)

    Chapter 7 External and extension Recording an outgoing message (OGM) telephones Record 5 seconds of silence at the Note beginning of your message. This allows You need to turn the Remote Codes your machine time to listen for fax tones. setting to on to use the Remote Activation Limit your speaking to 20 seconds.

  • Page 47: Operation From External Or Extension Telephones

    Telephone and external devices Operation from external or Using extension telephones extension telephones (U.K. only) If you answer a fax call on an extension Your premises may already be wired with telephone, or an external telephone that is parallel extension telephones (those correctly connected to the machine through connected to sockets in other rooms in the the T-piece connection, you can make your...

  • Page 48: Using A Non-Brother Cordless External Handset

    Make sure you are in FAX mode external handset Press Menu 2, 1, 4. If your non-Brother cordless telephone is connected to the telephone line cord (see Press a or b to choose On. page 38) and you typically carry the cordless Press OK.
  • Page 49 Telephone and external devices Changing the Remote Codes The preset Remote Activation Code is l51. The preset Remote Deactivation Code is #51. If you are always disconnected when accessing your External TAD, try changing the three-digit remote codes, for example ### and 555.

  • Page 50: Dialling And Storing Numbers

    Dialling and storing numbers How to dial Speed dialling You can dial in any of the following ways. Press (Address Book) twice and enter the three digit Speed Dial number. (See Manual dialling Storing Speed Dial numbers uu page 48.) Use the dial pad to enter all the digits of the telephone or fax number.

  • Page 51: Search

    Dialling and storing numbers Search LDAP search You can search alphabetically for names you If the machine is connected to your LDAP have stored in the One Touch and Speed Dial server, you can search for information such memories. (See Storing One Touch Dial as fax numbers and E-mail addresses from numbers uu page 46 and Storing Speed Dial your server.

  • Page 52: Storing Numbers

    Chapter 8 Storing numbers You can set up your machine to do the following types of easy dialling: One Touch, Speed Dial and Groups for Broadcasting faxes. You can also specify the default resolution for each One Touch and Speed Dial number.

  • Page 53: One Touch And Speed Dial Storage Options

    200x100dpi Registration Type option is available if you have installed the IFAX and E-mail options on your machine. You can add the IFAX and E-mail options by downloading them from the Brother Solutions Center at: http://solutions.brother.com/. Note • PDF/A is a PDF file format intended for long-term archiving. This format contains all the necessary information for reproducing the document after long-term storage.

  • Page 54: Storing A Pause

    Chapter 8 Storing a pause Do one of the following:  Enter the name using the dial pad Press Redial/Pause to insert a 2.8-second (up to 15 characters). To help you pause between numbers. You can press enter letters, see Entering text Redial/Pause as many times as needed to uu page 154.
  • Page 55 Dialling and storing numbers Enter the fax/telephone number (up to Option selected in step b Go to step 20 characters each) or E-mail address (up to 60 characters each). For help Fax/Tel entering characters, see Entering text IFAX uu page 154. Email Color PDF Press OK.

  • Page 56: Storing Speed Dial Numbers

    Chapter 8 Storing Speed Dial numbers Press a or b to choose the resolution from 100dpi, 200dpi, 300dpi or Auto. You can store your frequently used numbers Press OK. as Speed Dial numbers, so that when you dial you will only have to press a few keys ...
  • Page 57 Dialling and storing numbers If you have downloaded the IFAX and Do one of the following: E-mail options  Enter the name using the dial pad (up to 15 characters). If you have installed the IFAX and E-mail options to your machine, use this procedure Press OK.

  • Page 58: Changing Or Deleting One Touch And Speed Dial Numbers

    Chapter 8 Changing or Deleting Press a or b to choose the resolution from Std, Fine or Photo. One Touch and Speed Dial Press OK. numbers Press a or b to choose the resolution from 100dpi, 200dpi, 300dpi, You can change or delete a One Touch or 600dpi or Auto.
  • Page 59 Dialling and storing numbers Do one of the following:  Press 1 to choose Change to edit the number, name or E-mail address. Go to step c.  Press 2 to choose Clear to delete all information in a One Touch or Speed Dial number.

  • Page 60: Making Copies

    Making copies How to copy Press Start. Stop copying The following steps show the basic copy operation. (uu Advanced User's Guide) To stop copying, press Stop/Exit. When you want to make a copy, press (COPY) to illuminate it in blue. Copy settings ...

  • Page 61: Printing Data From A Usb Flash Memory Drive Or Digital Camera Supporting Mass Storage

    From the menu bar of an application, USB Mass Storage SCSI or SFF-8070i click File, then Print. Class Choose Transfer protocol Bulk transfer Only Brother MFC-XXXX Printer (1) and FAT12/FAT16/FAT32 Format check the Print to file box (2). Sector size Max. 4096 Byte Click Print. Encryption USB Flash Memory Drive does not secure itself.

  • Page 62: Printing Data Directly From The Usb Flash Memory Drive Or Digital Camera Supporting Mass Storage

    Chapter 10 Printing data directly Note from the USB Flash • Make sure your digital camera is turned memory drive or digital • If an error occurs, the USB memory menu camera supporting will not appear on the LCD. mass storage •...
  • Page 63 Printing data from a USB Flash memory drive or digital camera supporting mass storage Press a or b to choose the folder name Note or file name you want to print. • You can choose the following settings: Press OK. If you have chosen the folder name, Paper Size press a or b to choose the file name you...
  • Page 64 Chapter 10 Note • You can change the default tray that the machine will use for printing. Press Menu, 1, 6, 3, and then press a or b to select the tray you want as the new default. (See Tray Use in print mode uu page 18.) •...

  • Page 65: How To Print From A Computer

    (uu Software User's Guide: Printing for ® Windows or Printing and Faxing for Macintosh) Install the Brother printer driver from the Installer CD-ROM. (uu Quick Setup Guide) From your application, choose the Print command. Choose the name of your machine in the...

  • Page 66: How To Scan To A Computer

    You can use ControlCenter4 on your computer. Load your document. (See How to load documents uu page 24.) Open ControlCenter4 by clicking Start/All Programs/Brother/XXX-XXXX (where XXX-XXXX is your model name)/ControlCenter4. The ControlCenter4 application will open. Choose Home Mode or Advanced Mode before you use ControlCenter4 and then click OK.
  • Page 67 How to scan to a computer Set the scanning configuration. Click Configuration, and then select Button settings, Scan and File. The configuration dialog box appears. You can change the default settings. 1 Confirm PDF (*.pdf) is selected from the File Type pull-down list. 2 You can enter the file name you want to use for the document.
  • Page 68 Chapter 12 Click File. The machine starts the scanning process. The folder where the scanned data is saved will open automatically.

  • Page 69: Changing The Scan Key Settings

    SCAN key settings You can change your machine’s SCAN key settings using ControlCenter4. Open ControlCenter4 by clicking Start/All Programs/Brother/XXX-XXXX (where XXX-XXXX is your model name)/ControlCenter4. The ControlCenter4 application will open. Make sure the machine you want to use is selected from the Model pull-down list.
  • Page 70 Chapter 12 Choose the File tab. You can change the default settings. 1 You can choose the file type from the pull-down list. 2 You can enter the file name you want to use for the document. 3 You can save the file to the default folder, or choose your preferred folder by clicking the (Browse) button.

  • Page 71: Scanning Using The Scan Key

    • Web Service (Web Services Scan) Available for your machine if you have installed IFAX and E-mail options on your machine. You can add the IFAX and E-mail options by downloading them from the Brother Solutions Center at: http://solutions.brother.com/. ® ®...

  • Page 72: Routine Maintenance

    Routine maintenance Replacing the consumable items The following messages appear on the LCD in the Ready mode. These messages provide advanced warnings to replace the consumable items before they reach the end of their life. To avoid any inconvenience, you may want to buy spare consumable items before the machine stops printing.
  • Page 73 • Go to http://www.brother.com/original/index.html for instructions on how to return your used consumable items to the Brother recycling program. If you choose not to return your used items, please discard the used consumable according to local regulations, keeping it separate from domestic waste.

  • Page 74: Replacing The Toner Cartridge

    • It is a good idea to keep a new toner The machine will stop printing until you cartridge ready for use when you see the replace the toner cartridge. A new Brother Toner Low warning. Original toner cartridge will reset the Replace Toner message.

  • Page 75: Replacing The Toner Cartridge

    Routine maintenance Replacing the toner cartridge WARNING Leave the machine turned on for 10 minutes for the internal fan to cool the HOT SURFACE extremely hot parts inside the machine. After you have just used the machine, some internal parts of the machine will be Press the front cover release button and extremely hot.
  • Page 76 Important WARNING • We recommend that you place the drum unit and toner cartridge assembly on a clean, flat surface with a piece of • DO NOT put a toner cartridge or a toner disposable paper underneath it in case cartridge and drum unit assembly into a you accidentally spill or scatter toner.
  • Page 77 Brother recycling program. If you choose not to return your used items, please discard the used consumable according to <Toner cartridge>...
  • Page 78 • If an unpacked drum unit is put in direct sunlight or room light, the unit may be damaged. • Brother machines are designed to work Important with toner of a particular specification and will work to a level of optimum...
  • Page 79 Routine maintenance Put the new toner cartridge firmly into Clean the corona wire inside the drum the drum unit until you hear it lock into unit by gently sliding the green tab from place. If you put it in correctly, the green left to right and right to left several times.

  • Page 80: Replacing The Drum Unit

    For best performance, use a Brother replace the drum unit with a new one. We Original drum unit and Brother Original recommend a Brother Original drum unit be toner units. Printing with a third-party drum installed at this time. unit or toner unit may reduce not only the...
  • Page 81 Routine maintenance Replacing the drum unit Take out the drum unit and toner cartridge assembly. Important • While removing the drum unit, handle it carefully because it may contain toner. If toner scatters on your hands or clothes, immediately wipe or wash it off with cold water.
  • Page 82 Important WARNING • We recommend that you place the drum unit and toner cartridge assembly on a clean, flat surface with a piece of • DO NOT put a toner cartridge or a toner disposable paper underneath it in case cartridge and drum unit assembly into a you accidentally spill or scatter toner.
  • Page 83 Brother recycling program. If you choose not to return your used items, please discard the used consumable according to <Toner cartridge>...

  • Page 84: Resetting The Drum Counter

    Put the toner cartridge firmly into the Put the drum unit and toner cartridge new drum unit until you hear it lock into assembly back into the machine. place. If you put the cartridge in Do not close the front cover of the correctly, the green lock lever will lift machine.

  • Page 85: Cleaning And Checking The Machine

    Routine maintenance Cleaning and Checking Cleaning the outside of the machine the machine Turn off the machine. Clean the outside and inside of the machine regularly with a dry, lint-free cloth. When you Unplug the telephone line cord first, replace the toner cartridge or the drum unit, disconnect the interface cables from the make sure that you clean the inside of the machine, and then unplug the power...

  • Page 86: Cleaning The Scanner Glass

    (MFC-8520DN) Unfold the ADF document support (1) and then open the ADF cover (2). Clean the white bar (3) and the scanner glass strip (4) underneath it with a soft lint-free cloth moistened with water.
  • Page 87 Routine maintenance Lift the document cover (1). Note Clean the white plastic surface (2) and In addition to cleaning the scanner glass scanner glass (3) underneath it with a and glass strip with a soft lint-free cloth soft lint-free cloth moistened with water. moistened with water, run your finger tip over the glass to see if you can feel anything on it.

  • Page 88: Cleaning The Corona Wire

    Cleaning the corona wire WARNING If you have print quality problems, clean the HOT SURFACE corona wire as follows: After you have just used the machine, some Leave the machine turned on for 10 internal parts of the machine will be minutes for the internal fan to cool the extremely hot.
  • Page 89 Routine maintenance Clean the corona wire inside the drum Important unit by gently sliding the green tab from • We recommend that you put the drum unit left to right and right to left several times. and toner cartridge assembly on a piece of disposable paper or cloth in case you accidentally spill or scatter toner.

  • Page 90: Cleaning The Drum Unit

    Cleaning the drum unit Take out the drum unit and toner cartridge assembly. If your printout has dots at 94 mm intervals, follow the steps below to solve the problem. Make sure that the machine is in the Ready mode. Press Menu, 6, 6, then press Start to print the drum dot check sheet.
  • Page 91 Routine maintenance Push down the green lock lever and take Important the toner cartridge out of the drum unit. • We recommend that you put the drum unit and toner cartridge assembly on a piece of disposable paper or cloth in case you accidentally spill or scatter toner.
  • Page 92 Use the numbered markers next to the Turn the drum unit gear toward you by drum roller to find the mark. For hand while checking the surface of the example, a dot in column 2 on the check suspected area. sheet would mean that there is a mark in the "2"...
  • Page 93 Routine maintenance Put the toner cartridge back into the Put the drum unit and toner cartridge drum unit until you hear it lock into place. assembly back into the machine. If you put the cartridge in correctly, the green lock lever on the drum unit will lift automatically.

  • Page 94: Cleaning The Paper Pick-Up Rollers

    Cleaning the paper pick-up Tightly wring out a lint-free cloth soaked in lukewarm water, and then wipe the rollers separator pad (1) on the paper tray to remove dust. Cleaning the paper pick-up roller periodically may prevent paper jams by insuring the correct feeding of paper.
  • Page 95 Routine maintenance Plug the machine’s power cord back into the electrical socket first, connect all cables, and then plug in the telephone line cord. Turn on the machine.

  • Page 96: Troubleshooting

    If you think there is a problem with your machine, check each of the items below first and follow the troubleshooting tips. You can correct most problems by yourself. If you need additional help, the Brother Solutions Center offers the latest FAQs and troubleshooting tips.
  • Page 97 Troubleshooting Scanning problems:  Scanning difficulties uu page 118 Software and Network problems:  Software difficulties uu page 118  Network difficulties uu page 119...

  • Page 98: Error And Maintenance Messages

    The most common error and maintenance messages are shown below. You can clear most errors and perform routine maintenance by yourself. If you need more help, the Brother Solutions Center offers the latest FAQs and troubleshooting tips: Visit us at http://solutions.brother.com/. Error Message...
  • Page 99 Troubleshooting Error Message Cause Action The front cover is not Close the front cover of the machine. Cover is Open completely closed. The ADF cover is not Close the ADF cover of the machine. completely closed. The ADF is open while loading Close the ADF cover of the machine, then a document.
  • Page 100 Error Message Cause Action The back of the machine is not Close the back cover of the machine. Duplex Disabled closed completely. The temperature of the fuser Turn the power switch off, wait a few seconds, Fuser Error unit does not rise to a specified and then turn it on again.
  • Page 101 Troubleshooting Error Message Cause Action The number you dialled does Verify the number and try again. No Response/Busy not answer or is busy. The toner cartridge or the drum Remove the drum unit and toner cartridge No Toner unit and toner cartridge assembly, remove the toner cartridge from the assembly is not installed drum unit, and re-install the toner cartridge...
  • Page 102 (See Replacing the drum unit uu page 73.) installed. It is time to replace the fuser Call Brother customer service or a Brother Replace Parts unit. Authorized Service Center to replace the fuser Fuser Unit unit.
  • Page 103 (See Transferring your faxes or Fax Journal report uu page 97.)  If the problem continues, call Brother customer service for support. Document is too long for Press Stop/Exit. Use the suitable size of paper duplex scanning.
  • Page 104 Error Message Cause Action The machine cannot find paper Load the paper in the paper tray shown on the Wrong Paper Size of the same size in any other LCD. tray after the tray currently in use has run out of paper during a copy operation.

  • Page 105: Transferring Your Faxes Or Fax Journal Report

    PC. (See ® From the Windows Start menu, select Transferring faxes to another fax machine All Programs, Brother, MFC-XXXX, uu page 97 or Transferring faxes to your PC PC-Fax Receiving, and select uu page 97.) Receive. (XXXX is your model name.)

  • Page 106: Document Jams

    Document Jams Document is jammed under the document cover Document is jammed in the Take out any paper from the ADF that is top of the ADF unit not jammed. Lift the document cover. Take out any paper from the ADF that is not jammed.

  • Page 107: Removing Small Documents Jammed In The Adf

    Troubleshooting Removing small documents Document is jammed at the jammed in the ADF output tray Lift the document cover. Take out any paper from the ADF that is not jammed. Insert a piece of stiff paper, such as cardstock, into the ADF to push any Pull the jammed document out to the small paper scraps through.

  • Page 108: Paper Jams

    Paper Jams When loading paper in the MP tray, make sure that the paper stays under the maximum paper height guides (1) on Always remove all paper from the paper tray both sides of the tray. and straighten the stack when you add new paper.

  • Page 109: Paper Is Jammed In Paper Tray 1 Or Tray 2

    Troubleshooting Paper is jammed in paper tray 1 Use both hands to slowly pull out the jammed paper. or tray 2 If the LCD shows Jam Tray 1 or Jam Tray 2, follow these steps: Pull the paper tray completely out of the machine.

  • Page 110: Paper Is Jammed At The Back Of The Machine

    Paper is jammed at the back Slowly take out the drum unit and toner cartridge assembly. The jammed paper of the machine may be pulled out with the drum unit and toner cartridge assembly, or this may If the LCD shows Jam Rear, a paper jam release the paper so you can pull it out occurred behind the back cover.
  • Page 111 Troubleshooting Important WARNING • We recommend that you put the drum unit and toner cartridge assembly on a piece of HOT SURFACE disposable paper or cloth in case you After you have just used the machine, some accidentally spill or scatter toner. internal parts of the machine will be •...
  • Page 112 Open the back cover. Pull the green tabs at the left and right hand sides toward you and fold down the fuser cover (1). WARNING HOT SURFACE After you have just used the machine, some internal parts of the machine will be extremely hot.

  • Page 113: Paper Is Jammed Inside The Machine

    Troubleshooting Paper is jammed inside the Close the fuser cover (1). machine If the LCD shows Jam Inside, follow these steps: Leave the machine turned on for 10 minutes for the internal fan to cool the extremely hot parts inside the machine. Pull the paper tray completely out of the machine.
  • Page 114 Use both hands to slowly pull out the Slowly take out the drum unit and toner jammed paper. cartridge assembly. The jammed paper may be pulled out with the drum unit and toner cartridge assembly, or this may release the paper so you can pull it out from inside of the machine.
  • Page 115 Troubleshooting Important WARNING • We recommend that you put the drum unit and toner cartridge assembly on a piece of HOT SURFACE disposable paper or cloth in case you After you have just used the machine, some accidentally spill or scatter toner. internal parts of the machine will be •...
  • Page 116 Push down the green lock lever and take Note the toner cartridge out of the drum unit. Make sure that you put the toner cartridge Remove the jammed paper if there is in correctly or it may separate from the any inside the drum unit.

  • Page 117: Paper Is Jammed In The Duplex Tray

    Troubleshooting Paper is jammed in the duplex WARNING tray HOT SURFACE If the LCD shows Jam Duplex, follow these After you have just used the machine, some steps: internal parts of the machine will be Leave the machine turned on for 10 extremely hot.
  • Page 118 Pull the duplex tray completely out of the Make sure that the jammed paper does machine. not remain under the machine from static electricity. Put the duplex tray back into the machine. Pull the jammed paper out of the machine or out of the duplex tray. Put the paper tray firmly back in the machine.

  • Page 119: If You Are Having Difficulty With Your Machine

    • If you think there is a problem with your machine, check the chart below and follow the troubleshooting tips. You can correct most problems by yourself. • If you need additional help, the Brother Solutions Center offers the latest FAQs and troubleshooting tips.

  • Page 120: Paper Handling Difficulties Uu

    Printing difficulties (continued) Difficulties Suggestions The machine does not print on both Check the paper size setting in the printer driver. You need to choose A4 paper sides of the paper even though the (60 to 105 g/m) printer driver setting is Duplex. The machine does not change to When the machine is in Deep Sleep mode, the machine does not wake up even Direct Print mode when a USB...

  • Page 121: Printing Received Faxes Uu

    Troubleshooting Paper handling difficulties (continued) Difficulties Suggestions The machine does not feed paper Fan the paper well and make sure the paper is under the maximum paper from the MP Tray when using a mark (1). Stagger the pages and put them in the tray until you feel the top page large stack of paper.

  • Page 122: Telephone Line Or Connections Uu

    Printing received faxes (continued) Difficulties Suggestions Received faxes appear as split or Left and right margins are cut off or a single page is printed on two pages. blank pages. See Paper Size uu page 16. Turn on Auto Reduction. uu Advanced User's Guide: Printing a reduced incoming fax Telephone line or connections Difficulties...

  • Page 123: Receiving Faxes Uu

     If your Brother machine shares a line with other telephones and you want it to automatically answer all incoming faxes, you should select the Fax/Tel mode. In Fax/Tel mode, your Brother machine will automatically receive faxes and produce a fast double-ring to alert you to answer voice calls.

  • Page 124: Sending Faxes Uu

    Suggestions Cannot receive a fax. If you are using a telephone answering machine (External TAD mode) on the same line as the Brother machine, make sure your answering machine is set up (continued) correctly. See Connecting an external TAD uu page 37.

  • Page 125: Handling Incoming Calls

    For Example: If you subscribe to Call Waiting or some other custom service and its signal comes through the line while your machine is sending or receiving a fax, the signal can temporarily interrupt or disrupt the faxes. Brother’s ECM (Error Correction Mode) feature should help overcome this problem. This condition is related to the telephone system industry and is common to all devices that send and receive information on a single, shared line with custom features.

  • Page 126: Copying Problems:  Copying Difficulties Uu

    Scanning difficulties Difficulties Suggestions TWAIN or WIA errors appear when Make sure the Brother TWAIN or WIA driver is chosen as the primary source in your scanning application. For example, in Nuance™ PaperPort™ 12SE, click ® starting to scan. (Windows Scan Settings, Select to choose the Brother TWAIN/WIA driver.

  • Page 127: Network Difficulties

    (Windows installed. If the Security Software warning appears on the PC screen during the installation, change the Security Software settings to permit the Brother product setup program or other program to run. (Macintosh) If you are using a firewall function of anti-spyware or antivirus security software,...
  • Page 128 (Menu, 2, 1) and Setup Send settings (Menu, 2, 2) are available only Setup Send menus. when the machine is in FAX mode. ® ® For Windows 7 and Windows Server 2008 R2: Printer properties, and Brother MFC-XXXX BR-Script3 if necessary...

  • Page 129: Setting Dial Tone Detection

    Press Stop/Exit. needed. To improve compatibility with most VoIP services, Brother recommends changing the compatibility setting to Basic(for VoIP).  Normal sets the modem speed at 14400 bps.

  • Page 130: Improving The Print Quality

    Note Brother does not recommend the use of cartridges other than Brother Original cartridges or the refilling of used cartridges with toner from other sources. To get the best print quality, we suggest using the recommended paper. Check that you use paper that meets our specifications.
  • Page 131 Put in a new toner cartridge. uu Replacing the toner cartridge uu page 66  The fuser unit may be contaminated. Call Brother customer service for support.  Make sure that you use paper that meets our specifications. Rough- surfaced paper may cause the problem.
  • Page 132 Examples of poor print Recommendation quality  Make sure that you use paper that meets our specifications. uu Acceptable paper and other print media uu page 19  Choose Thick Paper mode in the printer driver, choose Thick in the machine’s Paper Type menu setting or use thinner paper than you are currently using.
  • Page 133 Troubleshooting Examples of poor print Recommendation quality  Clean the corona wire inside the drum unit. uu Cleaning the corona wire uu page 80 ABCDEFGH  The drum unit may be damaged. Put in a new drum unit. abcdefghijk A B C D uu Replacing the drum unit uu page 72 a b c d e 0 1 2 3 4...
  • Page 134 The fuser unit may be contaminated. Printed pages have toner smudges down the page Call Brother customer service for support.  Make sure that foreign material such as a torn piece of paper, sticky notes or dust is not inside the machine and around the drum unit and toner cartridge.
  • Page 135 Troubleshooting Examples of poor print Recommendation quality  Make sure that the paper or other print media is loaded correctly in the paper tray and that the guides are not too tight or too loose F G H A B C D E against the paper stack.
  • Page 136 Examples of poor print Recommendation quality  Make sure that envelopes are printed with the back cover (face-up output tray) opened. uu Printing on thick paper, labels and envelopes from the MP tray uu page 13 Check the envelope type and quality. ...

  • Page 137: Machine Information

     Setting Lock password 3 All Settings You can reset all the machine settings back to the factory default. Brother strongly recommends you perform this operation when you dispose of the machine. Note Unplug the interface cable before you choose Network or All Settings.

  • Page 138: How To Reset The Machine

    How to reset the machine Press Menu, 0, 7. Press a or b to choose the reset function you want to use. Press OK. Do one of the following;  To reset the settings, press 1 and go to step d. ...

  • Page 139: Menu And Features

    Menu and features On-screen Press a or b to scroll to your next menu selection. programming Press OK. When you have finished setting an Your machine has been designed to be easy option, the LCD will show Accepted. to use. The LCD provides on-screen programming using the menu keys.

  • Page 140: Menu Table

    Menu table The factory settings are shown in Bold with an asterisk. Choose & OK Choose & OK To accept To exit Level 1 Level 2 Level 3 Level 4 Options Descriptions Page 1.Mode Timer — — Sets the time to return 1.General Setup 0 Sec to FAX mode and the...
  • Page 141 Menu and features Level 1 Level 2 Level 3 Level 4 Options Descriptions Page Sets the size of the 1.General Setup 2.Paper 2.Paper Size 1.MP Tray paper in the paper (Continued) (Continued) Letter tray. Legal Executive A5 L Folio Sets the size of the 2.Tray#1 paper in the paper Letter...
  • Page 142 Level 1 Level 2 Level 3 Level 4 Options Descriptions Page — Adjusts the ring 1.General Setup 3.Volume 1.Ring volume. (Continued) Med* High — Adjusts the volume 2.Beeper level of the beeper. Med* High — Adjusts the speaker 3.Speaker volume. Med* High 1.Toner Save —...
  • Page 143 Menu and features Level 1 Level 2 Level 3 Level 4 Options Descriptions Page — Chooses the tray that 1.General Setup 6.Tray Use 2.Fax Tray#1 Only will be used for FAX (Continued) (Continued) Tray#2 Only mode. MP Only MP>T1>T2 T1>T2>MP* (Tray#2 and T2 appear if you have installed...
  • Page 144 Medium* data compression rate. Large 2.Gray Small Medium* Large — Chooses the duplex 3.Duplex Scan Long edge* scanning format. (MFC-8520DN) Short edge Advanced User's Guide Software User's Guide The factory settings are shown in Bold with an asterisk.
  • Page 145 Menu and features Level 1 Level 2 Level 3 Level 4 Options Descriptions Page — (00 - 08) Sets the number of 2.Fax 1.Setup Receive 1.Ring Delay rings before the (In FAX mode machine answers in only) (Example for the Fax Only or Fax/Tel mode.
  • Page 146 Level 1 Level 2 Level 3 Level 4 Options Descriptions Page — Changes the 2.Fax 2.Setup Send 1.Contrast Auto* lightness or darkness (Continued) (In FAX mode Light of faxes you send. only) Dark — Sets the default 2.Fax Resolution Standard* resolution for Fine outgoing faxes.
  • Page 147 Menu and features Level 1 Level 2 Level 3 Level 4 Options Descriptions Page — — Stores up to 16 One 2.Fax 3.Address Book 1.One Touch Dial Touch Dial numbers, (Continued) so you can dial by pressing one key (and Start).
  • Page 148 Level 1 Level 2 Level 3 Level 4 Options Descriptions Page — You can set the 2.Fax 6.Dial Restrict. 1.Dial Pad Enter # twice machine to restrict (Continued) dialling when using the dial pad. Off* — You can set the 2.One Touch Dial Enter # twice machine to restrict the...
  • Page 149 Menu and features Level 1 Level 2 Level 3 Options Descriptions Page — You can choose the 3.Copy 1.Quality Auto* Copy resolution for Text your type of document. Photo Graph — Adjust the brightness 2.Brightness -nnnno+ for copies. -nnnon+ -nnonn+* -nonnn+ -onnnn+ —...
  • Page 150 Level 1 Level 2 Level 3 Options Descriptions Page — Chooses the 4.Printer 1.Emulation Auto(EPSON)* emulation mode. Auto(IBM) HP LaserJet BR-Script 3 Epson FX-850 IBM Proprinter Prints a list of the 2.Print Options 1.Internal Font 1.HP LaserJet machine’s internal 2.BR-Script 3 fonts.
  • Page 151 Menu and features Level 1 Level 2 Level 3 Options Descriptions Page Sets the paper size 5.USB Direct I/F 1.Direct Print 1.Paper Size when printing directly Letter from the USB flash memory drive. Legal Executive A5 L Folio Sets the media type 2.Media Type Thin when printing directly...
  • Page 152 Level 1 Level 2 Level 3 Options Descriptions Page Sets the print quality 5.USB Direct I/F 1.Direct Print 6.Print Quality Normal* option when printing (Continued) (Continued) Fine directly from the USB Flash memory drive. Sets the PDF option 7.PDF Option Document* whether to print Document&Markup...
  • Page 153 Menu and features Level 1 Level 2 Level 3 Options Descriptions Page — Prints a Report for 6.Print Reports 1.XMIT Verify 1.View on LCD your last 2.Print Report — transmission. — Lists names and 2.Tel Index List 1.Numeric numbers stored in the —...
  • Page 154  In order to use these functions, please download the necessary software from our web site, the Brother Solutions Center at http://solutions.brother.com/. Some level 2 menus will only appear if you download the IFAX and E-mail options to your machine.
  • Page 155  In order to use these functions, please download the necessary software from our web site, the Brother Solutions Center at http://solutions.brother.com/.  Some level 2 menus will only appear if you download the IFAX and E-mail options to your machine.
  • Page 156 In order to use these functions, please download the necessary software from our web site, the  Brother Solutions Center at http://solutions.brother.com/. Some level 2 menus will only appear if you download the IFAX and E-mail options to your machine.
  • Page 157  In order to use these functions, please download the necessary software from our web site, the Brother Solutions Center at http://solutions.brother.com/.  Some level 2 menus will only appear if you download the IFAX and E-mail options to your machine.
  • Page 158  In order to use these functions, please download the necessary software from our web site, the Brother Solutions Center at http://solutions.brother.com/.  Some level 2 menus will only appear if you download the IFAX and E-mail options to your machine.
  • Page 159  In order to use these functions, please download the necessary software from our web site, the Brother Solutions Center at http://solutions.brother.com/.  Some level 2 menus will only appear if you download the IFAX and E-mail options to your machine.
  • Page 160 Level 1 Level 2 Level 3 Options Descriptions Page — — You can check the 8.Machine Info. 1.Serial No. serial number of your machine. — You can check the 2.Page Counter Total number of total Fax/List pages the machine has printed during its Copy life.
  • Page 161 Menu and features Level 1 Level 2 Level 3 Options Descriptions Page — Chooses the receive 0.Initial Setup 1.Receive Mode Fax Only* mode that best suits Fax/Tel your needs. External TAD Manual — Puts the date and See . 2.Date&Time 1.Date&Time time on the LCD and in headings of faxes...

  • Page 162: Entering Text

    Entering text When setting certain menu selections, such as the Station ID, you will need to type text characters. The dial pad keys have letters printed on them. The keys: 0, # and l do not have printed letters because they are used for special characters. Press the appropriate dial pad key the number of times shown in this reference table to access the character you want.
  • Page 163 Menu and features Special characters and symbols Press l, # or 0, then press d or c to move the cursor to the symbol or character you want. Press OK to choose it. The symbols and characters below will appear depending on your menu selection.

  • Page 164: Specifications

    Specifications General Model MFC-8510DN MFC-8520DN Printer Type Laser Print Method Electrophotographic Laser Printer Memory Capacity Standard 64 MB 128 MB Optional 1 slot: DDR2 SO-DIMM (144–pin) up to 256 MB 22 characters × 5 lines LCD (liquid crystal display) Power Source 220 - 240 V AC 50/60 Hz Approx.
  • Page 165 Specifications Model MFC-8510DN MFC-8520DN Noise Level Sound Printing m = 59 dB (A) Pressure Ready m = 37 dB (A) Printing m = 54 dB (A) (Quiet Mode) Sound Power Copying d = 6.64 B (A) d = 4.62 B (A)

  • Page 166: Document Size

    Document Size Model MFC-8510DN MFC-8520DN Document Size ADF Width 147.3 to 215.9 mm (Single-sided) ADF Length 147.3 to 355.6 mm Scanner Glass Width Max. 215.9 mm Scanner Glass Max. 300.0 mm Length Document Size ADF Width 147.3 to 215.9 mm...

  • Page 167: Print Media

    Specifications Print media Model MFC-8510DN MFC-8520DN Paper Input Paper Tray Paper Type Plain Paper, Thin Paper, Recycled Paper (Standard) Paper Size A4, Letter, B5 (ISO/JIS), A5, A5 (Long Edge), B6 (ISO), A6, Executive, Legal, Folio Paper Weight 60 to 105 g/m...

  • Page 168: Fax

    Model MFC-8510DN MFC-8520DN Compatibility ITU-T Super Group 3 Coding System MH/MR/MMR/JBIG/JPEG Modem Speed 33,600 bps (with Automatic Fallback) 2-sided (Duplex) Print Receiving Automatic 2-sided (Duplex) Sending Yes (from ADF) Scanning Width Max. 208 mm Printing Width Max. 208 mm Greyscale...

  • Page 169: Copy

    Specifications Copy Model MFC-8510DN MFC-8520DN Copy Width Max. 210 mm Automatic 2-sided (Duplex) Copy Yes (from ADF) Multiple Copies Stacks or Sorts up to 99 pages Reduce/Enlarge 25% to 400% (in increments of 1%) Up to 1200 × 600 dpi Resolution Less than 10.5 seconds at 23 °C / 230 V...

  • Page 170: Scanner

    Automatic 2-sided (Duplex) Scanning Yes (from ADF) Greyscale 256 levels For the latest driver updates for the version of Mac OS X you are using, visit us at http://solutions.brother.com/. ® ® ® Maximum 1200 × 1200 dpi scanning with the WIA driver in Windows...

  • Page 171: Printer

    Specifications Printer Model MFC-8510DN MFC-8520DN Automatic 2-sided (Duplex) Print Emulations ® PCL6, BR-Script3 (PostScript 3™), IBM Proprinter XL, Epson FX-850 1200 dpi × 1200 dpi, HQ1200 (2400 × 600 dpi) quality, Resolution 600 dpi × 600 dpi Print Speed Up to 18 sides/minute (Up to 9 sheets/minute)

  • Page 172: Interfaces

    Interfaces Model MFC-8510DN MFC-8520DN Hi-Speed USB 2.0 It is recommended you use a USB 2.0 cable (Type A/B) that is no more than 2.0 metres long. 10BASE-T / 100BASE-TX Ethernet Use a straight-through Category 5 (or greater) twisted-pair cable. Your machine has a Hi-Speed USB 2.0 interface. The machine can also be connected to a computer that has a USB 1.1 interface.

  • Page 173: Direct Print Feature

    MFC-8520DN Compatibility PDF version 1.7 , JPEG, Exif + JPEG, PRN (created by Brother printer driver), TIFF (scanned by all Brother MFC or DCP models), XPS version 1.0 Interface USB direct interface PDF data including a JBIG2 image file, a JPEG2000 image file or a transparency file is not supported.

  • Page 174: Computer Requirements

    Computer requirements Minimum System Requirements and Supported PC Software Functions Computer Platform Processor Minimum Recommended Hard Disk Space Supported Supported & Operating System Minimum Speed to install Version Software Interface Functions Drivers Applications ® ® ® ® 128 MB 256 MB 150 MB 500 MB Printing,...
  • Page 175 2 GB ® Intel Processor 10.7.x For WIA, 1200 x 1200 resolution. Brother Scanner Utility enables to enhance up to 19200 x 19200 dpi. Third-party USB ports are not supported. PC-Fax supports black and white only. ® ® Nuance™ PaperPort™ 12SE supports Microsoft...

  • Page 176: Consumable Items

    Consumable items Model MFC-8510DN MFC-8520DN Model Name Toner Inbox Approx. 2,000 pages A4 or Letter page Cartridge Standard TN-3330 Approx. 3,000 pages A4 or Letter page High Yield TN-3380 Approx. 8,000 pages A4 or Letter page Drum Unit DR-3300 Approx. 30,000 pages A4 or Letter pages (1 page / job) Approx.

  • Page 177: Network (Lan)

    EAP-TTLS), Kerberos See Computer requirements uu page 166. ® (For Windows users) Brother BRAdmin Light is available on the CD-ROM provided with the machine. (For Macintosh users) Brother BRAdmin Light is available as a download from http://solutions.brother.com/. ® (For Windows users) If you require more advanced machine management, use the latest Brother BRAdmin Professional utility version that is available as a download from http://solutions.brother.com/.

  • Page 178: Index

    ......32 Copy telephone line interference ....121 keys ............7 sending ..........26 Cordless telephone (non-Brother) ....40 telephone line interference ....121 Fax/Tel mode answering at extension telephones ..40 F/T ring time (double-ring) ....32 Dialling fax detect ..........
  • Page 179 HELP One Touch LCD messages ........131 changing ..........50 Menu Table .........132 setting up ..........46 using ............. 42 Out of Memory message ......93 Labels ........12 LCD (liquid crystal display) ....6 Paper ............19 how to load ........... 10 in multi-purpose tray ......
  • Page 180 search ...........43 Speed Dial changing ..........50 TAD (telephone answering device), custom scan profile ......48 external ............ 31 setting up ...........48 connecting ..........37 using ..........42 recording OGM ........38 Tel/R key ........6 Telephone line connections .......... 37 Redial/Pause key ......43 difficulties ..........
  • Page 181 Visit us on the World Wide Web http://www.brother.com/ These machines are approved for use in the country of purchase only. Local Brother companies or their dealers will only support machines purchased in their own countries.

This manual is also suitable for:

Mfc-8510dn

Table of Contents
