Black Box ACS1009A Quick Setup

DVI-D KVM EXTENDER-PC DVI- KVM-EXTENDER

1 Quick Setup

This section briefly describes how to install your KVM extender system. Unless you are an
experienced user, we recommend that you follow the full procedures described in the rest of this
manual..
Install system
1. Connect Remote unit to KVM.
2. Connect Local unit to CPU or switch.
3. Connect Local and Remote units with matching interconnection cable
(CATx).
4. Power up the system.
NO
Power LED
illuminated?
Check p.s.u.'s and connection
to power outlet
YES
NO
Link LED
illuminated ?
Check the CATx cable, and
CATx connectors
YES
Video OK
NO
LED ?
illuminated ?
Check settings of graphic card
or boot CPU
YES
Done
2 Installation
For first-time users, we recommend that you carry out a test placement, confined to a single room,
before commencing full installation. This will allow you to identify and solve any cabling problems,
and experiment with the KVM extender system more conveniently.
2.1 Package Contents
You should receive the following items in your extender package (all types):
DVI-D KVM Extender KVM-Extender- pair (Local Unit + Remote Unit)
•
2x 5V DC universal power supply for the DVI-D KVM Extender - Extender
•
2x German type power cord
•
Quick Install Guide (A user manual can be obtained from
•
(ftp://ftp.blackbox.com/manuals/ACS/ACS1009A_Manual.pdf
PS2-Keyboard-/ Mouse adapter to connect K/M to the Local Unit (keyboard can be plugged in
•
directly, without using an adapter)
KVM CPU cable set (1.8m) with one side: PS/2 (6-pin mini-DIN male) keyboard and mouse
•
connector and DVI-I video (DVI-I dual link male) connector – other side: DVI-I video (DVI-I
dual link male) connector
ACS2209A (additionally):
1.8m DVI-D M/M cable
•
If anything is missing, please contact Technical Support
DVI-D KVM EXTENDER-PC DVI- KVM-EXTENDER
2.2 System Setup
To install your DVI-D KVM Extender – Extender system:
1. Switch off all devices.
2. Connect your keyboard, monitor(s) and mouse to the Remote unit (depending on device type).
Please ensure, to not swap Mouse- and Keyboard connector. The Keyboard connector is purple
and the Mouse connector is green.
3. Using the supplied CPU KVM cable(s), connect the keyboard, monitor(s) and mouse
connectors on the computer (or KVM switch). Please ensure, to not swap Mouse- and
Keyboard connector. The Keyboard connector is purple and the Mouse connector is green.
4. Connect the interconnect cable to the INTERCONNECT socket(s)
5. Connect the 5V power supply to power the unit.
Only use the power supply originally supplied with this
equipment or a manufacturer-approved replacement.
6. For a dual access system, connect the keyboard, mouse and monitor for the Local console to the
appropriate ports on the Local unit. The ports may also be used to feed into a KVM switch. To
the local (PS2-) Keyboard-/ Mouse port you can attach a Keyboard directly or Mouse/
Keyboard together, using the delivered adapter.
7. Power up the system.
2.3 Interconnection Cable Requirements
To connect the Local and Remote units you will need:
DVI, PS2-Keyboard, PS2-Mouse: Connect the supplied KVM CPU cable set to your CPU
•
(KVM.- Switch, etc.). Please ensure that the connection is tension-free! Devices ACS1009A +
ACS2209A
DVI: Connect the supplied DVI CPU cable set to your CPU (KVM.- Switch, etc.). Please
•
ensure that the connection is tension-free! Devices ACS2209A
CATx Cable: Recommended cable: S/UTP (Cat5) according EIA/TIA 56A, TSB 36 or Digital
•
STP 17-03170. Four pairs AWG 24. connection according EIA/TIA 568A (10BaseT). Use of
cables from a higher category (Cat5e, Cat6, Cat7) is possible.
The use of unshielded CATx Cable is possible, because of the higher electromagnetic
noise/sensitivity the device class may not be reached.
The use of flexible Cables (Patch cable) Type AWG26/8 is possible. Because of the higher loss
of the stranded cables, the maximum distance is reduced to app. half the value of solid cables.
A point to point connection is required. Having one or more patch panels in the
line is possible and allowed. Not allowed is a connection from the CATx link
interface (RJ45) to any other products, especially telecommunications or network
equipment.

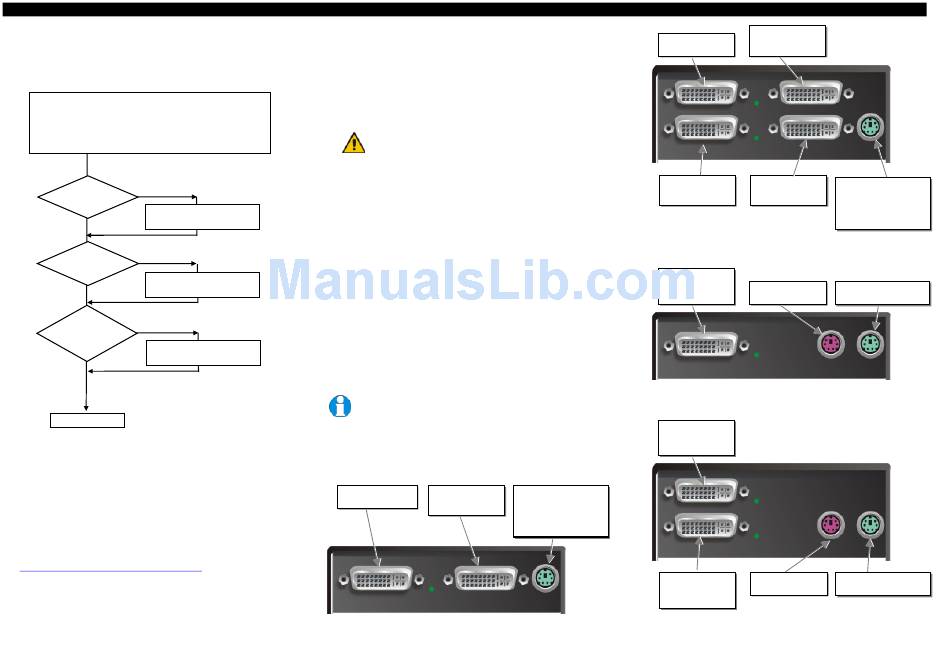

3 Device view (depending on device type)
Connect to CPU:
DVI, keyboard, mouse
)
DVI-D KVM Extender KVM-Extender Type ACS1009A Local Unit
local DVI-Monitor port Local keyboard/ mouse port
Connect to Local
console monitor Solely Keyboard may be
plugged in directly,
keyboard/mouse through
equipped adapter
DVI-D KVM EXTENDER-PC DVI- KVM-EXTENDER
nd
2 local DVI-Monitor
Connect to CPU: port Connect to Local
nd nd
2 DVI-Graphic card console 2 monitor
Connect to CPU: local DVI-Monitor port
st
1 DVI-Graphic card, Connect to Local
keyboard, mouse console monitor
DVI-D KVM Extender KVM-Extender Type ACS2209A Local Unit
remote DVI-Monitor
port– connect to
Remote mouse port
Remote console
monitor
DVI-D KVM Extender KVM-Extender Type ACS1009A Remote Unit
nd
2 remote DVI-
Monitor port Connect
to Remote console
nd
2 monitor
st
1 remote DVI- Remote mouse port
Monitor port– connect
st
to Remote console 1
monitor
DVI-D KVM Extender KVM-Extender Type ACS2209A Remote Unit
Local keyboard/ mouse port
Solely Keyboard may be
plugged in directly,
keyboard/mouse through
equipped adapter
Remote keyboard port
Remote keyboard port
