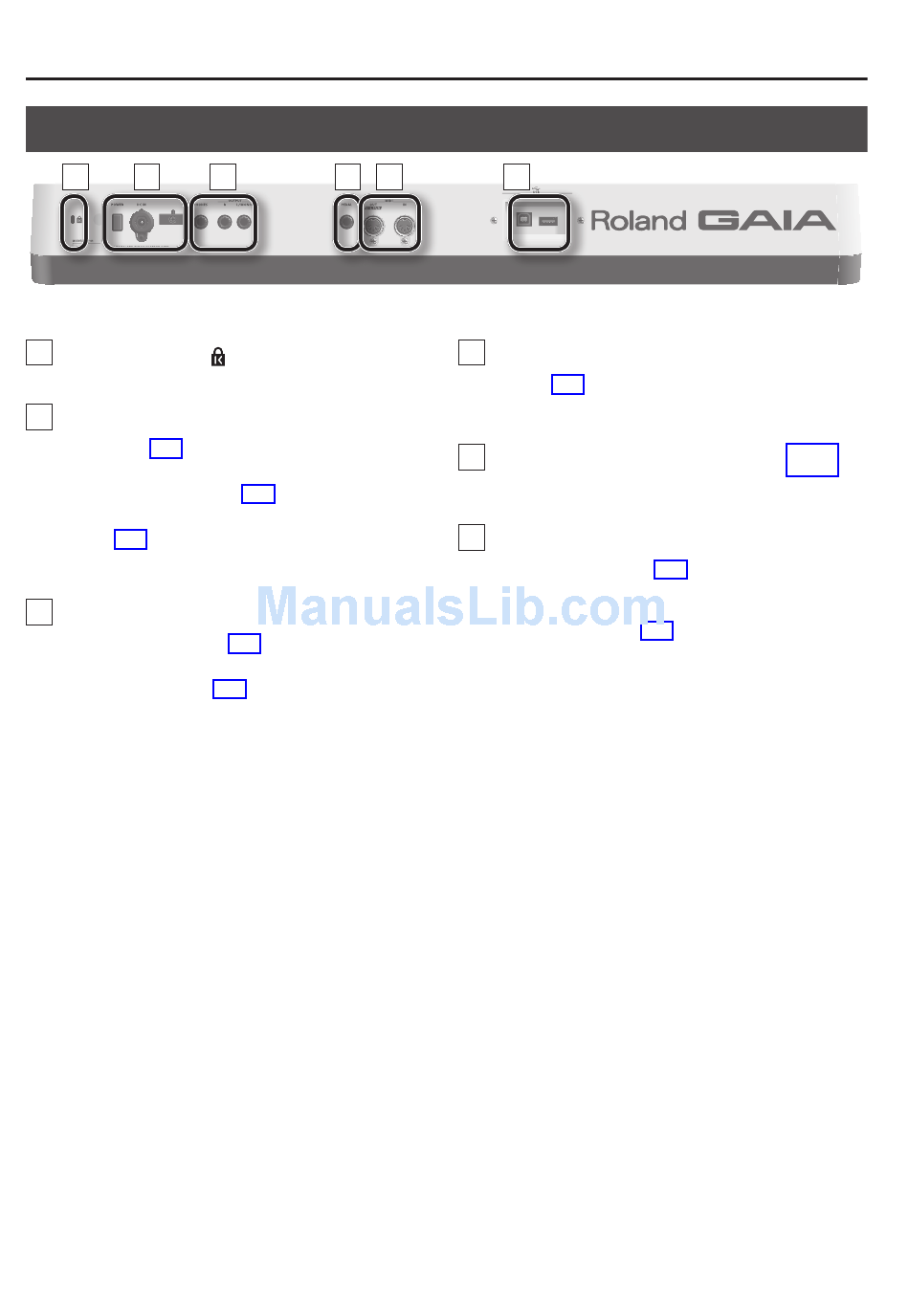

Rear Panel

16 17
988
16 Security Slot ( )
http://www.kensington.com/
17
[POWER] Switch (p. 15)
This switch turns the power on/off.
DC IN (AC Adaptor) Connector (p. 13)
Connect the included AC adaptor here.
Cord Hook (p. 13)
Fasten the cord from the AC adaptor here to prevent accidental
disconnection.
18
PHONES (Headphones) Jack (p. 15)
Connect your headphones (sold separately) here.
OUTPUT L/MONO, R Jacks (p. 14)
These jacks output the audio signal in stereo to your amp or mixer. To
employ mono output, connect your equipment to the L jack.
12
18 19 20 21
19 PEDAL
PEDAL Jack (p. 26)
Connect an expression pedal (EV-5; sold separately) or pedal switch
(DP series, FS-5U; sold separately) here.
MIDI Connectors (OUT/IN) (p. 43)
20
Connect these when you want to transmit or receive MIDI messages
to or from another MIDI device.
USB
21
USB COMPUTER Connector (p. 42)
This connector lets you use a USB cable to connect the GAIA SH-01 to
your computer.
USB MEMORY Connector (p. 55)
Connect USB memory (sold separately) here.
930
* Connect USB memory after you've powered up the GAIA
SH-01. Never disconnect USB memory while the power
is turned on.
931
* When inserting USB memory, make sure that the
connector is oriented correctly, and insert the connector
all the way in. Do not use excessive force.
