T3 fiber optic line driver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

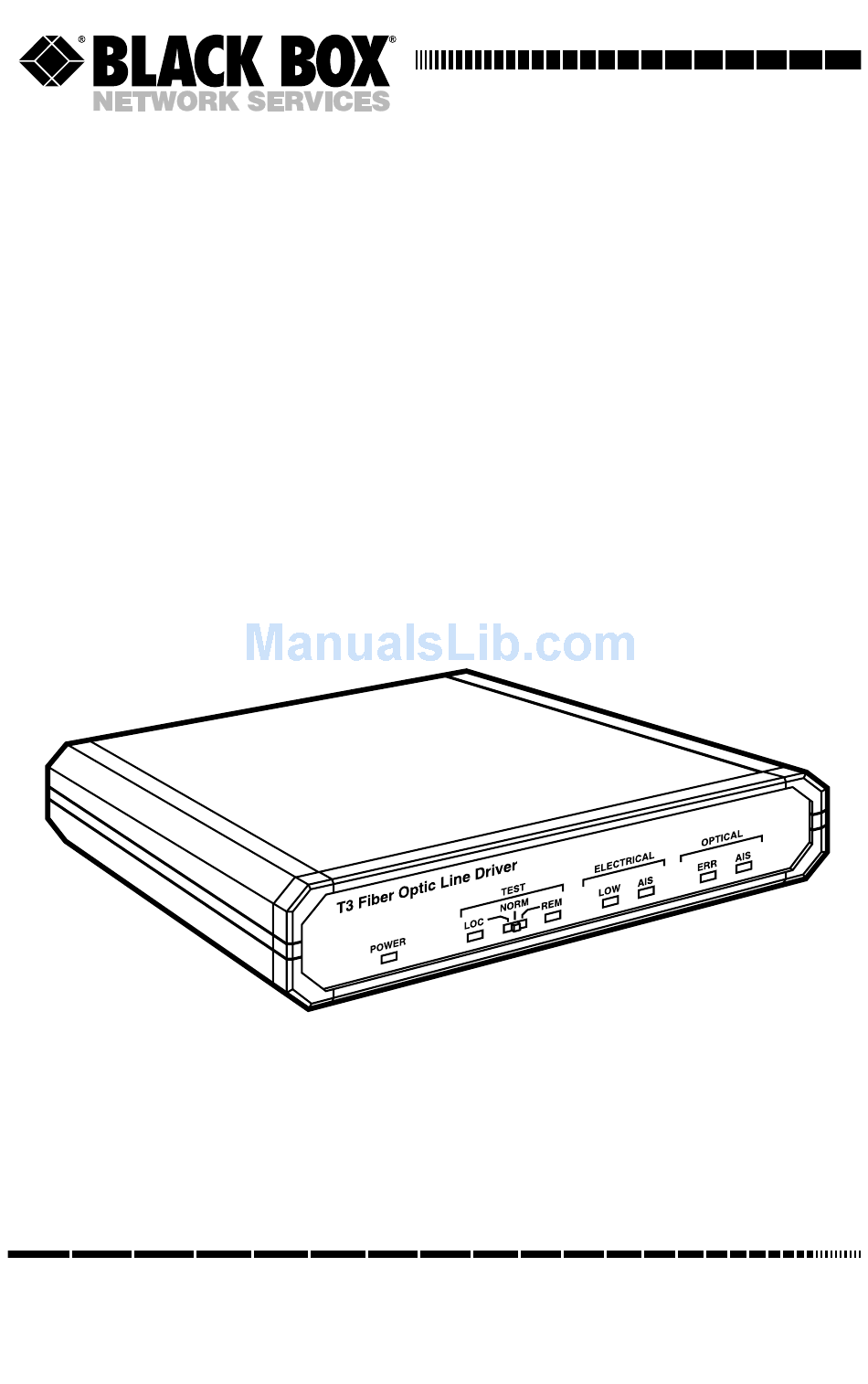

T3 Fiber Optic Line Driver
CUSTOMER
SUPPORT
INFORMATION
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: info@blackbox.com
SEPTEMBER 2002
MT618A-ST-R2
MT619A-ST-R2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT618A-ST-R2 and is the answer not in the manual?

Questions and answers

Related Manuals for Black Box MT618A-ST-R2

Summary of Contents for Black Box MT618A-ST-R2

  • Page 1 Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) SUPPORT FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 INFORMATION Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 Web site: www.blackbox.com • E-mail: info@blackbox.com...
  • Page 2 FCC AND IC RFI STATEMENTS FEDERAL COMMUNICATIONS COMMISSION INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is...
  • Page 3 T3 FIBER OPTIC LINE DRIVER NORMAS OFICIALES MEXICANAS (NOM) ELECTRICAL SAFETY STATEMENT INSTRUCCIONES DE SEGURIDAD 1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. 2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura.
  • Page 4 NOM STATEMENT 12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del equipo no sea eliminada. 13. Los cables de la fuente de poder deben ser guiados de tal manera que no sean pisados ni pellizcados por objetos colocados sobre o contra ellos, poniendo particular atención a los contactos y receptáculos donde salen del aparato.
  • Page 5 T3 FIBER OPTIC LINE DRIVER TRADEMARKS USED IN THIS MANUAL ST is a registered trademark of American Telephone and Telegraph Company. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.

  • Page 6: Table Of Contents

    5.4 Calling Black Box ........

  • Page 7: Quick Start Guide

    T3 FIBER OPTIC LINE DRIVER Quick Start Guide If you’re familiar with the T3 Fiber Optic Line Driver, use this guide to prepare the unit for operation. Installation Open the T3 Fiber Optic Line Driver’s case by unscrewing the two rear-panel screws and sliding out the unit’s printed circuit board (PCB).
  • Page 8 QUICK START GUIDE ONNECTING THE ABLES 1. Connect the T3 electrical interface. 2. Connect the fiberoptic interface. 3. Connect the power cable (first to the modem, then to the mains supply). Operation starts when the power is applied to the rear-panel power connector.

  • Page 9: Specifications

    Transmission Rates: 44.736 Mbps Impedance: 75 Ω unbalanced Zero Suppression: B3ZS Connectors: (2) BNC Fiberoptic Interface Operating Wavelength: MT619A-ST-R2: 850 nm (multimode); MT618A-ST-R2: 1310 nm (single-mode) Line Coding: CDP Connectors: (2) ST ® Typical Power: See Table 2-1 Receiver Sensitivity: See Table 2-1...
  • Page 10 CHAPTER 1: Specifications Operation: Normally Open and Normally Closed, using different pins Indicators POWER: Power LOC: A local loopback is active REM: A remote loopback is active ELECTRICAL LOW: T3 electrical input is below G.703 ELECTRICAL AIS: T3 electrical interface received “All 1s” string OPTICAL ERR: Bit error rate of the signal received from the optical interface is or worse OPTICAL AIS: Fiberoptic interface received “All 1s”...

  • Page 11: Introduction

    2.1.1 V ERSIONS Two versions are available: • T3 Fiber Optic Line Driver ST, 1310-nm Single-Mode (MT618A-ST-R2) • T3 Fiber Optic Line Driver ST, 850-nm Multimode (MT619A-ST-R2) 2.1.2 A PPLICATION In the application shown in Figure 2-1, each line driver receives T3 signals, which are equalized to overcome electrical link distortion.

  • Page 12: Features

    CHAPTER 2: Introduction 2.1.3 F EATURES • Extend the range of T3 signals over fiberoptic cable up to 68.35 miles (110 km). • Transparent to T3 signals. • Conform with all relevant ITU series standards. • Supports single-mode or multimode fiber. •...

  • Page 13: Physical Description

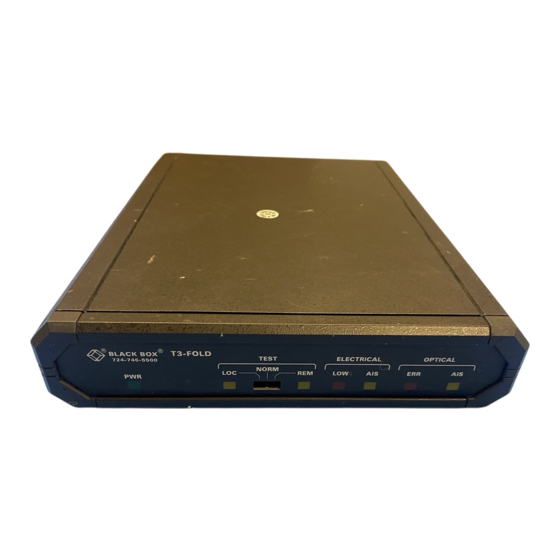

    T3 FIBER OPTIC LINE DRIVER Likewise, an alarm is relayed if a high bit-error rate is detected at the fiberoptic interface. 2.2 Physical Description Figure 2-2. The front panel. The line driver’s front panel features LEDs that display T3 electrical and fiberoptic interface status.
