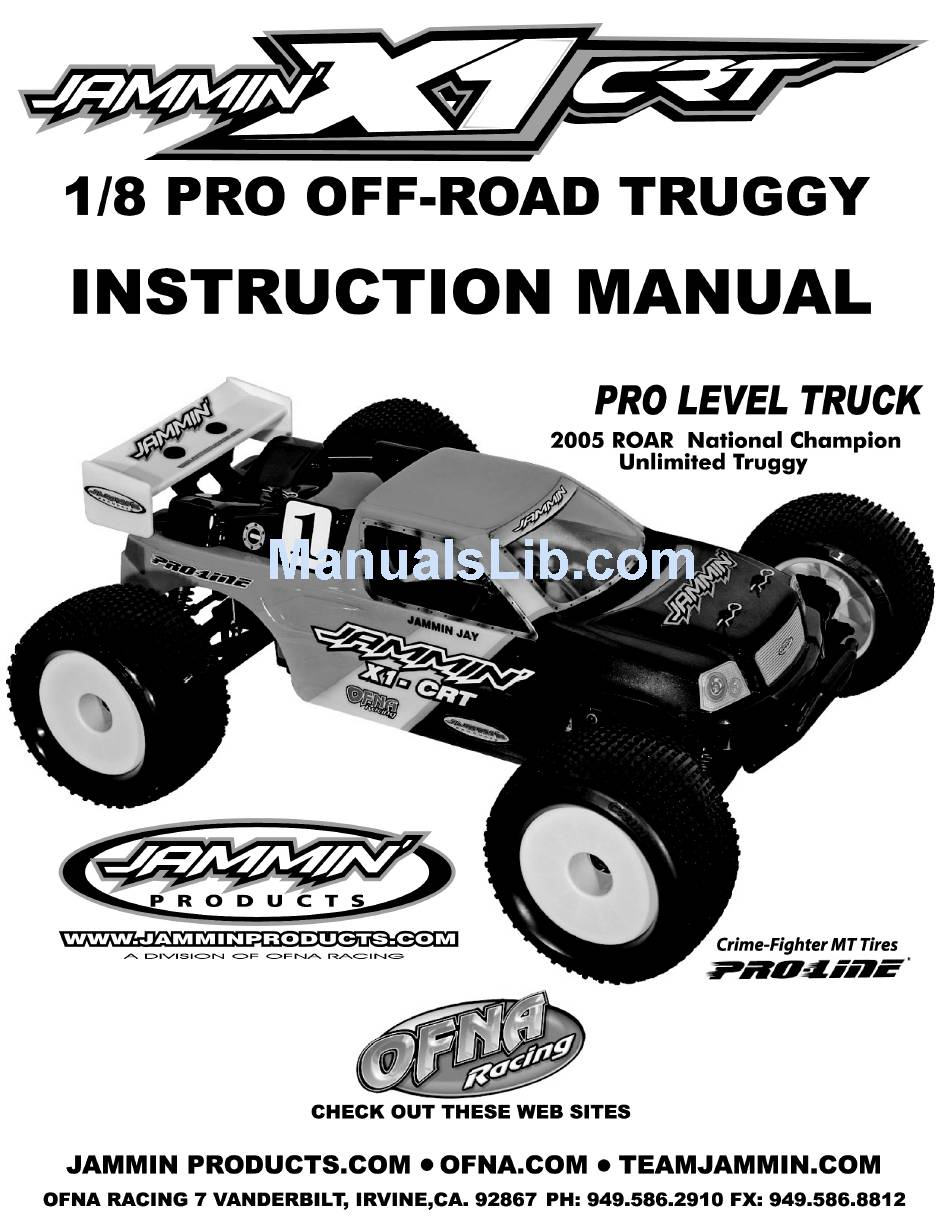

Ofna Racing JAMMIN X1-CRT Instruction Manual

Pro-line 1/8 pro off-road truggy, pro level truck
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JAMMIN X1-CRT and is the answer not in the manual?

Questions and answers

Related Manuals for Ofna Racing JAMMIN X1-CRT

Summary of Contents for Ofna Racing JAMMIN X1-CRT

  • Page 2 P-7R #51218 Glow Plug Long Heat with Battery & Charger # 10215..$27.95 Glow Fuel (please note OFNA Glow Heats available) Bottle’s with spout # 10160 - large 500cc # 10161 - large 500 ccAuto Stop # 10162 - small 250cc...
  • Page 3 PLASTIC PARTS TO USE WITH TRUGGY 40538 40536 40533 DIFF. CASE FRONT C HUB FRONT AND REAR GEAR BOX 40668 FRONT AND REAR LOWER ARM 40667 30802 40040 FRONT UPPER ARM Throttle Linkage Plastic CENTER DIFF. MOUNT PLASTIC PARTS 40669 40534 BUMPER ARM HOLDER...
  • Page 4 PLASTIC PARTS TO USE WITH TRUGGY 40676 34026 BODY POST & SERVO MOUNT SERVO FIXING 40540 40542 REAR UPPER RIGHT/FRONT BUMPER WING STAY 40539 40541 SERVO SAVER RECEIVER BOX...
  • Page 5 First Time Starting the Engine Caution! When starting engine make sure the following is observed. • Oil the air filter FOAM Element! OFNA #10015.. $2.95 • Do not do this alone, get an experienced friend to help at first. • Fill fuel tank, try not to spill fuel. Do not spill fuel on receiver •...
  • Page 6 ASSEMBLY OF THE FRONT AND REAR DIFF. *Builds two differentials for front and rear. Step 1 Step 2 40514 40513 Cap Joint Diff. Gear (Large) 40010 2.5x13.8mm Pin ..X2 36053 8x16mm Ball bearing 40538 40009 Diff. Case 4x4mmSet Screw ..X1 40009 O-Ring 40010...
  • Page 7 ASSEMBLY OF THE CENTER DIFF. 94020 3x12mm Flat Head Hex Screw Step 1 Step 2 30774 Alum. Cross Pin 30776 4x10mm 40513 Washer Diff. Gear 30776 (Small) 4x10mm 40011 Washer Diff. Gasket ..X4 94020 3x12mm *Use 10000 weight diff. oil Flat Head for the center.
  • Page 8 ASSEMBL OF THE FRONT SHOCK STAY 90018 Step 1 Step 2 3x25mm Cap Screw 3x10mm Hex Screw 40676 Body Post 94003 3x10mm Hex Screw ..X2 90018 3x25mm Cap Screw 40531 94009 94009 Shock Ball 4x10mm 4x10mm End Post Hex Screw Hex Screw ..X4 90018...
  • Page 9 ASSEMBL OF THE FRONT UPPER ARMS Assembly for both right and left side. 14 mm 36850 40667 Ball and Socket 36860 Front Upper ..X2 5x35mm Turnbuckle 36690 Front Upper 36690 Arm Ball End Front Upper ..X2 Arm Ball End 36860 36850 5x35mm Turnbuckle...
  • Page 10 94033 ASSEMBL OF THE FRONT STABILIZER 3x3mm Set Screw 94033 3x3mm Set Screw 40533 Stabilizer Mount Plastic 94033 3x3mm 94002 40685 94033 Set Screw ..X4 3x8mm 3x3mm Front Stabilizer Hex Screw Set Screw 2.5mm 94002 3x8mm Hex Screw ..X4 ASSEMBL OF THE SERVO SAVER 40677 Step 1 Step 2...
  • Page 11 ASSEMBL OF THE STEERING TIE-ROD Assembly both right and left side. Step 1 Step 2 Makes two steering rods for left and right hand-side. 40039 3mm Tapper Washer(Alum.) 40038 ..X2 36700 7mm Steering Ball End 40038 ..X2 40548 Nylock Nut(Thin Type) 40548 Nylock Nut(Thin Type) ..X2...
  • Page 12 ASSEMBL OF THE REAR GEAR CASE 5x4mm 94010 Set Screw Step 1 4x12mm Hex Screw Step 2 40539 Center bracer Mount 40695 Universal Joint Center(Rear/Long) 94036 5x4mm 94010 Set Screw ..X1 4x12mm Hex Screw 94010 40689 4x12mm Rear Lower Arm Hex Screw ..X4 Holder(Hard-Coated)
  • Page 13 ASSEMBLY OF THE WING STAY Step 1 Step 2 94009 4x10mm 94009 Hex Screw ..X1 4x10mm Hex Screw 94011 4x16mm Hex Screw ..X4 94011 94012 4x16mm 94012 4x20mm Hex Screw 4x20mm Hex Screw ..X1 Hex Screw ASSEMBLY OF THE REAR WHEEL HUBS Assembly for both right and left side.
  • Page 14 ASSEMBLY OF THE REAR SUSPENSION ARMS Assembly for both right and left side. Nylon Nut 40540 Upper arm Plastic Rod End 36850 7mm Ball 40540 Upper arm Plastic Rod End 40661 5x80 Turnbuckle 36850 36850 7mm Ball Ball and Socket ..X4 94005 3x16mm...
  • Page 15 ASSEMBL OF THE CENTER DIFF. MOUNT Step 1 Step 2 *Makes two for Front and Rear. 40040 40040 Center Diff. Center Diff. Mount Mount Approx. 3.5mm ¬ù 3 . 5 m m Step 3 40662 Center Diff. Mount Post 36661 Brake Pad 40044 Brake Pad...
  • Page 16 ASSEMBL OF THE FRONT AND REAR GEAR CASE ONTO CHASSIS 94041 Nylock Nut ..X4 94041 Nylock Nut 94033 3x10mm Flat Head Hex Screw ..X4 94026 4x10mm Flat Head Hex Screw ..X2 94027 4x16mm 94027 Flat Head 4x16mm 94027 94026 94033 Hex Screw Flat Head 4x16mm...
  • Page 17 ASSEMBLY OF THE RADIO TRAY 94005 94004 3x15mm Adjust 40676 94022 3x12mm Hex Screw Servo Washer 3x8mm Step 2 Hex Screw in accordance Futaba Hex Screw with use of Sanwa servo. Step 3 40676 ..Transponder Holder Step 1 40541 Transponder 94002 Mount...
  • Page 18 ASSEMBL OF THE FUEL TANK Step 1 Step 2 94004 3x12mm 94004 Hex Screw 3x12mm Hex Screw 40066 Fuel Tank 37070 P3 O-Ring ..X2 Pressure Nipple 37070 94019 O-Ring 3x10mm Flat Head Hex Screw ..X2 37070 40539 O-Ring 94004 Fuel Tank 3x12mm Post Hex Screw...
  • Page 19 ASSEMBLY OF THE ENGINE ONTO CHASSIS Spur Gear *Use note book paper to set gear backlash between spur gear and clutch bell gear, applying pressure while retightening the Clutch Bell engine. *If the space is not correct the spur gear 90 degree will be damaged.
  • Page 20 ASSEMBLY OF THE THROTTLE LINKAGES(Type A) Step 1 Step 2 3x3mm Set Screw 30802 3x3mm Throttle Set Screw Ball End 10300 10300 Alum Alum Stopper 30531 Stopper Throttle Fuel Tube 30802 Spring Approx. 8mm 94033 Throttle 40663 3x3mm Slider Set Screw 2X68mm Fuel Tube 10300...
  • Page 21 ASSEMBLY OF THE THROTTLE LINKAGES(Type B) 3x3mm Set Screw 10300 Alum Stopper Fuel Tube Fuel Tube Approx. 8mm * Use the screw provided with your servo . 94033 3x3mm ..X2 Set Screw ADJUSTING THE ENGINE CONTROL LINKAGES (Brake) (Throttle High) (Neutral) Approx.
  • Page 22 ASSEMBLY OF THE REAR SHOCKS 1. Pull down piston and 3. Pull down piston, Step 2 pour oil into shock attach top loosely 40643 Shock Plastic cylinder. shock oil will * Make 2 for Shocks. Step 1 overflow slowly Ball End 2.To remove air bubbles CORRECT SHOCK ASSEMBLY Fit the o-ringinto groove before...
  • Page 23 ASSEMBLY OF THE REAR SHOCK ABSORBER Assembly both right and left side. Nylon Nut ..X2 3x8mm 3x8mm Washer Washer ..X2 Nylon Nut 40643 Shock Cap Washer 40643 Shock Cap Put shocks in center arm hole Washer ..X2 3x20mm Hex Screw 3x20mm Hex Screw ..X2...
  • Page 24 ASSEMBLY OF THE FUEL TUBE Connect to 40099 carbulater. Fuel Filter Connect to fuel tank nipple. 10179 Fuel Tube Connect to pressure nipple. Connect to fuel nipple. ASSEMBLY OF THE TIRES AND WHEELS Apply instant glue into the groove of the wheel. Step 1 Step 2 Step 3...
  • Page 25 ASSEMBLY OF THE WING 3x12mm Hex Screw 40542 Countersunk Plastic Washer 40672 Wing Drill two 7mm holes for mounting. Nylon Nut 94041 Nylock Nut ..X2 94004 3x12mm Hex Screw ..X2 CUTTING OUT THE BODY AND PAINTING Use a neutral detergent to remove any dirt and oil.
  • Page 26 MOUNTING BODY 31159 31159 Body Clip Body Clip...
  • Page 27 SETTING GUIDE FRONT CAMBER ANGLE SETTING REAR CAMBER ANGLE SETTING Positive Negative Negative Positive Turnbuckle Turnbuckle Place the model car on flat surface. Raise the chassis to it's maximum clearance before the wheels leave the ground. Adjust the length of the front and rear upper arms so that the wheels are right angle to the ground.
  • Page 28 • TROUBLE SHOOTING GUIDE PROBLEM CAUSE SOLUTION Fuel line not primed Fill fuel tank and pressurize tank by capping exhaust ENGINE WILL NOT START Glow plug will not heat(lite) Check glow plug battery heater or replace plug. Engine flooded, too much fuel Check carb.
  • Page 29 JAMMIN X1-CRT TRUGGY 40550 5MM WHEEL NUT (4MM) 4.95 10010 SHOES, 3 SHOE TYPE, BLACK, 3 PCS. 12.95 40568 GRAPHITE FRONT PLATE 31.95 10011 SHOES, 3 SHOE TYPE, ALUM. CNC BLUE, LITE WEIGHT, 3 PCS. 24.95 40569 GRAPHITE CENTER DIFF. MOUNT PLATE 31.95...
  • Page 31 In the event that the kit is incomplete or component parts are broken due to error in manufacturer, contact your dealer from which you purchased the kit for replacement part or call OFNA at (949) 586-2910 for your nearest dealer location.
