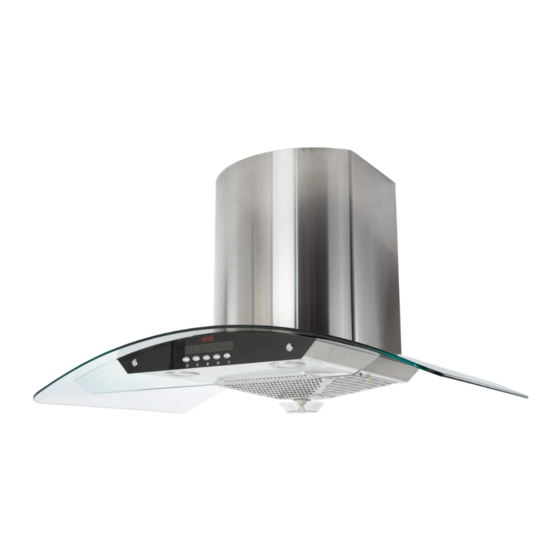

- Page 1 KOBE Brand Range Hood Model No. CX1830GS-8 (30”) CX1836GS-8 (36”) CX1842GS-8 (42”) CX-183 SERIES – 4” HEIGHT STAND ALONE “GLASS CANOPY WITH LED SCREEN” INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
-
Page 2: Table Of Contents
READ AND SAVE THESE INSTRUCTIONS - C O N T E N T S IMPORTANT SAFETY INSTRUCTIONS ...1 COMPONENTS OF PACKAGE...3 INSTALLATION...5 Preparations before Installation ...5 Hood Installation ...6 Wiring to Power Supply ...8 Recirculating Conversion ...8 Ductwork Installation ...9 Duct Cover Installation...9 Final Assembly...9 OPERATING INSTRUCTION ...10... -
Page 3: Important Safety Instructions
KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 4 What to Do In The Event Of a Range Top Grease Fire SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 5: Components Of Package
COMPONENTS OF PACKAGE ( M u s t k e e p a l l m a t e r i a l f o r r e t u r n s o r r e f u n d s ) Box 1 Of 2 {A} LED Screen And Control Panel {B} Glass Canopy... - Page 6 Hexagon screws (6 pc) Spacer (6 pc) Hexagon wrench (1 pc)
-
Page 7: Installation
INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installation To calculate installation, please refer to Table 1. (All calculation in inches.) TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36”) C = Preferred Height of Counter Top to Hood Bottom (Recommended 27”... -
Page 8: Hood Installation
Hood Installation CAUTION: If required to move the cooking range to install the hood, turn off the power in an electric range at the main electrical box. SHUT OFF THE GAS BEFORE MOVING A GAS RANGE. 1. Peel protective film off duct cover and hood, if any. Pull out duct cover (inner and outer) from range hood. - Page 9 4. Place rubber seal on hood venting area; make sure the openings on rubber seal are aligned with openings in vent area. Shown in Figure 7. Align plastic damper on rubber seal and attach to hood using eight 4x20 mm screws (provided). Refer to Figure 8 Figure 7 5.
-
Page 10: Wiring To Power Supply
Wiring to Power Supply S A F E T Y W A R N I N G RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST BE PROPERLY GROUNDED. MAKE SURE THIS IS DONE BY SPECIALIZED ELECTRICIAN IN ACCORDANCE WITH ALL APPLICABLE NATIONAL AND LOCAL ELECTRICAL CODES. -
Page 11: Ductwork Installation
Ductwork Installation 19. Use 7” round aluminum or steel pipe to connect the plastic damper on the hood to the ductwork above. 20. Use duct tape to make all joints secure and air tight. Make sure pipe is in the groove of the plastic damper. Refer to Figure 14 Duct Cover Installation 21. -
Page 12: Operating Instruction
OPERATING INSTRUCTION This KOBE hood is equipped with five electronic controls with LED screen, one powerful centrifugal squirrel cage with stainless steel filter, two bright 12-volt 20-watt halogen lights, and one oil container. The five control buttons are Power Control (On/Off), Auto Control, Speed Control (Low & High Speed), Light Control and Timer Control. - Page 13 Speed Control Press once for High speed to start. Output Display: Press twice for Low speed to start. Output Display: Light Control Press Light Control to turn on the two halogen lights. Timer Control Press Timer Control to start timer. When Timer Control is pressed, fan will automatically shut off after set time.
-
Page 14: Maintenance
MAINTENANCE CAUTION: NEVER PUT YOUR HAND INTO THE AREA HOUSING THE FAN WHILE THE FAN IS OPERATING. For optimal operation, clean range hood surface, stainless steel filter, and oil container regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. - Regular care will help preserve its appearance. - Page 15 To Clean Carbon Filter (Optional Recirculating Kit) 1) Turn oil container counter-clockwise. Shown in Figure 18. 2) Use a Philips screwdriver to take out the screws (2 pcs). Shown in Figure 19. Figure 18 3) Remove the carbon filter from the two stainless steel filters. Shown in Figure 20.
-
Page 16: Specifications
Power Control, Auto Control, Speed Control (Low & High Speed), Light Control, & Timer Control 12V 20W x 2 (Model No.: CX1830GS-8) 29-1/2” x 19-3/4” x 3” (Model No.: CX1836GS-8) 35-1/2” x 19-3/4” x 4-1/2” (Model No.: CX1842GS-8) 41-7/8” x 19-3/4” x 6-1/2”... -
Page 17: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS ***Inch figures converted from millimeters measurements. Inch measurements estimated. ***Millimeter measurements in ( ). -
Page 18: Parts List
PARTS LIST MODEL NO.: CX1830GS-8 CX1836GS-8 CX1842GS-8 DESCRIPTION Oil Container (Round) Stainless Steel Filter Screw Stainless Steel Filter Stainless Steel Mesh Filter Halogen Light Support Halogen Light (12V 20W Max.) Bottom Casing Control Board , Control Button Control Box Screw... -
Page 19: Recirculating Kit (Optional)
MODEL NO.: CX1830GS-8 CX1836GS-8 CX1842GS-8 RECIRCULATING KIT (OPTIONAL) Model No.: RD-0183... -
Page 20: Circuit Diagram
CIRCUIT DIAGRAM MODEL NO.: CX1830GS-8 CX1836GS-8 CX1842GS-8... -
Page 21: Disclaimer
DISCLAIMER 1. CAREFULLY INSPECT ALL ITEMS FOR DAMAGES BEFORE ACCEPTING DELIVERY. NOTE ANY DAMAGES ON THE FREIGHT BILL OR EXPRESS RECEIPT. REQUEST NAME AND SIGNATURE OF THE CARRIER’S AGENT AND KEEP COPY TO SUPPORT YOUR CLAIM. Upon acceptance of items, owner assumes responsibility for its safe arrival. Damages should be reported to carrier and a claim filed. -
Page 22: Warranty
WARRANTY KOBE Range Hoods, Inc. warrants all products manufactured or supplied by it to be free from defects in workmanship and materials. Its obligations pursuant to this warranty are limited to a period of two years from the date of purchase and to the repair or replacement at its option and subject to the terms and conditions stated below, of any component part, which its examination shall disclose to be so defective. -
Page 23: Consequential Damage
Some states do not allow limitations on the duration of implied warranties. This warranty gives you specific legal rights, and may also have rights, which vary from state to state. For service contact: KOBE Range Hoods 10505 Valley Blvd, Suite 302 EI Monte, CA 91731 U.S.A... -
Page 24: Product Registration
KOBE Range Hoods Agent or KOBE Range Hoods as applicable. Keep proof of purchase (original invoice) handy for inspection. - Page 25 KOBE Range Hoods 10505 Valley Blvd Suite # 302 San Gabriel, CA 91731 USA http://www.KOBERangeHoods.com KOBE hoods are made for use in the USA and CANADA only. We do not recommend using the hood overseas because the power supply may not be compatible, and it may violate the electrical code of that country, Using KOBE hood overseas is at your own risk and will void your warranty.
