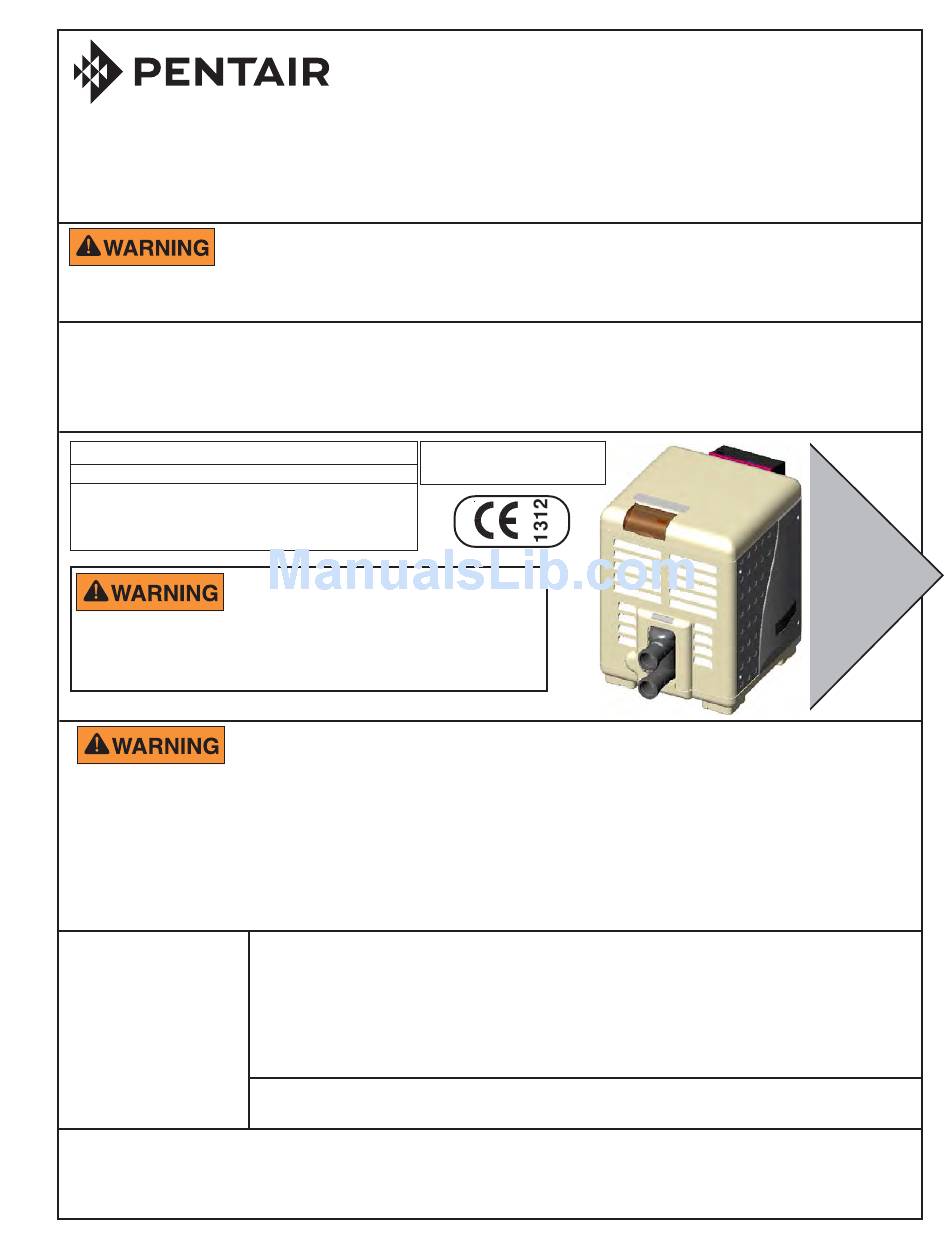

MASTERTEMP
INSTALLATION AND USER'S GUIDE
FOR YOUR SAFETY - READ BEFORE OPERATING
If you do not follow these instructions exactly, a fire or explosion may result, causing
property damage, personal injury or loss of life. For additional free copies of this
manual; call USA (800) 831-7133
FOR YOUR SAFETY - This product must be installed and serviced by authorized personnel, qualified in pool/spa
heater installation. Improper installation and/or operation can create carbon monoxide gas and flue gases which can
cause serious injury, property damage, or death. For indoor installations, as an additional measure of safety, Pentair
Aquatic Systems strongly recommends installation of suitable Carbon Monoxide Detectors in the vicinity of this
appliance and in any adjacent occupied spaces. Improper installation and/or operation will void the warranty.
240 VAC NATURAL GAS/LP GAS
Models
200 HD (53 kW)
300 HD (79 kW)
400 HD (100 kW)
Improper installation, adjustment,
alteration, service or maintenance can
cause property damage, personal injury or death.
Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
FOR YOUR SAFETY
•
If you do not follow these instructions exactly, a fire or explosion may result, causing property damage,
personal injury or loss of life.
•
Improper installation, adjustment, alteration, service or maintenance can cause property damage, personal
injury or death. Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
•
Do not place articles or against this appliance.
•
Do not use or store flammable materials near this appliance.
•
Do not spray aerosols in the vicinity of this appliance while it is in operation.
FOR
YOUR
SAFETY
Pentair Water Pool and Spa, Inc. EMEA – Head Office: Industriepark, Wolfstee, Toekomstlaan 30, 2200 Herentals - Belgium.
Pentair Water Pool and Spa, Inc. USA – 1620 Hawkins Ave., Sanford, NC 27330, USA • (919) 566-8000 • (800) 831-7133 –
www. pentaireurope.com - www.pentairwater.com.au - www.pentairpool.com - www.staritepool.com
P/N 475106 Rev. A 2/2014
™
POOL AND SPA HEATER (GB)
COUNTRY OF DESTINATION:
Natural
Propane
461082
461083
461086
461087
461090
461091
WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
•
•
Do not touch any electrical switch; do not use any phone in your building.
•
Immediately call your gas supplier from a neighbor's phone.
Follow the gas supplier's instructions.
•
If you cannot reach your gas supplier, call the fire department.
DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity
of this or other appliances.
10951 W. Los Angeles Ave., Moorpark, CA 93021, USA • (805) 553-5000 • (800) 831-7133
(GREAT BRITIAN)
™
MASTERTEMP
Pool and Spa Heater Installation and User's Guide
1 1
OWNER:
Retain For
Future
Reference
