Water Wash Rev Low - Spring Air Systems Rev Low Engineering Manual

The type "H" and "C" ventilators require a water wash control panel. Consult the "Ventilator
Engineering Manual" or individual water wash panel specification sheets for the proper water
wash control panel. The water wash control panel is supplied to provide operation of the exhaust
fan, supply unit (Spring Air SFA series), time wash cycle, and fire suppression system.
Water Wash REV LOW Hoods
Automatic Wash: Type "C" and "H:" Ventilators
SPRING AIR SYSTEMS ventilators are available with either automatic or manual wash systems.
All water wash ventilators must be interconnected with a water wash control panel.
The "C" and "H" ventilators have incorporated a water wash manifold into the high efficiency
extractor. Spray nozzles are spaced evenly along the wash manifolds. The hot detergent-water
HOT WATER INLET
______________________________________________________________________
Spring Air Systems REV LOW Engineering Manual Revision 2.0 -021902

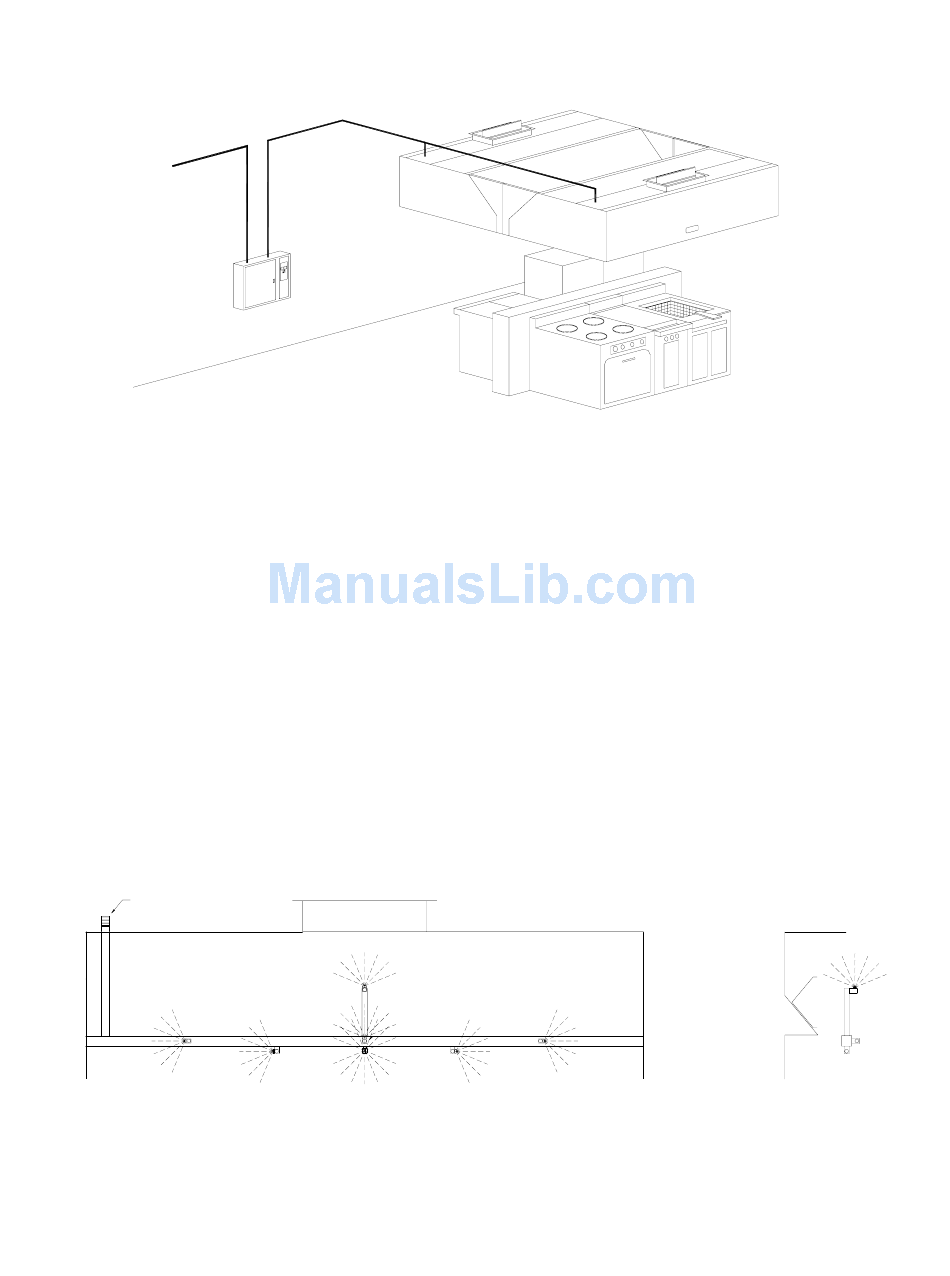

Typical Water Wash Application Island REV LOW
Two Model HD-BI
Figure 4b
NOZZLE TO WASH EXHAUST
DUCT AND FIRE DAMPER
TOP OF GREASE EXTRACTOR
FRONT VIEW OF MANIFOLD
Water wash Manifold
Figure 5
_
TOP OF HOOD
END OF
GREASE
EXTRACTOR
SECTION VIEW
5
