Make Up Air - Spring Air Systems Rev Low Engineering Manual

MP

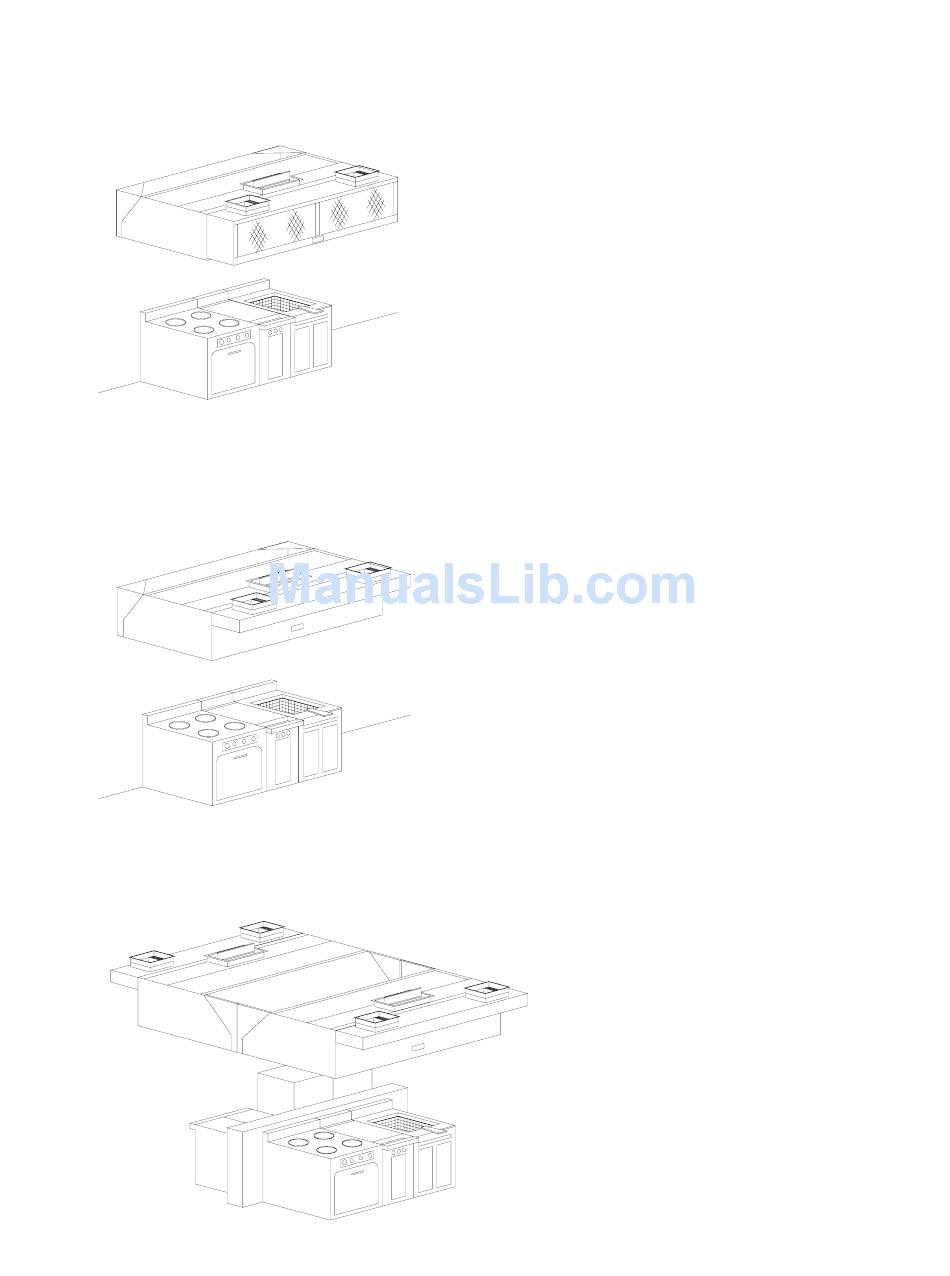

Model DD-B-F-MP
Figure 18
MC
Model DD-B-F-MC
Figure 19
18 ______________________________________________________________________
Spring Air Systems REV LOW Engineering Manual Revision 2.0 -021902
The make up air is discharged into the kitchen through
a perforated panel located on the front of the Rev-Low
ventilator. This method provides very low discharge
velocity. The fresh air is heated to 55F (13C). The
total supply is 80% to 90% of the total exhaust air
volume. The make up air plenums have 1/2" foam
insulation on the interior surfaces for sound attention
and insulation. A fire damper is located at the supply
air inlet on top of the ventilator.
The make up air is discharged into the kitchen down
through a perforated panel located on the front of the
Rev-Low ventilator. The fresh air is directed down
toward the floor in front of the cooking appliances.
This method is best suited for warm climates. The
fresh air is tempered to 55F (13C) and between 70%
to 80% of the total exhausts air volume.
damper is located at the supply air inlet on top of the
ventilator.
Two Models DD-B-F-I-MC
_
Figure 20
A fire
