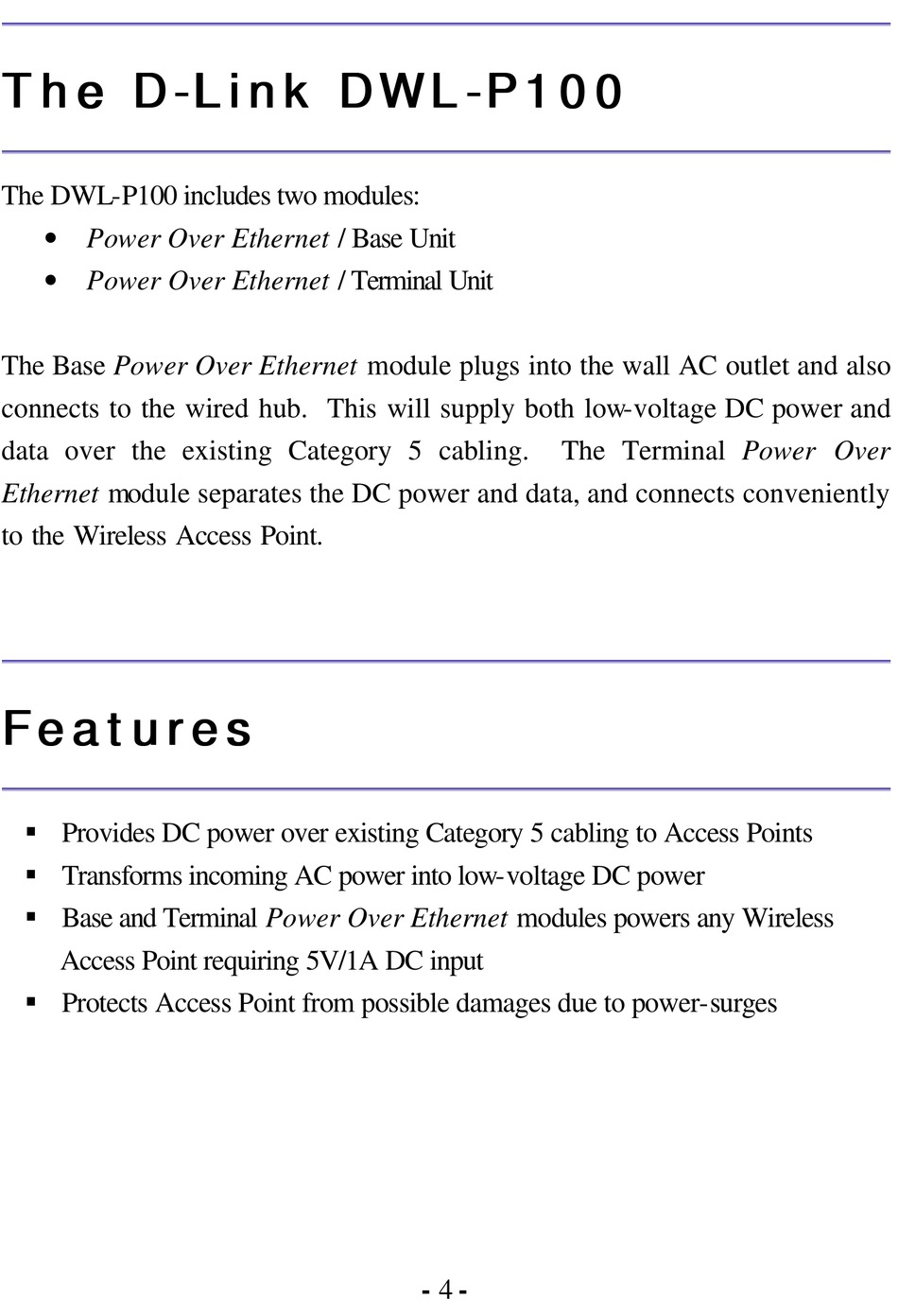

D-Link DWL-P100 Manual page 4

The D - - Link DWL The D
The DWL-P100 includes two modules:
• Power Over Ethernet / Base Unit
• Power Over Ethernet / Terminal Unit
The Base Power Over Ethernet module plugs into the wall AC outlet and also
connects to the wired hub. This will supply both low-voltage DC power and
data over the existing Category 5 cabling.
Ethernet module separates the DC power and data, and connects conveniently
to the Wireless Access Point.
Features Features
§ Provides DC power over existing Category 5 cabling to Access Points
§ Transforms incoming AC power into low-voltage DC power
§ Base and Terminal Power Over Ethernet modules powers any Wireless
Access Point requiring 5V/1A DC input
§ Protects Access Point from possible damages due to power-surges
Link DWL - - P100 P100
The Terminal Power Over
- - 4
