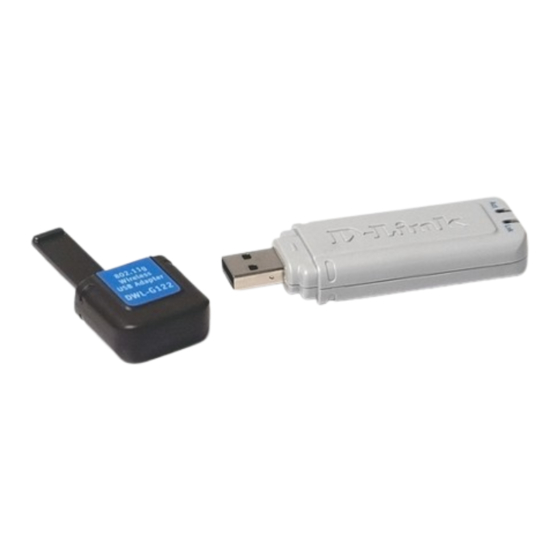

D-Link DWL-G122 Quick Installation Manual

2.4ghz usb
Hide thumbs Also See for DWL-G122:
Table of Contents

Advertisement

Quick Links

Download this manual
This product works with the following operating
system software: Windows XP, Windows
2000, Windows Me, Windows 98SE
Before You Begin
You must have at least the following for PC Windows Based Computers:
· You will need a computer with an available USB port to connect the DWL-G122 Wireless USB
adapter.
· At least a 300 MHz processor and 32 MB of memory
· An 802.11b/g Access Point or another 802.11b/g wireless adapter (for Ad-Hoc; Peer-to-Peer
net working mode.)

· Properly installed and working USB Controller.
Check Your Package Contents
These are the items included with your DWL-G122 purchase:
•
DWL-G122 Wireless USB Adapter
•
CD-ROM (containing Drivers, Manual and
•
USB Extension Cable
If any of the above items are missing, please contact your reseller.
Product Overview
Link/ Power LED
Link – Blinks when data is being transmitted throuth the wireless connection.
Power – Indicates that the DWL-G122 is properly installed in the computer.
USB Connetor
Connects to Yours desktop or laptop computer.
Antenna
Used to wirelessly Connector to 802.11b Networks.
DWL-G122
2.4GHz USB
Wireless Adapter

Advertisement

Table of Contents
loading

Related Manuals for D-Link DWL-G122

Summary of Contents for D-Link DWL-G122

  • Page 1 Before You Begin You must have at least the following for PC Windows Based Computers: · You will need a computer with an available USB port to connect the DWL-G122 Wireless USB adapter. · At least a 300 MHz processor and 32 MB of memory ·...

  • Page 2: Windows Os Installation

    Windows OS Installation Insert the D-Link CD-ROM Into Your Computer Turn on the computer Insert the D- Link Air DWL-G122 Driver install the CD in the CD-ROM drive. DWL-G122 USB Adapter into your computer before installing The step-by-step instructions that follow are the driver software on the D- shown in Windows XP.

  • Page 3: Your Computer

    Click Next Click Next Click No, I will restart my computer later Click Finish Shut down Your Computer...

  • Page 4: Turn On Your Computer

    Installing the DWL-G122 Wireless USB Adapter to Your Computer Removing the protective covering for the DWL-G122. Insert one end of the USB Adapter into the provided USB cable and plug the other end into your computer’s USB Port. Turn on Your Computer...
  • Page 5 D-Link Air DWL-G122 Wireless USB Adapter Click Finish For Windows XP/2000, a D-Link Air DWL-G122 Wireless USB Adapter screen similar to this Digital Signature Not Found screen may appear during the installation. Click Continue Anyway continue the installation For Windows Me and 98SE, this screen may appear.
  • Page 6 After you’ve continued in Windows XP (or after the computer restarts in the other Windows operating systems), the D-Link Air DWL-G122 Configuration Utility will automatically start and the utility icon will appear in the bottom right hand corner of the desktop screen (systray). If this icon appears...

  • Page 7: Connecting To A Wireless Network

    Connecting to a Wireless Network This window displays the available wireless networks. Click Configure after highlighting a wireless network you want to connect to. By initial factory settings, WEP encryption is turned off. If your access point or wireless router is configured with WEP encryption, please make sure to enter the correct WEP key.
  • Page 8 Access Point. automatically determined received. by the DWL-G122 depending on the Signal Strength: The Signal Strength represents the wireless distance from the access signal between the access point and the DWL-G122. The point. percentage coincides with the graphical bar.
  • Page 9 Appendix (cont.) SSID: The Service Set Identifier is the name as si  gned to the wireless network. The factory SSID setting is set to default. Make changes here to match the SSID on existing Wireless Router or Access Point. Wireless Mode: The factory setting is set to Infrastructure.

  • Page 10: Limited Warranty

    (90) days after any repaired or replaced Hardware is delivered. If a material defect is incapable of correction, or if D-Link determines in its sole discretion that it is not practical to repair or replace the defective Hardware, the price paid by the original purchaser for the defective Hardware will be refunded by D-Link upon return to D-Link of the defective Hardware.
  • Page 11 FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. "D-Link declares that WUS-G02 and DWL-G122 (IEEE 802.11g Wireless LAN USB Adapter) is limited in CH1~CH11 by specified firmware controlled in USA."...
