Replacement routines

Replacing the DC-DC Inverter Board

4.10
Replacing the DC-DC Inverter Board
2
1
3

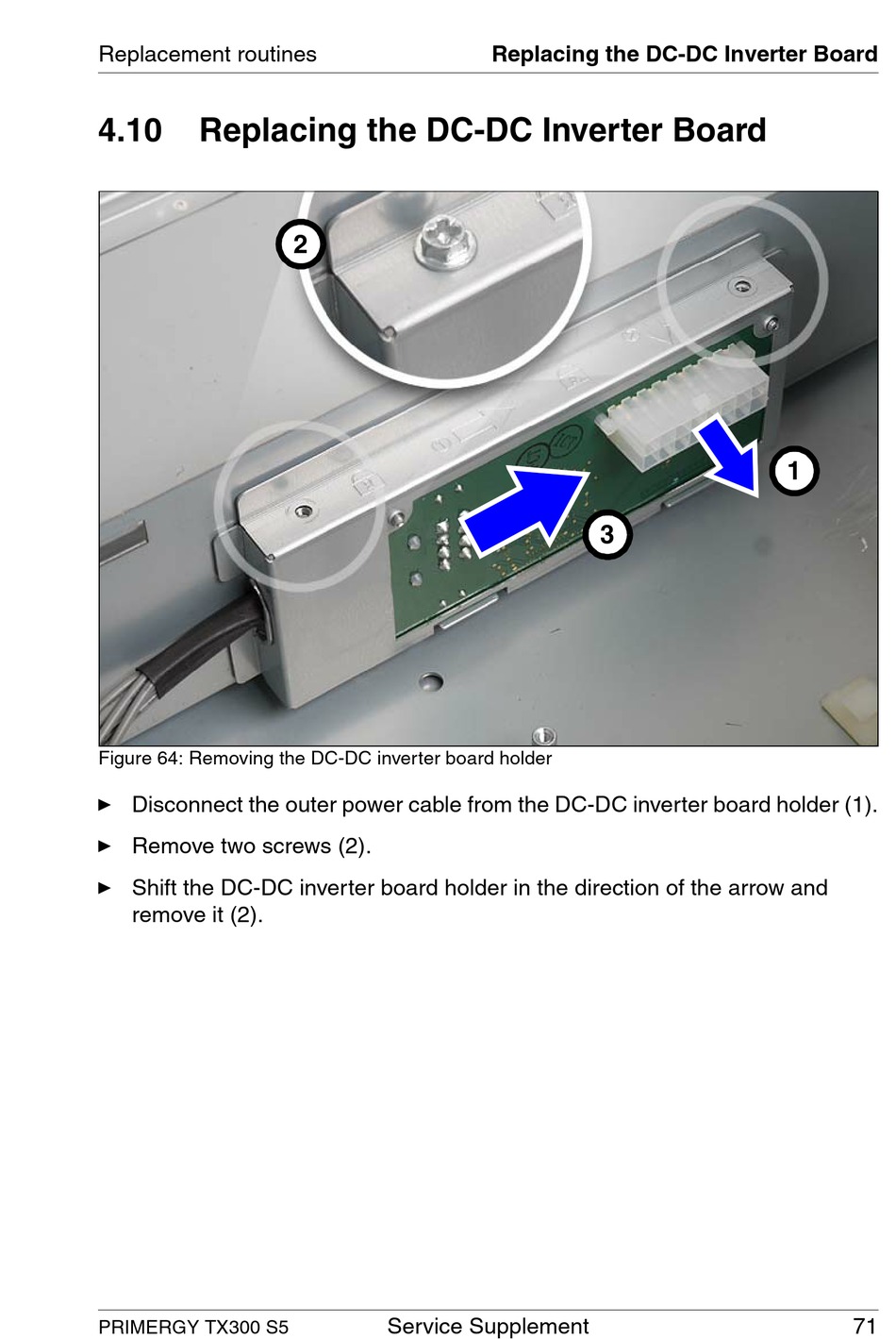

Figure 64: Removing the DC-DC inverter board holder
Ê Disconnect the outer power cable from the DC-DC inverter board holder (1).
Ê Remove two screws (2).
Ê Shift the DC-DC inverter board holder in the direction of the arrow and
remove it (2).
Service Supplement
71
PRIMERGY TX300 S5
