Introduction
Information/procedure
Extensions and upgrades:
I
For some components only the installation
routine is described in the Options Guide.
Removing these components proceed in
reverse order.
– Expanding/replacing the main memory
– Installing a second processor / replacing the
processor / replacing the heat sink
– Installing accessible drives, like floppy disk
drive, DVD/DVD-RW drive, multibay etc.
– Installing a hard disks extension box
– Installing a LSP or a LSD
– Installing expansion cards in the PCI slots
– Inserting the RAID key
– Installing the UFM module
– Installing the TPM module
– Converting to redundant fans
– Converting from the floorstand model to the
rack model
Cabling
Replacement routines:
– Replacing the operating panel board
– Replacing the front USB board
– Replacing PS riser cards
– Replacing the 3.5" HDD backplane
– Replacing the 2.5" HDD backplanes
– Replacing the intrusion switches
– Replacing the chassis ID board
– Replacing the system board
– Replacing the TPM board
Board layout
BIOS setup

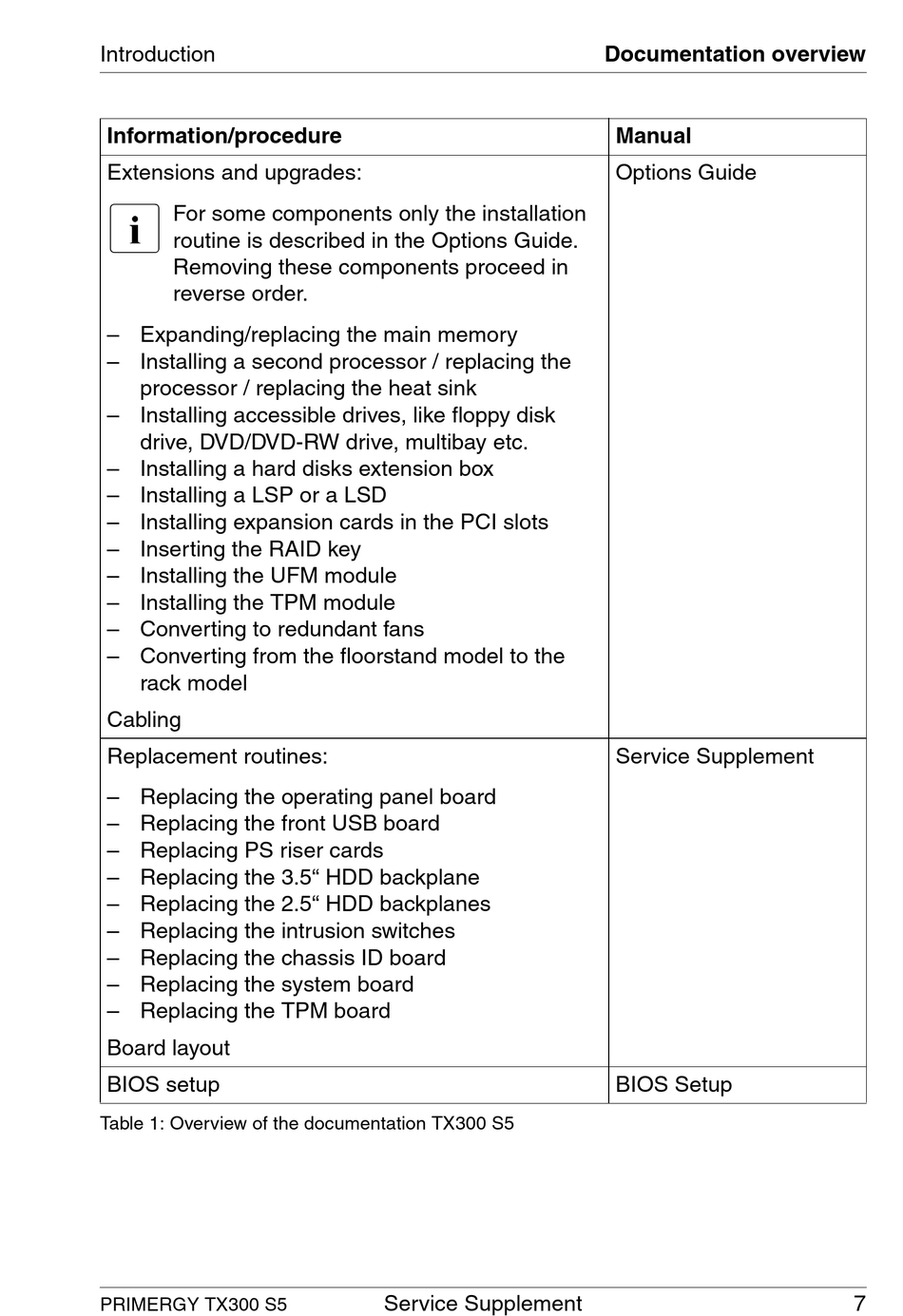

Table 1: Overview of the documentation TX300 S5
PRIMERGY TX300 S5
Service Supplement
Documentation overview
Manual
Options Guide
Service Supplement
BIOS Setup
