Alcatel-Lucent 7210 Installation Manual

Service access switch (sas-x)
Hide thumbs Also See for 7210:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual
7210 S
A
S
ERVICE
CCESS
WITCH
(SAS-X) I
G
NSTALLATION
UIDE

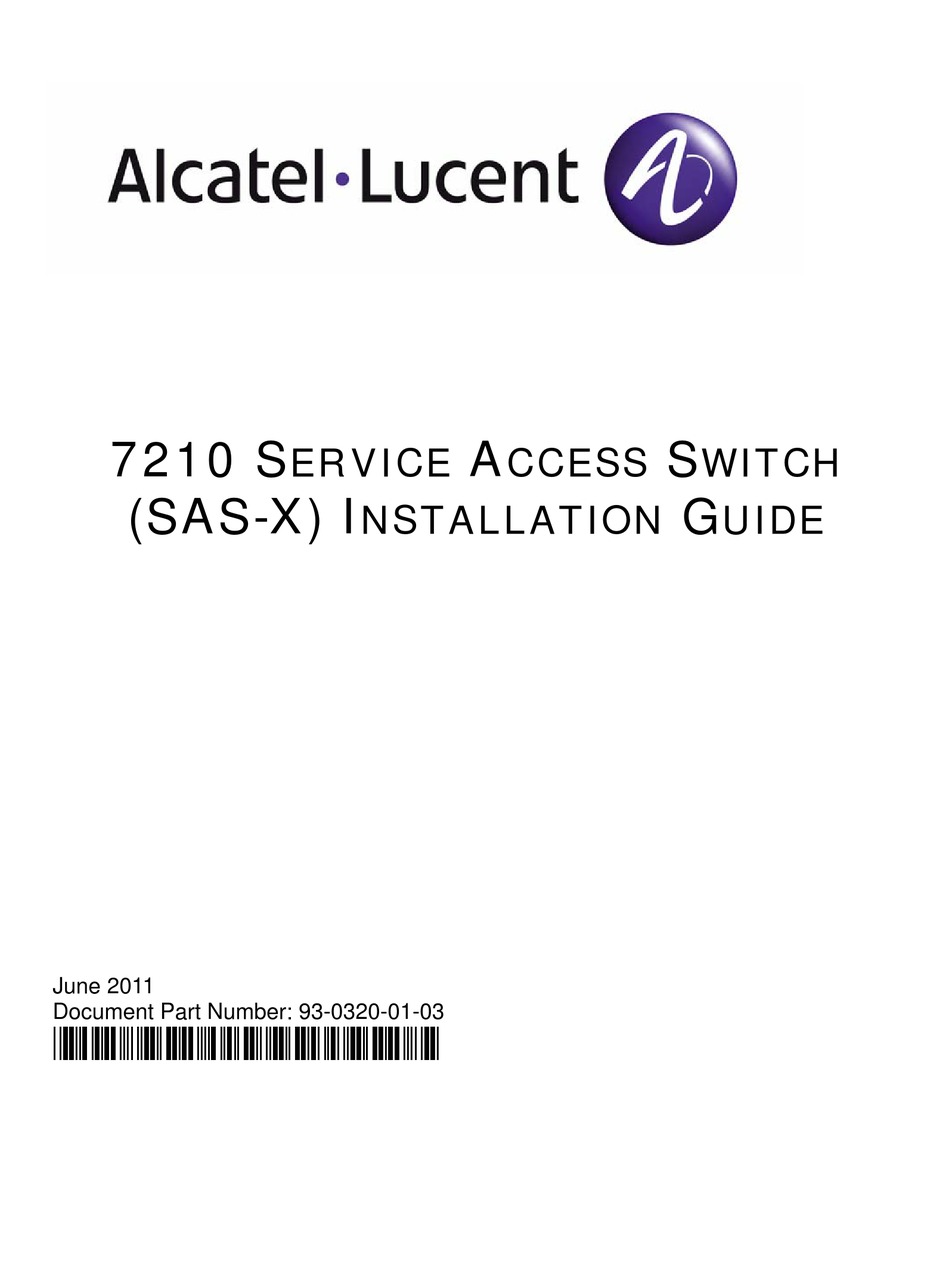

June 2011
Document Part Number: 93-0320-01-03
*93-0320-01-03*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7210 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alcatel-Lucent 7210

Summary of Contents for Alcatel-Lucent 7210

  • Page 1 7210 S ERVICE CCESS WITCH (SAS-X) I NSTALLATION UIDE June 2011 Document Part Number: 93-0320-01-03 *93-0320-01-03*...
  • Page 2 Copyright 2011 Alcatel-Lucent All rights reserved. No portion of this document may be reproduced in any form or means without prior written permission from Alcatel-Lucent. Information in this document is proprietary and confidential to Alcatel. The information in this document is subject to change. All trademarks and registered trademarks are the property of the respective owners.

  • Page 3: Table Of Contents

    7210 SAS-X Introduction and Features ........
  • Page 4 Booting a 7210 SAS-X From the Network ........
  • Page 5 7210 SAS-X System LEDs and Buttons ........
  • Page 6 List of Tables Page 6 7210 SAS-X Installation Guide...
  • Page 7 7210 SAS-X Boot Process ........
  • Page 8 List of Figures Page 8 7210 SAS-X Installation Guide...

  • Page 9: Preface

    Alcatel-Lucent 7210 Service Access Switch (SAS-X) , and instructions to install and configure the TiMOS software. Each 7210 SAS-X router is shipped with rack-mounting brackets, a console cable, power cord (AC only), and rubber feet. Warnings and Notes Observe the warnings and notes to avoid injury or router damage during installation and maintenance.

  • Page 10: Table 1: Information Symbols

    Class 1 Laser Product Technical Support If you purchased a service agreement for your 7210 SAS-X and related products from a distributor or authorized reseller, contact the technical support staff for that distributor or reseller for assistance. If you purchased an Alcatel-Lucent service agreement, contact technical assistance at: Web: http://www1.alcatel-lucent.com/comps/pages/carrier_support.jhtml...

  • Page 11: 7210 Sas-X Overview

    7210 SAS-X Overview This chapter describes the 7210 SAS-X features and includes the following sections: • 7210 SAS-X Introduction and Features on page 12 • Switch Architecture on page 13 • Features on page 14 • Hardware Description on page 15...

  • Page 12: 7210 Sas-X Introduction And Features

    7210 SAS-X Introduction and Features 7210 SAS-X Introduction and Features 7210 SAS-X supports line-rate switching and provides better service scale along with richer QoS capabilities, useful for first level of access ethernet aggregation in small and medium access networks. The 7210 SAS-X has one 10/100BASE-TX management port for dedicated management access.

  • Page 13: Switch Architecture

    7210 SAS-X Overview Switch Architecture The 7210 SAS-X employs a wire-speed, non-blocking switching fabric. This permits simultaneous wire-speed transport of multiple packets at low latency on all ports. The switch also features full- duplex capability on all ports, that effectively doubles the bandwidth of each connection.

  • Page 14: Features

    Provides three isolated alarm inputs and three dry contacts that relay outputs through a DB-15 interface on the front panel • Hot-swappable, redundant, load sharing AC or DC power and fan modules Connectivity The 7210 SAS-X includes the following connectivity features: • 100/1000 fiber-optic SFP ports. • 10G XFP ports •...

  • Page 15: Hardware Description

    7210 SAS-X Overview Hardware Description SR72033 Figure 2: 7210 SAS-X Front Panel Table 2: 7210 SAS-X Front Panel Features Description DC power connection Ground lug Rack mounting brackets 100/1000 SFP ports and LEDs Power trays XFP ports USB port Management port...

  • Page 16: Ethernet Interfaces

    Hardware Description Ethernet Interfaces The 7210 SAS-X provides 24 100/1000 SFP ports. Each port can be used for a direct connection to a subscriber’s Customer Premises Equipment (CPE), or as an uplink to another aggregation node. The 7210 SAS-X supports 10/100/1000 Base-T copper SFPs. In addition, the 7210 SAS-X supports 2 x 10G XFP ports.

  • Page 17: Console Port

    The serial port configuration requirements are as follows: • Default Baud rate – 115200 bps • Character Size – 8 Characters • Parity – None • Stop bit – One • Data bits – 8 • Flow control – none 7210 SAS-X Installation Guide Page 17...

  • Page 18: Alarm Interface Port

    MIN_NORM_OPEN Normally open during minor alarm state MAJ_NORM_OPEN Normally open during major alarm state CRIT_NORM_OPEN Normally open during critical alarm state ALARMIN_0_P External alarm input 0 (external relay dry contact closure to pin 14) Page 18 7210 SAS-X Installation Guide...
  • Page 19 External alarm input 2 (external relay dry contact closure from pin 3) ALARMIN_0_R External alarm input 0 (external relay dry contact closure from pin 9) ALARMIN_1_R External alarm input 1 (external relay dry contact closure from pin 10) 7210 SAS-X Installation Guide Page 19...

  • Page 20: Power Modules

    Hardware Description Power Modules The 7210 SAS-X provides two power module options: -48V DC and universal AC. See Figure 3 for an illustration of the power modules. For specifications on the power supply modules and external input power requirements, see "Connecting to a Power Source"...
  • Page 21 The Input LEDs on the left indicate the status of external power. The Output LED on the right indicates the status of the internal power conversion process. You must use AC and/or DC power supplies with your 7210 SAS-X. AC and DC power Note: supplies can be used simultaneously.

  • Page 22: Usb Port

    Allow at least three inches of clearance on the sides of the rack to ensure proper airflow intake cooling system. The fan trays must be in place before the chassis is powered on. SR72034 Figure 4: Fan Tray Page 22 7210 SAS-X Installation Guide...

  • Page 23: Figure 5: Removing And Replacing The Fan Tray And Air Filter

    Replace the fan tray and tighten the captive screws. Step 4 SR72035 Figure 5: Removing and Replacing the Fan Tray and Air Filter 7210 SAS-X Installation Guide Page 23...

  • Page 24: System Leds And Buttons

    Table 6 for alarm descriptions. SR72036 Figure 6: System LEDs and Buttons Table 5: 7210 SAS-X System LEDs and Buttons Description Alarm LEDs and 10G port LEDs Alarm Cut Off button Reset button 100/1000 SFP port LEDs...

  • Page 25: System And Port Leds

    Green Port has a valid link. Flashing Green Flashing indicates activity on the port. The link is down. Figure 7 for an illustration of two ports and their corresponding LEDs. See Table 9 descriptions. 7210 SAS-X Installation Guide Page 25...

  • Page 26: Table 8: Port Led Key Descriptions

    LED that indicates status for an odd-numbered port. Odd-numbered ports are in the top row. Reserved. LED that indicates status for an even numbered port. Even-numbered ports are in the bottom row. SFP slots. Page 26 7210 SAS-X Installation Guide...

  • Page 27: System Buttons And Switches

    Standby mode if switch is connected to a power source. AC or DC power is applied to the switch. ACO (Alarm Cut Off) Not pushed Normal operating mode. Reset (Recessed) Not pushed Normal operating mode. Push to reset hardware. 7210 SAS-X Installation Guide Page 27...
  • Page 28 Hardware Description Page 28 7210 SAS-X Installation Guide...

  • Page 29: Installing The 7210 Sas-X

    Installing the 7210 SAS-X This chapter describes site preparation and installation of your 7210 SAS-X and includes the following sections: • Site Preparation on page 30 • Installing Your Switch on page 32 7210 SAS-X Installation Guide Page 29...

  • Page 30: Site Preparation

    Selecting a Site Mount the 7210 SAS-X in a standard 19-inch equipment rack or on a flat surface. When you mount your switch on a flat surface, ensure that the four rubber feet are installed on the bottom of the box.

  • Page 31: Equipment Checklist

    Installing the 7210 SAS-X Equipment Checklist After unpacking your switch, check the contents to make sure all the components are present. Before installation, make sure you have all the necessary equipment. 7210 SAS-X Installation Guide Page 31...

  • Page 32: Installing Your Switch

    Attach the brackets to the device using the screws provided in the Bracket Mounting Kit. Figure SR72037 Figure 8: Attaching the Brackets Mount the 7210 SAS-X in the rack, using four rack-mounting screws (not provided). See Step 2 Figure Page 32...

  • Page 33: Installing The 7210 Sas-X

    Installing the 7210 SAS-X SR72038 Figure 9: Installing the Switch in a Rack If you are installing a single switch, proceed to Grounding the Chassis on page Step 3 If installing multiple switches, mount them in the rack, one below the other, in any order.

  • Page 34: Desktop Or Shelf Mounting

    If you are installing a single switch, proceed to "Grounding the Chassis" on page Step 4 If you are installing multiple switches, attach four adhesive feet to each switch. Place each device squarely on top of the one below, in any order. Page 34 7210 SAS-X Installation Guide...

  • Page 35: Grounding The Chassis

    Installing the 7210 SAS-X Grounding the Chassis Before powering on the switch, ground the switch to earth as described below. Ensure that the rack on which the switch is to be mounted is properly grounded. Step 1 Ensure that you have made a suitable electrical connection to the grounding point on the Step 2 rack.

  • Page 36: Connecting To A Power Source

    AC power module is installed. If you have installed both primary and redundant power supply modules, verify that the Step 5 LEDs on both modules are lit as indicated in the preceding step. Page 36 7210 SAS-X Installation Guide...

  • Page 37: Connecting To Dc Power

    Installing the 7210 SAS-X Connecting to DC Power Below the DC power entry block is an additional chassis ground point for attaching a Notes: DC power chassis ground if required by local electrical codes. The ground point should be connected with an M4 screw and a terminal lug as specified by local electrical codes.

  • Page 38: Connecting To The Console Port

    Used as defined. Should be connected Used as defined. Should be connected Used as defined. Should be connected Used as defined. Should be connected Not used. Should not be connected Used as defined. Should be connected Page 38 7210 SAS-X Installation Guide...

  • Page 39: In This Chapter

    MDA ports that support these devices. • Warnings and Notes on page 40 • Installation Preparation on page 41 • Locking Mechanisms on page 41 • Installing SFP/XFPs on page 42 • Removing SFP/XFPs on page 42 7210 SAS-X Installation Guide Page 39...

  • Page 40: Warnings And Notes

    • Do not remove the dust cover on the connector until you are ready to install the SFP. Always replace the the dust cover when the SFP is removed. Notes: • Discard SFPs according to all local laws and regulations. • SFPs are keyed to prevent incorrect insertion. Page 40 7210 SAS-X Installation Guide...

  • Page 41: Installation Preparation

    Blow dry the ferrule with compressed air and inspect for lint. Do not insert the compressed air nozzle into the receptacle when blowing out. Locking Mechanisms Alcatel-Lucent SFP/XFPs can use different lock and release methods. Possible lock and release mechanisms include: •...

  • Page 42: Installing Sfp/Xfps

    Step 4 Connect the network cable or place a safety cap over the optical transceiver. Step 5 Verify that the temperature ratings for the SFPs and XFPs match those of the intended Note: operating environment. Page 42 7210 SAS-X Installation Guide...

  • Page 43: Configuring The 7210 Sas-X

    Configuring the 7210 SAS-X This chapter describes how to configure your 7210 SAS-X and contains the following sections: • Diagnostics on page 44 • Initializing the System and Downloading Software on page 45 • Establishing Router Connections on page 56...

  • Page 44: Diagnostics

    Minor: OFF • Fan: GREEN • Status: Steady GREEN If any of the above LEDs shows a different state, press the Reset button and wait for a few seconds to let the system boot. Page 44 7210 SAS-X Installation Guide...

  • Page 45: Initializing The System And Downloading Software

    Initializing the System and Downloading Software The 7210 SAS-X ships with a bootloader image on the internal flash (cf1). It does not come with a pre-installed TiMOS image or a BOF. When the system is powered up for the first time, the bootloader will attempt an auto-init procedure (see the System Basics Guide for more information).

  • Page 46: Booting A 7210 Sas-X From The Network

    • A PC with a serial port and Hyperterminal • Cable that connects the console port of 7210 SAS-X to the serial port of PC • A network cable to connect the 7210 unit to the network Prepare the set up as shown in the diagram above. Ensure that the console settings are set as shown Console Connection on page When you are done, power on the 7210 SAS-X.

  • Page 47: Configuring The 7210 Sas-X

    Configuring the 7210 SAS-X eth-mgmt-disabled #uplinkA Port Settings: uplinkA-port 1/1/1 uplinkA-address uplinkA-vlan #uplinkB Port Settings: uplinkB-port 1/1/2 uplinkB-address uplinkB-vlan #System Settings: wait persist console-speed 115200 Hit a key within 2 seconds to change boot parameters... Press any key. Enter password to edit the Boot Options File...
  • Page 48 Or "edit" to change the port settings: Type edit. Existing uplinkA port for Boot Interface Management is port 1/1/1. Press Enter to keep it. Enter the new uplinkA port number for Boot Interface Management: Page 48 7210 SAS-X Installation Guide...
  • Page 49 Configuring the 7210 SAS-X Enter the port that it connected to the network (for example, 1/1/24). You need to assign an IP address for this port. The IP address should be entered in standard dotted decimal form with a network length.
  • Page 50 Built on Wed Jul 15 17:18:37 IST 2009 by builder in /builder/ws/1.1B1/sultan Login: The default username and password are admin. Use it to log into the 7210 SAS-X. The status LED will be Green when the device has successfully completed the boot process Note: and is running normally.

  • Page 51: Using The Out-Of-Band Ethernet Management Port To Boot 7210 From The Network

    Configuring the 7210 SAS-X Using the Out-of-Band Ethernet Management Port to Boot 7210 from the Network Follow the same procedure as used for a uplink port until the following prompt is displayed. Use the following procedure to use the out-of-band ethernet management port to boot 7210 from the network.
  • Page 52 10.135.0.0/16 next-hop 10.135.25.1 eth-mgmt-route 135.254.0.0/16 next-hop 10.135.25.1 eth-mgmt-autoneg eth-mgmt-duplex full eth-mgmt-speed #System Settings: wait persist console-speed 115200 Do you want to overwrite cf1:/bof.cfg with the new settings? (yes/no): yes Type yes and press Enter. Page 52 7210 SAS-X Installation Guide...
  • Page 53 Executing TiMOS image at 0x100000 ..After the 7210 SAS-X boots up, you should see the following prompt: All rights reserved. All use subject to applicable license agreements. Built on Tue Jul 13 23:24:58 IST 2010 by builder in /builder/2.0B1/panos/main Login: The default username and password are admin.

  • Page 54: Downloading The Timos Software To The Internal Flash

    If you want to boot the 7210 SAS-X from the internal flash, you will have to copy the image there. If you have used the uplinkA or uplinkB port to boot the 7210, use any of the network ports for IP connectivity and follow the procedure given below to configure an IP interface and a route.
  • Page 55 A:SN12# bof primary-image cf1:/both.tim *A:SN12# bof save Writing BOF to cf1:/bof.cfg Saving BOF ..Completed. A:SN12# Reboot the 7210 SAS-X. The device will pick up both the image and the configuration from the internal flash. 7210 SAS-X Installation Guide Page 55...

  • Page 56: Establishing Router Connections

    Establish the connection by pressing the Enter key a few times on your terminal keyboard. At the router prompt, enter the login and password. Step 4 The default login is admin The default password is admin Page 56 7210 SAS-X Installation Guide...

  • Page 57: Telnet Connection

    To configure the 7210 SAS-X for Telnet access, you must have a device with Telnet client software. The 7210 SAS-X must have a management IP interface configured with an IP address. Before using the telnet client access you must enable telnet server on the 7210 by using the CLI command: *A: 7210SAS# configure system security telnet-server.

  • Page 58: Running Telnet

    To establish a Telnet connection, run a Telnet program and issue the Telnet command, followed by the IP address: The following displays an example of a Telnet login: C:\>telnet 10.10.10.25 Login: admin Password: ######## ALA-1# Page 58 7210 SAS-X Installation Guide...

  • Page 59: Troubleshooting

    This chapter describes troubleshooting methods and procedures and includes the following sections: • Diagnosing Switch Indicators on page 60 • Power and Cooling Problems on page 62 • Installation on page 63 • In-Band Access on page 64 7210 SAS-X Installation Guide Page 59...

  • Page 60: Diagnosing Switch Indicators

    • One or more critical system alarm(s) have occurred. Major LED is RED Major alarm detected. • One or more major system alarm(s) have occurred. Minor LED is AMBER Minor alarm detected • One or more minor system alarm(s) have occurred. Page 60 7210 SAS-X Installation Guide...
  • Page 61 • Verify that the proper cable type is used and its length does not exceed specified limits. • Check the adapter on the attached device and cable connections for possible defects. Replace the defective adapter or cable if necessary. 7210 SAS-X Installation Guide Page 61...

  • Page 62: Power And Cooling Problems

    However, if the unit powers off after running for a while, check for loose power connections, power losses or surges at the power outlet, and verify that the fans on the unit are unobstructed and running prior to shutdown. Page 62 7210 SAS-X Installation Guide...

  • Page 63: Installation

    Verify that all system components have been properly installed. If one or more components appear to be malfunctioning (such as the power cord or network cabling), test them in an alternate environment where you are sure that all the other components are functioning properly. 7210 SAS-X Installation Guide Page 63...

  • Page 64: In-Band Access

    NOTE: The management agent can accept up to seven simultaneous Telnet sessions. If the maximum number of sessions already exists, an additional Telnet connection will not be able to log into the system. Page 64 7210 SAS-X Installation Guide...

  • Page 65: Appendix A: Specifications

    Appendix A: Specifications This appendix provides system specifications and includes the following sections: • Specifications on page 66 7210 SAS-X Installation Guide Page 65...

  • Page 66: Specifications

    Specifications Specifications Table 13: 7210 SAS-X Specifications Item Width Height Depth Physical dimensions Size 17.17" (43.6 cm) 3.5" (2.0RU) (8.9cm) 11.1 (28.2) Weight 17 lbs (7.72 kg) fully loaded AC power supplies Environmental Operating Temperature 0º C to 50º C (-32º F to 122º F) (standard) IEC 68-2-14...

  • Page 67: Japan Vcci Class A Declaration

    Appendix A: Specifications Table 13: 7210 SAS-X Specifications (Continued) Item Width Height Depth Europe CE Mark: EN50081-1: EN55022 Class A EN60555-2/3 North America: FCC 47 CFR Part 15 Class A ICES-003 Issue 4 Class A (Canada) Japan: VCCI CISPR 22 Class A...
  • Page 68 Specifications Page 68 7210 SAS-X Installation Guide...

  • Page 69: Appendix B: Pin Assignments

    Appendix B: Pin Assignments This appendix contains pin assignments and includes the following sections: • Management Port Pin Assignments on page 70 • "Console Port Pin Assignment" on page 71 7210 SAS-X Installation Guide Page 69...

  • Page 70: Management Port Pin Assignments

    4, 5, 7, 8 Not used Not used NOTE: • The “+” and “-” signs represent the polarity of the wires that make up each wire pair. • Auto-negotiation must be enabled for automatic MDI/MDI-X pinout configuration. Page 70 7210 SAS-X Installation Guide...

  • Page 71: Console Port Pin Assignment

    Used as defined. Should be connected Used as defined. Should be connected Used as defined. Should be connected Used as defined. Should be connected Not used. Should not be connected Used as defined. Should be connected 7210 SAS-X Installation Guide Page 71...
  • Page 72 Console Port Pin Assignment Page 72 7210 SAS-X Installation Guide...
