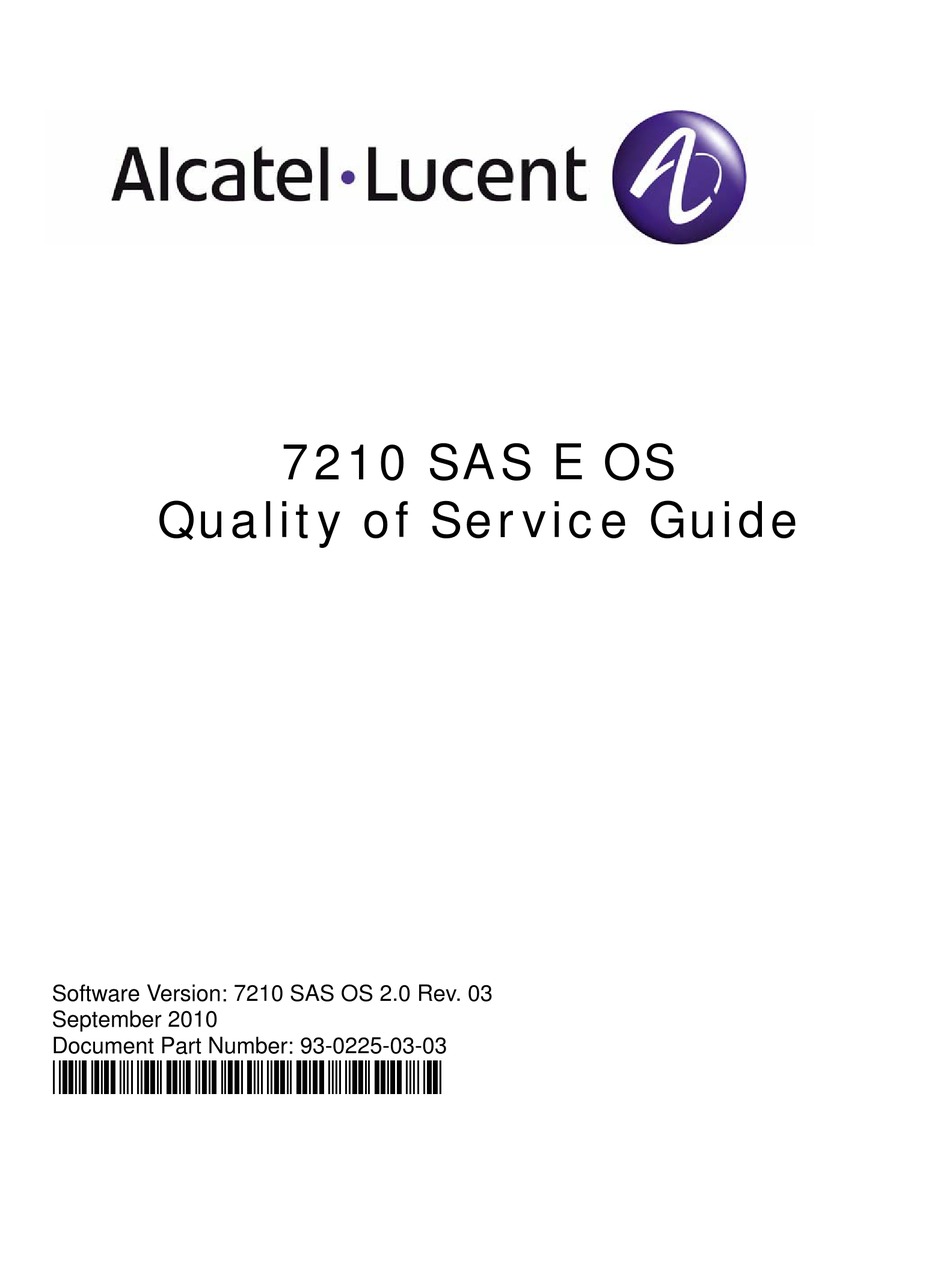

Page 1 7210 SAS E OS Quality of Service Guide Software Version: 7210 SAS OS 2.0 Rev. 03 September 2010 Document Part Number: 93-0225-03-03 *93-0225-03-03*...
Page 2 This document is protected by copyright. Except as specifically permitted herein, no portion of the provided information can be reproduced in any form, or by any means, without prior written permission from Alcatel-Lucent. Alcatel, Lucent, Alcatel-Lucent and the Alcatel-Lucent logo are trademarks of Alcatel-Lucent. All other trademarks are the property of their respective owners.
Page 3: Table Of Contents
Getting Started Alcatel-Lucent 7210 SAS-Series Services Configuration Process .......15 QoS Policies QoS Overview.
Page 4 Service SAP QoS Policy Command Reference ..........165 Page 4 7210 SAS E OS Quality of Service Guide...
Page 5 ................259 7210 SAS E OS Quality of Service Guide...
Page 6 Table of Contents Page 6 7210 SAS E OS Quality of Service Guide...
Page 7 Slope Policy Defaults ............242 7210 SAS E OS Quality of Service Guide...
Page 8 List of Tables Page 8 7210 SAS E OS Quality of Service Guide...
Page 9 Traffic Queuing Model for Forwarding Classes ........38 Page 9 7210 SAS E OS Quality of Service Guide...
Page 10 List of Figures Page 10 7210 SAS E OS Quality of Service Guide...
Page 11: Preface
SAS-Series routers. It is assumed that the network administrators have an understanding of networking principles and configurations. Protocols, standards, and services described in this manual include the following: • CLI concepts • Quality of Service (QoS) policies and profiles 7210 SAS E OS Quality of Service Guide Page 11...
Page 12: List Of Technical Publications
Preface List of Technical Publications The 7210 SAS E OS documentation set is composed of the following books: • 7210 SAS E OS Basic System Configuration Guide This guide describes basic system configurations and operations. • 7210 SAS E OS System Management Guide This guide describes system security and access configurations as well as event logging and accounting logs.
Page 13: Technical Support
If you purchased a service agreement for your 7210 SAS device and related products from a distributor or authorized reseller, contact the technical support staff for that distributor or reseller for assistance. If you purchased an Alcatel-Lucent service agreement, contact your welcome center.
Page 14 Preface Page 14 7210 SAS E OS Quality of Service Guide...
Page 15: Getting Started
Service Ingress QoS Policies on page 133 • Access egress Access Egress QoS Policies on page 199 • Port scheduler QoS Port Scheduler Policies on page 221 • Slope Slope QoS Policies on page 237 7210 SAS E OS Quality of Service Guide Page 15...
Page 16: Getting Started
Getting Started Table 1: Configuration Process (Continued) Area Task Chapter (Continued) Reference • List of IEEE, IETF, and Standards and Protocol Support on page 317 other proprietary entities Page 16 7210 SAS E OS Quality of Service Guide...
Page 17: Qos Policies
Queue Parameters on page 32 • Slope Policies on page 45 • Port Scheduler Policies on page 49 • QoS Policy Entities on page 55 • Configuration Notes on page 56 7210 SAS E OS Quality of Service Guide Page 17...
Page 18: Qos Overview
The 7210 SAS E has extensive and flexible capabilities to classify, police, shape, and mark traffic. In the Alcatel-Lucent service router’s service model, a service is provisioned on the provider-edge (PE) equipment. Service data is encapsulated and then sent in a service tunnel to the far-end Alcatel-Lucent service routerwhere the service data is delivered.
Page 19: Qos Policies
(SAP) for SAP egress policy. An access egress QoS policy maps the traffic egressing out on the customer facing ports into various queues 7210 SAS E OS Quality of Service Guide Page 19...
Page 20 QoS policy defines both ingress and egress behavior. One network queue policy can be applied to the access uplink port. If no QoS policy is explicitly applied to a SAP or port, a default QoS policy is applied. Page 20 7210 SAS E OS Quality of Service Guide...
Page 21: Table 2: Qos Policy Types And Descriptions
Slope Ports • Enables or disables the high-slope, low-slope, and non-TCP parameters within the egress pool. Port scheduler Port • Defines the parameters for the port scheduler. 7210 SAS E OS Quality of Service Guide Page 21...
Page 22: Service And Network Qos Policies
The 7210 SAS supports four types of service and network QoS policies: • Service ingress QoS policies • Access egress QoS policies • Network QoS policies • Network Queue QoS policies Page 22 7210 SAS E OS Quality of Service Guide...
Page 23: Network Qos Policies
The network QoS policy applied at network egress (for example, on an access uplink port) determines how or if the profile state is marked in packets transmitted into the service core 7210 SAS E OS Quality of Service Guide Page 23...
Page 24: Table 3: Default Network Qos Policy Egress Marking
Dot1p values to forwarding class and profile state for the default network QoS policy. Table 4: Default Network QoS Policy Dot1p to FC Mapping Dot1pValue 7210 FC Ingress Profile Page 24 7210 SAS E OS Quality of Service Guide...
Page 25 QoS Policies Table 4: Default Network QoS Policy Dot1p to FC Mapping Dot1pValue 7210 FC Ingress Profile 7210 SAS E OS Quality of Service Guide Page 25...
Page 26: Network Queue Qos Policies
Queue 5 • PIR = 100% • CIR = 100% • CBS = 21% Low-1 (l1 Queue 4 • PIR = 100% • CIR = 25% • CBS = 7% Page 26 7210 SAS E OS Quality of Service Guide...
Page 27 Queue 2 • PIR = 100% • CIR = 25% • CBS = 7% Best-Effort (be) Queue 1 • PIR = 100% • CIR = 0% • CBS = 7% 7210 SAS E OS Quality of Service Guide Page 27...
Page 28: Meter Parameters
Refer to the interpretation of the administrative CIR in Adaptation Rule for Meters on page The CIR for meter is provisioned on service ingress and network ingress within service ingress QoS policies and network QoS policies, respectively. Page 28 7210 SAS E OS Quality of Service Guide...
Page 29: Table 6: Administrative Rate Example
PIR or CIR rates are specified in the CLI. Table 6: Administrative Rate Example Administrative Rate Operation Rate Operation Rate Operation Rate (Min) (Max) (Closest) 1275 7210 SAS E OS Quality of Service Guide Page 29...
Page 30 MBS value then the packets are marked as out-profile by the meter to indicate that the traffic is not complying with CIR. If the packet burst is higher than MBS then packets are marked as red are dropped. Page 30 7210 SAS E OS Quality of Service Guide...
Page 31 The profile marked by the meter is used to determine the packets eligibility to be enqueued into a buffer at the egress (when a slope policy is configured at the egress). 7210 SAS E OS Quality of Service Guide Page 31...
Page 32: Queue Parameters
QoS policy within which the queue is defined. On 7210 SAS E, the queue ID is not a user configurable entity but the queue ID is statically assigned to the 8 Queues on the port according to FC-QID map table shown in Table Page 32 7210 SAS E OS Quality of Service Guide...
Page 33 The CIR for the access uplink queues are defined within network queue policies based on the forwarding class. The CIR for the access uplink queues is specified as a percentage of the network interface bandwidth. 7210 SAS E OS Quality of Service Guide Page 33...
Page 34 PIR should the hardware not support the exact CIR and PIR values specified. The interpretation of the administrative PIR is discussed below in Adaptation Rule for Queues on page 35 Page 34 7210 SAS E OS Quality of Service Guide...
Page 35 If the adaptation rule is closest, the operational CIR and PIR values will be 64 Kbps and 128 Kbps, respectively, as those are the closest matches for the administrative values that are even multiples of the 64 Kbps rate step. 7210 SAS E OS Quality of Service Guide Page 35...
Page 36 The CBS for the queues is not configurable entity for the access and access uplink ports. The CBS value for the queues is set to appropriate default values which takes care of specific FC needs in terms of maintaining the differential treatment. Page 36 7210 SAS E OS Quality of Service Guide...
Page 37: Service Ingress Qos Policies
Each meter can have unique meter parameters to allow individual policing of the flow mapped to the forwarding class. Figure 2 depicts service traffic being classified into three different forwarding classes. 7210 SAS E OS Quality of Service Guide Page 37...
Page 38 The entries are evaluated in numerical order based on the entry ID from the lowest to highest ID value. The first entry that matches all match criteria has its action performed. Table 7 Table 8 list the supported IP and MAC match criteria. Page 38 7210 SAS E OS Quality of Service Guide...
Page 39: Table 7: Service Ingress Qos Policy Ip Match Criteria
MAC frame types. Table 10: MAC Match Criteria Frame Type Dependencies Frame Format Source MAC Dest MAC IEEE 802.1p Value Etype Value 802dot3 802dot2-llc 7210 SAS E OS Quality of Service Guide Page 39...
Page 40: Table 11: Default Service Ingress Policy Id 1 Definition
• PIR = max (line rate) • MBS, CBS = default (values derived from applicable policy) Flows Default Forwarding 1 (one) flow defined for all traffic: Class (be) • All traffic mapped to best-effort (be) Page 40 7210 SAS E OS Quality of Service Guide...
Page 41: Access Egress Qos Policies
The default access egress policy is applied to all access ports which do not have another access egress policy explicitly assigned. The characteristics of the default policy are listed in the following table. 7210 SAS E OS Quality of Service Guide Page 41...
Page 42: Table 12: Default Access Egress Policy Id 1 Definition
• PIR = max (line rate) • CBS = default (values derived for optimal buffer usage) Flows Default All FCs are mapped to corresponding Queues and Dot1p values are Action marked as follows: Page 42 7210 SAS E OS Quality of Service Guide...
Page 43 Table 12: Default Access Egress Policy ID 1 Definition (Continued) Characteristic Item Definition In-Profile Out-Profile Network-Control (nc) High-1(h1) Expedited (ef) High-2 (h2) Low-1 (l1) Assured (af) Low-2 (l2) Best-Effort (be) 7210 SAS E OS Quality of Service Guide Page 43...
Page 44: Buffer Pools
Thus the access uplink ports will be mostly congested. By providing additional buffer capacity to access uplink ports as compared to the access ports more bursty traffic can be transported over the congested links with improved throughput. Page 44 7210 SAS E OS Quality of Service Guide...
Page 45: Slope Policies
By default, each pool is associated with slope-policy default which disables the high-slope and low-slope for all the queues. Access and access uplink pools are created at the port level; creation is dependent on the physical port mode (access uplink or access) . 7210 SAS E OS Quality of Service Guide Page 45...
Page 46 The committed portion of the buffer pool is exclusively used by a queue to enqueue traffic within committed rate. Page 46 7210 SAS E OS Quality of Service Guide...
Page 47: Slope Policy Parameters
Table 14 lists the mapping from drop-rate scalar value to percent value. Table 14: Drop Rate Value to Percent Mapping Values Drop Rate % Drop Rate 100% cliff drop. 6.25%. 7210 SAS E OS Quality of Service Guide Page 47...
Page 48 QoS Overview Table 14: Drop Rate Value to Percent Mapping Values (Continued) Drop Rate % Drop Rate 3.125%. 1.5625%. 0.78125%. 0.390625%. 0.1953125%. 0.09765625%. Page 48 7210 SAS E OS Quality of Service Guide...
Page 49: Port Scheduler Policies
1 Gbps 10 Mbps 1 Gbps 50 Mbps 1 Gbps 50 Mbps 1 Gbps 50 Mbps 1 Gbps 50 Mbps 1 Gbps 50 Mbps 1 Gbps 50 Mbps 1 Gbps 7210 SAS E OS Quality of Service Guide Page 49...
Page 50 A weight value of 1 will actually pump out 2Kbytes from that queue, a value of 5 will pump out 10 Kbytes. Twice of the weight value given will be pumped out. Page 50 7210 SAS E OS Quality of Service Guide...
Page 51 CIR and the PIR loop. The weights configured for the queues are only considered during the PIR loop. 7210 SAS E OS Quality of Service Guide Page 51...
Page 52: Cpu Queues
Expedited Intended for delay/jitter sensitive traffic. High-2 Intended for delay/jitter sensitive traffic. Low-1 Intended for assured traffic. Also is the default priority for network management traffic. Page 52 7210 SAS E OS Quality of Service Guide...
Page 53: Table 17: Forwarding Class To Queue-Id Map
1is the lowest priority. FCs are correspondingly mapped to these queue IDs according to their priority. The map is as shown in Table FC-QiD Table 17: Forwarding Class to Queue-ID Map FC-ID FC Name FC Designation Queue-ID Network control High-1 Expedited High-2 7210 SAS E OS Quality of Service Guide Page 53...
Page 54: Low-1 L1
QoS Overview Table 17: Forwarding Class to Queue-ID Map (Continued) FC-ID FC Name FC Designation Queue-ID Low-1 Assured Low-2 Best-Effort Page 54 7210 SAS E OS Quality of Service Guide...
Page 55: Qos Policy Entities
Network queue policy (egress) on access uplink port. QoS prioritizes traffic according to the forwarding class and uses congestion management to control access ingress, access egress, and network traffic, enqueuing packets according to their priority (color). 7210 SAS E OS Quality of Service Guide Page 55...
Page 56: Configuration Notes
Default policies are created for service ingress, access egress, network, network-queue, slope, and port scheduler. • Associating a service or access/access uplink ports with a QoS policy other than the default policy is optional. Page 56 7210 SAS E OS Quality of Service Guide...
Page 57: Port Level Egress Rate-Limiting
Port Level Egress Rate-Limiting In This Section This section provides information to configure port level egress-rate using the command line interface. Topics in this section include: • Overview on page 58 • Basic Configurations on page 60 • Configuration Commands on page 64 7210 SAS-E OS Quality of Service Guide Page 57...
Page 58: Overview
Overview Overview Egress port rate limiting allows the device to limit the traffic that egresses through a port to a value less than the available link bandwidth. This feature is supported on the 7210 SAS-Series platforms. Applications This feature is useful when connecting the 7210 SAS to an Ethernet-over-SDH (EoSDH) (or microwave) network, where the network allocates predetermined bandwidth to the nodes connecting into it, based on the transport bandwidth requirement.
Page 59: Affect Of Port Level Rate-Limiting On Access Uplink Queue Functionality
Port Level Egress Rate Limiting Affect of Port Level Rate-Limiting on Access Uplink Queue Functionality • When an egress-rate sub-rate value is given, the /access-uplink queue rates that are specified using percentages will use the egress-rate value instead of the port bandwidth to configure the appropriate queue rates.
Page 60: Basic Configurations
Basic Configurations Basic Configurations To apply port level rate-limiting, perform the following: • The egress-rate command is present in the *A:Dut-1>config>port>ethernet context. • The egress-rate configures the maximum rate (in kbps) for the port. The value should be between 1 and 1000000 kbps and between 1 and 10000000 kbps for 10G port. •...
Page 61: Modifying Port Level Egress-Rate Command
Port Level Egress Rate Limiting Modifying Port Level Egress-Rate Command To modify egress-rate parameters you can simply apply a egress-rate command with new egress- rate and max-burst value. The following displays the egress-rate configuration for a port: *A:Dut-1>config>port# ethernet egress-rate 10000 max-burst default *A:Dut-1>config>port# info ---------------------------------------------- ethernet...
Page 62: Removing Port Level Egress-Rate Command
Basic Configurations Removing Port Level Egress-Rate Command To remove egress-rate command from a port, use the no option with egress-rate command. The rate for egress-rate option and the max-burst should not be used in this case. CLI Syntax: config>port>ethernet# no egress-rate The following displays the removal of egress-rate configuration from a port: *A:Dut-1>config>port# no ethernet egress-rate *A:Dut-1>config>port# info...
Page 63: Port Level Egress-Rate Command Reference
Command Reference Port Level Egress-Rate Command Reference Command Hierarchies Configuration Commands config — port — ethernet — egress-rate rate max-burst burst — no egress-rate Show Commands show — port [port-id] 7210 SAS-E OS Quality of Service Guide Page 63...
Page 64: Configuration Commands
Configuration Commands Configuration Commands egress-rate Syntax egress-rate rate max-burst burst no egress-rate Context config>port>ethernet Description This command configures maximum rate and corresponding burst value for a port. The egress-rate is configured as kbps while max-burst is configured as kilo-bits. The value of egress-rate should be between 1 and 1000000 and between 1 and 10000000 kbps for 10G port.
Page 65: Show Commands
Command Reference Show Commands port Syntax port [port-id] Context show Description This command displays Egress-Rate and Max-Burst value set for port along with other details of the port. Parameters port-id — Displays information about the specific port ID. Sample Output *A:dut-1>config>qos>network-queue# show port 1/1/1 =============================================================================== Ethernet Interface...
Page 66 Show Commands Optical Compliance : GIGE-SX Link Length support: 550m for 50u MMF; 280m for 62.5u MMF; =============================================================================== Traffic Statistics =============================================================================== Input Output ------------------------------------------------------------------------------- Octets Packets Errors =============================================================================== * indicates that the corresponding row element may have been truncated. =============================================================================== Port Statistics =============================================================================== Input...
Page 67: Frame Based Accounting
Frame Based Accounting In This Section This section provides information to configure frame-based accounting using the command line interface. Topics in this section include: • Overview on page 68 • Basic Configurations on page 69 • Configuration Commands on page 72 7210 SAS-E OS Quality of Service Guide Page 67...
Page 68: Overview
Overview Overview This feature when enabled let QoS policies to accounts for the Ethernet frame overhead (for example, it accounts for the IFG (inter-frame gap) and the preamble). Typically, the IFG and preamble constitutes about 12 + 8 = 20 bytes. The overhead for Ethernet ports uses this value. A configurable CLI command enables accounting of the frame overhead at ingress or egress.
Page 69: Basic Configurations
Frame Based Accounting Basic Configurations To enable frame-based accounting, you must perform the following: • The frame-based-accounting command is in the *A:Dut-1> config>qos>frame-based- accounting context. • The ingress-enable command enables frame-based-accounting for ingress metering. • The egress-enable command enables frame-based-accounting for egress queue rates, scheduler and port level egress-rate.
Page 70: Enabling And Disabling Frame-Based Accounting
Basic Configurations Enabling and Disabling Frame-Based Accounting To enable frame-based-accounting for ingress you can simply use the ingress-enable command and to enable frame-based-accounting on egress use the egress-enable command. To disable frame-based-accounting for ingress, execute the no ingress-enable command and to disable frame-based-accounting on egress, execute the no egress-enable command.
Page 71: Frame Based Accounting Command Reference
Frame Based Accounting Frame Based Accounting Command Reference Command Hierarchies Configuration Commands config — qos — frame-based-accouting — [no] egress-enable — [no] ingress-enable Show Commands show — qos — sap-ingress [ policy-id] — network [ policy-id] — access-egress — network-queue [ policy-id] —...
Page 72: Configuration Commands
Configuration Commands Configuration Commands egress-enable Syntax [no] egress-enable Context config>qos>frame-based-accounting Description This command enables the frame-based-accounting for access-egress, network-queue, port- scheduler and port-level egress-rate. The no form of the command disables frame-based-accounting for all egress QoS. Default disabled ingress-enable Syntax [no] ingress-enable Context config>qos>frame-based-accounting...
Page 73: Show Commands
Frame Based Accounting Show Commands sap-ingress Syntax sap-ingress [policy-id] Context show>qos Description This command displays accounting status of a sap-ingress policy along with other details of the policy. When frame-based-accounting is enabled accounting is shown as frame-based otherwise packet-based. Parameters policy-id —...
Page 74 Show Commands network Syntax network [policy-id] Context show>qos Description This command displays the accounting status of a network qos policy along with other details of the policy. When frame-based-accounting is enabled accounting is shown as frame-based otherwise packet-based. Parameters policy-id — Displays information about the specific policy ID. Sample Output *A:Dut-1# show qos network 1 ===============================================================================...
Page 75 Frame Based Accounting =============================================================================== *A:Dut-1# access-egress Syntax access-egress [policy-id] Context show>qos Description This command displays accounting status of an access-egress policy along with other details of the policy. When frame-based-accounting is enabled accounting is shown as frame-based otherwise packet-based. Parameters policy-id —...
Page 76 Show Commands Accounting : frame-based Description : Default network queue QoS policy. ------------------------------------------------------------------------------- Associations ------------------------------------------------------------------------------- Port-id : 1/1/6 Port-id : 1/1/7 Port-id : 1/1/8 Port-id : 1/1/9 Port-id : 1/1/10 Port-id : 1/1/11 Port-id : 1/1/12 Port-id : 1/1/13 Port-id : 1/1/14 Port-id : 1/1/15 Port-id : 1/1/16 Port-id : 1/1/17...
Page 77: Network Qos Policies
Network QoS Policies Configuring QoS Policies In This Section This section provides information to configure network QoS policies using the command line interface. Topics in this section include: • Overview on page 78 • Basic Configurations on page 82 • Default Network Policy Values on page 85 •...
Page 78: Overview
Overview Overview The ingress component of the policy defines how Dot1p bits are mapped to internal forwarding class and profile state. The forwarding class and profile state define the Per Hop Behavior (PHB) or the QoS treatment through the 7210 SAS. The mapping on each access uplink port defaults to the mappings defined in the default network QoS policy until an explicit policy is defined for the access uplink ports.
Page 79: Normal Qos Operation
Network QoS Policies Normal QoS Operation The following types of QoS mapping decisions are applicable on a network ingress IP interface • Ethernet Dot1P value mapping (if defined) • Default QoS mapping The default QoS mapping always exists on an ingress access uplink port and every received packet will be mapped to this default if another explicitly defined matching entry does not exist.
Page 80: Dscp Marking Cpu Generated Traffic
Overview DSCP Marking CPU Generated Traffic DSCP marking for CPU generated traffic is not configurable by the user. The default values are given in Table Table 18: DSCP/FC Marking DSCP Dot1P Default Protocol IPv4 Marking Marking Telnet TFTP SSH (SCP) SNMP (get, set, etc.) SNMP trap/log syslog...
Page 81 Network QoS Policies af13 0x0e 0b001110 assured af21 0x12 0b010010 af22 0x14 0b010100 af23 0x16 0b010110 af31 0x1a 0b011010 af32 0x1c 0b011100 af33 0x1d 0b011110 af41 0x22 0b100010 af42 0x24 0b100100 af43 0x26 0b100110 default* *The default forwarding class mapping is used for all DSCP names/values for which there is no explicit forwarding class mapping.
Page 82: Basic Configurations
Basic Configurations Basic Configurations A basic network QoS policy must conform to the following: • Each network QoS policy must have a unique policy ID. • Specify the default-action. • Have a QoS policy scope of template or exclusive. • Have at least one default unicast forwarding class meter.
Page 83 Network QoS Policies CLI Syntax: config>qos# Network Egress Parameters Network Ingress Parameters network policy-id [network-policy-type network-policy-type] description description-string scope {exclusive|template} egress remarking fc {be|l2|af|l1|h2|ef|h1|nc} dot1p-in-profile dot1p-priority dot1p-out-profile dot1p-priority ingress default-action fc {fc-name} profile {in|out} dot1p dot1p-priority fc {fc-name} profile {in|out} fc {fc-name} meter {meter-id} multicast-meter {id}...
Page 84 Basic Configurations #-------------------------------------------------- port 1/1/1 shutdown description "port 1/1/1" ethernet mode access uplink access uplink qos 600 exit exit exit exit #-------------------------------------------------- A:ALA-7>config# Page 84 7210 SAS-E OS Quality of Service Guide...
Page 85: Default Network Policy Values
Network QoS Policies Default Network Policy Values The default network policy access uplink portsis identified as policy-id 1. Default policies cannot be modified or deleted. The following displays default network policy parameters: Table 19: Network Policy Defaults Field Default description Default network QoS policy.
Page 86: Table 20: Default Network Qos Policy Dot1P To Fc Mapping
Basic Configurations Table 19: Network Policy Defaults (Continued) Field Default dot1p-out-profile Table 20: Default Network QoS Policy Dot1p to FC Mapping Dot1p Value 7210 FC Ingress Profile The following output displays the default configuration: *A:ALU-7210>config>qos>network# info detail ---------------------------------------------- description "Default network QoS policy." scope template ingress default-action fc be profile out...
Page 87 Network QoS Policies dot1p 3 fc af profile in dot1p 4 fc h2 profile in dot1p 5 fc ef profile in dot1p 6 fc h1 profile in dot1p 7 fc nc profile in exit egress no remarking fc af dot1p-in-profile 3 dot1p-out-profile 2 exit fc be...
Page 88: Service Management Tasks
Service Management Tasks Service Management Tasks Deleting QoS Policies A network policy is associated by default with access uplink ports. You can replace the default policy with a non-default policy, but you cannot remove default policies from the configuration. When you remove a non-default policy, the policy association reverts to the appropriate default network policy.
Page 89: Remove A Policy From The Qos Configuration
Network QoS Policies Remove a Policy from the QoS Configuration To delete a network policy, enter the following commands: CLI Syntax: config>qos# no network network-policy-id Copying and Overwriting Network Policies You can copy an existing network policy to a new policy ID value or overwrite an existing policy ID.
Page 90: Editing Qos Policies
Service Management Tasks Editing QoS Policies You can change existing policies, except the default policies, and entries in the CLI. The changes are applied immediately to all access uplink ports where the policy is applied. To prevent configuration errors use the copy command to make a duplicate of the original policy to a work area, make the edits, and then overwrite the original policy.
Page 91: Network Qos Policy Command Reference
Command Reference Network QoS Policy Command Reference Command Hierarchies • Configuration Commands on page 91 • Operational Commands on page 91 • Show Commands on page 92 Configuration Commands config — qos — [no] network network-policy-id — description description-string — no description —...
Page 92 Network QoS Policy Command Reference Show Commands show — qos — network policy-id [detail] Page 92 7210 SAS-E OS Quality of Service Guide...
Page 93 QoS Commands Configuration Commands Generic Commands description Syntax description description-string no description Context config>qos>network policy-id Description This command creates a text description stored in the configuration file for a configuration context. The description command associates a text string with a configuration context to help identify the context in the configuration file.
Page 94 QoS Commands Operational Commands copy Syntax copy network src-pol dst-pol [overwrite] Context config>qos Description This command copies existing QoS policy entries for a QoS policy-id to another QoS policy-id. The copy command is used to create new policies using existing policies and also allows bulk modifi- cations to an existing policy with the use of the overwrite keyword.
Page 95 QoS Commands Network QoS Policy Commands network Syntax [no] network network-policy-id Context config>qos Description This command creates or edits a QoS network policy. The network policy defines the treatment pack- ets receive as they ingress and egress the access uplink port. The QoS network policy consists of an ingress and egress component.
Page 96 QoS Commands Parameters network-policy-id — The policy-id uniquely identifies the policy on the 7210 SAS. Default none Values 1— 65535 Page 96 7210 SAS-E OS Quality of Service Guide...
Page 97 QoS Commands Network Ingress QoS Policy Commands ingress Syntax ingress Context config>qos>network policy-id Description Dot1p This command is used to enter the CLI node that creates or edits policy entries that specify the to forwarding class mapping packets. When pre-marked packets ingress on a network port, the QoS treatment through the 7210 SAS-based on the mapping defined under the current node.
Page 98 QoS Commands dot1p Syntax dot1p dot1p-priority fc fc-name profile {in | out} no dot1p dot1p-priority Context config>qos>network>ingress Description This command explicitly sets the forwarding class or enqueuing priorityand profile of the packet when a packet is marked with a dot1p-priority specified. Adding a dot1p rule on the policy forces packets that match the dot1p-priority specified to be assigned to the forwarding class and profile of the packet based on the parameters included in the Dot1p rule.
Page 99 QoS Commands Parameters fc-name — The case-sensitive, system-defined forwarding class name for which policy entries will be created. Values be, l2, af, l1, h2, ef, h1, nc create — The keyword used to create the forwarding class. The create keyword requirement can be enabled/disabled in the environment>create context.
Page 100 QoS Commands meter Syntax meter meter-id no meter Context config>qos>network>ingress>fc Description This command overrides the default unicast forwarding type meter mapping for fc fc-name. The spec- ified meter-id must exist within the policy as a non-multipoint meter before the mapping can be made. Once the forwarding class mapping is executed, all unicast traffic on a port using this policy is for- warded using the meter-id.
Page 101 QoS Commands adaptation-rule Syntax adaptation-rule [cir adaptation-rule] [pir adaptation-rule] no adaptation-rule Context config>qos>network>ingress>meter Description This command defines the method used by the system to derive the operational CIR and PIR settings when the meter is provisioned in hardware. For the CIR and PIR parameters, individually the system attempts to find the best operational rate depending on the defined constraint.
Page 102 QoS Commands ets are marked as in-profile by the meter to indicate that the traffic is complying meter configured parameters. The no form of this command returns the CBS size to the default value. Default default Parameters size-in-kbits — Specifies the size parameter is an integer expression of the number of kilobits reserved for the meter.
Page 103 QoS Commands Default trtcm Parameters trtcm — Meters the packet stream and marks the packets either green, yellow, or red. A packet is marked red if it exceeds the PIR. Otherwise, it is marked either yellow or green depending on whether it exceeds or doesn't exceed the CIR.
Page 104 QoS Commands Network Egress QoS Policy Commands egress Syntax egress Context config>qos>network policy-id Description This command is used to enter the CLI node that creates or edits egress policy entries that specify the forwarding class Dot1p marking map to be instantiated when this policy is applied to the network port.
Page 105 QoS Commands Network Egress QoS Policy Forwarding Class Commands remarking Syntax remarking Context config>qos>network policy-id>egress Description Remarking is always enabled on the access uplink ports. Since the 7210 SAS E will be used to con- nect to a particular diffserv domain so it is very important that each and every packet ingressing on the 7210 SAS E is mapped and marked and thereby assigned to a particular diffserv class while going through the network.
Page 106: Table 21: Show Qos Network Output Fields
QoS Commands Show Commands network Syntax network [policy-id] [detail] Context show>qos Description This command displays network policy information. Parameters policy-id — Displays information for the specific policy ID. Default all network policies Values 1 — 65535 detail — Includes information about ingress and egress Dot1p bit mappings and network policy interface associations.
Page 107 QoS Commands Table 21: Show QoS Network Output Fields (Continued) Label Description Dot1p Bit Mapping: Out-of-Profile Displays the Dot1p value used for out-of-profile traffic. Displays the Dot1p value used for in-profile traffic. In-Profile Specifies the physical port identifier that associates the interface. Port-Id A:ALA-12# show qos network ==============================================================================...
Page 108 QoS Commands Policy-id Remark : True Forward Class : be Profile : Out Attach Mode : l2 Config Mode : l2 Scope : Template Description : Default network QoS policy. ------------------------------------------------------------------------------- Meter Mode CIR Admin CIR Rule PIR Admin PIR Rule ------------------------------------------------------------------------------- TrTcm_CA closest...
Page 109 QoS Commands ------------------------------------------------------------------------------- Port Attachments ------------------------------------------------------------------------------- Port-id : 1/1/24 =============================================================================== *A:dut-g# 7210 SAS-E OS Quality of Service Guide Page 109...
Page 110 QoS Commands Page 110 7210 SAS-E OS Quality of Service Guide...
Page 111: Network Queue Qos Policies
Network Queue QoS Policies Configuring QoS Policies In This Section This section provides information to configure network queue QoS policies using the command line interface. Topics in this section include: • Overview on page 112 • Basic Configurations on page 113 •...
Page 112: Overview
Overview Overview Network Queue policies define the egress network queuing for the traffic egressing on the access uplink ports. Network queue policies are used at the Ethernet port and define the bandwidth distribution for the various FC traffic egressing on the Ethernet port. There is one default network queue policy.
Page 113: Basic Configurations
Network Queue QoS Policies Basic Configurations A basic network queue QoS policy must conform to the following: • Each network queue QoS policy must have a unique policy name. • Queue parameters can be modified, but cannot be deleted. Create a Network Queue QoS Policy Configuring and applying QoS policies other than the default policy is optional.
Page 114 Basic Configurations adaptation-rule cir closest pir closest exit queue 6 rate cir 100 pir 100 adaptation-rule cir closest pir closest exit queue 7 rate cir 10 pir 100 adaptation-rule cir closest pir closest exit queue 8 rate cir 10 pir 100 adaptation-rule cir closest pir closest exit ----------------------------------------------...
Page 115: Applying Network Queue Policies
Network Queue QoS Policies Applying Network Queue Policies Apply network queue policies to the following entities: • Ethernet Ports Ethernet Ports Use the following CLI syntax to apply a network queue policy to an Ethernet port. CLI Syntax: config>port# ethernet access uplink queue-policy policy-name...
Page 116: Default Network Queue Policy Values
Default Network Queue Policy Values Default Network Queue Policy Values The default network queue policies are identified as policy-id default The default policies cannot be modified or deleted. The following displays default policy parameters: Table 22: Network Queue Policy Defaults Field Default description...
Page 117 Network Queue QoS Policies Table 22: Network Queue Policy Defaults (Continued) Field Default 7210 SAS-E OS Quality of Service Guide Page 117...
Page 118 Default Network Queue Policy Values *A:Dut-C>config>qos>network-queue# info detail ---------------------------------------------- description "Default network queue QoS policy." queue 1 rate 0 pir 100 adaptation-rule cir closest pir closest exit queue 2 rate 25 pir 100 adaptation-rule cir closest pir closest exit queue 3 rate 25 pir 100 adaptation-rule cir closest pir closest exit...
Page 119: Service Management Tasks
Network Queue QoS Policies Service Management Tasks This section discusses the following service management tasks: • Deleting QoS Policies on page 119 • Copying and Overwriting QoS Policies on page 120 • Editing QoS Policies on page 122 Deleting QoS Policies A network queue policy is associated by default with all access uplink ports.
Page 120: Copying And Overwriting Qos Policies
Service Management Tasks Copying and Overwriting QoS Policies You can copy an existing network queue policy, rename it with a new policy ID name, or overwrite an existing network queue policy. The option must be specified or an error overwrite occurs if the destination policy ID exists.
Page 121 Network Queue QoS Policies queue 6 rate cir 0 pir 4 exit queue 7 rate cir 3 pir 93 exit queue 8 rate cir 0 pir 3 exit exit ---------------------------------------------- *A:card-1>config>qos# info 7210 SAS-E OS Quality of Service Guide Page 121...
Page 122: Editing Qos Policies
Service Management Tasks Editing QoS Policies You can change existing policies, except the default policies, and entries in the CLI. The changes are applied immediately to all ports where the policy is applied. To prevent configuration errors use the copy command to make a duplicate of the original policy to a work area, make the edits, and then overwrite the original policy.
Page 123: Network Queue Qos Policy Command Reference
Command Reference Network Queue QoS Policy Command Reference Command Hierarchies • Configuration Commands on page 123 • Operational Commands on page 124 • Show Commands on page 124 Configuration Commands config — qos — network-queue policy-name — description description-string — no description —...
Page 124 Network Queue QoS Policy Command Reference Operational Commands config — qos — copy network-queue src-name dst-name [overwrite] Show Commands show — qos — network-queue [network-queue-policy-name] [detail] Page 124 7210 SAS-E OS Quality of Service Guide...
Page 125 QoS Commands Configuration Commands Generic Commands description Syntax description description-string no description Context config>qos>network-queue Description This command creates a text description stored in the configuration file for a configuration context. The description command associates a text string with a configuration context to help identify the context in the configuration file.
Page 126 QoS Commands Operational Commands copy Syntax copy network-queue src-name dst-name [overwrite] Context config>qos Description This command copies or overwrites existing network queue QoS policies to another network queue policy ID. The copy command is a configuration level maintenance tool used to create new policies using exist- ing policies.
Page 127 QoS Commands Network Queue QoS Policy Commands network-queue Syntax [no] network-queue policy-name Context config>qos Description This command creates a context to configure a network queue policy. Network queue policies on the Ethernet port define network egress queuing. Default default Parameters policy-name —...
Page 128 QoS Commands Network Queue QoS Policy Queue Commands queue Syntax queue queue-id Context config>qos>network-queue Description This command enables the context to configure a QoS network-queue policy queue. The FCs are mapped to these queues as per Table 17, Forwarding Class to Queue-ID Map, on page 53.
Page 129 QoS Commands defines the constraint used when deriving the operational PIR for the queue. When the pir command is not specified, the default applies. cir — Defines the constraints enforced when adapting the CIR rate defined within the queue queue-id rate command. The cir parameter requires a qualifier that defines the constraint used when deriving the operational CIR for the queue.
Page 130 QoS Commands The actual CIR rate is dependent on the queue’s adaptation-rule parameters and the actual hardware where the queue is provisioned. Values 0 — 100 Default 01000 pir percent — Defines the percentage of the maximum rate allowed for the queue. When the rate command is executed, the PIR setting is optional.
Page 131 QoS Commands Show Commands network-queue Syntax network-queue [network-queue-policy-name] [detail] Description This command displays network queue policy information. Context show>qos Parameters network-queue-policy-name — The name of the network queue policy. Values Valid names consist of any string up to 32 characters long composed of printable, 7- bit ASCII characters.
Page 132 QoS Commands =============================================================================== *A:card-1# *A:card-1>config>qos# show qos network-queue nq1-cbs detail =============================================================================== QoS Network Queue Policy ------------------------------------------------------------------------------- Network Queue Policy (nq1-cbs) ------------------------------------------------------------------------------- Policy : nq1-cbs Accounting : packet-based ------------------------------------------------------------------------------- Queue CIR CIR Rule PIR Rule ------------------------------------------------------------------------------- 8.29 closest 6.00 closest closest 10.00 closest closest...
Page 133: Service Ingress Qos Policies
Service Ingress QoS Policies Configuring QoS Policies In This Section This section provides information to configure SAP ingress QoS policies using the command line interface. Topics in this section include: • Overview on page 134 • Basic Configurations on page 139 •...
Page 134: Overview
Overview Overview There is one default service ingress policy. Each policy can have up to 18 ingress meters. The default policies can be copied and modified but they cannot be deleted. The default policies are identified as policy ID 1. The default policies are applied to the appropriate interface, by default.
Page 135: Default Sap Ingress Policy
Service Egress/Ingress QoS Policies Default SAP Ingress Policy A:ALA-7>config>qos>sap-ingress$ info detail ---------------------------------------------- description “Default SAP ingress QoS policy” scope template meter 1 create mode trtcm adaptation-rule cir closest pir closest rate cir 0 pir max mbs default cbs default exit meter 11 multipoint create mode trtcm adaptation-rule cir closest pir closest...
Page 136: Sap Ingress Policy Defaults
Overview SAP Ingress Policy Defaults Table 23: SAP Ingress Policy Defaults Field Default description “Default SAP ingress QoS policy.” scope template meter mode trtcm adaptation-rule cir closest pir closest rate pir = max, cir= 0 32kb 128kb meter 11 (Multipoint) mode trtcm adaptation-rule...
Page 137: Service Ingress Meter Selection Rules
Service Egress/Ingress QoS Policies Service Ingress Meter Selection Rules The following are rules for meter selection by different traffic types under various configurations for VPLS services: • If a FC is created without explicit meters, use the default meter 1 for unicast traffic and default meter 11 for all other traffic types (such as broadcast, multicast and unknownunicast).
Page 138: Service Ingress Qos Policy Configuration Considerations
Overview Service Ingress QoS Policy Configuration Considerations The num-qos-classifiers parameter cannot be modified when the policy is in use (for example, when it is associated with a SAP). Other parameters in the SAP ingress policy can be changed. When changing other parameters (for example, fc meter map or fc classification match criteria) for a policy which is in use, the system recomputes the resources required due to accomodate the change.
Page 139: Basic Configurations
Service Egress/Ingress QoS Policies Basic Configurations A basic service ingress QoS policy must conform to the following: • Have a unique service ingress QoS policy ID. • Have a QoS policy scope of template or exclusive. • Have at least one default unicast forwarding class meter. •...
Page 140: Service Ingress Qos Policy
Basic Configurations Service Ingress QoS Policy To create an service ingress policy, define the following: • A policy ID value. The system will not dynamically assign a value. • Include a description. The description provides a brief overview of policy features. •...
Page 141 Service Egress/Ingress QoS Policies Service Ingress QoS Meter To create service ingress meter parameters, define the following: • A new meter ID value — The system will not dynamically assign a value. • Meter parameters — Ingress meters support the definition of either srTCM (Single Rate Tri-Color Meter) or trTCM (Two Rate Tri-Color Meter), CIR/PIR, CBS/MBS parameters.
Page 142 Basic Configurations exit meter 12 multipoint create rate cir 1500 pir 1500 exit meter 13 multipoint create rate cir 2500 pir 2500 exit meter 14 multipoint create rate cir 36 pir 100 exit meter 15 multipoint create rate cir 36 pir 100 exit meter 16 multipoint create cbs 128...
Page 143 Service Egress/Ingress QoS Policies SAP Ingress Forwarding Class (FC) The following displays a forwarding class and precedence configurations: A:ALA-7>config>qos# info #------------------------------------------ fc af create meter 1 broadcast-meter 7 unknown-meter 8 exit fc be create meter 2 unknown-meter 9 exit fc ef create meter 3 broadcast-meter 10 exit...
Page 144 Basic Configurations Service Ingress IP Match Criteria When specifying SAP ingress match criteria, only one match criteria type can be configured in the SAP ingress QoS policy. The following displays an ingress IP criteria configuration: A:ALA-7>config>qos# info #------------------------------------------ echo "QoS Policy Configuration" #------------------------------------------ sap-ingress 100 create ip-criteria...
Page 145 Service Egress/Ingress QoS Policies Service Ingress MAC Match Criteria Both IP criteria and MAC criteria cannot be configured in the same SAP ingress QoS policy. To configure service ingress policy MAC criteria, define the following: • A new entry ID value. Entries must be explicitly created. The system will not dynamically assign entries or a value.
Page 146 Basic Configurations Allocation of QoS Resources for a SAP Ingress Policy The user is allowed to configure the number of classification entries the SAP requires (for example: TQ). Number of meters allocated automatically by system = TQ / 2 (up to a maximum of 32 meters).
Page 147 Service Egress/Ingress QoS Policies • If a FC is in use and is created with an explicit unicast meter, an explicit broadcast meter, and an explicit multicast meter, use these meters for unicast, broadcast and multicast traffic types respectively. Unknown unicast traffic type will use the explicitly defined multicast meter.
Page 148 Basic Configurations Determine the number of policers or meters to use (for example TP). A maximum of 32 meters per policy are available. Only those meters associated with FCs are considered for number of meters. Note that only 'FCs in use' is considered.
Page 149 Service Egress/Ingress QoS Policies In the example above, assuming the policy is attached to a SAP in a VPLS service, compute the number of classification entries per FC as follows: FCnc = 0 + 0 + 0 + 0 = 0 FCh1 = 0 + 0 + 0 + 0 = 0 FCef = 0 + 0 + 0 + 0 = 0 FCh2 = 1 + 0 + 1 + 0 = 2...
Page 150 Basic Configurations meter 11 multipoint create exit fc "af" create meter 3 broadcast-meter 2 exit fc "be" create meter 3 broadcast-meter 2 exit fc "h2" create meter 3 broadcast-meter 2 exit fc "l1" create meter 3 broadcast-meter 2 exit mac-criteria entry 1 create match dot1p 7 7...
Page 151 Service Egress/Ingress QoS Policies Using the above equation, the total classification entries used = 11 (since three explicit match criteria entries map to each of FC H2, L1, and AF along with a default classification rule for BE). Meters used = 3 (since FCs use only meter #2, meter #3 and meter #11). Therefore, in this example, is used (i.e.
Page 152 Basic Configurations fc "h2" create meter 3 broadcast-meter 2 exit fc "l1" create meter 3 broadcast-meter 2 exit mac-criteria entry 1 create match dot1p 7 7 exit action fc "af" exit entry 2 create match dot1p 5 7 exit action fc "l1" exit entry 3 create match...
Page 153 Service Egress/Ingress QoS Policies Since this FC uses only unicast meter, an entry is required to identify this traffic type explicitly. Another entry is required to classify broadcast, multicast and unknown-unicast traffic type to the same FC and use the default meter #11. FCaf = 1 + 1 + 1 + 0 = 3 Since this FC uses unicast, broadcast and multicast meter, three entries are required to identify these traffic types explicitly.
Page 154 Basic Configurations exit meter 11 multipoint create rate cir 1 pir 20 exit fc "af" create meter 3 broadcast-meter 2 multicast-meter 4 exit fc "ef" create meter 6 broadcast-meter 2 multicast-meter 8 exit fc "h1" create meter 5 broadcast-meter 4 multicast-meter 4 unknown-meter 4 exit...
Page 155 Service Egress/Ingress QoS Policies match dot1p 2 7 exit action fc "ef" exit entry 6 create match dot1p 7 7 exit action fc "nc" exit exit default-fc "be" In the example above, assuming the policy is attached to a SAP in a VPLS service, compute the classification entries per FC as: FCnc = 1 + 1 + 1 + 0 = 3 Since this FC uses unicast, broadcast and multicast meter, three entries are required to identify...
Page 156 Basic Configurations If the same policy were to be used for a SAP in an Epipe service, then since all traffic is classified to a unicast traffic type and since only unicast meters are used, the following are used: FCnc = 1 + 0 + 0 + 0 = 1 FCh1 = 1 + 0 + 0 + 0 = 1 FCef = 1 + 0 + 0 + 0 = 1 FCh2 = 1 + 0 + 0 + 0 = 1...
Page 157 Service Egress/Ingress QoS Policies action fc "af" exit entry 4 create match dscp cp4 exit action fc "af" exit entry 5 create match dscp cp5 exit action fc "af" exit entry 6 create match dscp cp6 exit action fc "af" exit entry 7 create match...
Page 158 Basic Configurations exit action fc "af" exit entry 14 create match dscp cp15 exit action fc "af" exit entry 15 create match dscp cp15 exit action fc "af" exit exit default-fc "be" In the example above, assuming the policy is attached to a SAP in a VPLS service, the following number of classification entries per FC: FCnc = 0 + 0 + 0 + 0 = 0 FCh1 = 0 + 0 + 0 + 0 = 0...
Page 159 Service Egress/Ingress QoS Policies FCh1 = 0 + 0 + 0 + 0 = 0 FCef = 0 + 0 + 0 + 0 = 0 FCh2 = 0 + 0 + 0 + 0 = 0 FCl1 = 0 + 0 + 0 + 0 = 0 FCaf = 1 + 0 + 0 + 0 = 1 FCl2 = 0 + 0 + 0 + 0 = 0 FCbe = 1 + 0 + 0 + 0 = 1...
Page 160: Applying Service Ingress Policies
Basic Configurations Applying Service Ingress Policies Apply SAP ingress policies to the following service SAPs: • Epipe • VPLS Epipe The following output displays an Epipe service configuration with SAP ingress policy 100 applied to the SAP. A:ALA-7>config>service# info ---------------------------------------------- epipe 6 customer 6 vpn 6 create description "Epipe service to west coast"...
Page 161: Service Management Tasks
Service Egress/Ingress QoS Policies Service Management Tasks This section discusses the following service management tasks: • Deleting QoS Policies on page 161 • Copying and Overwriting QoS Policies on page 162 • Remove a Policy from the QoS Configuration on page 163 •...
Page 162: Copying And Overwriting Qos Policies
Service Management Tasks Copying and Overwriting QoS Policies You can copy an existing service ingress policy, rename it with a new policy ID value, or overwrite an existing policy ID. The option must be specified or an error occurs if overwrite the destination policy ID exists.
Page 163: Remove A Policy From The Qos Configuration
Service Egress/Ingress QoS Policies Remove a Policy from the QoS Configuration CLI Syntax: config>qos# no sap-ingress policy-id Example config>qos# no sap-ingress 100 Editing QoS Policies You can change QoS existing policies and entries. The changes are applied immediately to all services where this policy is applied.
Page 164 Service Management Tasks Page 164 7210 SAS-E OS Quality of Service Guide...
Page 165: Service Sap Qos Policy Command Reference
Command Reference Service SAP QoS Policy Command Reference Command Hierarchies • Service Ingress QoS Policy Commands → FC Commands on page 165 → IP Criteria Commands on page 165 → MAC Criteria Commands on page 165 • Operational Commands • Show Commands Service Ingress QoS Policy Commands config...
Page 166 Command Hierarchies — match — no match — dot1p dot1p-value [dot1p-mask] — no dot1p — dst-mac ieee-address [ieee-address-mask] — no dst-mac — etype etype-value — no etype — src-mac ieee-address [ieee-address-mask] — no src-mac — renum old-entry-number new-entry-number — num-qos-classifiers [num-resources] —...
Page 167 Command Reference Operational Commands config — qos — copy sap-ingress src-pol dst-pol [overwrite] Show Commands show — qos — sap-ingress policy-id [detail] 7210 SAS-E OS Quality of Service Guide Page 167...
Page 168 Command Hierarchies Page 168 7210 SAS-E OS Quality of Service Guide...
Page 169 QoS Commands Configuration Commands Generic Commands description Syntax description description-string no description Context config>qos>sap-ingress config>qos>sap-ingress>ip-criteria>entry config>qos>sap-ingress>mac-criteria>entry Description This command creates a text description stored in the configuration file for a configuration context. The no form of this command removes any description string from the context. Default No description is associated with the configuration context.
Page 170 QoS Commands Operational Commands copy Syntax copy sap-ingress src-pol dst-pol [overwrite] Context config>qos Description This command copies existing QoS policy entries for a QoS policy-id to another QoS policy-id. The copy command is a configuration level maintenance tool used to create new policies using exist- ing policies.
Page 171 QoS Commands Service Ingress QoS Policy Commands sap-ingress Syntax [no] sap-ingress policy-id Context config>qos Description This command is used to create or edit the ingress policy. The ingress policy defines the Service Level Agreement (SLA) enforcement service packets receive as they ingress a SAP. SLA enforcement is accomplished through the definition of meters that have Forwarding Class (FC), Committed Informa- tion Rate (CIR), Peak Information Rate (PIR), Committed Burst Size (CBS), and Maximum Burst Size (MBS) characteristics.
Page 172 QoS Commands scope Syntax scope {exclusive | template} no scope Context config>qos>sap-ingress policy-id Description This command configures the Service Ingress QoS policy scope as exclusive or template. The no form of this command sets the scope of the policy to the default of template. Default template Parameters...
Page 173 QoS Commands The no form of the command removes all the explicit queue mappings for fc-name forwarding types. The queue mappings revert to the default meters for fc-name. Parameters fc-name — Specifies the forwarding class name for the queue. The value given for the fc-name must be one of the predefined forwarding classes for the system.
Page 174 QoS Commands The policer does not have any forwarding plane counters allocated and cannot provide offered, discard and forward statistics. A policer using no-stats cannot be a child to a parent policer and the policer’s parent command will fail. When collect-stats is enabled, the lack of counters causes the system to generate the following statistics: a.
Page 175 QoS Commands iii. offered-undefined iv. offered-managed (IMPM managed packets are not redirected from the policer) Counter 0 indicates that the SAP policer statistic returns a value of zero. offered-profile-no-cir — Counter resource allocation:2 The offered-profile-no-cir mode allocates two forwarding plane offered counters and two traffic manager discard counters.
Page 176 QoS Commands The offered-priority-no-cir mode is most useful when the policer is receiving only un-trusted packets and the ingress priority high and priority low classification options are being used without a CIR profiling rate defined. This mode does not prevent the policer from receiving trusted packets that are pre-marked in-profile or out-of-profile nor does it prevent the policer from being configured with a CIR rate.
Page 177 QoS Commands 3. offered-out-that-stayed-yellow-or-turned-red = profile out 4. dropped-undefined-that-turned-green = Same as 1 5. dropped-undefined-that-turned-yellow-or-red = Same as 2 6. dropped-out-that-turned-yellow-or-red = Same as 3 7. forwarded-undefined-that-turned-green = Derived from 1 - 4 8. forwarded-undefined-that-turned-yellow = Derived from 2 - 5 9.
Page 178 QoS Commands 5. dropped-in-that-stayed-green-or-turned-red = Same as 1 6. dropped-undefined-that-turned-green = Same as 2 7. dropped-undefined-that-turned-yellow-or-red = Same as 3 8. dropped-out-that-turned-yellow-or-red = Same as 4 9. forwarded-in-that-stayed-green = Derived from 1 - 5 10. forwarded-undefined-that-turned-green = Derived from 2 - 6 11.
Page 179 QoS Commands 5. dropped-high-that-turned-green = Same as 1 6. dropped-high-that-turned-yellow-or-red = Same as 2 7. dropped-low-that-turned-green = Same as 3 8. dropped-low-that-turned-yellow-or-red = Same as 4 9. forwarded-high-that-turned-green = Derived from 1 - 5 10. forwarded-high-that-turned-yellow = Derived from 2 - 6 11.
Page 180 QoS Commands 5. forwarded-offered-that-turned-green = Derived from 1 - 3 6. forwarded-offered-that-turned-yellow = Derived from 2 - 4 When collect-stats is enabled, the counters are used by the system to generate the following statistics: a. offered-in = 1 + 2 b.
Page 181 QoS Commands Service Ingress QoS Policy Forwarding Class Commands broadcast-meter Syntax broadcast-meter meter-id no broadcast-meter Context config>qos>sap-ingress>fc Description This command overrides the default broadcast forwarding type meter mapping for fc fc-name. The specified meter-id must exist within the policy as a multipoint meter before the mapping can be made. Once the forwarding class mapping is executed, all broadcast traffic on a SAP using this policy will be forwarded using the meter-id.
Page 182 QoS Commands multicast-meter Syntax multicast-meter meter-id no multicast-meter Context config>qos>sap-ingress>fc Context This command overrides the default multicast forwarding type meter mapping for fc fc-name. The specified meter -id must exist within the policy as a multipoint meter before the mapping can be made.
Page 183 QoS Commands Service Ingress QoS Policy Entry Commands action Syntax action [fc fc-name] no action Context config>qos>sap-ingress>ip-criteria>entry config>qos>sap-ingress>mac-criteria>entry Description This mandatory command associates the forwarding class with specific IP or MAC criteria entry ID. The action command supports setting the forwarding class parameter. Packets that meet all match cri- teria within the entry have their forwarding class overridden based on the parameters included in the action parameters.
Page 184 QoS Commands any explicit reclassification actions specified, the entry is populated in the list allowing packets matching the entry to exit the list, preventing them from matching entries lower in the list. Since this is the only flow reclassification entry that the packet matched and this entry explicitly states that no reclassification action is to be performed, the matching packet will not be reclassified.
Page 185 QoS Commands A match context can consist of multiple match criteria, but multiple match statements cannot be entered per entry. The no form of the command removes the match criteria for the entry-id. 7210 SAS-E OS Quality of Service Guide Page 185...
Page 186 QoS Commands IP QoS Policy Match Commands dscp Syntax dscp no dscp Context config>qos>sap-ingress>ip-criteria>entry>match Description This command configures a DiffServ Code Point (DSCP) code point to be used for classification of packets from the specified FC. The no form of this command removes the DSCP match criterion. Default none Parameters...
Page 187 QoS Commands Service Ingress MAC QoS Policy Match Commands dot1p Syntax dot1p dot1p-value [dot1p-mask] no dot1p Context config>qos>sap-ingress>mac-criteria>entry Description The IEEE 802.1p value to be used as the match criterion. Use the no form of this command to remove the dot1p value as the match criterion. Default None Parameters...
Page 188 QoS Commands Parameters ieee-address — The MAC address to be used as a match criterion. Values HH:HH:HH:HH:HH:HH or HH-HH-HH-HH-HH-HH where H is a hexadecimal digit ieee-address-mask — A 48-bit mask to match a range of MAC address values. This 48-bit mask can be configured using the following formats: Format Style Format Syntax Example...
Page 189 QoS Commands src-mac Syntax src-mac ieee-address [ieee-address-mask] no src-mac Context config>qos>sap-ingress>mac-criteria>entry Description This command configures a source MAC address or range to be used as a service ingress QoS policy match criterion. The no form of this command removes the source mac as the match criteria. Default none Parameters...
Page 190 QoS Commands Service Meter QoS Policy Commands meter Syntax meter meter-id [multipoint] [create] no meter meter-id Context config>qos>sap-ingress Description This command creates the context to configure an ingress service access point (SAP) QoS policy meter. This command allows the creation of multipoint meters. Only multipoint meters can receive ingress packets that need flooding to multiple destinations.
Page 191 QoS Commands adaptation-rule Syntax adaptation-rule [cir adaptation-rule] [pir adaptation-rule] no adaptation-rule Context config>qos>sap-ingress>meter Description This command defines the method used by the system to derive the operational CIR and PIR settings when the meter is provisioned in hardware. For the CIR and PIR parameters, individually the system attempts to find the best operational rate depending on the defined constraint.
Page 192 QoS Commands The no form of this command returns the CBS size to the default value. Default default Parameters size-in-kbits — Specifies the size parameter is an integer expression of the number of kilobits reserved for the meter. For example, if a value of 100 KBits is desired, then enter the value 100. The bucket size is rounded off to the next highest 4096 bytes boundary.
Page 193 QoS Commands Parameters trtcm — Meters the packet stream and marks its packets either green, yellow, or red. A packet is marked red if it exceeds the PIR. Otherwise, it is marked either yellow or green depending on whether it exceeds or doesn't exceed the CIR. The trTCM is useful, for example, for ingress policing of a service, where a peak rate needs to be enforced separately from a committed rate.
Page 194 QoS Commands Show Commands sap-ingress Syntax sap-ingress [policy-id] [detail] Context show>qos Description This command displays SAP ingress QoS policy information. Parameters policy-id — Displays information about the specific policy ID. Default all SAP ingress policies Values 1 — 65535 detail — Displays detailed policy information including policy associations. Sample Output Show SAP Ingress Output —...
Page 195 QoS Commands Label Description (Continued) CIR Rule min — The operational CIR for the meter will be equal to or greater than the administrative rate specified using the rate command. max — The operational CIR for the meter will be equal to or less than the administrative rate specified using the rate command.
Page 196 QoS Commands Label Description (Continued) Dot1p Specifies a IEEE 802.1p value to be used as the match. Ethernet-type Specifies an Ethernet type II Ethertype value to be used as a Service Ingress QoS policy match. Specifies the entry’s forwarding class. Service Association Service-Id The unique service ID number which identifies the service in the ser-...
Page 197 QoS Commands ------------------------------------------------------------------------------- UCastM MCastM BCastM UnknownM ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- Match Criteria ------------------------------------------------------------------------------- Entry Description : (Not Specified) Src MAC Atm-Vci : Disabled Dst MAC Dot1p : 3/7 Ethernet-type : Disabled : af Entry Description : (Not Specified) Src MAC Atm-Vci : Disabled Dst MAC Dot1p...
Page 198 QoS Commands Page 198 7210 SAS-E OS Quality of Service Guide...
Page 199: Access Egress Qos Policies
Access Egress QoS Policies In This Section This section provides information to configure Access Egress QoS policies using the command line interface. Topics in this section include: • Overview on page 200 • Basic Configurations on page 200 • Create Access Egress QoS Policies on page 200 •...
Page 200: Overview
Overview Overview An access egress policy defines the queuing for the traffic egressing on the access ports. Access- egress queue policies are used at the Ethernet port and define the bandwidth distribution for the various FC/queue traffic egressing on the Ethernet port. There is one default access egress policy which is identified as policy ID 1.
Page 201 Access Egress QoS Policies • Remark - By default, . The Dot1p values in the customer packets which are egressing on this access port are marked according to the FC-Dot1p marking map Table 12, Default Access Egress Policy ID 1 Definition, on page •...
Page 202: Modifying Access Egress Qos Queues
Overview Modifying Access Egress QoS Queues To modify access egress queue parameters specify the following: • Queue ID value. 8 Queues are identified and are mapped as defined in Table 17, Forwarding Class to Queue-ID Map, on page • Queue parameters. Egress queues support configuration of CIR and PIR rates. The following displays the access egress QoS policy configuration: A:card-1>config>qos# info #--------------------------------------------------...
Page 203: Applying Access Egress Qos Policies
Access Egress QoS Policies Applying Access Egress QoS Policies Apply access egress policies to the following entities: • Ethernet ports A policy can be applied to the ports that are in access mode. Ethernet Ports Use the following CLI syntax to apply a network queue policy to an Ethernet port: CLI Syntax: config>port# ethernet access egress qos access-egress-policy-id...
Page 204: Default Access Egress Qos Policy Values
Overview Default Access Egress QoS Policy Values The default access egress policy is identified as policy-id 1. The default policy cannot be edited or deleted. The following displays default policy parameters: *A:card-1>config>qos>access-egress# info detail ---------------------------------------------- description "Default Access egress QoS policy." remarking scope template queue 1...
Page 205: Table 24: Access Egress Default Policy Details
Access Egress QoS Policies Table 24: Access Egress Default Policy Details Field Default description “Default Access egress QoS policy.” scope template queue 1 adaptation-rule adaptation-rule cir closest pir closest rate cir 0 pir max default = 3200 bytes queue 2 adaptation-rule adaptation-rule cir closest pir closest rate...
Page 206 Overview Table 24: Access Egress Default Policy Details (Continued) Field Default adaptation-rule cir closest pir closest cir 0 pir max rate default = 3200 bytes queue 8 adaptation-rule cir closest pir closest adaptation-rule cir 0 pir max rate default = 3200 bytes remarking fc af: dot1p-in-profile 3...
Page 207: Deleting Qos Policies
Access Egress QoS Policies Deleting QoS Policies Every access Ethernet port is associated, by default, with the default access egress policy (policy- id 1). You can replace the default policy with a customer-configured policy, but you cannot entirely remove the policy from the port configuration. When you remove a non-default access egress policy, the association reverts to the default policy-id 1.
Page 208 Overview Page 208 7210 SAS-E OS Quality of Service Guide...
Page 209: Access Egress Qos Policy Command Reference
Command Reference Access Egress QoS Policy Command Reference Command Hierarchies Configuration Commands config — qos — access-egress policy-id [create] — no access-egress policy-id — description description-string — no description — fc-name [create] — no fc-name — dot1p-in-profile dot1p-value — no dot1p-in-profile —...
Page 210 Page 210 7210 SAS-E OS Quality of Service Guide...
Page 211 Policies in effect are templates that can be applied to multiple access ports as long as the scope of the policy is template. There are 8 queues always available per port for which parameters are configu- rable. An access-egress policy is analogical to sap-egress policy existing on Alcatel-Lucent’s 7750 SR , and 7450 ESS 7710 SR series of products.
Page 212 QoS Commands maximum limit on the packets transmitted through the queue. If the SAP is null encapsulated, the Dot1p value has no meaning. Any changes made to an existing policy, using any of the sub-commands, will be applied immediately to all access ports where this policy is applied. The no form of this command deletes the access-egress policy.
Page 213 QoS Commands packets is still done according to Table 12, Default Access Egress Policy ID 1 Definition, on page User can explicitly define the new Dot1P values using these commands. The no form of the command sets the IEEE 802.1P or IEEE 802.1Q priority bits to default FC-Dot1P marking map as listed in Table 12, Default Access Egress Policy ID 1 Definition, on page Default...
Page 214 QoS Commands queue Syntax queue queue-id Context config>qos>access-egress Description This command creates the context to modify Queue parameters associated with a particular queue. The queue is identifiable by queue-id and FCs are mapped into the queues according to Table 17, For- warding Class to Queue-ID Map, on page The no form of this command is not supported Default...
Page 215 QoS Commands Access Egress Queue QoS Policy Commands adaptation-rule Syntax adaptation-rule [cir adaptation-rule] [pir adaptation-rule] no adaptation-rule Context config>qos>access-egress>queue Description This command defines the method used by the system to derive the operational CIR and PIR settings when the queue is provisioned in hardware. For the CIR and PIR parameters individually, the system attempts to find the best operational rate depending on the defined constraint.
Page 216 QoS Commands rate Syntax rate cir cir-rate [pir pir-rate] no rate Context config>qos>access-egress>queue Description This command defines the administrative Peak Information Rate (PIR) and the administrative Com- mitted Information Rate (CIR) parameters for the queue. The PIR defines the maximum rate that the queue can transmit packets through the port.
Page 217 QoS Commands scope Syntax scope {exclusive | template} no scope Context config>qos>access-egress Description This command configures the scope as exclusive or template. The policy’s scope cannot be changed if the policy is applied to multiple ports. The no form of this command sets the scope of the policy to the default of template. Default template Parameters...
Page 218 QoS Commands Show Commands access-egress Syntax access-egress [policy-id] [association | detail] Context show>qos Description This command displays Access egress QoS policy information. Parameters policy-id — Displays information about the specific policy ID. Displays all access-egress policies if no specific policy-id is entered. Values 1 —...
Page 219 QoS Commands Label Description (Continued) CIR Admin Specifies the administrative Committed Information Rate (CIR) parameters for the queue. The CIR defines the rate at which the system prioritizes the queue over other queues competing for the same band- width. CIR Rule min —...
Page 220 QoS Commands QoS Access Egress ------------------------------------------------------------------------------- Policy-id : 10 Scope : Template Remark : True Accounting : packet-based ------------------------------------------------------------------------------- Queue CIR Admin PIR Admin CBS CIR Rule PIR Rule ------------------------------------------------------------------------------- closest closest closest closest closest closest closest closest closest closest closest closest closest...
Page 221: Qos Port Scheduler Policies
QoS Port Scheduler Policies In This Section This section provides information to configure port scheduler policies using the command line interface. Topics in this section include: • Overview on page 222 • Basic Configurations on page 223 • Service Management Tasks on page 225 7210 SAS-E OS Quality of Service Guide Page 221...
Page 222: Overview
Overview Overview Configuring Port Scheduler Policies The port-scheduler-policy command creates a port scheduler template which may be assigned to an egress port. Only one port scheduler policy is allowed per port. There is a “default” port- scheduler policy (which services the queues of the port in a Strict order) associated with each port. To change the behavior, users can associate the port with another port-scheduler policy.
Page 223: Basic Configurations
Scheduler QoS Policies Basic Configurations A basic QoS port scheduler policy must conform to the following: • Each QoS port scheduler policy must have a unique policy name. 7210 SAS-E OS Quality of Service Guide Page 223...
Page 224: Creating A Qos Port Scheduler Policy
Overview Creating a QoS Port Scheduler Policy To create a port scheduler policy, define the following: • A port scheduler policy name. • Include a description. The description provides a brief overview of policy features. Use the following CLI syntax to create a QoS port scheduler policy. Note that the create keyword is included in the command syntax upon creation of a policy.
Page 225: Service Management Tasks
Scheduler QoS Policies Service Management Tasks This section discusses the following service management tasks: • Copying and Overwriting Port Scheduler Policies on page 225 • Editing QoS Policies on page 227 Copying and Overwriting Port Scheduler Policies You can copy an existing QoS policy, rename it with a new QoS policy value, or overwrite an existing policy.
Page 226 Service Management Tasks Queue 4 Weight: strict Queue 5 Weight: strict Queue 6 Weight: strict Queue 7 Weight: strict Queue 8 Weight: strict =============================================================== *A:card-1>config# *A:card-1>config# show qos port-scheduler-policy psp1 =============================================================== QoS Port Scheduler Policy =============================================================== Policy-Name : psp1 Accounting : packet-based Mode : WRR...
Page 227: Editing Qos Policies
Scheduler QoS Policies Editing QoS Policies You can edit a port-scheduler policy, the modifications are done and it affects the port where it is applied. The “default” port-scheduler policy cannot be modified. To prevent configuration errors use the copy command to make a duplicate of the original policy to a work area, make the edits, and then overwrite the original policy.
Page 228 Service Management Tasks Page 228 7210 SAS-E OS Quality of Service Guide...
Page 229: Qos Port Scheduler Policy Command Reference
Command Reference QoS Port Scheduler Policy Command Reference Command Hierarchies • Port Scheduler Policy Configuration Commands on page 229 • Operational Commands on page 229 • Show Commands on page 229 Port Scheduler Policy Configuration Commands config — qos — [no] port-scheduler-policy port-scheduler-name —...
Page 230 QoS Port Scheduler Policy Command Reference Page 230 7210 SAS-E OS Quality of Service Guide...
Page 231 QoS Commands Configuration Commands Generic Commands description Syntax description description-string no description Context config>qos>port-scheduler-policy Description This command creates a text description stored in the configuration file for a configuration context. The description command associates a text string with a configuration context to help identify the context in the configuration file.
Page 232 QoS Commands Operational Commands copy Syntax copy port-scheduler-policy src-name dst-name [overwrite] Context config>qos Description This command copies existing port scheduler QoS policy entries for a port scheduler QoS policy to another port scheduler QoS policy. The copy command is a configuration level maintenance tool used to create new policies using existing policies.
Page 233 QoS Commands Port Scheduler Policy Commands port-scheduler-policy Syntax no] port-scheduler-policy port-scheduler-name Context config>qos Description The default scheduling done for a port is strict scheduling.When a port-scheduler policy is applied to a port , it overrides the default scheduling and determines the type of scheduling (Strict, RR, WRR, WDRR, WRR/WDRR + Strict) to be done between the 8 CoS queues of that particular port.
Page 234 QoS Commands traffic out of the port is in the ratio of 1:5 between the queues (1 and 2) provided no traffic is flowing in the other queues. If the keyword strict is specified in any of the queues, then that particular queue will be treated as strict.
Page 235 QoS Commands Show Commands port-scheduler-policy Syntax port-scheduler-policy [port-scheduler-policy-name] [association] Context show>qos Description This command displays port-scheduler policy information Parameters port-scheduler-policy-name — Displays information for the specified existing port scheduler policy. association — Displays associations related to the specified port scheduler policy. Output Show QoS Port Scheduler Output —...
Page 236 QoS Commands Associations ------------------------------------------------------------------------------- - Port : 1/1/1 =============================================================================== *A:card-1>config# *A:card-1>config# show qos port-scheduler-policy psp =============================================================================== QoS Port Scheduler Policy =============================================================================== Policy-Name : psp Mode : WRR Accounting : packet-based Last changed : 01/01/2000 05:14:06 Queue 1: Weight: 1 Queue 2: Weight: 3 Queue 3: Weight: 5...
Page 237: Slope Qos Policies
Slope QoS Policies Configuring QoS Policies In This Section This section provides information to configure slope QoS policies using the command line interface. Topics in this section include: • Overview on page 238 • Basic Configurations on page 239 • Default Slope Policy Values on page 242 •...
Page 238: Overview
For information about the tasks and commands necessary to access the command line interface and to configure and maintain your 7210 SAS E, refer to CLI Usage chapter in the 7210 SAS E OS Basic System Configuration Guide.
Page 239: Basic Configurations
Slope QoS Policies Basic Configurations A basic slope QoS policy must conform to the following: • Each slope policy must have a unique policy ID. • High slope and low slope are shut down (default). • Default values can be modified but parameters cannot be deleted. Create a Slope QoS Policy Configuring and applying slope policies is optional.
Page 240 Overview Use the following CLI syntax to configure a slope policy: CLI Syntax: config>qos slope-policy name description description-string high slope start-threshold percent queue queue-id drop-rate rate no shutdown low-slope start-threshold percent queue queue-id drop-rate rate no shutdown The following displays the slope policy configuration: A:ALA-7>config>qo>slope-policy# info ---------------------------------------------- description "slope policy SlopePolicy1"...
Page 241: Applying Slope Policies
Slope QoS Policies Applying Slope Policies • Ports Apply slope policies to the egress buffer pool on the ports. Ports The following CLI syntax examples may be used to apply slope policies to ports: CLI Syntax: config>port>access>egress>pool>slope-policy name config>port>accesss>uplink>egress>pool>slope-policy name 7210 SAS-E OS Quality of Service Guide Page 241...
Page 242: Default Slope Policy Values
Overview Default Slope Policy Values The default access egress and access uplink egress policies are identified as policy-id “default”. The default policies cannot be edited or deleted. The following table displays default policy parameters: Table 25: Slope Policy Defaults Field Default description Default slope policy...
Page 243 Slope QoS Policies ---------------------------------------------- ALA7>config>qos>slope-policy# 7210 SAS-E OS Quality of Service Guide Page 243...
Page 244: Deleting Qos Policies
Overview Deleting QoS Policies A slope policy is associated by default with access and access uplink egress pools. A default policy may be replaced with a non-default policy, but a policy cannot be entirely removed from the configuration. When a non-default policy is removed, the policy association reverts to the default slope policy policy-id default.
Page 245: Copying And Overwriting Qos Policies
Slope QoS Policies Copying and Overwriting QoS Policies You can copy an existing slope policy, rename it with a new policy ID value, or overwrite an existing policy ID. The option must be specified or an error occurs if the destination overwrite policy ID exists.
Page 246: Editing Qos Policies
Overview queue 8 drop-rate 1 exit low-slope shutdown start-threshold 50 queue 1 drop-rate 0 queue 2 drop-rate 0 queue 3 drop-rate 0 queue 4 drop-rate 0 queue 5 drop-rate 0 queue 6 drop-rate 0 queue 7 drop-rate 0 queue 8 drop-rate 0 exit ---------------------------------------------- A:ALA-7>config>qos#...
Page 247: Slope Qos Policy Command Reference
Command Reference Slope QoS Policy Command Reference Command Hierarchies Configuration Commands config — qos — [no] slope-policy name — description description-string — no description — [no] high-slope — start-threshold percent — no start-threshold — queue queue-id drop-rate num — no queue queue-id —...
Page 248 Slope QoS Policy Command Reference Show Commands show — qos — slope-policy [slope-policy-name] [detail] Page 248 7210 SAS-E OS Quality of Service Guide...
Page 249 QoS Commands Configuration Commands Generic Commands description Syntax description description-string no description Context config>qos>slope-policy Description This command creates a text description stored in the configuration file for a configuration context. The description command associates a text string with a configuration context to help identify the context in the configuration file.
Page 250 Slope QoS Commands Operational Commands copy Syntax copy slope-policy src-name dst-name [overwrite] Context config>qos Description This command copies existing QoS policy entries for a QoS policy-id to another QoS policy-id. The copy command is a configuration level maintenance tool used to create new policies using exist- ing policies.
Page 251 QoS Commands Slope Policy QoS Commands slope-policy Syntax [no] slope-policy name Context config>qos Description This command enables the context to configure a QoS slope policy. Default slope-policy “default” Parameters name — The name of the slope policy. Values Valid names consist of any string up to 32 characters long composed of printable, 7- bit ASCII characters.
Page 252 Slope QoS Commands Slope Policy QoS Policy Commands high-slope Syntax [no] high-slope Context config>qos>slope-policy Description The high-slope context contains the commands and parameters for defining the high priority Random Early Detection (RED) slope graph. Each buffer pool supports a high priority RED slope for manag- ing access to the shared portion of the buffer pool for high priority or in-profile packets.
Page 253 QoS Commands RED Slope Commands shutdown Syntax [no] shutdown Context config>qos>slope-policy>high-slope config>qos>slope-policy>low-slope Description This command enables or disables the administrative status of the Random Early Detection slope. By default, all slopes are shutdown and have to be explicitly enabled (no shutdown). The no form of this command administratively enables the RED slope.
Page 254 Slope QoS Commands queue Syntax queue queue-id drop-rate num no queue queue-id Context config>qos>slope-policy>high-slope config>qos>slope-policy>low-slope Description The drop-rate num parameter is expressed as a scalar number, and mapping to the percent of packets dropped in congestion conditions is specified in Table 14, Drop Rate Value to Percent Mapping Val- ues, on page 47.
Page 255 QoS Commands Show Commands slope-policy Syntax slope-policy [slope-policy-name] [detail] Context show>qos Description This command displays slope policy information. Parameters slope-policy-name — The name of the slope policy. detail — Displays detailed information about the slope policy. Output Slope QoS Policy Output Fields — The following table describes slope QoS policy output fields.
Page 256 Slope QoS Commands High-Slope Down Low-Slope Down ------------------------------------------------------------------------------- Queue High Slope Drop Rate(%) Low Slope Drop Rate(%) ------------------------------------------------------------------------------- Queue 1 6.250000 100.000000 Queue 2 6.250000 100.000000 Queue 3 6.250000 100.000000 Queue 4 6.250000 100.000000 Queue 5 6.250000 100.000000 Queue 6 6.250000 100.000000 Queue 7...
Page 257: Standards And Protocol Support
Standards and Protocol Support Standards Compliance RFC 3164 Syslog draft-ietf-secsh-architecture.txt SSH RFC 3273 HCRMON-MIB IEEE 802.1d Bridging Protocol Architecture RFC 3411 An Architecture for IEEE 802.1p/Q VLAN Tagging draft-ietf-secsh-userauth.txt SSH Describing Simple Network IEEE 802.1w Rapid Spanning Tree Authentication Protocol Management Protocol (SNMP) Protocol Management Frameworks...
Page 258 Standards and Protocols Page 258 Standards and Protocols...
Page 259: Index
NDEX command reference SAP policies overview overview egress policies policies ingress policies policy entities configuring access egress applying to services overview basic configuring command reference access egress policies ingress policy applying policies overview command reference slope policies default values overview 45, 238 modifying RED slopes...
