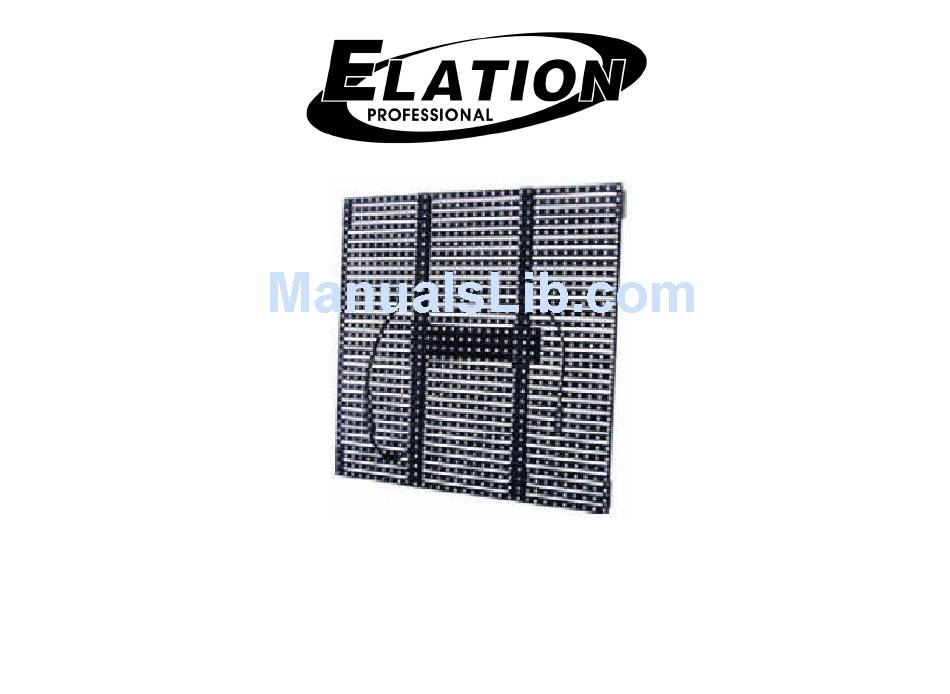

- Page 1 EVLED1024SMD Video Wall Quick Start Guide...
- Page 2 One end of DVI cable connects with sending card in EVLED VSC controller EVLED VSC Controller ELATION Connect the RS232 data cable into your PC (Use the RS232 to USB convertor if you don’t have RS232 on your PC). Connect RJ11 end into the EVLED-VSC.
- Page 3 II. Power and data cable connection map. (Example map: 3 rows by 3 columns. Rear View). This connection type is only recommended for up to 20 panels. When using more than 20 panels, an EVLED VDS data splitter should be used. Contact your Elation representative for a custom connection map.
- Page 4 III. Application of Software 1. Launch LED Set software; click “Parameter” as pictured below. Parameter...
- Page 5 2. A password window will pop up as pictured below. Input password “168” and click “Ok”.
- Page 6 3. Sending card resolution set up: If your screen works in 1024×768 resolution mode, there is no need to select another display mode. If it does not, click the “Display mode” drop down tab and select the correct display resolution for your screen. Click “Save on sender” to confirm.
- Page 7 4. Installation of receiving card: Click “Receiver” tab. Window should display as pictured below. ① Click “Load from files”→select “EVLED1024SMD.RCG” ②Click “Send to receiver”→ ③Click “Save on receiver”. Switch to “Receiver” setup screen 1. Load EVLED1024SMD.RCG panel profile 2. Send profile to receiver 3.
- Page 8 Select Profile (EVLED1024SMD.RCG)
- Page 9 5. Mapping and setup: (For example: to map 3 rows and 3 columns, setup should be as pictured below) Update the quantity of screens if using more than one main screen→In “Type”, select “virtual pixel display”→set rows and columns for your screen→select pixel points of each panel (The pixel points for each EVLED1024SMD is 32x32)→set the map based on the signal connection (N type connection as pictured below).
- Page 10 *NOTE: The EVELED VSC can control/drive up to 1280x1024 resolution. So when using EVLED1024SMD panels, one (1) EVLED VSC controller can drive a wall size of up to 40 panels wide by 32 panels high. Up to eight (8), EVLED1024SMD, panels can be connected into a single 20A circuit.
