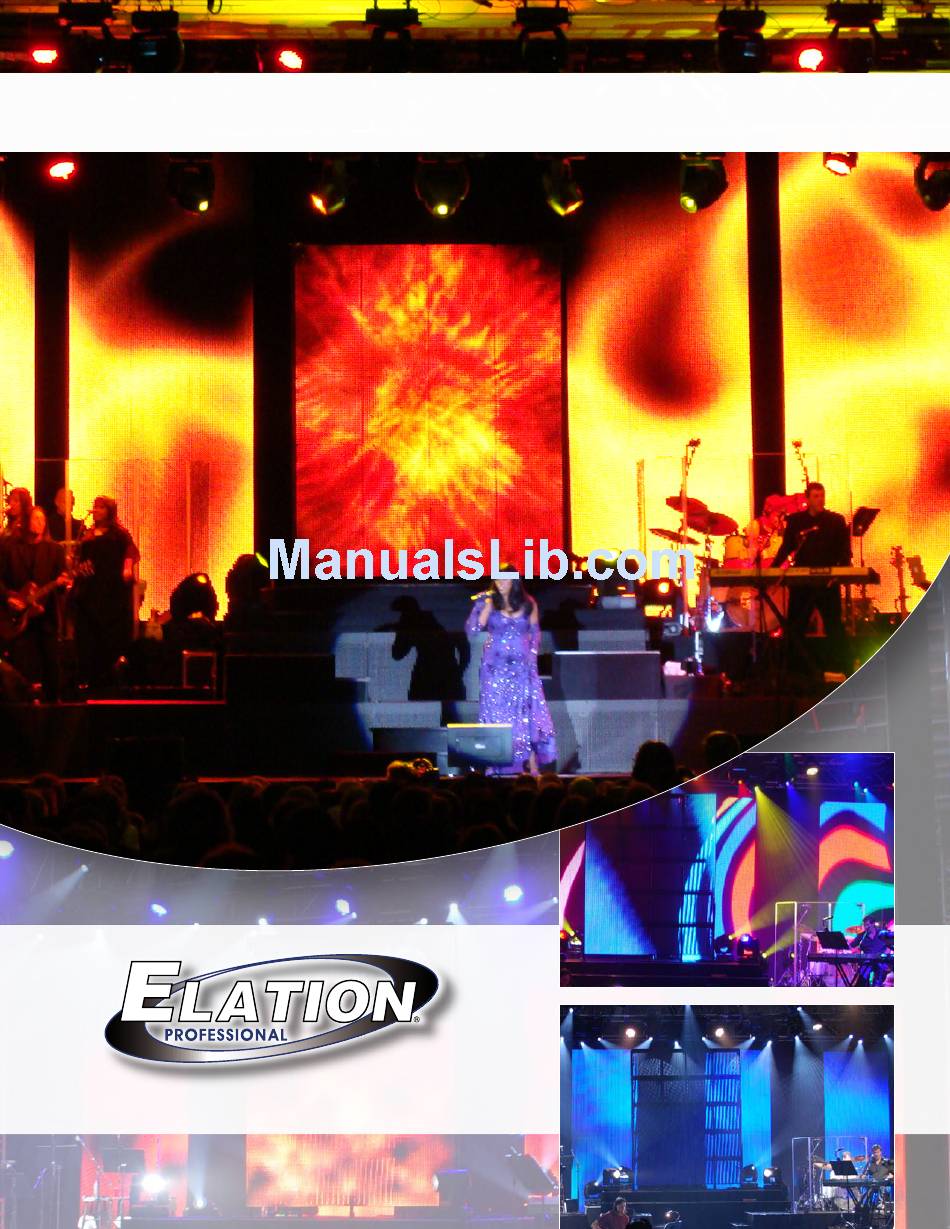

- Page 1 E V L E D M E D I A S C R E E N S E R I E S P r o d u c t S p e c i f i c a t i o n s www.ElationLighting.com...
- Page 2 Model No. EVLED-256 Transparency Curtain Composition Al-alloy frame, rubber compound dealing with seams for weatherproof Tile Size 600 X 600 X 75 mm/tile Tile Weight 4.5 kg/tile Tile Area 0.36m Pixel Pitch 37.5 mm Luminosity 2000 nits Color Temperature 6500 k Visual Angle 110 / 50 (50% brightness) Visual Range...
- Page 3 Model No. EVLED-1024 Transparency Curtain Composition Al-alloy frame, rubber compound dealing with seams for weatherproof Tile Size 600 X 600 X 75 mm/tile Tile Weight 7.5 kg/tile Tile Area 0.36m Pixel Pitch 18.75 mm Luminosity 5500 nits Color Temperature 6500 k Visual Angle 110 / 50 Visual Range...
- Page 4 EVLED-1024SMD Model No. EVLED-1024SMD Transparency Curtain Composition Al-alloy frame, rubber compound dealing with seams for weatherproof Tile Size 640 X 640 X 75 mm/tile Tile Weight 6.6 kg/tile Tile Area 0.4096m Pixel Pitch 20 mm Luminosity 4000 nits Color Temperature 6500 k Visual Angle 150 / 150...
-
Page 5: Specification Sheet
Model No. Composition Unit Size Unit Weight Dot Correction Max Resolution Grey Level High Frequency Refresh Rate Mounting Front Panel Controls Rear Panel Connections Command Communication Signal Input Signal Output Compatible with the following video panels: EVLED-256 EVLED-VSC EVLED-VSC Powder-coated steel 423 X 330 X 46 mm (LxWxH) 5.3 kg Single, 2x2, 4x4 and 8x8, Max. - Page 6 6122 South Eastern Avenue Los Angeles, CA 90040 (866)245-6726 www.ElationLighting.com...
