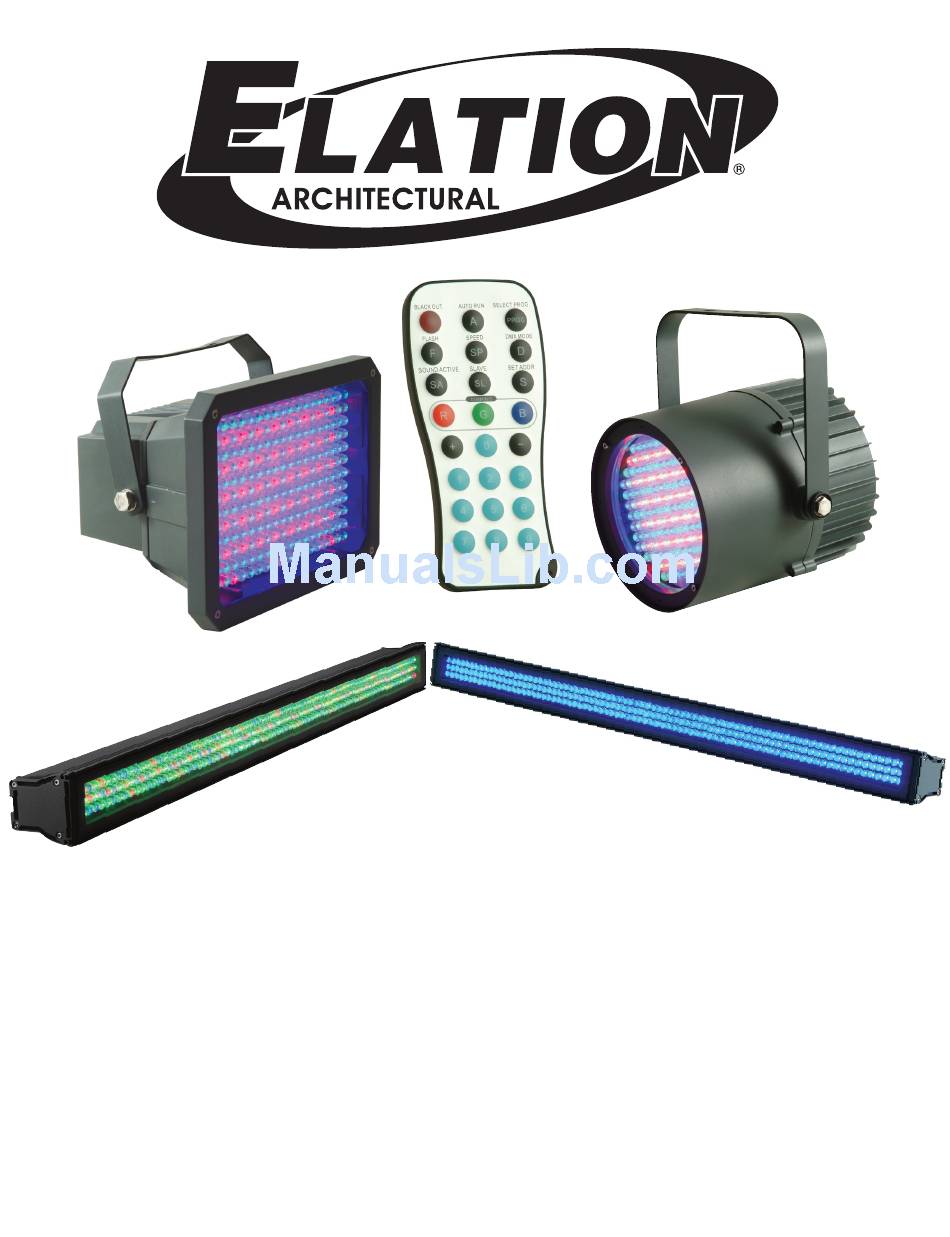

- Page 1 Elation Architectural User Instructions ® Elation Architectural © ® 6122 Eastern Ave. Los Angeles CA. 90040 Rev. 11/07 www.elationlighting.com...
-
Page 2: Dmx Control
Elation Architectural Instructions ® Thank you for purchasing this Elation Architectural product. Please read the user ® instructions before operating Elation Architectural fixtures. ® This manual covers other Elation Architectural fixtures! ® The ElAr Wr Ir translater has many differnet functions and gives you complete control of your Elation Architectural fixtures. - Page 3 3 cHAnnEl MoDE channel Value Function 0 - 255 0% - 100% 0 - 255 GREEN 0% - 100% 0 - 255 BLUE 0% - 100% 5 cHAnnEl MoDE channel Value Function ELAR EXPAR SPECIFICATIONS: 0 - 255 Working Position: Any safe working position 0% - 100% Voltage: 100V ~ 240V...
- Page 4 0% - 100% 0 - 255 BLUE 0% - 100% 5 cHAnnEl MoDE channel Value Function ELAR EXFLOOD SPECIFICATIONS: 0 - 255 Working Position: Any safe working position 0% - 100% Voltage: 100V ~ 240V 0 - 255 GREEN Power Consumption:...
- Page 5 ELAR EXBAR BL LED RGB BAR 3 cHAnnEl MoDE channel Value Function 0 - 255 0% - 100% 0 - 255 GREEN ELAR EXBAR BL SPECIFICATIONS: 0% - 100% Working Position: Any safe working position Voltage: 100V ~ 240V 0 - 255 BLUE Power Consumption: 0% - 100%...
- Page 6 ELAR EXBAR BL LED RGB BAR DMX CHANNEL MODES: There are seven DMX modes: a 2 Channel mode, 3 Channel mode, 4 Channel mode 6 Channel mode, 7 Channel Mode, 9 Chan- nel mode, and 11 Channel mode. You must set the DMX Channel mode before you address the xture.
- Page 7 ELAR EXBAR UV LED UV BAR ELAR EXBARR UV SPECIFICATIONS: Working Position: Any safe working position Voltage: 100V ~ 240V C hannel Value Function Power Consumption: Weight: 9.2lbs./ 4.2Kgs. DIMMER Dimensions: 39.3” (L) x 3.14” (W) x 2.95” (H) 0 - 255 0% - 100% 998 x 79 x 74mm STROBING...
- Page 8 Caution! No user serviceable parts inside do not attempt repairs. In the event your Elation ® Architectural xture should fail, contact Elation support . ® Customer Support: Elation provides a customer support line, to provide set up help and to answer any ®...
- Page 9 ©Elation Architectural® A Division of the AmericanDJ® Group of Companies World Headquarters: 6122 Eastern Ave. Los Angeles, CA 90040 USA Tel: 323-582-3322 Fax: 323-582-3311 Web: www.elationlighting.com E-mail: info@elationlighting.com...
