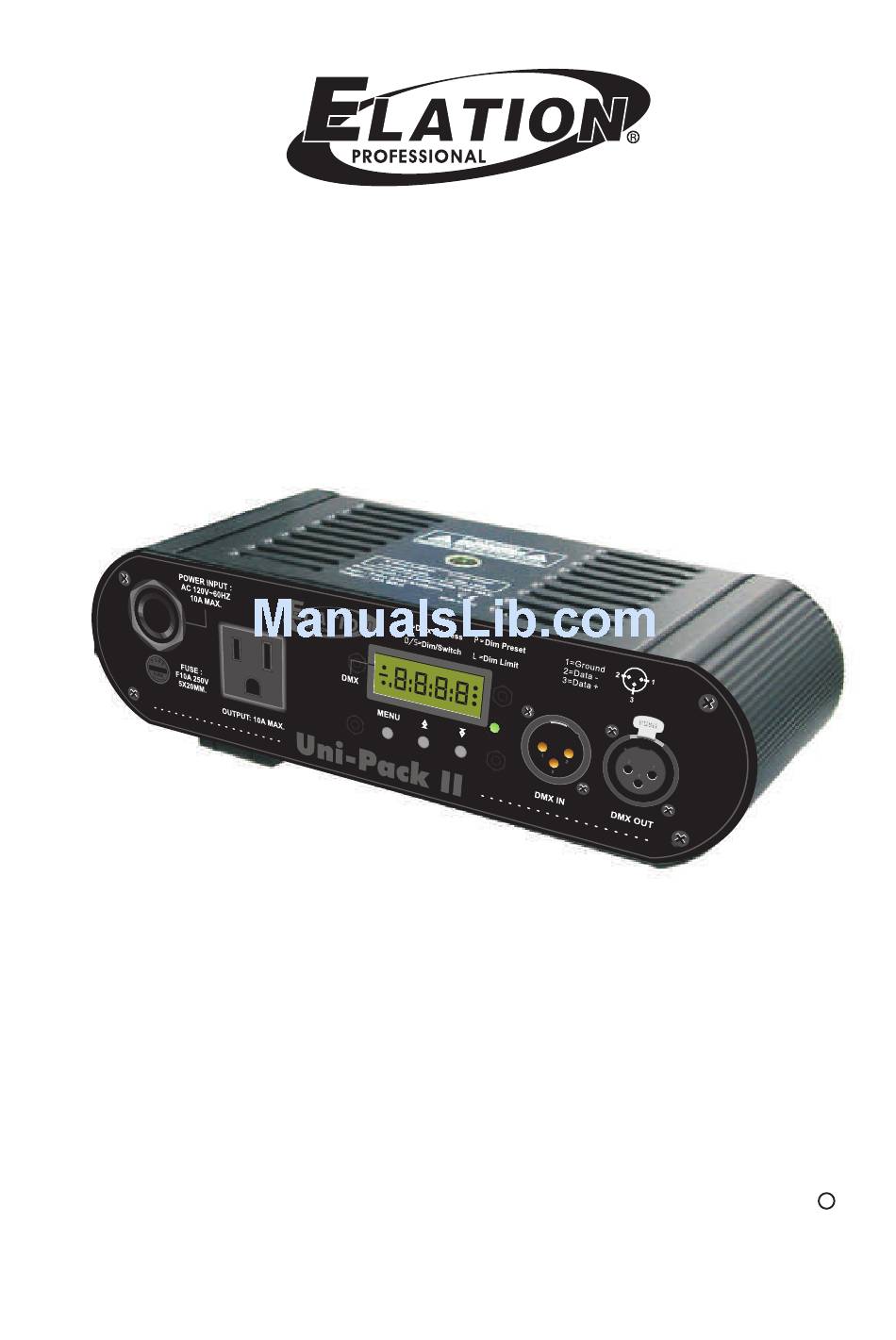

- Page 1 Uni-Pack II User's Manual Elation Professional 4295 Charter Street Los Angeles CA. 90058 www.elationlighting.com...
-
Page 2: Table Of Contents
Contents Features........1 General Instructions....2 1. Overview......3 2. Operation Guide....5 2.1 DMX Address Mode ....5 2.2 Switch Pack Mode .....6 2.3 Dimmer Pack Mode ....7 Technical Specifications..10 Improvement and changes to this manual, specifications and design, may be made at any time without prior notice. ALL RIGHTS RESERVED. -
Page 3: Features
Features Thank you for purchasing this product by Elation Professional. Included features are as follows: 3-pin standard DMX IN/OUT ports providing dimmer information Serves as a Switch Pack or Dimmer Pack, depending upon the current operating mode. Allows DMX Addressing, Dimmer Preset and Dimmer Limit. -
Page 4: General Instructions
General Instructions To optimize the performance of this product , please read this instruction manual carefully to familiarize yourself with the basic operations of this unit. This manual contains important information for user, please keep it well for future reference. Warning !!! This product must be earthed. -
Page 5: Overview
MENU FUSE : F10A 250V FUSE 5X20MM. OUTPUT: 10A MAX. DMX IN DMX OUT Uni-Pack II 5 6 7 1. Power Input port: AC 120V~60Hz, 10A Max. 2. Output: 10A max. 3. Segment Display: Shows current activity or function state. -
Page 6: Operation Guide
2. Operation Guide General Plug in the appropriate power outlet, this unit recovers to the function state of last time automatically by reasons of power failure memory, and the Segment Display shows the DMX address of last change. If the frequency of power is not stable, the Segment Display will show "AC-0", wait until the power is stable. -
Page 7: Switch Pack Mode
2. Operation Guide 2.2 Switch Pack Mode 1. When DMX address is complete, Press Menu button to enter next level. MENU s --- 2. Tap the Up or Down button causing the Segment Display shows "s---". MENU 3. Press Menu button to enter Switch Pack mode. Switch Pack mode consists of Switch On(S-on) and Switch Off(S-of). -
Page 8: Dimmer Pack Mode
2. Operation Guide 2.2 Switch Pack Mode 4. Tap the Up or Down button to change between "Switch On" and "Switch Off". MENU If there is no timely operation on any of the fun- ction button, the unit will automatically return to the DMX Address function mode.) 5. - Page 9 2. Operation Guide 2.3 Dimmer Pack 2. Tap the Up or Down button causing the Segment Display shows "d---". MENU 3. Then press Menu button to enter Dimmer Limit mode. MENU 4. Tap the Up or Down button to change the value within the range of 10-100.
- Page 10 2. Operation Guide 2.3 Dimmer Pack Mode 4. Tap the Up or Down button to change the value within the range of 00-100. Each tap will change the value once, pressing and holding down will change the value quickly. MENU Once the Dimmer Preset is selected, it will be stored automatically.
-
Page 11: Technical Specifications
Technical Specifications Power Input ............AC 120V~60Hz, 10 A max. Channel Output ..................10 A max. DMX OUT ..............3-pin XLR female socket DMX IN ............... .3-pin XLR male socket Fuse ................. F10A 250V 5x20mm Dimensions ................235x106x64mm Weight ....................1.6 Kg... - Page 12 Elation Professional A Division of the American DJ Group of Companies 4295 Charter Street Los Angeles, CA 90058 USA T el: 323-582-3322 Fax: 323-582-3311 Web: www.elationlighting.com 24-004-1299 E-mail: info@elationlighting.com Version 1.0 July, 2004...
