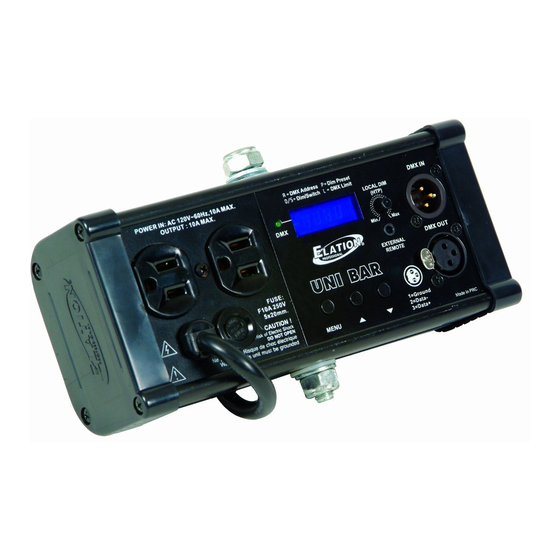

  • Page 1 UNI BAR UNI BAR DMX Address Dim Preset DMX IN Dim/Switch Dim Limit LOCAL DIM (HTP) FUSE DMX OUT EXTERNAL UNI BAR UNI BAR F10A 250V REMOTE 5x20mm. MENU 1=Ground 2=Data- 3=Data+ CAUTION ! POWER IN: OUTPUT : 10A Max.

  • Page 2: Table Of Contents

    Contents Features 1 General Instructions 2 1. Overview 3 1.1 Right Panel 3 1.2 Left Panel 4 2. Operation Guide 5 2.1 DMX Address Mode 5 2.2 Dim/Switch Pack Mode 6 2.3 Dim Limit Mode 7 2.4 Dim Preset Mode 8 Technical Specifications 9...

  • Page 3: Features

    Features Thank you for your purchase. This product features include: 3-pin standard DMX IN/OUT ports providing dimmer information Serves as a Switch Pack or Dimmer Pack, depending upon the current operating mode. Allows DMX Addressing, Dim Preset and Dim Limit. Comply with HTP principle(Highest takes precedence).

  • Page 4: General Instructions

    General Instructions Please read through this operating instructions before installing or using your new product. After you have finished reading the instructions, put them away in a safe place for future reference. Safe and Efficient Use This product must be earthed. Do not make any inflammable liquids, water or metal objects enter the unit.

  • Page 5: Overview

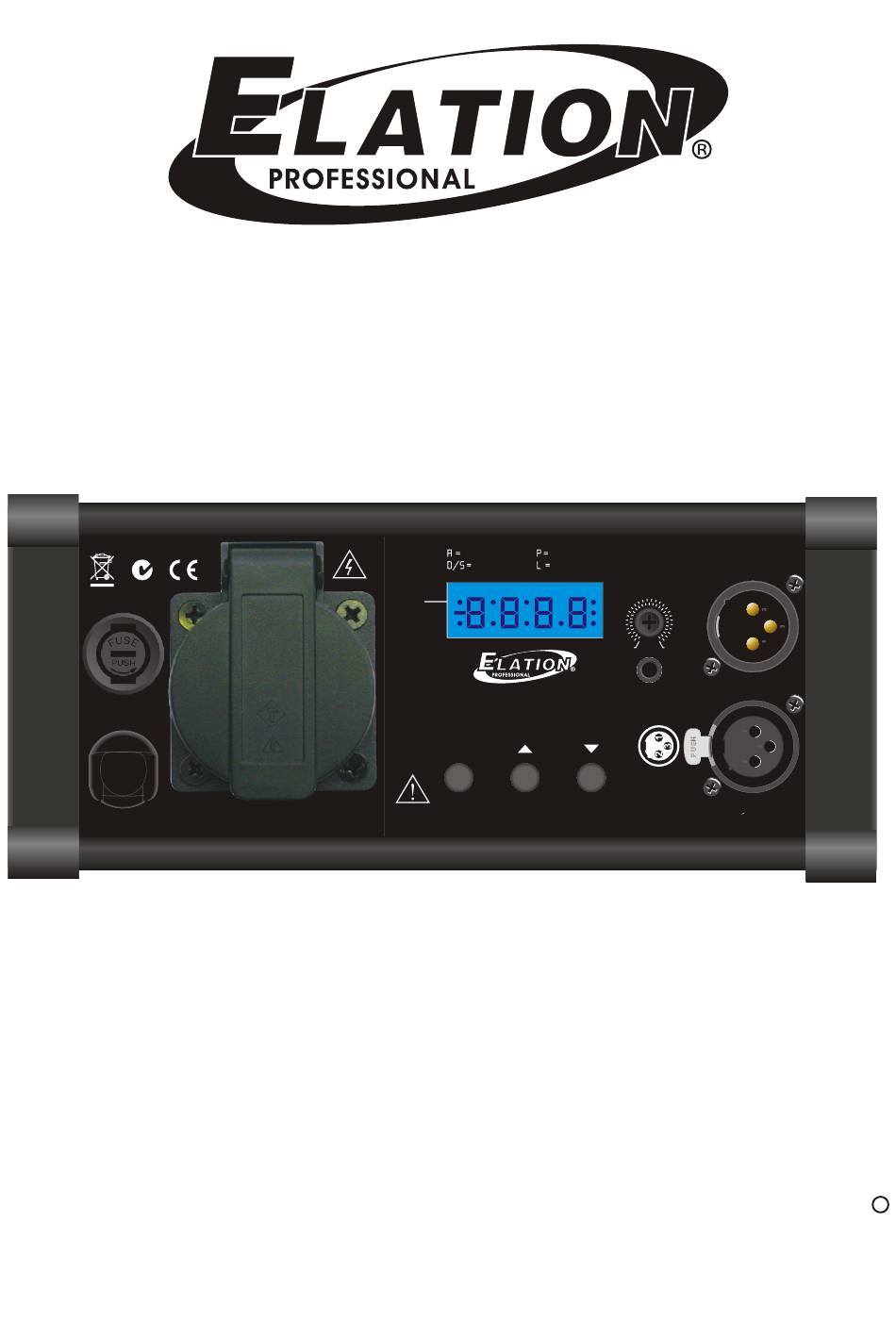

    1. Overview 1.1 Right Panel 1. Segment LED Display: To show the current activity, correlative values and function state. 2. DMX In: 3-pin XLR male socket, used to receive DMX data. 3. DMX Out: 3-pin XLR female socket, used to send DMX data. 4.

  • Page 6: Left Panel

    1. Overview 1.2 Left Panel 9. Output: French socket for Output, 10A MAX. 10.Power In: AC 230V~50Hz, 10A MAX. 11.Fuse: F10A 250V 5x20mm...

  • Page 7: Operation Guide

    2. Operation Guide General Select the appropriate power resource and plug in. The rated voltage of UNI BAR is only 230V. With the power failure memory function, this unit can recover the last function state automatically. If the frequency of power is not stable, the Segment Display will show "AC-0", please wait until the power is stable.

  • Page 8: Dim/Switch Pack Mode

    2. Operation Guide 2.2 Dim/Switch Pack Mode DMX Address Dim Preset Dim/Switch Dim Limit - - - 1. When the desired DMX addresses are complete, you can enter the next mode by pressing Menu button. The segment display will show " d--- ", it MENU means the Dim Pack Mode is activated now.

  • Page 9: Dim Limit Mode

    2. Operation Guide 2.2 Dim/Switch Pack Mode DMX Address Dim Preset Dim/Switch Dim Limit 4. Tap the Up or Down button to change between Switch On and Switch Off. MENU MENU DMX Address Dim Preset Dim/Switch Dim Limit 5. Once the Dim/Switch Pack is complete, press Menu button to return to DMX Address Mode.

  • Page 10: Dim Preset Mode

    2. Operation Guide 2.4 Dim Preset Mode DMX Address Dim Preset Dim Limit Dim/Switch 1. Press Menu button to enter Dim Preset Mode. The Segment Display will show"P-00". MENU DMX Address Dim Preset 2. Tap the Up or Down button to change the value Dim Limit Dim/Switch within the range of 00-100%.

  • Page 11: Technical Specifications

    Technical Specifications Power Input ............AC 230V~60Hz, 10 A max. Channel Output ................10 A max. DMX OUT ..............3-pin XLR female socket DMX IN ............... 3-pin XLR male socket Fuse ................. F10A 250V 5x20mm Dimensions ................200x82x67mm Weight ....................1.1 Kg...
