Zodiac Plus Operator Manual
To reinstall the cassette, proceed as follows:
1
2
To continue printing, refer "Starting the Printer" on page 3-5.
5-6 Removing and Reinstalling the Cassette

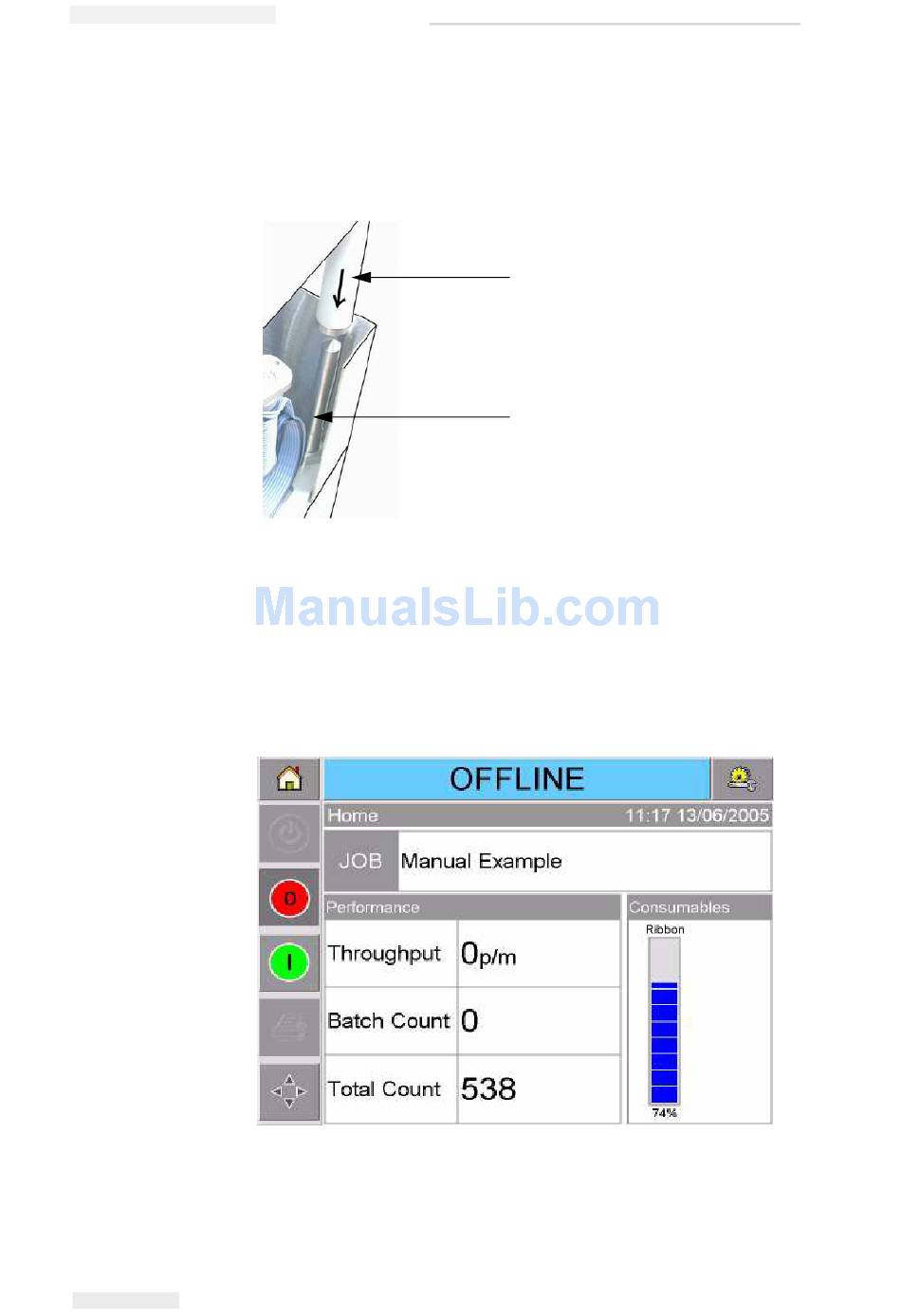

Hold the cassette above the printer body. Align the two locating
rods (Figure 5-7) that protrude from the printer body into the
holes at the ends of the two ribbon rollers.
1. Ribbon Roller
2. Locating Rod
Figure 5-7: Locating Rod Alignment
Push the cassette onto the printer body and press until it locks into
place.
The Cassette Open fault message clears automatically, and the
status is again shown as OFFLINE (Figure 5-8 on page 5-6).
Figure 5-8: Offline State
1
2
Rev AA
