Rev AA

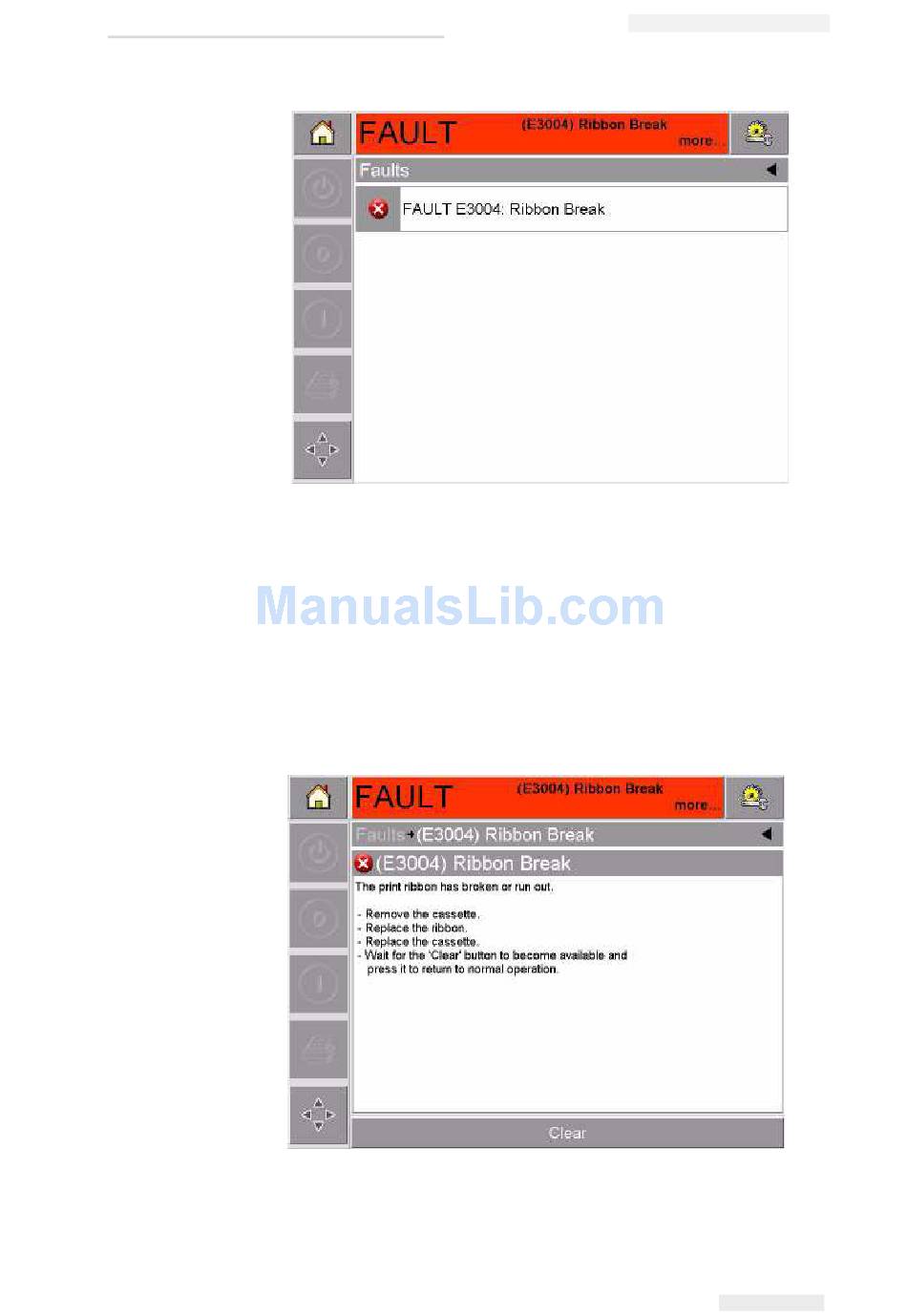

Figure 5-2: Fault Selection
Touch the fault name in the list to read more details about the
fault.
Read the details of the fault and the on screen instructions that tell
you what to do about the fault.
The example in Figure 5-3 shows a Ribbon break fault. To correct a
Ribbon break fault, you need to re-attach the ribbon to the
required spool (refer "Checking and Replacing the Ribbon" on
page 5-7).
Figure 5-3: Fault Details Display
When you have corrected the fault, the Clear button is activated.
Press Clear to remove the fault message.
Zodiac Plus Operator Manual
Working with Fault Messages and Warnings 5-3
