To replace the ribbon, proceed as follows:
1
2
3
4
5-8 Checking and Replacing the Ribbon
Remove the cassette.
Put the cassette down on a flat surface with the ribbon spools
facing upwards and the ribbon rollers towards you, as shown in
Figure 5-10 on page 5-8.

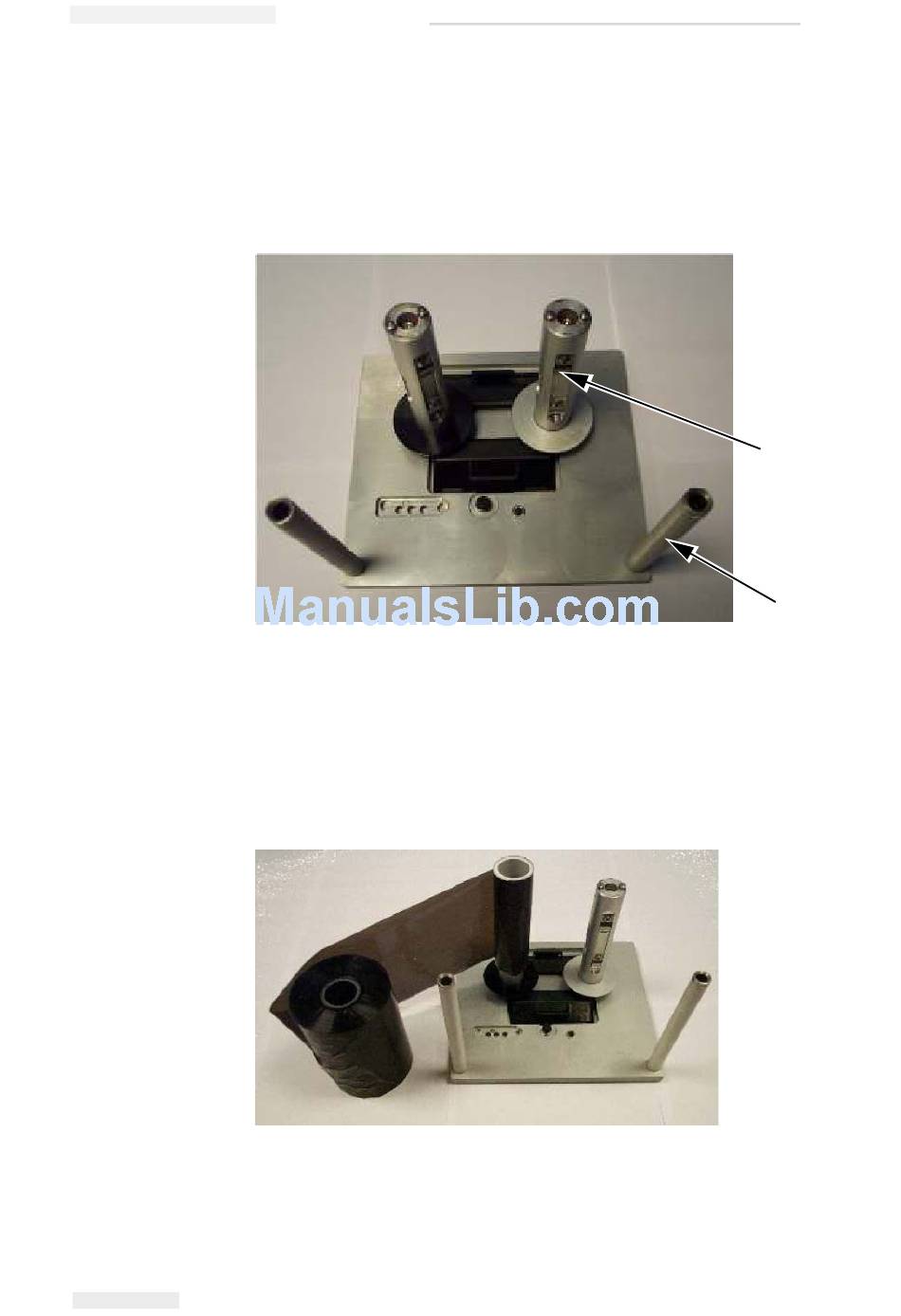

1. Ribbon Spool (x2)
2. Ribbon Roller (x2)
Figure 5-10: Cassette Removal
Pull the two ribbon spools (one full of used ribbon) from the
cassette firmly, as shown in Figure 5-11. The discs that are situated
under each spool can be used to lever the spool off the cassette.
Figure 5-11: Ribbon Spools Removal
Discard the used ribbon and spools.
1
2
