Removing and Reinstalling the Cassette

To remove the cassette, proceed as follows:
1
2
5-4 Removing and Reinstalling the Cassette
Turn the printer to the OFFLINE state.
Press the circular black release button on the front of the printer,
as shown in Figure 5-4 on page 5-4. The button clicks as the
cassette unlocks from the printer body.

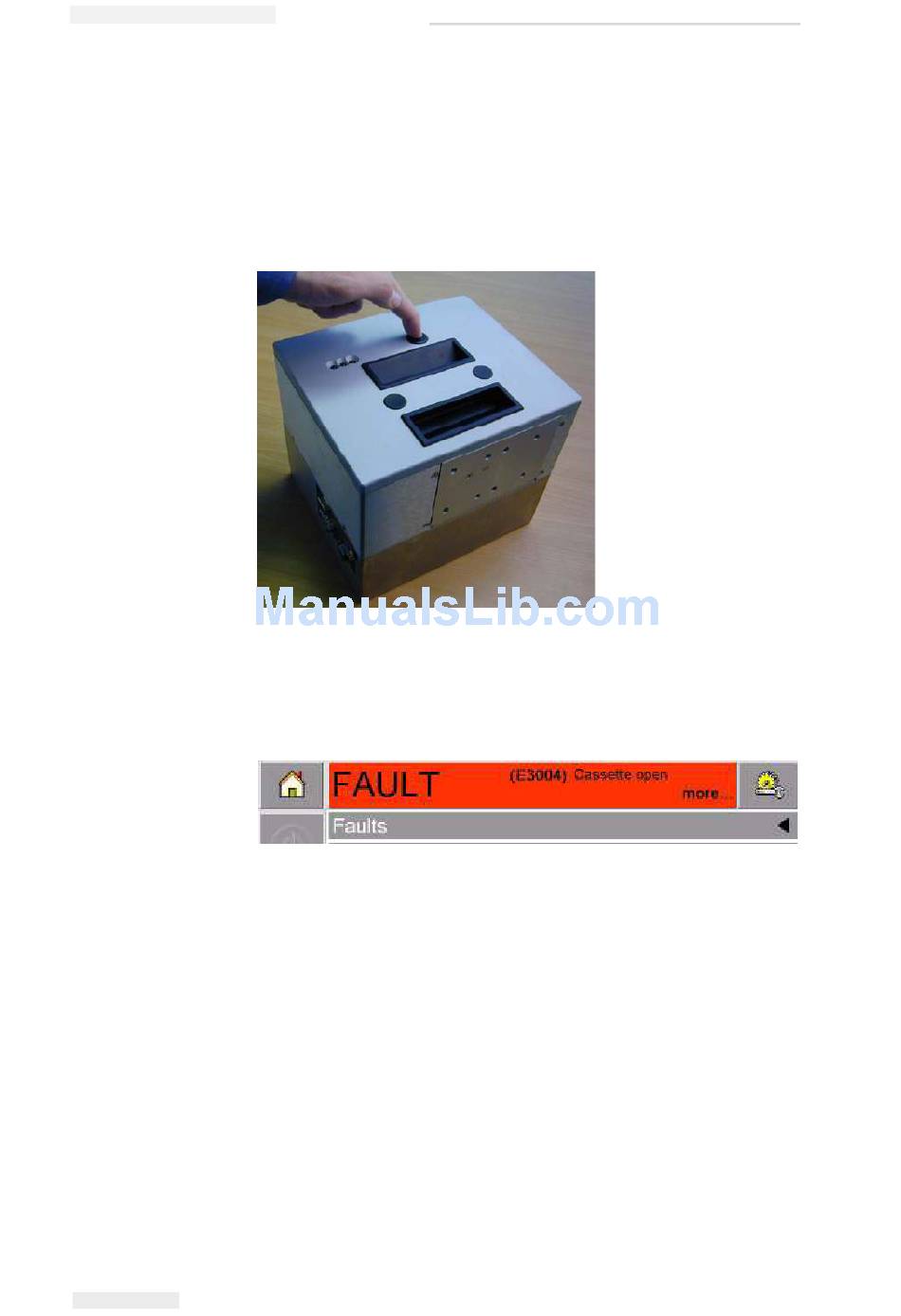

Figure 5-4: Cassette Unlocking
At this point, CLARiTY displays the Cassette Open fault (Figure 5-
5).
Figure 5-5: Cassette Open Fault
