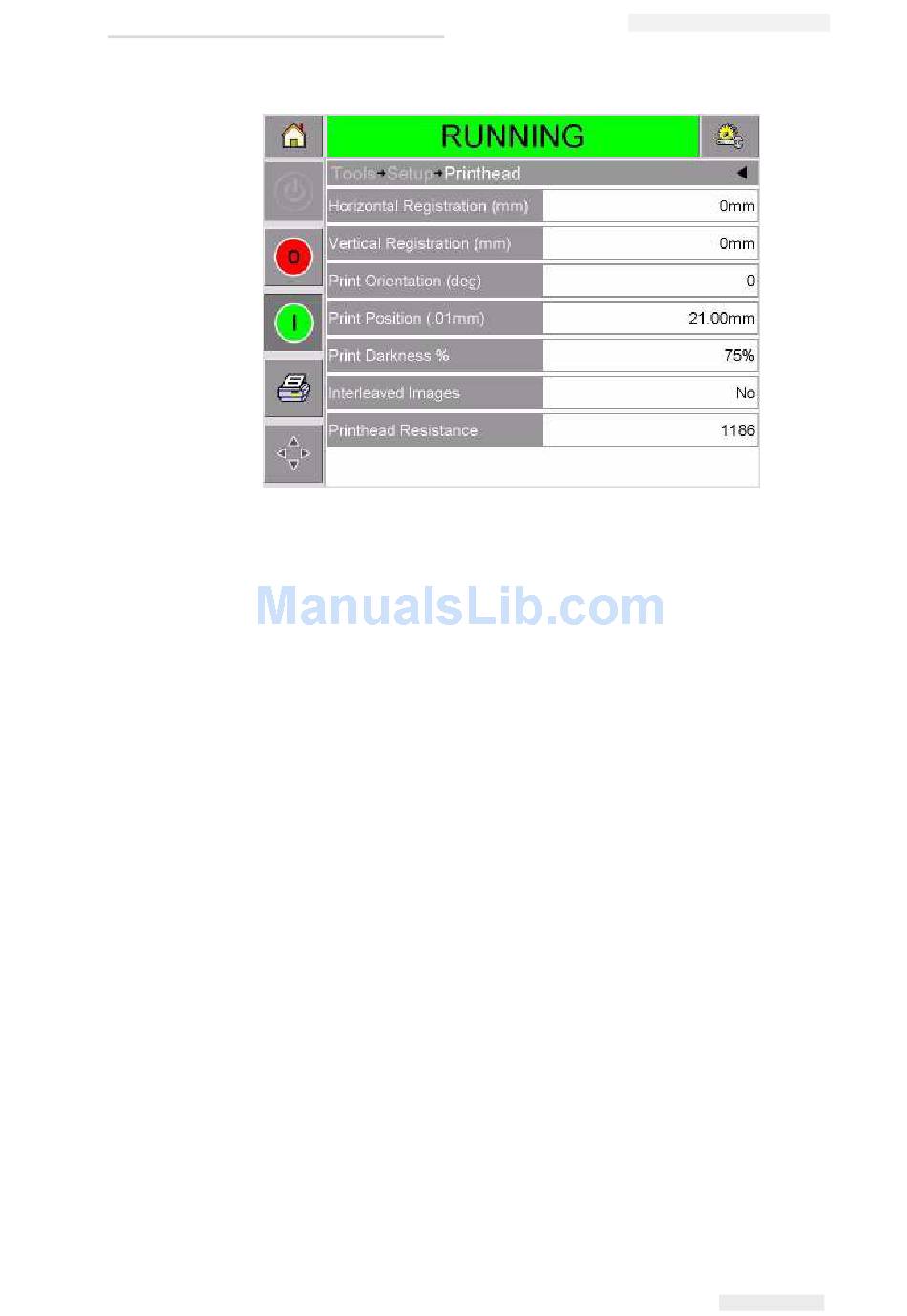

Figure 4-13: Printhead Setup Page for Continuous Motion Applications

Changing the Print Position

If the image does not print in the correct position on the packaging
film, you can change the position by changing the Horizontal or
Vertical Registration. This allows you to move the image inside the
printing area window of the machine and to make small adjustments
to the print location without moving the printer on the bracket. If the
image is moved outside the print window or the available ribbon
width, part of the image will not be printed.
• The Vertical Registration determines the position across the width
• The Horizontal Registration determines the position along the
To change the print position, proceed as follows:
1
2
3
4
5
Rev AA
of the packaging film or printhead.
length of the packaging film.
Touch the Tools button on the home page.
Touch the Setup button on the tools page.
Touch the Printhead button to open the printhead setup page
(Figure 4-12 on page 4-14 and Figure 4-13).
Touch either the Horizontal Registration button or the Vertical
Registration button on the printhead setup page to open the page
for editing the required settings.
Use the + or - buttons (Figure 4-14 on page 4-16) to make small
adjustments in the parameter settings.
