Zodiac Plus Operator Manual
6
7

Changing the Print Orientation

You can change the orientation in which a job image is printed.
To change the print orientation, proceed as follows:
1
2
3
4
4-16 Changing the Position or Appearance of the Print

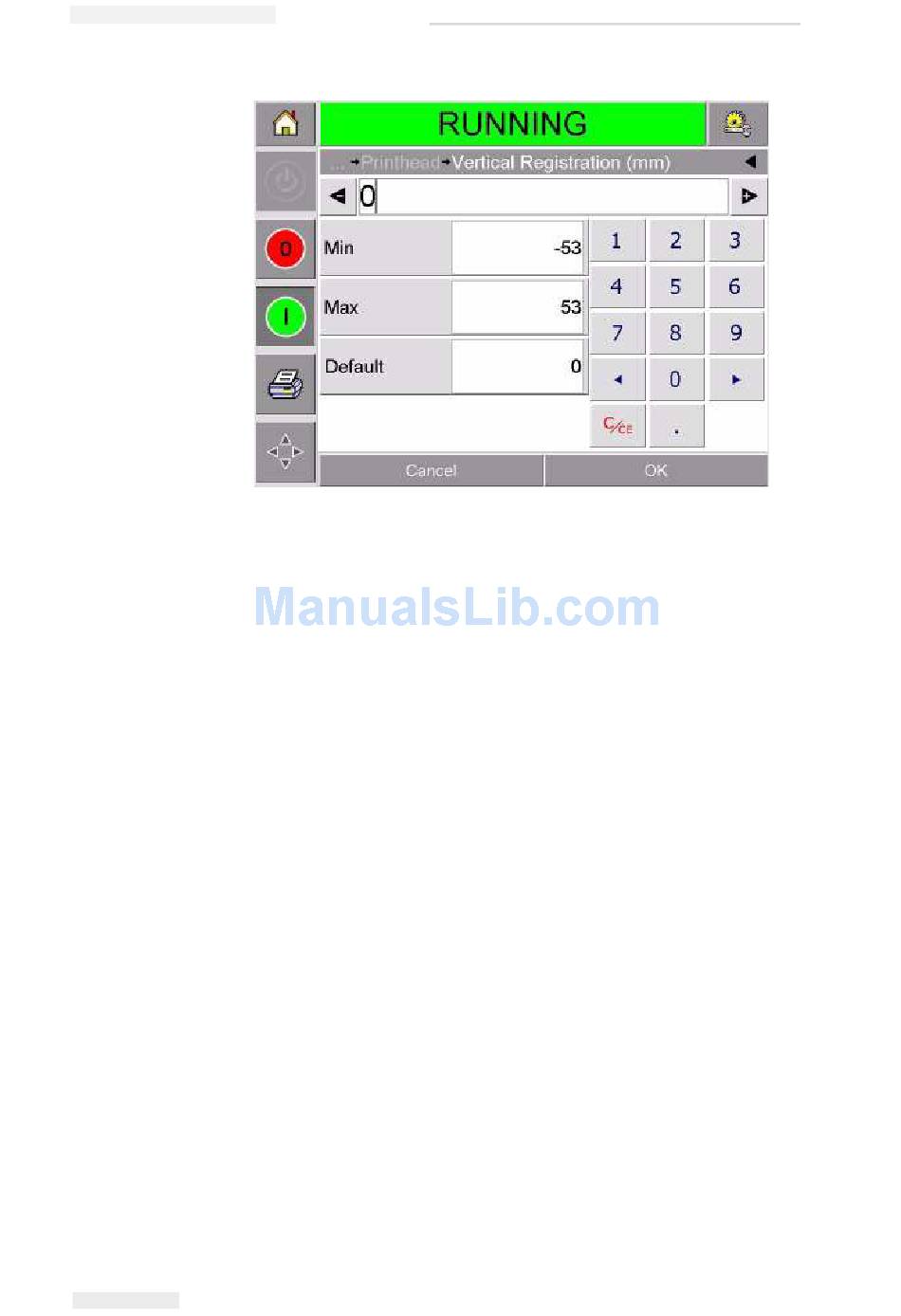

Figure 4-14: Vertical Registration Settings
Alternatively, do one of the following to make changes in the
settings:
• Type a new value using the keypad.
• Touch the Min, Max, or Default buttons to select the minimum,
maximum, or default (standard) values.
Touch OK to save the settings.
Touch the Home button to return to the home page.
Note: The same adjustments can be made via the Print Registration
button on the home screen.
Touch the Tools button on the home page.
Touch the Setup button on the tools page.
Touch the Printhead button to open the printhead setup page.
Touch the Print Orientation bar to open the print orientation
settings page (Figure 4-15 on page 4-17).
Rev AA
