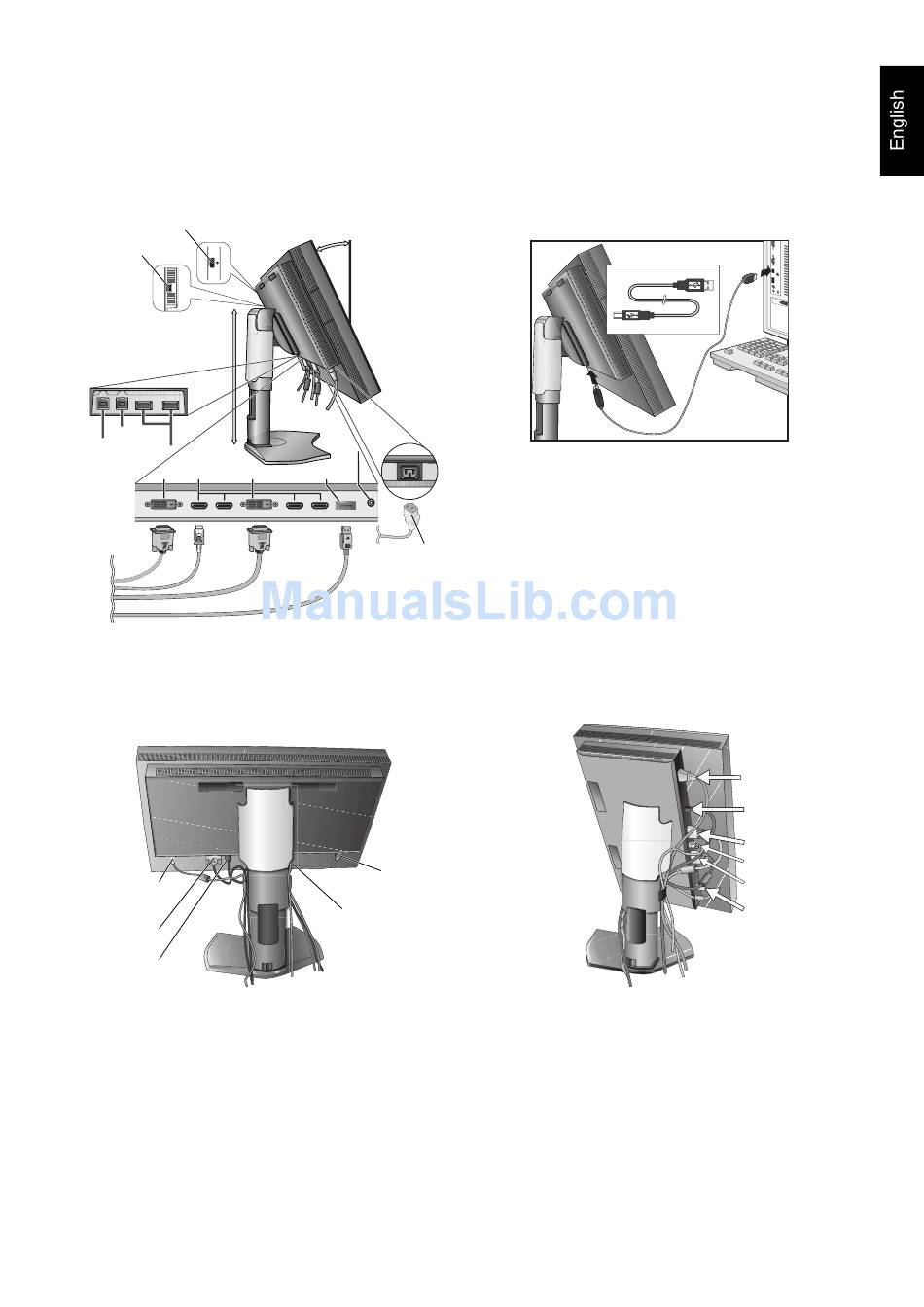

4. Connect all cables to the appropriate connectors (Figure C.1). When using the USB cable, connect the B type connector
to the USB upstream port on the right back side of the monitor and the A type connector to the downstream port on the
computer (Figure C.1a). If using the cord from a USB device, plug into one of the downstream ports of the monitor.
NOTE: Incorrect cable connections may result in irregular operation, damage display quality/components of LCD module
and/or shorten the module's life.
NOTE: When you use DVI signal, please select DVI in HDMI/DVI SELECT in Advanced Menu Tag9 or on NO SIGNAL OSD
warning (see page 17).
DisplayPort (DISPLAYPORT2)*
USB downstream* 2
Highest
Stand
Position
USB upstream2
USB upstream1 USB upstream1
USB downstream USB downstream
DVI-D DVI-D HDMI
Figure C.1
5. To keep the cables neatly organized, place them into the cable management system that is built into the stand.
Place the cables in the hooks fi rmly and evenly (Figure C.2 and Figure C.3).
6. Please check that you can still rotate, raise and lower the monitor screen when you have installed the cables.
USB Cable
1
DVI Cable*
1
HDMI Cable*
Figure C.2
1
* : Cable not included.
* 2 : Connect sensor to this port for self calibration.
3
* : DisplayPort signal from this connector does not support 3840 x 2160 60 Hz itself.
For DisplayPort signal 3840 x 2160 60 Hz please use the DISPLAYPORT1 connector.
3
30° Tilt
Headphone Headphone
DisplayPort DisplayPort
DVI-D (DISPLAYPORT1) (DISPLAYPORT1)
Power Cord
DisplayPort Cable
B Type
Power cord
English-7
A Type
A Type
B Type
Figure C.1a
Power Cord
DisplayPort Cable
DVI Cable*
HDMI Cable*
DVI Cable*
USB Cable
Figure C.3
1
1
1
