Controls

Many of the OSD controls are also available in the included MultiProfi ler software, developed by NEC Display Solutions.
The latest MultiProfi ler software is available on the NEC Display Solutions website.

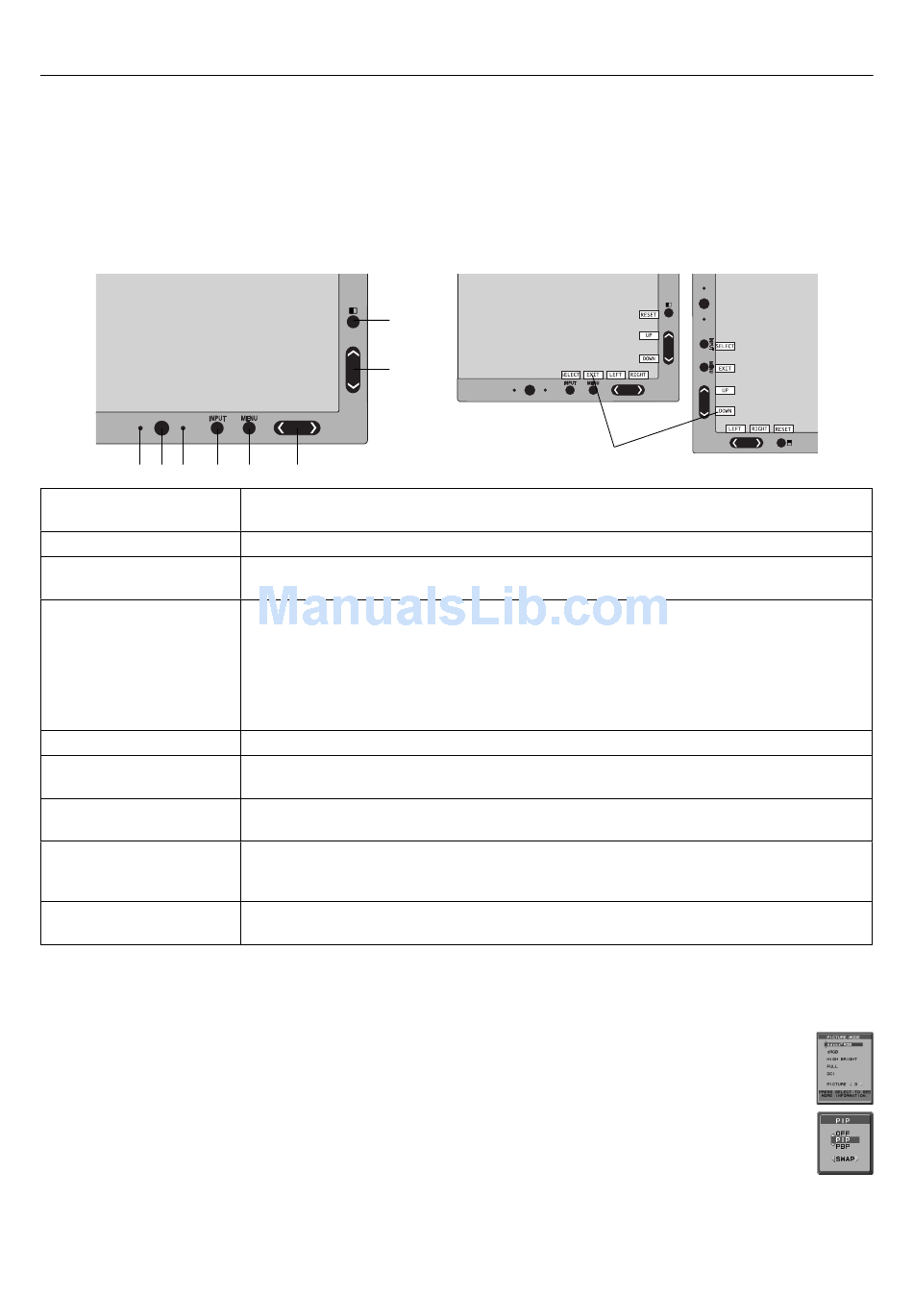

OSD (On-Screen Display) control buttons on the front of the monitor
function as follows:
To access OSD menu, press the MENU button.
To change signal input, press the SELECT button.
NOTE: OSD must be closed in order to change signal input.
1 2 3 4
1 AUTO DIMMING
SENSOR
2 Power
3 LED
4 INPUT/SELECT
5 MENU/EXIT
6 LEFT/RIGHT
7 UP/DOWN
8 RESET/PIP
9 KEY GUIDE
* The "LEFT/RIGHT" and "UP/DOWN" buttons functionality is interchangeable depending on the orientation
(Landscape/Portrait) of the OSD.
1
* When HOTKEY function is OFF, this function is disabled.
2
* PICTURE MODE menu.
Press the UP/DOWN button to select PICTURE MODE in ACTIVE PICTURE. In PIP or PBP (Picture by
Picture) mode, press LEFT/RIGHT button to change ACTIVE PICTURE. Picture mode can be selected for
ACTIVE PICTURE independently.
3
* PIP MODE menu.
Press the UP/DOWN button to change MULTI PICTURE setting. Press the LEFT/RIGHT button to SWAP when you
select PIP in MULTI PICTURE.
8
7
5 6
Detects the level of ambient lighting allowing the monitor to make adjustments to various
settings resulting in a more comfortable viewing experience. Do not cover this sensor.
Turns the monitor on and off.
Indicates that the power is on.
Can be changed between blue and green in the Advanced OSD menu.
Enters the OSD Control menu. Enters OSD sub menus.
Changes the input source when not in the OSD Control menu.
NOTE: HDMI or DVI signal are not changed by INPUT button. You need to set HDMI/DVI in
Advanced Menu Tag9.
Hold the button to show USB selection menu when not in the OSD Control menu*
NOTE: This USB selection setting back to the current setting by OSD menu when you change
input signal or turn off the monitor.
Access OSD menu. Exits the OSD sub menu. Exits OSD Control menu.
Navigates to the left or right through the OSD Control menu.
You can adjust the volume directly, while the OSD menu is off*
Navigates up or down through the OSD Control menu.
Show PICTURE MODE menu when not in the OSD Control menu*
Resets the OSD back to factory settings in the OSD control menu.
PIP can be selected when the OSD is not showing*
Hold the button to show ECO MODE menu while the OSD menu is off*
The Key Guide appears on screen when the OSD control menu is accessed.
The Key Guide will rotate when the OSD control menu is rotated*.
