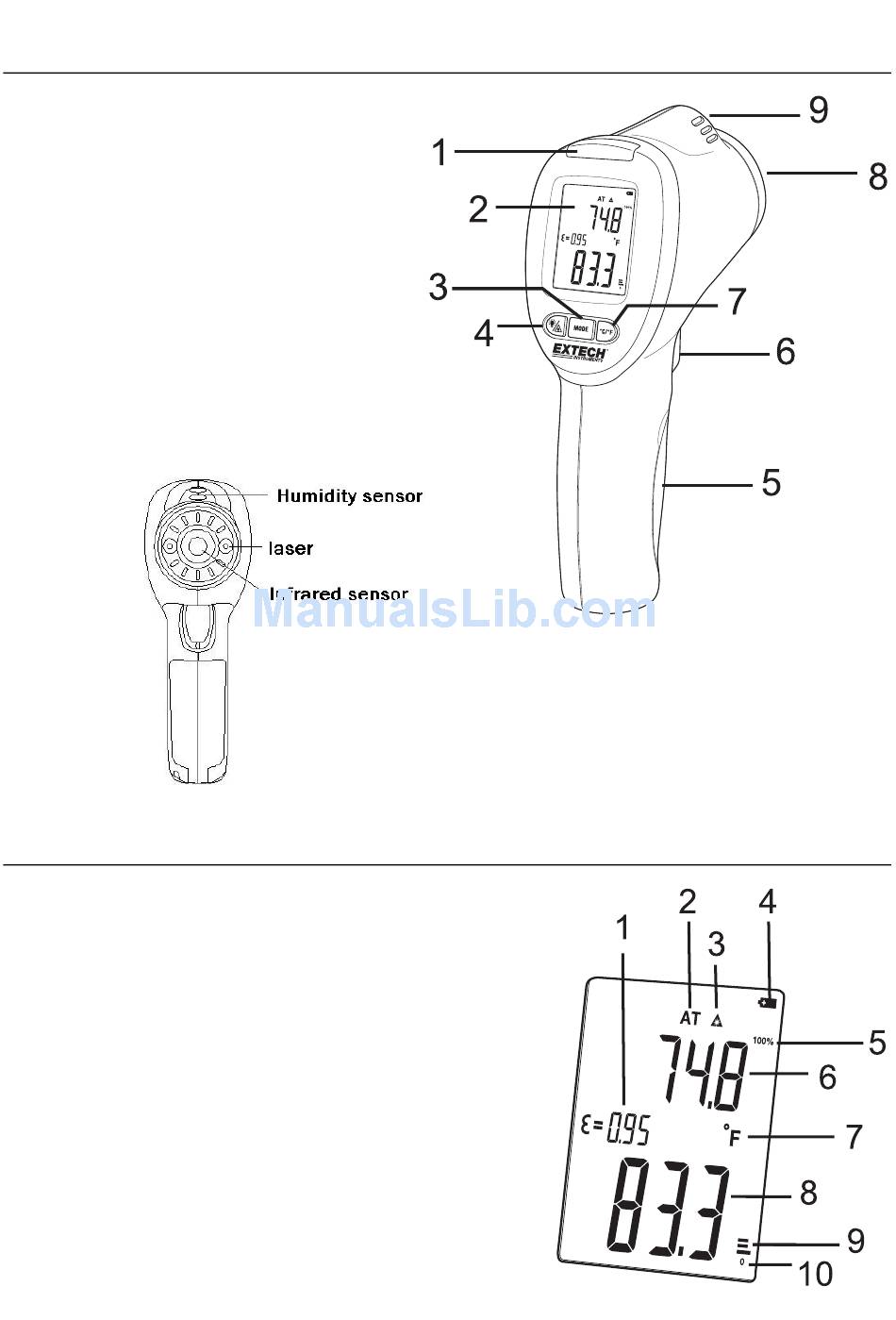

Meter Description
1. Multi‐color mildew status indicator
2. LCD display
3. MODE button
4. Backlight and Laser pointer button
5. Battery compartment
6. Measurement trigger
7. Temperature units button
8. Laser Pointers and Infrared sensor
9. Humidity/Temperature sensors

Display Description

1. Emissivity setting (fixed at 0.95)
2. Air Temperature icon
3. Laser Pointer ON icon
4. Battery status
5. Bargraph range maximum (100%)
6. RH, Air Temperature or Dew Point reading
7. Unit of measure
8. Surface temperature reading
9. Bargraph
10. Bargraph range minimum (0%)
