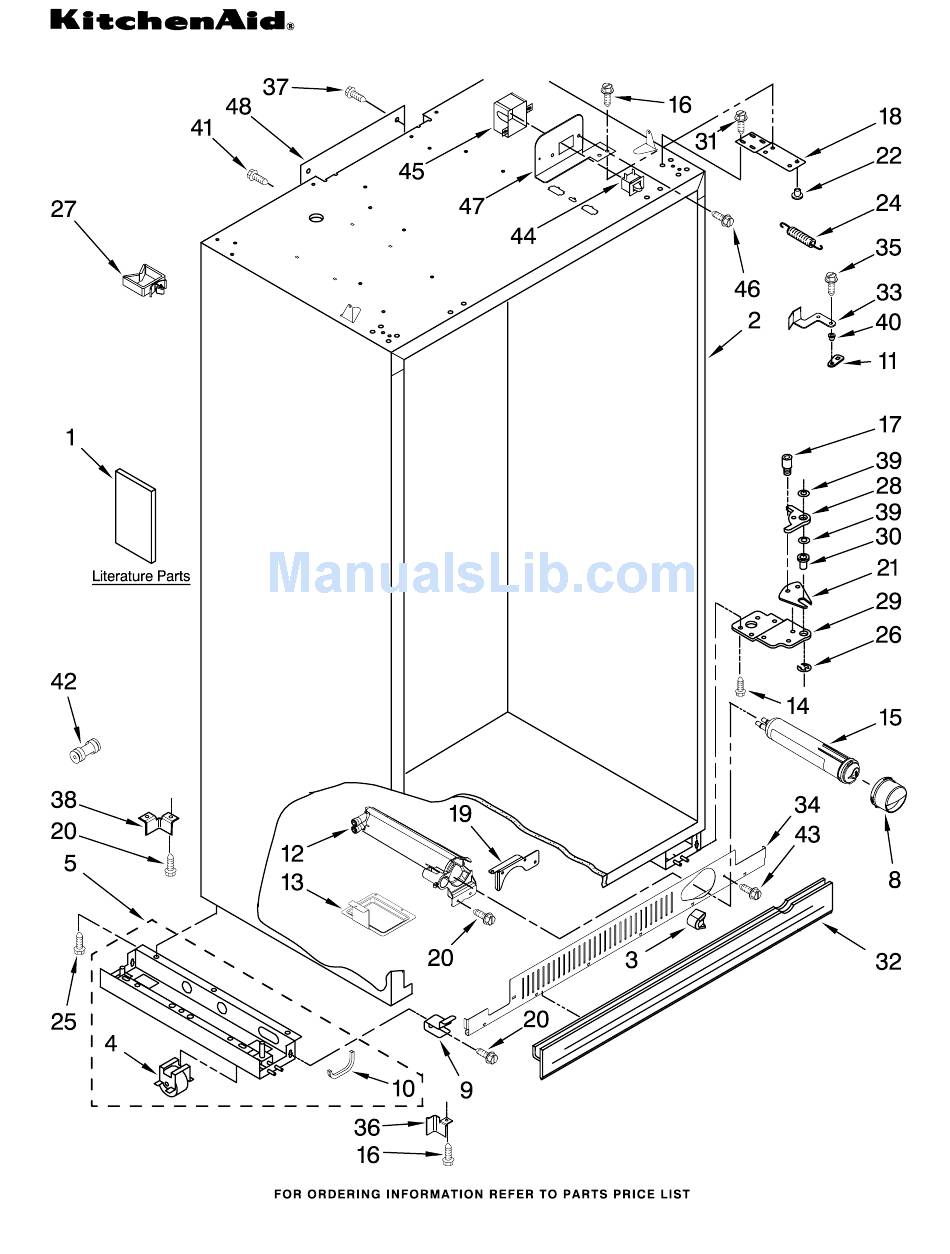

- Page 1 CABINET PARTS 48" BUILT IN REFRIGERATOR For Models: KSSS48QTW00, KSSS48QTB00, KSSS48QTX00 (White) (Black) (Etched Aluminum) 12−07 Litho In U.S.A. (rrm) Part No. W10136948 Rev. B...
-
Page 2: Cabinet Parts
For Models: KSSS48QTW00, KSSS48QTB00, KSSS48QTX00 Illus. Part DESCRIPTION Literature Parts 2316571 Use & Care Guide 2316574 Energy Guide 2316566 Service & Wiring Sheet 2306424 Icemaker and Ingredient Care Center Service Sheet 2318069 Main Control Service Sheet 2316565 Installation Instructions Cabinet (Not A... - Page 3 For Models: KSSS48QTW00, KSSS48QTB00, KSSS48QTX00 W10136948 CABINET TRIM PARTS (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) W10132470 White W10132471 Black W10132472 Stainless Steel Screw 1163283 Stainless Steel 2316688 Cabinet, Trim (Bottom) 486194 Screw Cabinet, Trim Top...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Models: KSSS48QTW00, KSSS48QTB00, KSSS48QTX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2302869 Wire, Shelf 2302884 Shelf, Fixed (2) 2259083 Basket 2256271 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw W10136948... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSSS48QTW00, KSSS48QTB00, KSSS48QTX00 (White) (Black) (Etched Aluminum) W10136948... - Page 6 REFRIGERATOR LINER PARTS For Models: KSSS48QTW00, KSSS48QTB00, KSSS48QTX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor...
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS For Models: KSSS48QTW00, KSSS48QTB00, KSSS48QTX00 W10136948 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2316546 Cntrl.Box−Complete 2317000 Clip, Box 2310390 Wire, Jumper 2324973 Bracket, Control Box 2307596 Shield, Control Box 487539 Screw (2) 2306086 Display, Ingredient Care Center... - Page 8 TOP GRILLE AND UNIT COVER PARTS For Models: KSSS48QTW00, KSSS48QTB00, KSSS48QTX00 (White) Illus. Part 2316826W White 2316826B Black 2316826S Stainless Steel 2320502 Cover, Unit 486194 Screw 2256466 Back Panel 5 W10121229 Cover, Unit Front 487415 Screw 2310194 Wire Assembly 2317923W White...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSSS48QTW00, KSSS48QTB00, KSSS48QTX00 (White) (Black) (Etched Aluminum) W10136948... - Page 10 REFRIGERATOR SHELF PARTS For Models: KSSS48QTW00, KSSS48QTB00, KSSS48QTX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2222593 Shelf Assembly (4) 2179404 Rack, Wine 2302843 Assembly, Meat Pan Cover 2302836 Assembly, Crisper Cover 2257583 Trim, Glass Rear 2252413 Crisper Pan (2) Slide, Meat Pan...
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Models: KSSS48QTW00, KSSS48QTB00, KSSS48QTX00 (White) (Black) (Etched Aluminum) W10136948...
- Page 12 FREEZER LINER AND AIR FLOW PARTS For Models: KSSS48QTW00, KSSS48QTB00, KSSS48QTX00 Illus. Part DESCRIPTION 2259385 Fan Motor 2198665 Tube, P.C. Board 2169142 Fan Blade 2223733 Retainer, Fan Motor 2302817 Gasket, Cover 2223986 Grommet 486194 Screw 2259464 Wedge, Air Duct 488500 Screw, Ground...
-
Page 13: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSSS48QTW00, KSSS48QTB00, KSSS48QTX00 (White) (Black) (Etched Aluminum) W10136948... - Page 14 MOTOR AND ICE CONTAINER PARTS For Models: KSSS48QTW00, KSSS48QTB00, KSSS48QTX00 (White) Illus. Part 2222970 Ice Bin 2222969 Crusher Bin 2320327 Auger 2258220 Washer, Auger 1119007 Spacer, Flat (6) 2255460 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed...
-
Page 15: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSSS48QTW00, KSSS48QTB00, KSSS48QTX00 (White) (Black) (Etched Aluminum) W10136948... - Page 16 REFRIGERATOR DOOR PARTS For Models: KSSS48QTW00, KSSS48QTB00, KSSS48QTX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2252331 Refrigerator Door (Includes #9) 2266854 Hinge Assembly, 2316804 Spacer−Door, Top & Bottom 489282 Screw 2302878 Hinge Assembly, Bottom 2222797 Rail, Lid 2222983 Gaasket, Utility...
-
Page 17: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSSS48QTW00, KSSS48QTB00, KSSS48QTX00 (White) (Black) (Etched Aluminum) W10136948... - Page 18 FREEZER DOOR PARTS For Models: KSSS48QTW00, KSSS48QTB00, KSSS48QTX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION Freezer Door (Includes #14) W10130861 White W10130860 Black W10130862 Universal Silver 2304896 Safety Barrier 2302879 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2316804 Spacer−Door, Top & Bottom...
-
Page 19: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSSS48QTW00, KSSS48QTB00, KSSS48QTX00 (White) (Black) (Etched Aluminum) W10136948... - Page 20 DISPENSER AND FRONT PARTS For Models: KSSS48QTW00, KSSS48QTB00, KSSS48QTX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 486194 Screw (3) 3 W10132946 Bracket, Motor 2305242 Connector, Door Bracket 2318021 Motor, Ice Door 2180353 Door, Ice 2318020 Support, Ice Door...
- Page 21 UPPER UNIT PARTS For Models: KSSS48QTW00, KSSS48QTB00, KSSS48QTX00 (White) (Black) (Etched Aluminum) W10136948...
- Page 22 For Models: KSSS48QTW00, KSSS48QTB00, KSSS48QTX00 Illus. Part DESCRIPTION 1 W10133449 Inverter Box 489373 Screw, Compressor Mounting (4) 2302967 Compressor (Includes Items 6 & 9)(Also Order 876765 Tube Kit) 2318087 Housing, Control Board 2318054 Control Board 1100826 Grommet, Mounting 2309002 Support, Condenser...
- Page 23 LOWER UNIT AND TUBE PARTS For Models: KSSS48QTW00, KSSS48QTB00, KSSS48QTX00 (White) (Black) (Etched Aluminum) W10136948...
- Page 24 LOWER UNIT AND TUBE PARTS For Models: KSSS48QTW00, KSSS48QTB00, KSSS48QTX00 (White) Illus. Part DESCRIPTION 2215648 Damper, Heater 486194 Screw 2215508 Bracket 2309076 Suction Tube 2309070 Tube, Connect (Drier/Restrictor) 2320615 Drain Pan Assy. 2316683 Cover, Wiring 2316684 Cover, Box 9 W10121374 Tube, Discharge...
-
Page 25: Icemaker Parts
ICEMAKER PARTS For Models: KSSS48QTW00, KSSS48QTB00, KSSS48QTX00 (White) (Black) (Etched Aluminum) W10136948... - Page 26 For Models: KSSS48QTW00, KSSS48QTB00, KSSS48QTX00 Illus. Part DESCRIPTION 2320601 Shield, Valve 2310191 Wire Assembly, Icemaker 628379 Clip, Fuse 2325170 Tube, Filter Inlet 2320658 Water Tube 2302758 Seal Gasket 2317912 Tube, Filter Outlet 10 W10146431 Valve, Solenoid 2221070 Clamp, Tube 2320559 Support, Valve...
