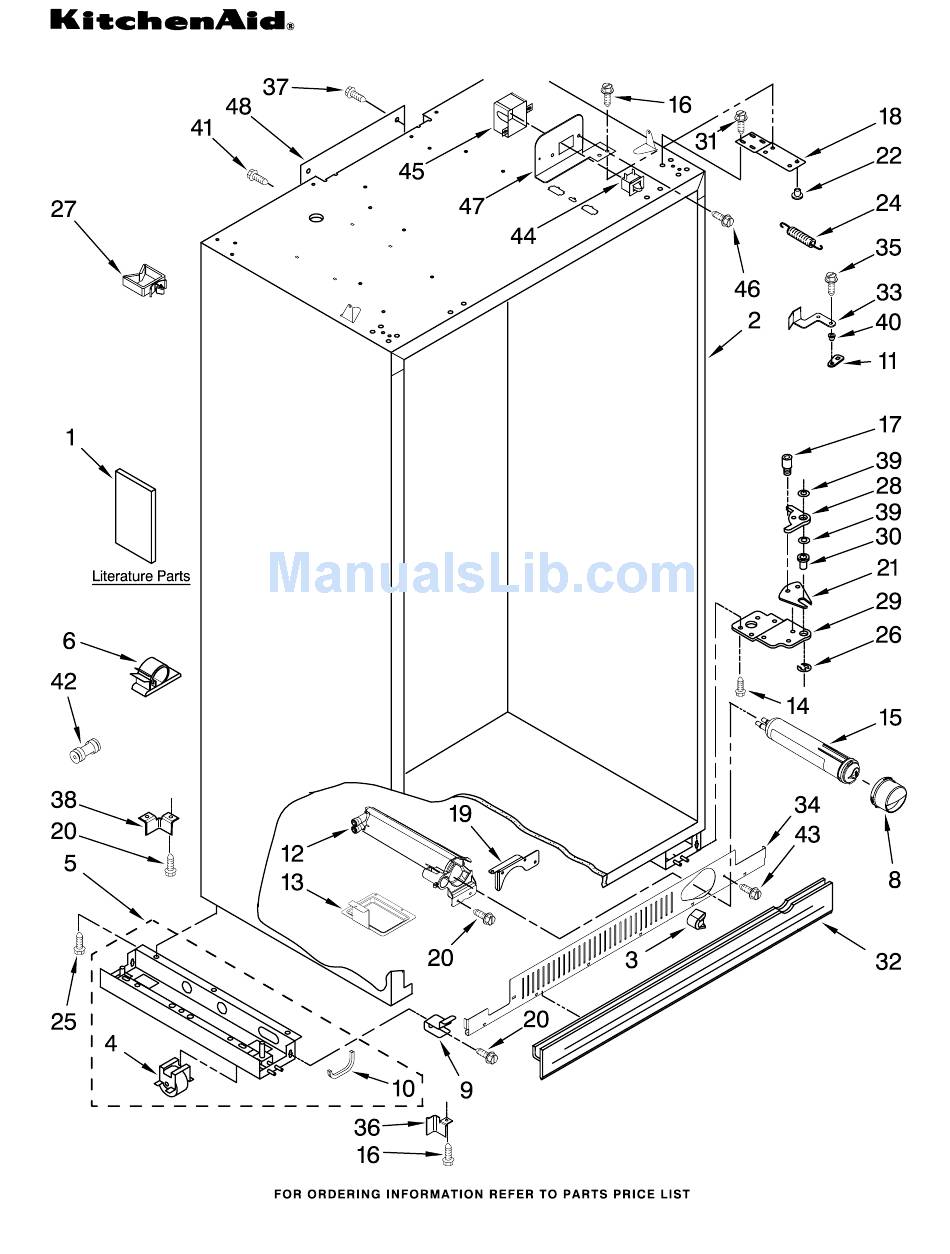

- Page 1 CABINET PARTS 48" BUILT IN REFRIGERATOR For Models: KSSS48QTW02, KSSS48QTB02, KSSS48QTX02 (White) (Black) (Etched Aluminum) 11−11 Litho In U.S.A. (jdc)(bay) Part No. W10173363 Rev. A...
-
Page 2: Cabinet Parts
CABINET PARTS For Models: KSSS48QTW02, KSSS48QTB02, KSSS48QTX02 (White) (Black) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Grille Bottom, Literature Parts 3400525 Screw Front W10161714 Use & Care Guide 4396841 Filter, Water 2325186W White W10164073 Energy Guide 489399 Screw 2325186B Black W10159832 Service &... - Page 3 CABINET TRIM PARTS For Models: KSSS48QTW02, KSSS48QTB02, KSSS48QTX02 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) W10132470 White W10132471 Black W10132472 Stainless Steel Screw 1163283 Stainless Steel 2316688 Cabinet, Trim (Bottom) 486194 Screw Cabinet, Trim Top 2314018W White 2314018B Black 2314018 Brushed Aluminum Cabinet Trim...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Models: KSSS48QTW02, KSSS48QTB02, KSSS48QTX02 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2302869 Wire, Shelf 2259086 Basket Assy−FC 2302884 Shelf, Fixed (2) 2259083 Basket 2256271 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw W10173363... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSSS48QTW02, KSSS48QTB02, KSSS48QTX02 (White) (Black) (Etched Aluminum) W10173363... - Page 6 REFRIGERATOR LINER PARTS For Models: KSSS48QTW02, KSSS48QTB02, KSSS48QTX02 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor 2302986 Lid, Meat Pan Baffle 2220377 Baffle Control...
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS For Models: KSSS48QTW02, KSSS48QTB02, KSSS48QTX02 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2316546 Control Box 2317000 Clip, Box 2310390 Wire, Jumper 2324973 Bracket, Control Box 2307596 Shield, Control Box 487539 Screw (2) 2306086 Display, Ingredient Care Center 2223857 Socket, Light 2326255 Light Bulb (2) 8281185 Screw... - Page 8 TOP GRILLE AND UNIT COVER PARTS For Models: KSSS48QTW02, KSSS48QTB02, KSSS48QTX02 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION Panel, Decorative Assembly 2316826W White 2316826B Black 2316826S Stainless Steel 2 W10161693 Cover, Unit 486194 Screw 2256466 Back Panel 5 W10121229 Cover, Unit Front 487415 Screw 2310194 Wire Assembly RC/FC Light Switch...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSSS48QTW02, KSSS48QTB02, KSSS48QTX02 (White) (Black) (Etched Aluminum) W10173363... - Page 10 REFRIGERATOR SHELF PARTS For Models: KSSS48QTW02, KSSS48QTB02, KSSS48QTX02 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2222593 Shelf Assembly (4) 2179404 Rack, Wine 2302843 Assembly, Meat Pan Cover 2302836 Assembly, Crisper Cover 2257583 Trim, Glass Rear 2252413 Crisper Pan (2) Slide, Meat Pan 2302954 Left Side 2302955 Right Side 2256255 Trim, Glass Rear...
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Models: KSSS48QTW02, KSSS48QTB02, KSSS48QTX02 (White) (Black) (Etched Aluminum) W10173363...
- Page 12 FREEZER LINER AND AIR FLOW PARTS For Models: KSSS48QTW02, KSSS48QTB02, KSSS48QTX02 (White) (Black) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2259385 Fan Motor 2215650 Cover, Emitter 2259493 Cover, Receiver 2198665 Tube, P.C. Board Liner (Not A 37 W10139189 Harness, Evap Fan 2169142 Fan Blade Serviceable Part)
-
Page 13: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSSS48QTW02, KSSS48QTB02, KSSS48QTX02 (White) (Black) (Etched Aluminum) W10173363... - Page 14 MOTOR AND ICE CONTAINER PARTS For Models: KSSS48QTW02, KSSS48QTB02, KSSS48QTX02 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2222970 Ice Bin 2 W10134777 Crusher Bin 3 W10140642 Auger 2258220 Washer, Auger 1119007 Spacer, Flat (6) 2317248 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed 2257023 Blade, Rotary...
-
Page 15: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSSS48QTW02, KSSS48QTB02, KSSS48QTX02 (White) (Black) (Etched Aluminum) W10173363... - Page 16 REFRIGERATOR DOOR PARTS For Models: KSSS48QTW02, KSSS48QTB02, KSSS48QTX02 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2252331 Refrigerator Door (Includes #9) 2266854 Hinge Assembly, 2316804 Spacer−Door, Top & Bottom 489282 Screw 2302878 Hinge Assembly, Bottom 2222797 Rail, Lid 2222983 Gasket, Utility 2222812 Door Gasket, Magnetic Handle, Door...
-
Page 17: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSSS48QTW02, KSSS48QTB02, KSSS48QTX02 (White) (Black) (Etched Aluminum) W10173363... - Page 18 FREEZER DOOR PARTS For Models: KSSS48QTW02, KSSS48QTB02, KSSS48QTX02 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION Freezer Door (Includes #14) W10160324 White W10160323 Black W10157905 Universal Silver 2302879 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2316804 Spacer−Door, Top & Bottom 2222815 Door Gasket, Magnetic Handle, Door 2316844W White...
-
Page 19: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSSS48QTW02, KSSS48QTB02, KSSS48QTX02 (White) (Black) (Etched Aluminum) W10173363... - Page 20 DISPENSER AND FRONT PARTS For Models: KSSS48QTW02, KSSS48QTB02, KSSS48QTX02 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 486194 Screw (3) 3 W10132946 Bracket, Motor 2305242 Connector, Door Bracket 2318021 Motor, Ice Door 2180353 Door, Ice 2318020 Support, Ice Door 4449745 Screw (2) 2305235 Spigot 2318017 Separator Assembly...
- Page 21 UPPER UNIT PARTS For Models: KSSS48QTW02, KSSS48QTB02, KSSS48QTX02 (White) (Black) (Etched Aluminum) W10173363...
- Page 22 UPPER UNIT PARTS For Models: KSSS48QTW02, KSSS48QTB02, KSSS48QTX02 (White) (Black) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2155774 Wire Tie 1 W10133449 Inverter Box Following Parts Not Illustrated 2317982 Drier 489373 Screw, Compressor 22 W10136614 Bracket, Fan Motor Mounting (4) and Optional Parts Not Included (Condenser Fan)
- Page 23 LOWER UNIT AND TUBE PARTS For Models: KSSS48QTW02, KSSS48QTB02, KSSS48QTX02 (White) (Black) (Etched Aluminum) W10173363...
- Page 24 LOWER UNIT AND TUBE PARTS For Models: KSSS48QTW02, KSSS48QTB02, KSSS48QTX02 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION 486194 Screw 3 W10157752 Bracket 2309076 Suction Tube 2309070 Tube, Connect (Drier/Restrictor) 2320615 Drain Pan Assy. 7 W10151288 Cover, Wiring 8 W10153595 Cover, Box 2307690 Tube, Discharge 2188820 Thermistor 2306094 Evaporator...
-
Page 25: Icemaker Parts
ICEMAKER PARTS For Models: KSSS48QTW02, KSSS48QTB02, KSSS48QTX02 (White) (Black) (Etched Aluminum) W10173363... - Page 26 ICEMAKER PARTS For Models: KSSS48QTW02, KSSS48QTB02, KSSS48QTX02 (White) (Black) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 489136 Screw (2) 20 W10122527 Mold & Heater 2320601 Shield, Valve 489464 Screw (Also Order 2310191 Wire Assembly, 542638 Silicone 486194 Screw Icemaker Grease)
