KitchenAid KSSS48QMB01 Parts List

KitchenAid KSSS48QMB01 Parts List

48" built in refrigerator
Hide thumbs

Advertisement

Table of Contents

CABINET PARTS
48" BUILT IN
For Models: KSSS48QMW01, KSSS48QMB01, KSSS48QMX01
REFRIGERATOR
(White)
(Black) (Etched Aluminum)
Part No. 8199105
8−04 Litho In U.S.A. (mek)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSSS48QMB01 and is the answer not in the manual?

Questions and answers

Related Manuals for KitchenAid KSSS48QMB01

Summary of Contents for KitchenAid KSSS48QMB01

  • Page 1 CABINET PARTS 48" BUILT IN For Models: KSSS48QMW01, KSSS48QMB01, KSSS48QMX01 REFRIGERATOR (White) (Black) (Etched Aluminum) Part No. 8199105 8−04 Litho In U.S.A. (mek)

  • Page 2: Cabinet Parts

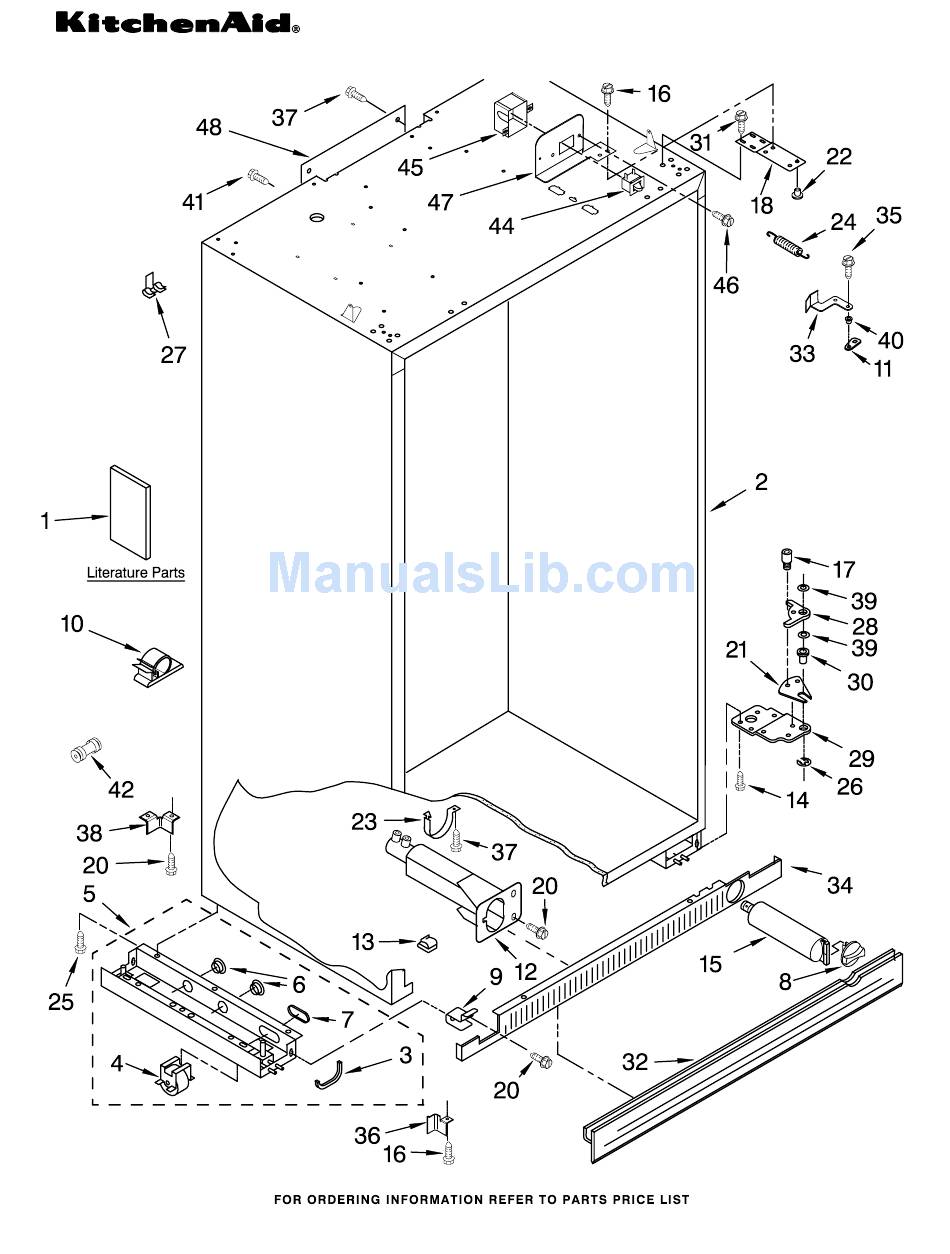

    For Models: KSSS48QMW01, KSSS48QMB01, KSSS48QMX01 Illus. Part DESCRIPTION Literature Parts 2309068 Use & Care Guide 2307359 Energy Label 2306332 Service & Wiring Sheet 2306424 Icemaker and Ingredient Care Center Service Sheet 2302865 Main Control Service Sheet 2266811 Installation Instructions Cabinet (Not A...
  • Page 3 For Models: KSSS48QMW01, KSSS48QMB01, KSSS48QMX01 8199105 CABINET TRIM PARTS (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) 2222552W White 2222552B Black 2222552X Etched Aluminum Screw 8281251 White 8281252 Black 8281250 Stainless Steel 2254726 Cabinet, Trim (Bottom) 486194 Screw...

  • Page 4: Freezer Shelf Parts

    FREEZER SHELF PARTS For Models: KSSS48QMW01, KSSS48QMB01, KSSS48QMX01 (White) Illus. Part DESCRIPTION 2302869 Wire, Shelf 2302884 Shelf, Fixed (2) 2259083 Basket 2256271 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw (Black) (Etched Aluminum) 8199105...

  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Models: KSSS48QMW01, KSSS48QMB01, KSSS48QMX01 (White) (Black) (Etched Aluminum) 8199105...
  • Page 6 REFRIGERATOR LINER PARTS For Models: KSSS48QMW01, KSSS48QMB01, KSSS48QMX01 (White) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 2209204 Clip, Thermistor 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor...

  • Page 7: Control Panel Parts

    For Models: KSSS48QMW01, KSSS48QMB01, KSSS48QMX01 8199105 CONTROL PANEL PARTS (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2302773 Control Box 2303938 Insert, Control 2302913 Circuit Board, Housing Control 2187424 Control Box Wire Harness 2221121 Support, Control 489006 Screw (2) 2306086 Display Board,...
  • Page 8 TOP GRILLE AND UNIT COVER PARTS For Models: KSSS48QMW01, KSSS48QMB01, KSSS48QMX01 (White) Illus. Part 2257403W White 2257403B Black 2257403X Etched Aluminum 2259320 Cover, Unit 486194 Screw 2256466 Back Panel 2302974 Cover, Unit Front 487415 Screw 2187429 Wire Assembly 2215910 Grommet, Flexible...

  • Page 9: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Models: KSSS48QMW01, KSSS48QMB01, KSSS48QMX01 (White) (Black) (Etched Aluminum) 8199105...
  • Page 10 REFRIGERATOR SHELF PARTS For Models: KSSS48QMW01, KSSS48QMB01, KSSS48QMX01 (White) Illus. Part DESCRIPTION 2222593 Shelf Assembly 2256250 Trim, Glass Side Meat Pan 2179404 Rack, Wine 2221071 Egg Bin 2302843 Meat Pan Cover Assembly 2302836 Crisper Cover Assembly 2257611 Trim, Glass Rear...
  • Page 11 FREEZER LINER AND AIR FLOW PARTS For Models: KSSS48QMW01, KSSS48QMB01, KSSS48QMX01 (White) (Black) (Etched Aluminum) 8199105...
  • Page 12 FREEZER LINER AND AIR FLOW PARTS For Models: KSSS48QMW01, KSSS48QMB01, KSSS48QMX01 Illus. Part DESCRIPTION 2259385 Fan Motor 2198665 Tube, P.C. Board 2169142 Fan Blade 2223733 Retainer, Fan Motor 2302817 Gasket, Cover 2223986 Grommet 486194 Screw 2259464 Wedge, Air Duct 488500 Screw, Ground...

  • Page 13: Motor And Ice Container Parts

    MOTOR AND ICE CONTAINER PARTS For Models: KSSS48QMW01, KSSS48QMB01, KSSS48QMX01 (White) (Black) (Etched Aluminum) 8199105...
  • Page 14 MOTOR AND ICE CONTAINER PARTS For Models: KSSS48QMW01, KSSS48QMB01, KSSS48QMX01 (White) Illus. Part 2222970 Ice Bin 2222969 Crusher Bin 2211590 Auger 2198603 Blade, Stirring 1119007 Spacer, Flat (6) 2255460 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2198601 Blade, Fixed...

  • Page 15: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: KSSS48QMW01, KSSS48QMB01, KSSS48QMX01 (White) (Black) (Etched Aluminum) 8199105...
  • Page 16 REFRIGERATOR DOOR PARTS For Models: KSSS48QMW01, KSSS48QMB01, KSSS48QMX01 (White) Illus. Part DESCRIPTION 2252331 Refrigerator Door Panel (Includes Item #9) 2266854 Hinge Assembly, 2256381 Spacer−Door, 489282 Screw 2302878 Hinge Assembly, Bottom 2222797 Rail, Lid 2222983 Gaasket, Utility 2222812 Door Gasket, Magnetic...

  • Page 17: Freezer Door Parts

    FREEZER DOOR PARTS For Models: KSSS48QMW01, KSSS48QMB01, KSSS48QMX01 (White) (Black) (Etched Aluminum) 8199105...
  • Page 18 FREEZER DOOR PARTS For Models: KSSS48QMW01, KSSS48QMB01, KSSS48QMX01 (White) Illus. Part DESCRIPTION Freezer Door Panel (Includes Insulation) 2252325W White L2307847B Black 2302879 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2256381 Spacer−Door, 2222810 Door Gasket, Magnetic Handle, Door 2256472W White 2256472B Black...

  • Page 19: Dispenser Front Parts

    DISPENSER FRONT PARTS For Models: KSSS48QMW01, KSSS48QMB01, KSSS48QMX01 (White) (Black) (Etched Aluminum) 8199105...
  • Page 20 DISPENSER AND FRONT PARTS For Models: KSSS48QMW01, KSSS48QMB01, KSSS48QMX01 (White) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 2195051 Strain Relief 2187755 Wire Assembly Cover, Dispenser (Not Available− Order Item 25) 2256199 Spring, Torsion 2196195 Pin 2206423 Ice Door Mechanism 2180353 Door, Ice...
  • Page 21 UPPER UNIT PARTS For Models: KSSS48QMW01, KSSS48QMB01, KSSS48QMX01 (White) (Black) (Etched Aluminum) 8199105...
  • Page 22 For Models: KSSS48QMW01, KSSS48QMB01, KSSS48QMX01 Illus. Part DESCRIPTION 2306957 Inverter Box 489373 Screw, Compressor Mounting (4) 2302967 Compressor (Includes Items 6 & 9)(Also Order 876765 Tube Kit) 2257354 Housing, Control Board 2215641 Bracket, Fan Motor 1100826 Grommet, Mounting 2266803 Shroud, Condenser...
  • Page 23 LOWER UNIT AND TUBE PARTS For Models: KSSS48QMW01, KSSS48QMB01, KSSS48QMX01 (White) (Black) (Etched Aluminum) 8199105...
  • Page 24 LOWER UNIT AND TUBE PARTS For Models: KSSS48QMW01, KSSS48QMB01, KSSS48QMX01 (White) Illus. Part DESCRIPTION 486194 Screw 2215508 Bracket 2302929 Side Support 2259303 Suction Tube 2259304 Tube, Connect (Drier/Restrictor) 2259329 Heater, Drain Pan 2209450 Hanger, Heater 2005908 Shield, Drain Pan 2259354 Tube, Discharge...

  • Page 25: Icemaker Parts

    ICEMAKER PARTS For Models: KSSS48QMW01, KSSS48QMB01, KSSS48QMX01 (White) (Black) (Etched Aluminum) 8199105...
  • Page 26 For Models: KSSS48QMW01, KSSS48QMB01, KSSS48QMX01 Illus. Part DESCRIPTION 2300104 Cover, Bottom Electrical 2187717 Wire Assembly, Icemaker 628379 Clip, Fuse 2214613 Tube, Filter Inlet 2252393 Water Inlet Tube Assembly 2302758 Seal Gasket 2302719 Tube, Filter Outlet 2188786 Valve, Solenoid 489115 Fastener, Snap−In...
