KitchenAid KSSS48QMB00 Parts List

KitchenAid KSSS48QMB00 Parts List

48" built in refrigerator
Hide thumbs Also See for KSSS48QMB00:
Table of Contents

Advertisement

Quick Links

See also: Use and Care Manual

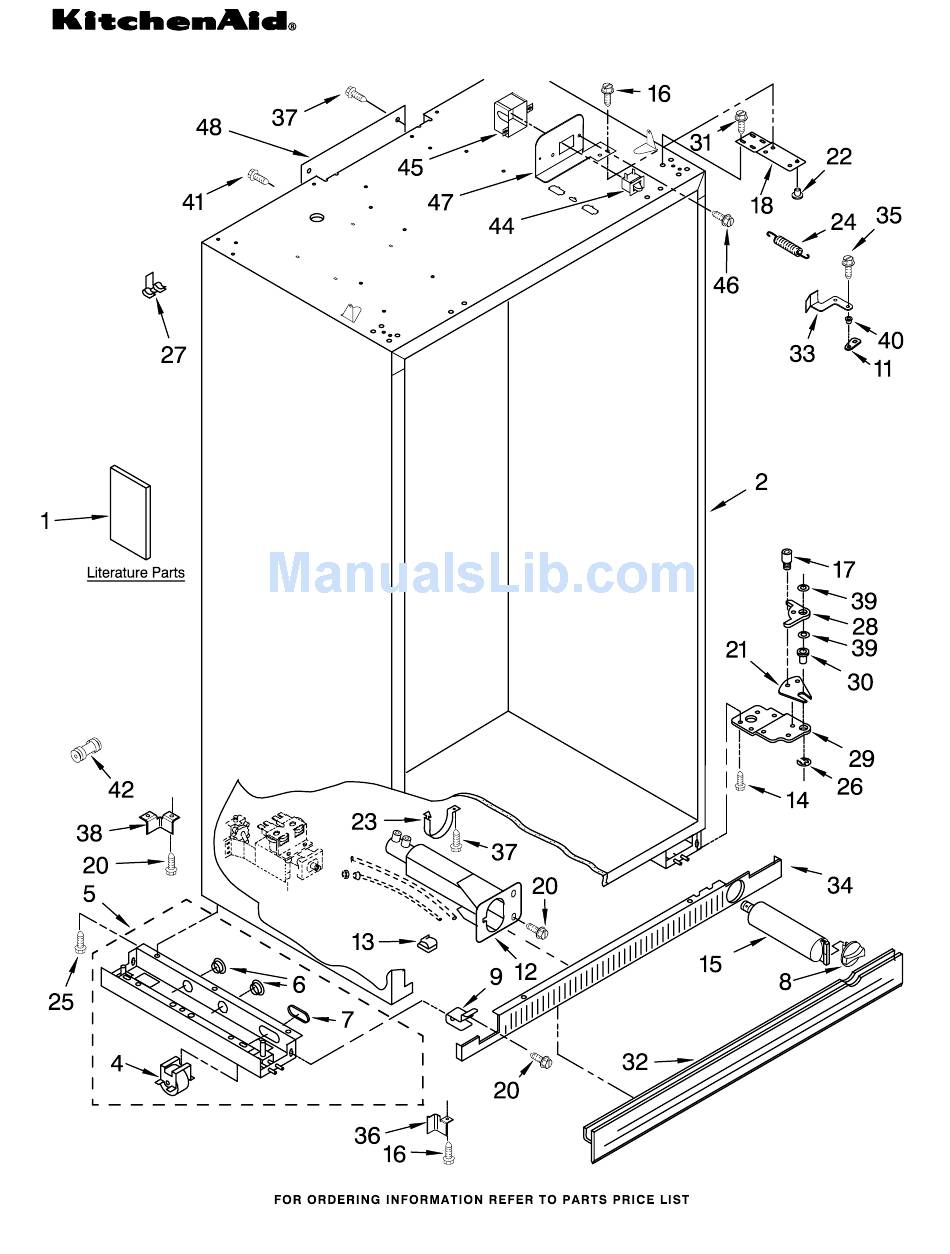

CABINET PARTS
48" BUILT IN
REFRIGERATOR
For Models: KSSS48QMW00, KSSS48QMB00, KSSS48QMX00
(White)
(Black)
(Etched Aluminum)
1−04 Litho In U.S.A. (ebk)
Part No. 8198486
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSSS48QMB00 and is the answer not in the manual?

Questions and answers

Related Manuals for KitchenAid KSSS48QMB00

Summary of Contents for KitchenAid KSSS48QMB00

  • Page 1 CABINET PARTS 48" BUILT IN REFRIGERATOR For Models: KSSS48QMW00, KSSS48QMB00, KSSS48QMX00 (White) (Black) (Etched Aluminum) 1−04 Litho In U.S.A. (ebk) Part No. 8198486...

  • Page 2: Cabinet Parts

    CABINET PARTS For Models: KSSS48QMW00, KSSS48QMB00, KSSS48QMX00 (White) (Black) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2255709 Filter, Water Extension Arm, Literature Parts 489399 Screw Door Closer LIT2266808 Use & Care Guide 3400230 Screw, Door Stop 2221095 Right LIT2266815 Energy Label 2257644 Hinge (Top)
  • Page 3 CABINET TRIM PARTS For Models: KSSS48QMW00, KSSS48QMB00, KSSS48QMX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) 2222552W White 2222552B Black 2222552X Etched Aluminum Screw 8281251 White 8281252 Black 8281250 Stainless Steel 2254726 Cabinet, Trim (Bottom) 486194 Screw 2257368 Cabinet, Trim Top Cabinet Trim (Left Side)

  • Page 4: Freezer Shelf Parts

    FREEZER SHELF PARTS For Models: KSSS48QMW00, KSSS48QMB00, KSSS48QMX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2256206 Wire, Shelf 2259004 Shelf, Fixed (2) 2259083 Basket 2256271 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw 8198486...

  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Models: KSSS48QMW00, KSSS48QMB00, KSSS48QMX00 (White) (Black) (Etched Aluminum) 8198486...
  • Page 6 REFRIGERATOR LINER PARTS For Models: KSSS48QMW00, KSSS48QMB00, KSSS48QMX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2208970 Air Duct 2209204 Clip, Thermistor 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2257528 Lid, Meat Pan Baffle 2257526 Baffle, Control Assembly...

  • Page 7: Control Panel Parts

    CONTROL PANEL PARTS For Models: KSSS48QMW00, KSSS48QMB00, KSSS48QMX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION 8201533 Control Box 2215670 Insert, Control 2252110 Circuit Board, Housing Control 2187424 Control Box Wire Harness 2258914 Panel Control Meat Pan 2221121 Support, Control 489006 Screw (2) 2252067 Touch Pad, Meat 2252068 Display Board, Temperature...
  • Page 8 TOP GRILLE AND UNIT COVER PARTS For Models: KSSS48QMW00, KSSS48QMB00, KSSS48QMX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION Top Grille Assembly 2257403W White 2257403B Black 2257403X Etched Aluminum 2259320 Cover, Unit 486194 Screw 2256466 Back Panel 2259095 Cover, Unit Front 487415 Screw 2187429 Wire Assembly RC/FC Light Switch...

  • Page 9: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Models: KSSS48QMW00, KSSS48QMB00, KSSS48QMX00 (White) (Black) (Etched Aluminum) 8198486...
  • Page 10 REFRIGERATOR SHELF PARTS For Models: KSSS48QMW00, KSSS48QMB00, KSSS48QMX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2222593 Shelf Assembly 2256250 Trim, Glass Side Meat Pan 2179404 Rack, Wine 2221071 Egg Bin 2256278 Glass, Meat Pan Cover 2256428 Glass, Crisper Cover 2257611 Trim, Glass Rear Side 2169935 Cover 2257583 Trim, Glass Rear...
  • Page 11 FREEZER LINER AND AIR FLOW PARTS For Models: KSSS48QMW00, KSSS48QMB00, KSSS48QMX00 (White) (Black) (Etched Aluminum) 8198486...
  • Page 12 FREEZER LINER AND AIR FLOW PARTS For Models: KSSS48QMW00, KSSS48QMB00, KSSS48QMX00 (White) (Black) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2220241 Insulation (4) Liner (Not A 2259385 Fan Motor 2213442 Thermistor Serviceable Part) 2198665 Tube, P.C. Board 2209204 Clip, Thermistor 2259025 Cover, Air Outlet 2169142 Fan Blade...

  • Page 13: Motor And Ice Container Parts

    MOTOR AND ICE CONTAINER PARTS For Models: KSSS48QMW00, KSSS48QMB00, KSSS48QMX00 (White) (Black) (Etched Aluminum) 8198486...
  • Page 14 MOTOR AND ICE CONTAINER PARTS For Models: KSSS48QMW00, KSSS48QMB00, KSSS48QMX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2222970 Ice Bin 2222969 Crusher Bin 2211590 Auger 2198603 Blade, Stirring 1119007 Spacer, Flat (6) 2255460 Cover, Crusher 1119013 Blade, Rotary 1119005 Spacer, Step (2) 2198601 Blade, Fixed 1119012 Blade, Rotary 2198602 Block, Blade...

  • Page 15: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: KSSS48QMW00, KSSS48QMB00, KSSS48QMX00 (White) (Black) (Etched Aluminum) 8198486...
  • Page 16 REFRIGERATOR DOOR PARTS For Models: KSSS48QMW00, KSSS48QMB00, KSSS48QMX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2252331 Refrigerator Door Panel (Includes Item #9) 2266854 Hinge Assembly, 2256381 Spacer−Door, 489282 Screw 2256389 Hinge Assembly, Bottom 2222797 Rail, Lid 2222983 Gaasket, Utility 2222812 Door Gasket, Magnetic Handle, Door 2256473W White...

  • Page 17: Freezer Door Parts

    FREEZER DOOR PARTS For Models: KSSS48QMW00, KSSS48QMB00, KSSS48QMX00 (White) (Black) (Etched Aluminum) 8198486...
  • Page 18 FREEZER DOOR PARTS For Models: KSSS48QMW00, KSSS48QMB00, KSSS48QMX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION Freezer Door Panel (Includes Insulation) 2252325W White 2252325B Black 2256390 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2256381 Spacer−Door, 2222810 Door Gasket, Magnetic Handle, Door 2256472W White 2256472B Black 2256472 Etched Aluminum...

  • Page 19: Dispenser Front Parts

    DISPENSER FRONT PARTS For Models: KSSS48QMW00, KSSS48QMB00, KSSS48QMX00 (White) (Black) (Etched Aluminum) 8198486...
  • Page 20 DISPENSER AND FRONT PARTS For Models: KSSS48QMW00, KSSS48QMB00, KSSS48QMX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 2195051 Strain Relief 2187523 Wire Assembly Cover, Dispenser (Not Available− Order Item 25) 2180209 Spring, Torsion 2196195 Pin 2206423 Ice Door Mechanism 2180352 Door, Ice 489000 Screw Lever, Ice...
  • Page 21 UPPER UNIT PARTS For Models: KSSS48QMW00, KSSS48QMB00, KSSS48QMX00 (White) (Black) (Etched Aluminum) 8198486...
  • Page 22 UPPER UNIT PARTS For Models: KSSS48QMW00, KSSS48QMB00, KSSS48QMX00 (White) (Black) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2223385 Inverter Box 2252363 Drier 549193 Clamp 489373 Screw, Compressor Following Parts Not Illustrated 2206036 Motor, Fan Mounting (4) 2190685 Blade, Fan 2223393 Compressor and Optional Parts Not Included...
  • Page 23 LOWER UNIT AND TUBE PARTS For Models: KSSS48QMW00, KSSS48QMB00, KSSS48QMX00 (White) (Black) (Etched Aluminum) 8198486...
  • Page 24 LOWER UNIT AND TUBE PARTS For Models: KSSS48QMW00, KSSS48QMB00, KSSS48QMX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION 486194 Screw 2215508 Bracket 2259244 Side Support 2259303 Suction Tube 2259304 Tube, Connect (Drier/Restrictor) 2259329 Heater, Drain Pan 2209450 Hanger, Heater 2005908 Shield, Drain Pan 2259354 Tube, Discharge 2216113 Thermistor 2257639 Clip, THermistor...

  • Page 25: Icemaker Parts

    ICEMAKER PARTS For Models: KSSS48QMW00, KSSS48QMB00, KSSS48QMX00 (White) (Black) (Etched Aluminum) 8198486...
  • Page 26 ICEMAKER PARTS For Models: KSSS48QMW00, KSSS48QMB00, KSSS48QMX00 (White) (Black) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 488937 Clamp Tube 2300104 Cover, Bottom 8533917 Screw 2259417 Tube, Water Inlet 489276 Screw Electrical 2257538 Cover 2222972 Cover, Icemaker 2187716 Wire Assembly, 628228 Mold &...

This manual is also suitable for:

Ksss48qmw00Ksss48qmx00
