KitchenAid KSSS48QDX03 Parts List

KitchenAid KSSS48QDX03 Parts List

48" built in refrigerator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CABINET PARTS
48" BUILT IN
REFRIGERATOR
For Model: KSSS48QDX03
6−96 Litho In U.S.A. (RCG)
Part No. 4394441
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSSS48QDX03 and is the answer not in the manual?

Questions and answers

Related Manuals for KitchenAid KSSS48QDX03

Summary of Contents for KitchenAid KSSS48QDX03

  • Page 1 CABINET PARTS 48" BUILT IN REFRIGERATOR For Model: KSSS48QDX03 6−96 Litho In U.S.A. (RCG) Part No. 4394441...

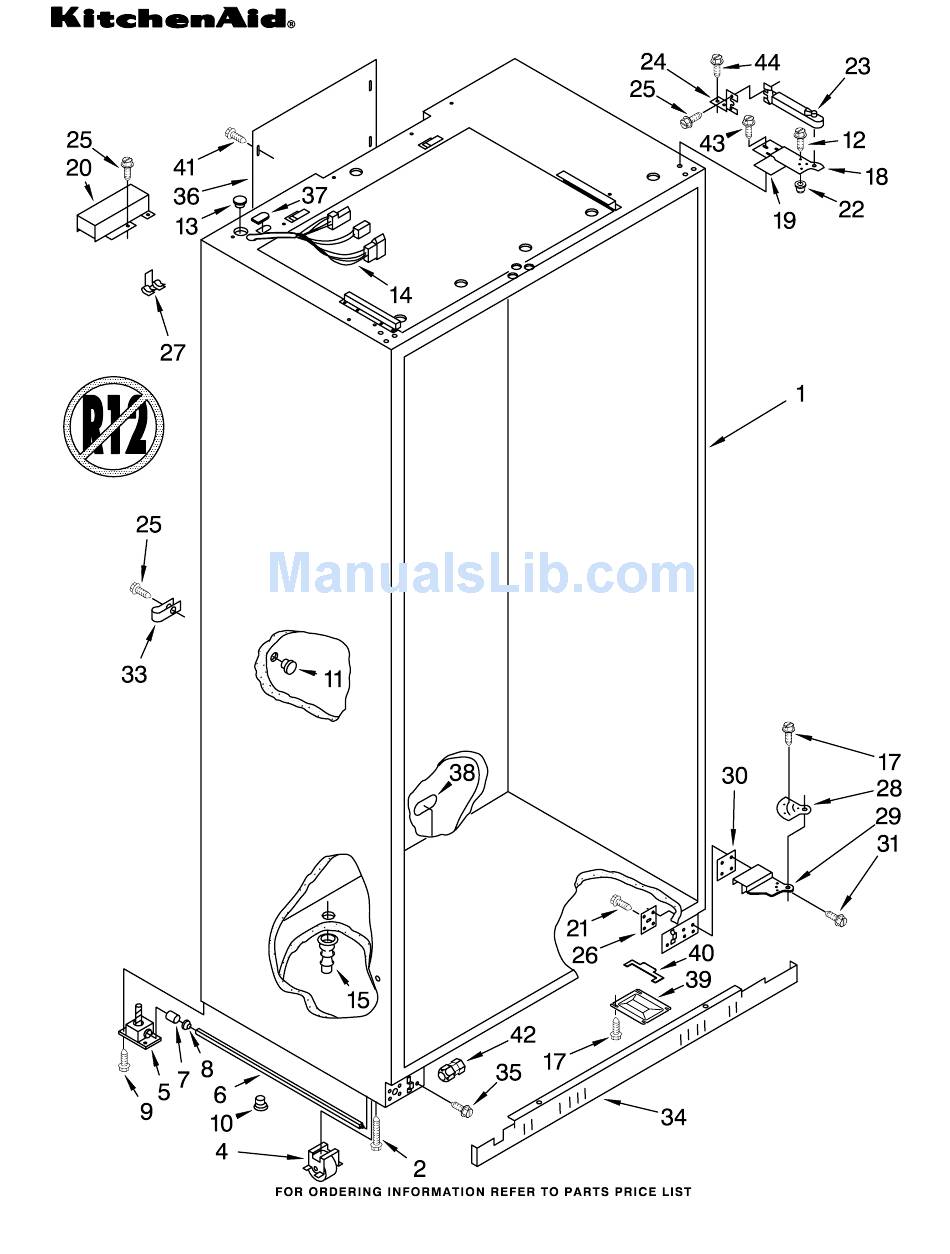

  • Page 2: Cabinet Parts

    CABINET PARTS For Model: KSSS48QDX03 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Hinge (Top) Hinge (Bottom) Cabinet (Not A 2001976 Left Side 2001978 Left Side Serviceable Part) 2001975 Right Side 1112019 Leveler, Front (2) 2001977 Right Side 2000770 Shim, Hinge 1112023 Roller, Front &...
  • Page 3 CABINET TRIM PARTS For Model: KSSS48QDX03 Illus. Part DESCRIPTION 2003643 Cabinet, Trim (2) 2003857 Screw 2001297 Screw 2003592 Cabinet, Trim (Bottom) 488649 Screw 2003647 Cabinet, Trim Top 487944 Washer (2) 4394441...

  • Page 4: Freezer Liner Parts

    FREEZER LINER PARTS For Model: KSSS48QDX03 Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 1113649 Bracket, Light 1113650 Lens 1112613 Light, Socket 548049 Light, Bulb 538533 Support Clip, Icemaker (2) 2000193 Grommet, Screw (2) 488552 Screw 486194 Screw 1112591 Spacer, Control Panel (3) 842534 Clip, Air Duct (4) 1112260 Support,...

  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Model: KSSS48QDX03 4394441...
  • Page 6 REFRIGERATOR LINER PARTS For Model: KSSS48QDX03 Illus. Part DESCRIPTION LINER (Not A Serviceable Part) 1112591 Spacer, Control Panel (3) 2001117 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw 486194 Screw 1112257 Hole Plug 2003579 Meat Pan, Air Duct Cover 2000337 Meat Pan, Air Duct 2003299 Inlay, Control Meat Pan...
  • Page 7 REFRIGERATOR CONTROL PANEL PARTS For Model: KSSS48QDX03 Illus. Part DESCRIPTION 1112642 Control Panel 2003303 Inlay, Control Panel 2000789 Circuit Board 2182110 Control Knob 837444 Retainer, Knob 1118894 Switch, Rocker Arm 1113137 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 1113775 Shield, Control Panel 1112613 Socket, Light (2)
  • Page 8 FREEZER CONTROL PANEL PARTS For Model: KSSS48QDX03 Illus. Part DESCRIPTION 1113627 Control Panel 2003309 Inlay, Control Panel 1113466 Thermostat & Barrier Assembly 488974 Screw (2) 1115373 Switch, Rocker Arm 1113136 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 1113769 Shield, Control Panel 1112613 Socket, Light...

  • Page 9: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Model: KSSS48QDX03 4394441...
  • Page 10 REFRIGERATOR SHELF PARTS For Model: KSSS48QDX03 Illus. Part DESCRIPTION 2174404 Frame, Shelf 2003377 Glass, Shelf 1112006 Reflector, Shelf 1113792 Gasket, Glass (2) 2179375 Rack, Wine 2169933 Egg Bin 2003327 Frame, Assembly Meat Pan 2164373 Egg Carrier 1112247 Cover, Crisper 2003380 Glass, Crisper (Includes #9) 2000742 Meat Pan, Connector...

  • Page 11: Freezer Shelf Parts

    FREEZER SHELF PARTS For Model: KSSS48QDX03 Illus. Part DESCRIPTION 2003144 Solid Shelf 2003135 Front, Ice Compartment 1113638 Shelf, Fixed (2) 1112052 Shelf, Deep 2004592 Basket 2003114 Trim, Basket Slide, Basket 2181760 Right Side 2181759 Left Side 486194 Screw 4394441...
  • Page 12 TOP GRILLE AND UNIT COVER PARTS For Model: KSSS48QDX03 Illus. Part DESCRIPTION 2003715 Top Grille Assembly 2003267 Cover, Unit 486194 Screw 2002484 Grille, Bracket 2001415 Screw 2003724 Decortive Panel Assembly 2003480 Guard, Compressor Wiring 2003483 Guard, Water Valve Wiring 4394441...

  • Page 13: Motor And Ice Container Parts

    MOTOR AND ICE CONTAINER PARTS For Model: KSSS48QDX03 4394441...
  • Page 14 MOTOR AND ICE CONTAINER PARTS For Model: KSSS48QDX03 Illus. Part DESCRIPTION 2003941 Bracket, Motor 2155263 Motor, Dispenser 2152713 Soleniod Assembly 2149100 Guide, Solenoid Slide, Container 2002720 Right Side 2002721 Left Side 1113169 Stop, Roller 2002719 Wiring Assembly, Ice Dispenser 489399 Screw 983663 Coupling, Motor 489242 Screw 1113130 Cover, Motor...

  • Page 15: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Model: KSSS48QDX03 4394441...
  • Page 16 REFRIGERATOR DOOR PARTS For Model: KSSS48QDX03 Illus. Part DESCRIPTION 2003872 Refrigerator Door Panel (Includes Insulation) 939101 Screw Anchor (8) 2001983 Hinge Assembly, 1113955 Gasket, Utility Door 489282 Screw 2003986 Hinge Assembly, Bottom 1112533 Gasket Retainer, Side (2) 1112542 Gasket Retainer, Top &...

  • Page 17: Freezer Door Parts

    FREEZER DOOR PARTS For Model: KSSS48QDX03 4394441...
  • Page 18 FREEZER DOOR PARTS For Model: KSSS48QDX03 Illus. Part DESCRIPTION 2003875 Freezer Door Panel (Includes Insulation) 1112997 Tube, Wiring 1112928 Retainer, Tube 2003985 Hinge, Bottom 489282 Screw 2001984 Hinge, Top 2003475 Wiring Harness, Freezer Door 1112533 Gasket Retainer, Side (2) 1112539 Gasket Retainer, Top &...
  • Page 19 DISPENSER AND FRONT PARTS For Model: KSSS48QDX03 4394441...
  • Page 20 DISPENSER AND FRONT PARTS For Model: KSSS48QDX03 Illus. Part DESCRIPTION 1107943 Housing, Dispenser 2147164 Insulator, Bracket Control 2157746 Water Fitting Assembly (Includes Water Tube) 2152716 Frame, Slides 2152719 Slide, Cube/Crush Switch 2152724 Slide, Light Switch 2147172 Heat Shield, Frame 488361 Screw 987048 Grommet 2149097 Heater, Ice Dispenser...
  • Page 21 UPPER UNIT PARTS For Model: KSSS48QDX03 4394441...
  • Page 22 UPPER UNIT PARTS For Model: KSSS48QDX03 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 851095 Wire Tie (2) 2003398 Assembly, Unit Following Parts Not Illustrated 2164492 Drier Base 2169135 Motor, Fan and Optional Parts Not Included 2163787 Clip, Compressor 1108179 Blade, Fan Mounting (4) 2003169 Orifice, Fan...
  • Page 23 LOWER UNIT AND TUBE PARTS For Model: KSSS48QDX03 4394441...
  • Page 24 LOWER UNIT AND TUBE PARTS For Model: KSSS48QDX03 Illus. Part DESCRIPTION 2000528 Defrost Bi−Metal 1113043 Clamp, Bi−Metal 486194 Screw 2003271 Sleeve 2002171 Sleeve 2002999 Condenser Inlet Tube 2003484 Sleeve 2003015 Tube, Connect (Drier) 2002994 Heater, Drain Pan 1113062 Hanger, Heater 1113105 Bracket, Heater 487534 Screw 2002995 Tube, Discharge...
  • Page 25 AIR FLOW AND RESERVOIR PARTS For Model: KSSS48QDX03 4394441...
  • Page 26 AIR FLOW AND RESERVOIR PARTS For Model: KSSS48QDX03 Illus. Part DESCRIPTION 2003200 Fan Motor 2002732 Cup, Clearance 2169142 Fan Blade 548263 Bracket (Double) 938224 Bracket (Single) 548268 Grommet 486194 Screw 2000618 Motor, Wiring 488500 Screw, Ground 488366 Clamp, Tube 489348 Clamp, Nylon 2001145 Channel, Wiring 1112871 Fastner 2000783 Scroll, Fan...

  • Page 27: Icemaker Parts

    ICEMAKER PARTS For Model: KSSS48QDX03 4394441...
  • Page 28 ICEMAKER PARTS For Model: KSSS48QDX03 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2174155 Cover 489322 Screw 841707 Insert, Tube 628228 Mold & Heater 489276 Screw 628379 Clip, Fuse (Also Order 2171593 Shut Off Arm 2003814 Water Inlet 542638 Silicone 2171952 Bracket Tube Assembly Grease)
