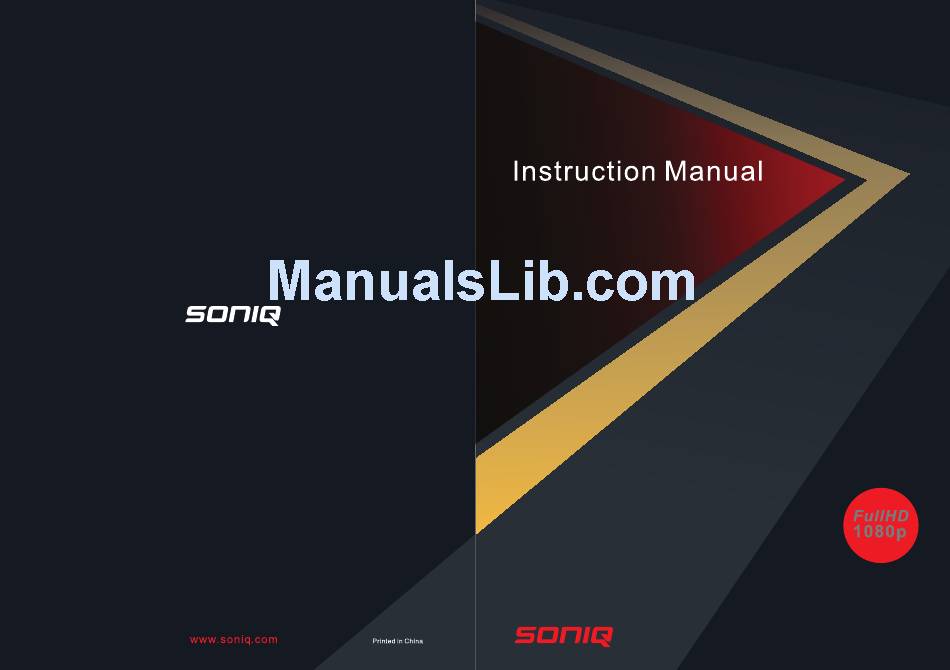

  • Page 1 L60U11A 60" FullHD LCDTV MD110802-01 with Touch Screen...

  • Page 2: Table Of Contents

    1. Software Introduction ................31 2. Software Installation ...............31-32 3. Software Unload ...................33 4. Software Application ...............34-40 4.1. Running ..................34 4.2. Main Menu ..................34 4.3. Calibration ................34-36 4.3.1. Basic Mode Calibrating ............35 4.3.2. Custom Mode Calibrating ............35 9-10 4.3.3. Senior Mode Calibrating ............36 4.3.4.
  • Page 5 Main Unit Instruction Manual AUDIO Touch Pen Installation Disc...
  • Page 6 Navigation keys your preference. In DTV mode, press OK to display Channel List. and program recording. None. COMPONENT1/ COMPONENT2 Coaxial Digital Audio output for Digital Amplifier. Press to select A-set, AB-set, None for repeat function. POWER Press to power on or off the unit. GOTO Press to select all under Media mode.
  • Page 9 Connect USB Device directly to the unit.
  • Page 10 1.Press SOURCE button to display the input source list. 2.Press or SOURCE button to select the input source you want to. YPbPr 1 YPbPr 2 3.Press “OK” button to enter the input source. 4.Press “EXIT” to quit. EPG: It is only available in DTV mode. PROGRAMME GUIDE TIME 14:34...
  • Page 11 CHANNEL MENU Schedule: Press yellow key to browse the program information saved in the schedule list, and press yellow key or exit to return. Press MENU button to enter the CHANNEL page as follows: Schedule List 09:33 25th Dec Delete Time Date Programme Title...
  • Page 12 Programme Edit PICTURE MENU Press to select Program Edit, then press OK button to enter sub-menu. 1. Press MENU button to bring up the main menu. Programme Edit 2. Then press to enter PICTURE page, it will highlight the first option, press OK button to enter. 3.
  • Page 13 OPTION MENU TIME MENU Press MENU to display the main menu. Press to enter OPTION page, it will highlight the first option. Press MENU to display the main menu. to enter TIME page, it will highlight the first option. Back Back OPTION OPTION...
  • Page 14 PVR Function PVR Function PVR File System Then Press OK button to start format the disk, then a warning with “All data will be lost” will be PVR function is only available for DTV, includes Record, Timeshift and Playback functions. Record displayed to remind the user to choose Start or EXIT.
  • Page 15 MEDIA\Photo\JPEG 1/11 Resolution: 1280x800 Return Up Folder music Size: 199 KBytes Date: ---- / -- / -- Time: -- : -- : -- 000111.jpg 06.mp3 10024616c.mp3 0521hangmu09.jpg 0521hangmul3.jpg 0521hangmu15.jpg 08_gC1WIvNHu1UZ_0.. Sub Menu Select/Unselect All C:\MEDIA\Photo\BMP Return Up Folder 1024x768_bmp.bmp 1440x900.bmp 1600x1200b.mp 21312.bmp DTVLOGO_NESX.bmp...
  • Page 16 C:\MEDIA\Movie\mkv 1/15 C: MEDIA Music MP3 Return Resolution: 1920 x 1080 Audio Track: Subtitle: Program: Size: 519585 KBytes 720p_chd-mr&mrs-smi_ Return Up Folder Album: music Title: Blt Rate: 128K BigBuckBunny_108-[Divx7]_AAC5.1_A_ Artist: Sampling: Year: 03.mp3 06.mp3 10024616c.mp3 Slze: 3924 KBytes Paranormal_Activity_[- Samsung.Demo.Oceani_ Shutter_Island_[Divx_-[MV].Hotcha-.PartyGi - Sub Menu Select/Unselect All 1139153940.mp3...
  • Page 17 MEDIA\Text Return This book by the www.wmtxt.com(unkno Size: 35KBytes wn txt novel download site) for you to or ganize production Download free novels more exciting,more complete version of the nover e-book dow nload please visit www.wmtxt.com chinese txt.txt chapter English txt.txt Sub Menu Select/Unselect All...

  • Page 18: Software Installation

    Software Unload Software Installation 3. Software Unload (3) Select destination folder. You can change it based on your own requirement. Then click “Next”: If Fitouch program is running, please exit it first. Open the "Control Panel" of Windows operating system, click "Add or Remove Programs", find Fitouch, and then click to uninstall it, refer to the following steps: (1) Select “Remove”...

  • Page 19: Software Application

    Software Application Software Application 4. Software Application 4.3.1. Basic Mode Calibrating 4.1. Running There are Custom and Senior two options in the dialog above. If no option is selected, (1) The software will run automatically on boot-up under the default mode, you can find the then the default will be basic mode calibration.

  • Page 20: Senior Mode Calibrating

    Software Application Software Application 4.3.3. Senior Mode Calibrating 4.4.1. Info It is Senior Calibrating when “Senior” is selected. “Basic” shows information of the connected touch screen. Different touch screen In this mode, user can calibrate the screen flexibly based on your own demands. numbers can be chosen when several touch screens are connected, in order to show the Should you have any problem when calibrating the screen in this mode, please contact corresponding information of touch screen.

  • Page 21: Configuration

    Software Application Software Application 4.4.2. Configuration TS02R02B021B 00003513 Upgrade Click “Upgrade” and open the authorization document, then it can upgrade. (The correspond Configuration supplies Service Parameters for user to select. authorization document is in the box.) （ “Service Parameter” Right key part only can be adjusted in Single point mode Default setting is recommended in the configuration of service parameter.

  • Page 22: Operation Function

    Software Application If situation like breakpoint, line jump or environment change occurs, please first make (2) Why default setting is not Single Point mode when exit Fitouch in “Multi-Points”? sure there are no other debris and distortion and then select “Write Init”. Exit Fitouch in “single Point”...

  • Page 23: Faq

    (8) Under “Multi-points” mode, why the cursor is not coincided with touch point after “Screen Adjust “Speed” and “Spatial Tolerance”. Then you can click the test figure on the right Calibration”? bottom to observe the effect. After finished, click “OK”. Enter “Control Panel”---“Tablet PC Setting”---“Display”...

  • Page 24: Application Of Checktool

    Application of Checktool 6. Application of Checktool (1) Running Enter the destination folder of Fitouch and find the folder named as “checkTool”. Open the folder and double click “checktool.exe” to display the dialog: 2011-07-06 Run Checktool, there are “ DeviceInfo”, “Init”, “CheckAll”, “CheckOne”, “CheckAllResult” in the interface.
  • Page 25 Operating Voltage ~100-240V AC,50/60Hz Power Consumption 430(Max),＜1W(Standby) 480i,480p,576i,576p,720p(50Hz/60Hz), COMPONENT 1080i(50Hz/60Hz),1080P(50Hz/60Hz) Video Format Supporting 480p,576p,720p(50Hz/60Hz),1080i(50Hz/60Hz). HDMI 1080p(24Hz/30Hz/50Hz/60Hz). Australia Input Frequency Digital TV Channel Bandwidth 7MHz Video Decode 1080i,720p,576p,576i MPEG;AC3 Audio PAL B/G;D/K;I TV System Analog TV NICAM NICAM Stereo 1329.12mm(H) X 747.63mm(V) Active Area 60.0 inches(1520mm) diagonal Contrast Ratio...

  • Page 26: Specification

    Touch-screen Specification Highest speed: The highest speed up to 300 dots coordinate scond in the world can provide users with a prompt response and perfect reappearing of hand writing. it is the best choice for interactive whiteboard. Fault-tolerant design: The featured Fault-tolerant design can automatically detect and reset within 2 seconds once the equipment goes abnormally with high reliability.
