Summary of Contents for SONIQ L42V11A -AU

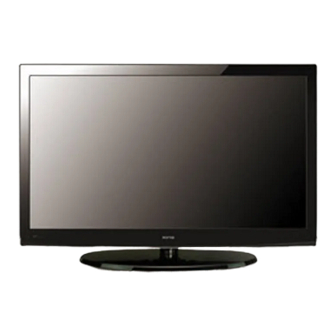

- Page 1 L42V11A 42" FullHD LCDTV...
- Page 3 ......................1 .....................2-5 ........................6 ............................................6 ......................7-8 ........................7 ........................8 ......................9-10 ..................9 ....................10 ........................10 ...................10 ..................11-15 ....................11 ...................11 ...............12 ....................13 ..................14 ..................15 ..................15 ....................16-28 Menu Operation Guide ......................16 ....................16-18 ....................18-20 ......................20 ......................21-22 ......................23-24 ........................24-27 ......................27-28 ....................29-32 ......................29 ......................29-30 ......................31 ......................31-32 .........................32 ................33-34 ......................35...
- Page 4 IMPORTANT INFORMATION If a television is not positioned in a sufficiently stable location, it can be potentially hazardous due to Falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as: · Using cabinets or stands recommended by the manufacturer of the television. ·...
- Page 8 Stand Screws:4x15mm BA (X3,White,one of them for spare) Screws:4x12mm BM(X5,Black,one of them for spare)
- Page 10 and program recording. Coaxial Digital Audio output for Digital Amplifier.
- Page 12 -10-...
- Page 13 The antenna either can be connected for multi-family dwellings or for single-family dwellings. Blu-ray DVD Player -11-...
- Page 14 -12-...
- Page 15 Set-Top Box -13-...
- Page 16 to the input of the Audio Amplifier using a Coaxial cable. Audio -14-...
- Page 17 Insert USB device directly to the unit. 500mA -15-...
- Page 18 S-Video YPbPr1 YPbPr2 HDMI1 HDMI2 MEDIA -16-...
- Page 19 VHF CH 6 INPUT FREQ. Press OK to search Press to highlight Frequency, then input frequency number by pressing numeric buttons, press OK to start. 1------MHz Press to select Frequency, press numeric buttons to input frequency number. Then use to highlight Search,press to start.
- Page 20 7 7 Digital 70 7 HD Digital 71 7 Digital 1 72 7 Digital 2 73 7 Digital 3 77 7 Guide 1 C-02 2 S-15 3 C-04 4 E/29 Rename then Use Green button to rename the current channel .(only available under ATV mode) current channel including Channel No., Network name, Modulation model, Signal quality and Signal strength.
- Page 21 Energy Saving Blue...
- Page 22 Screen: Only available under PC mode. Energy Saving Press button to select Energy Saving, then Press OK to enter sub-menu. Press button to adjust. SOUND SPDIF MODE Back Adjust Select -20-...
- Page 23 Press button to select the option you want to adjust Press OK to enter -21-...
- Page 24 Press / button to select the living area where you are located, WA GMT+8 NSW/ACT GMT+10 TAS GMT+10 NT GMT+9.5 VIC GMT+10 SA GMT+9.5 QLD GMT+10 -22-...
- Page 25 PVR File System Version Info Select Back Adjust Not available in DTV. PVR File System Press OK to enter the PVR File System. Users can check the information of the USB device, or format the USB device. -23-...
- Page 26 /60S / 70S / 80S / 90S. to select Version Allowing user to check the information of the unit. PVR function is only available for DTV,includes Record,Timeshift and Playback function.Record includes in time record and preserve record. In-time record can be worked through REC key immediately, and preserve record needs to preserve before.
- Page 27 Select Disk Select Disk Choose the disk to store whatever content recording, as follows,default as C: USB Disk USB Disk If not inserting USB equipment, it shows Not Find Any USB Device; If inserting USB equipment, it shows Pass. Format Format Format the USB disk, create PVR file system format to the USB disk.
- Page 28 PVR.L Operation PVR.L Operation Press "PVR.L" button to display the recorded program list , select any of the items for watching. Recorded List Programme HI-5 INFO DELETE INDEX DELETE: Delete focused programme. INFO:Pop out or close programme instruction. INDEX:When no menu, press "PVR.L"; When it shows Recorded List menu,switch recording programme orders.
-
Page 29: Time Shift
Press the green button(INFO) at the remote control to review the program information saved in the list. Press the yellow button(Schedule) at the remote control to check the schedule list. Schedule List 12:22 04 th Dec Delete Time Date Programme Title Channel Name 7 7 Digital... - Page 30 -28-...
- Page 31 MENU...
- Page 32 -30-...
- Page 33 MENU button MENU button -31-...
- Page 34 MENU -32-...
- Page 35 -33-...
- Page 36 RGB-PC,HDMI/DVI-PC mode INPUT SPEC VGA/HDMI/DVI 1/2 Input Resolution Horizontal frequency (KHz) Vertical frequency (HZ) Standard 640×480 31.5 640×480 37.86 72.809 VESA 640×480 37.5 VESA 720×400 31.5 VGA-T 800×600 37.9 VESA Guidelines 800×600 48.077 72.19 VESA 800×600 46.9 VESA INPUT FORMAT 832×624 49.7 1024×768...
- Page 37 930.24mm(H) X 523.26 mm(V) 42.02 inches(1067.31mm) diagonal 1000:1 1920 horiz. by 1080 vert. pixels RGB horizontal stripe arrangement 400 cd/m (Center 1 point) (Typ.) 10bit, 1.06 Billon colors ANT IN USB input USBx1 8W+8W 1280(L)x190(W)x770(H)mm 20.4 -35-...
- Page 38 MD110615-01...
