- Page 1 CABINET PARTS 48" BUILT IN For Models: KSSS48FMB02, KSSS48FMX02 REFRIGERATOR (Black) (Etched Aluminum) Part No. 8214575 10−05 Litho In U.S.A. (mek)
-
Page 2: Cabinet Parts

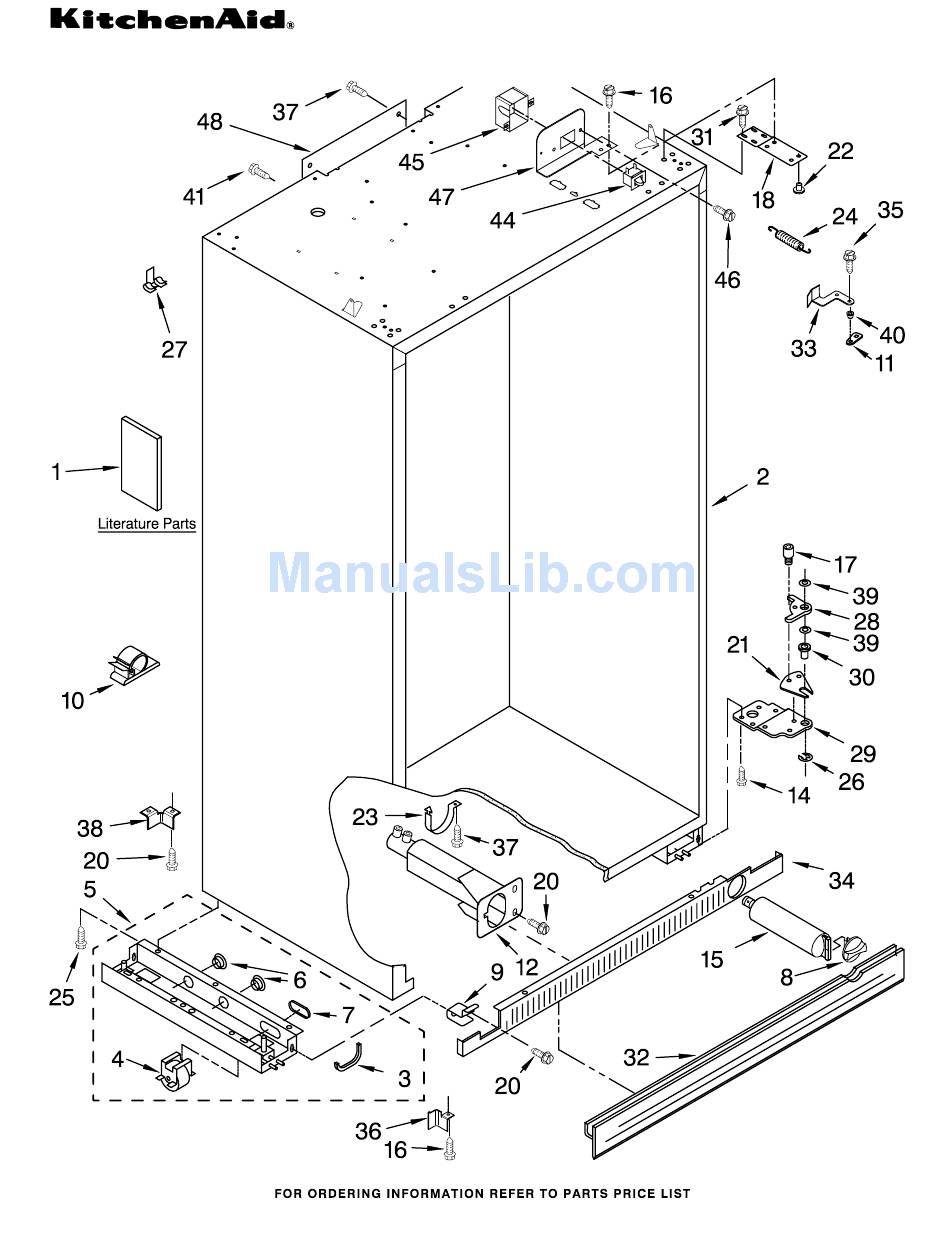

2004505 Freezer Side 2005006 Grommet, Wiring 2005007 Grommet, Flexible Cap, Water Filter 2186494B Black 2006442 Mounting Stud, Grill CABINET PARTS For Models: KSSS48FMB02, KSSS48FMX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2004514 Clamp, Tube 2005783 Cam, Door Closer 2209022 Housing, Water Filter... - Page 3 8214575 CABINET TRIM PARTS For Models: KSSS48FMB02, KSSS48FMX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) 2222552B Black 2222552X Etched Aluminum Screw 8281252 Black 8281250 Stainless Steel 2254726 Cabinet, Trim (Bottom) 486194 Screw 2313993 Cabinet, Trim Top Cabinet Trim...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Models: KSSS48FMB02, KSSS48FMX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2302869 Wire, Shelf 2266955 Spacer, Door 2302884 Shelf, Fixed (2) 2259083 Basket 2256271 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw 2266935 Door, Ice... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSSS48FMB02, KSSS48FMX02 (Black) (Etched Aluminum) 8214575... - Page 6 REFRIGERATOR LINER PARTS For Models: KSSS48FMB02, KSSS48FMX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 2209204 Clip, Thermistor 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor...
-
Page 7: Control Panel Parts
2302773 Control Box 2303938 Insert, Control 2302913 Circuit Board, Housing Control 2187424 Control Box Wire Harness 8214575 CONTROL PANEL PARTS For Models: KSSS48FMB02, KSSS48FMX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2221121 Support, Control 489006 Screw (2) 2306086 Display Board, Ingredient... - Page 8 TOP GRILLE AND UNIT COVER PARTS For Models: KSSS48FMB02, KSSS48FMX02 (Black) (Etched Aluminum) Illus. Part 2257403B Black 2257403X Etched Aluminum 2259320 Cover, Unit 486194 Screw 2256466 Back Panel 2302974 Cover, Unit Front 487415 Screw 2187429 Wire Assembly 2215910 Grommet, Flexible...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSSS48FMB02, KSSS48FMX02 (Black) (Etched Aluminum) 8214575... - Page 10 REFRIGERATOR SHELF PARTS For Models: KSSS48FMB02, KSSS48FMX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2222593 Shelf Assembly 2179404 Rack, Wine 2221071 Egg Bin 2302843 Assembly, Meat Pan Cover (Includes− Front Trim) 2302836 Assembly, Crisper Cover (Includes− Front Trim) 2257611 Trim, Glass Rear...
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Models: KSSS48FMB02, KSSS48FMX02 (Black) (Etched Aluminum) 8214575...
- Page 12 488937 Clamp, Nylon 2255743 Light Bulb 2302925 Bracket, Vent Tube 2182120 Scroll, Fan 2259465 Wedge, Air Duct 2302924 Tube, Vent 2306044 Air Duct For Models: KSSS48FMB02, KSSS48FMX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2302851 Support, Air Duct Block, Fan Scroll...
-
Page 13: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSSS48FMB02, KSSS48FMX02 (Black) (Etched Aluminum) 8214575... - Page 14 (Includes Item #9) 2266854 Hinge Assembly, 2256381 Spacer−Door, 489282 Screw 2302878 Hinge Assembly, Bottom 2222797 Rail, Lid 2222983 Gaasket, Utility For Models: KSSS48FMB02, KSSS48FMX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2222812 Door Gasket, Magnetic Handle, Door 2256473B Black 2256473 Etched Aluminum...
-
Page 15: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSSS48FMB02, KSSS48FMX02 (Black) (Etched Aluminum) 8214575... - Page 16 FREEZER DOOR PARTS For Models: KSSS48FMB02, KSSS48FMX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2252328 Freezer Door Panel (Includes Item #14) 2302879 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2256381 Spacer−Door, 2222810 Door Gasket, Magnetic Handle, Door 2256472B Black 2256472 Etched Aluminum...
- Page 17 UPPER UNIT PARTS For Models: KSSS48FMB02, KSSS48FMX02 (Black) (Etched Aluminum) 8214575...
- Page 18 8281149 Screw 1157158 Screw 2259307 Condenser 943447 Grommet (4) 2187629 Wire, Jumper 487522 Screw 2155774 Wire Tie UPPER UNIT PARTS For Models: KSSS48FMB02, KSSS48FMX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2252363 Drier 549193 Clamp 2206036 Motor, Fan 2190685 Blade, Fan...
- Page 19 LOWER UNIT AND TUBE PARTS For Models: KSSS48FMB02, KSSS48FMX02 (Black) (Etched Aluminum) 8214575...
