KitchenAid KSSS48FJB00 Parts List

KitchenAid KSSS48FJB00 Parts List

48" built in refrigerator
Hide thumbs Also See for KSSS48FJB00:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction and Installation Manual
CABINET PARTS
48" BUILT IN
For Models: KSSS48FJW00, KSSS48FJB00, KSSS48FJT00
REFRIGERATOR
(White)
(Black)
(Biscuit)
10−00 Litho In U.S.A. (mek)
1
Part No. 4398894

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSSS48FJB00 and is the answer not in the manual?

Questions and answers

Related Manuals for KitchenAid KSSS48FJB00

Summary of Contents for KitchenAid KSSS48FJB00

  • Page 1 CABINET PARTS 48" BUILT IN For Models: KSSS48FJW00, KSSS48FJB00, KSSS48FJT00 REFRIGERATOR (White) (Black) (Biscuit) 10−00 Litho In U.S.A. (mek) Part No. 4398894...

  • Page 2: Cabinet Parts

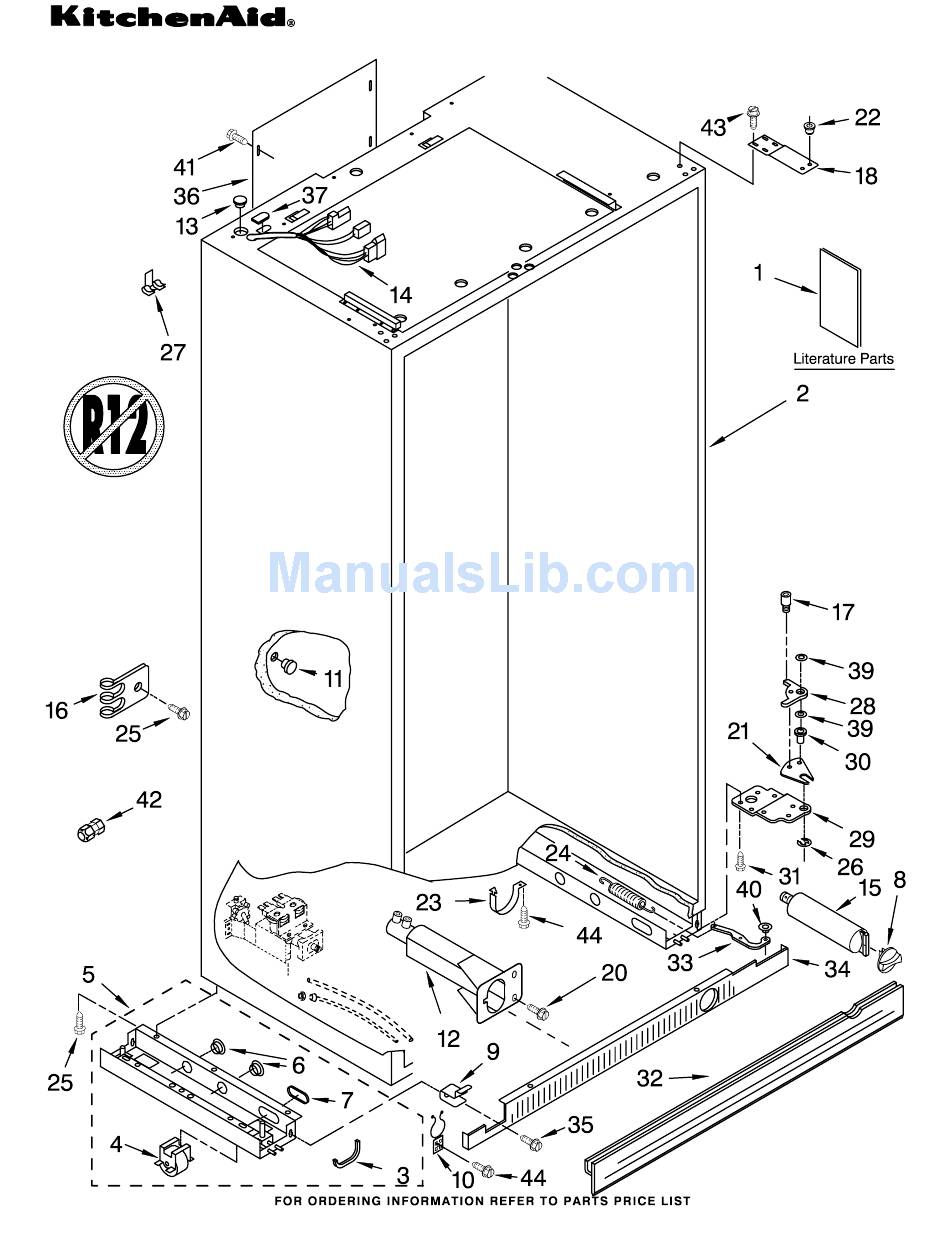

    CABINET PARTS For Models: KSSS48FJW00, KSSS48FJB00, KSSS48FJT00 (White) (Black) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2006442 Mounting Stud, Hinge (Bottom) LITERATURE PARTS Grill 2006780 Freezer Side LIT2209249 Use & Care Guide 2005237 Clip, Wire 2006779 Refrigerator Side LIT2209474 Energy Label 1112849 Cap, Grommet 2004992 Bushing,...
