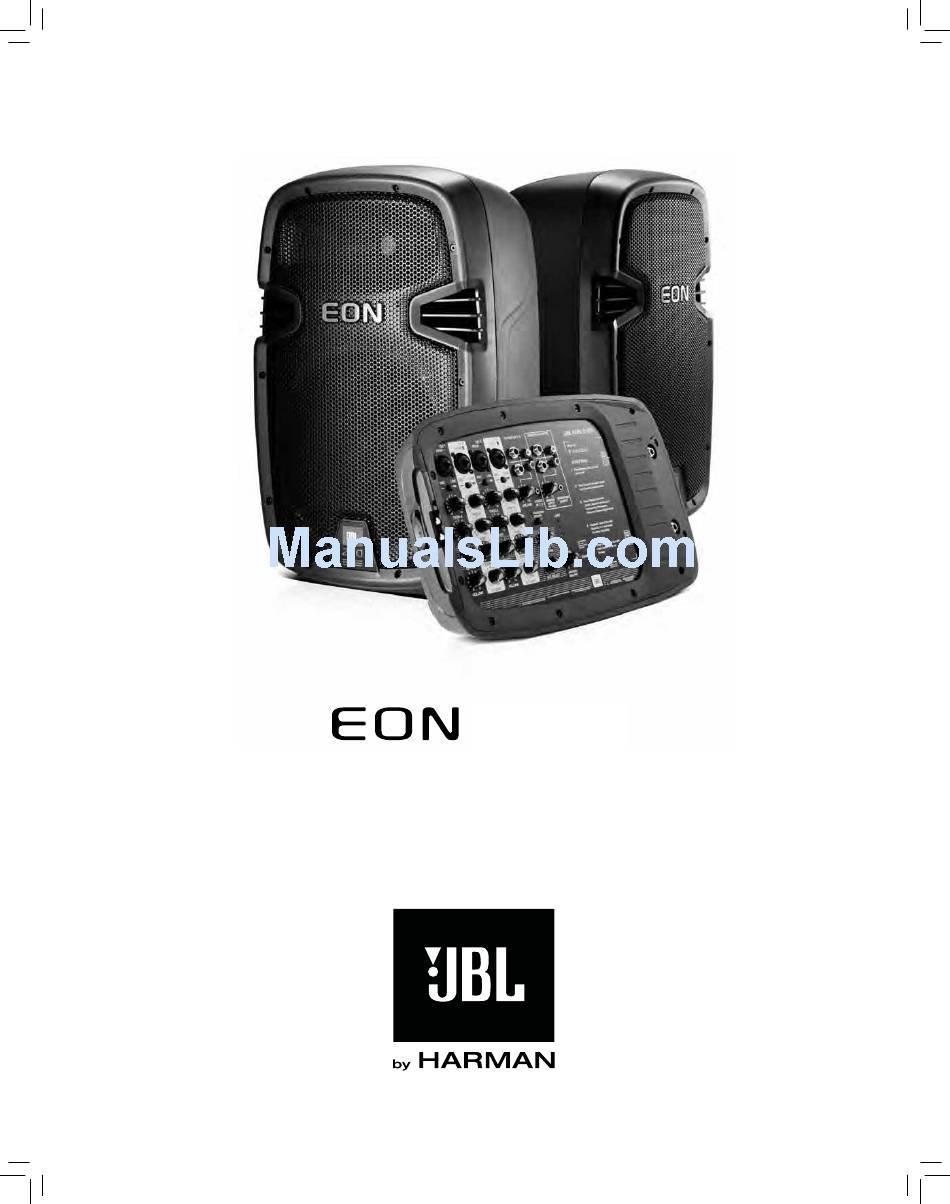

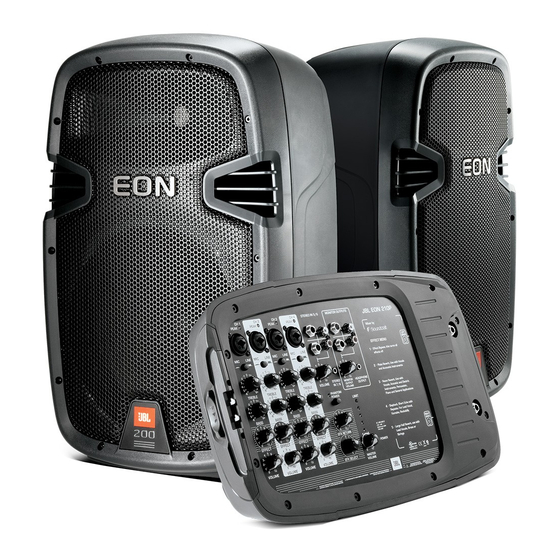

  • Page 1 210P PORTABLE PA USER’S GUIDE For: Français, Deutsch, Español, visit www.jblpro.com...

  • Page 3: Table Of Contents

    Section 1: Important Safety Instructions..................Section 2: Precautions ........Section 3: Declaration of Conformity ..Section 4: The EON 210P PA System Power Amplifier 9 - 16 Section 5: Introduction To The EON 210P PA System........Section 6: System Specifications ............

  • Page 4: Section 1: Important Safety Instructions

    Section 1: Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8.
  • Page 5 Care and Cleaning EON 210P systems may be cleaned with a dry cloth. Do not get moisture into any of the openings in the system. Ensure that the system is unplugged from the AC outlet before cleaning. THIS APPARATUS CONTAINS POTENTIALLY LETHAL VOLTAGES. TO PREVENT ELECTRIC SHOCK OR HAZARD, DO NOT REMOVE CHASSIS, MIXER MODULE OR AC INPUT COVERS.

  • Page 6: Section 2: Precautions

    Stand Mounting Safety Precautions The EON 210P speakers contain a 36 mm receptacle cup to allow mounting on tripod stands or on a pole over subwoofers. When using stands or poles, be sure to observe the following precautions: •...

  • Page 7: Section 3: Declaration Of Conformity

    Section 3: EON 210P PA System Declaration of Conformity This equipment complies with the EMC directive 89/336/EEC Modified by 92/31/EEC 93/68/EEC 98/13/EEC and LVD 73/23/EEC modified by 93/68/EEC This product is approved to safety standards: EN60065:2002 UL6500 7th Edition: 2003...

  • Page 8: Section 4: The Eon 210P Pa System Power Amplifier

    Your EON 210P will typically be set at the factory to accommodate the power mains voltage in your area. Before you set up your EON 210P for the first time it is a good idea to verify that the setting of the selector is appropriate for the power in your area.

  • Page 9: Section 5: Introduction To The Eon 210P Pa System

    Section 5: Introduction To The EON 210P PA System Thank you for choosing the JBL EON 210P PA system. The EON 210P is a self-contained, portable pa system featuring multiple input channels with individual tone controls, multiple digital effects and convenient output routing capabilities that allow the user to integrate the system into any number of audio environments.
  • Page 10 4. Connect the Mixer Module to the Speakers On the right side of the mixer you will notice two ¼" phone jacks – these are your speaker output jacks. Take the speaker cables and connect them from these jacks to the jacks on the back of the speakers. Left speaker output jack To Left speaker...
  • Page 11 Getting Acquainted with the EON 210P Powered Mixer This part of the EON 210P system houses the mixing board and power amplifier. You will connect all of the microphones, musical instruments, external sound sources (like MP3 or CD players), headphones in addition to any recording devices or additional speakers like a personal monitor, subwoofer or “Front of House”...
  • Page 12 STEREO INPUTS The EON 210P has two stereo inputs and these are used primarily for MP3 or CD players but could be used with the stereo output of an electronic keyboard, instrument pre-amp or processor, or an electronic drum machine.
  • Page 13 This controls the overall volume of the MONITOR OUTPUT. 3. HEADPHONE OUTPUT This output allows the user to listen to the main output the EON 210P mixer. Headphones used will require a 3.5 mm stereo plug. MASTER VOLUME and “PEAK LED LADDER”...
  • Page 14 DIGITAL EFFECTS Your EON 210P is equipped with digital multi-effects designed to enhance instruments or vocals. There are four effects available on the EON 210P. An effect on a vocal or instrument can create a very natural sense of space for the listener and is great fun for the performer.
  • Page 15 8. CONNECTING A PERSONAL MUSIC PLAYER TO THE 7/8 STEREO INPUT: a. Turn down the “MASTER VOLUME” control. b. Connect the output of the device to the “7/8” input of the EON 210P mixer using a 3.5 mm stereo “mini plug”.
  • Page 16 (Ex. 2) CAUTION: • The EON 210P was designed as a system and is to be used as such. Use only the EON 210P speakers provided with the system. Substituting different speakers could result in damage to the powered mixer and could void your warranty.

  • Page 17: Section 6: System Specifications

    On Board DSP Limiting and Tuning Speaker LF Driver: 1 x JBL 328 H 250 mm (10 in) woofer HF Driver: 1 x JBL 2414H-1 37.5 mm (1.5" ) annular polymer diaphragm, neodymium compression driver Coverage Pattern: 100º x 60º nominal Crossover Frequency:...

  • Page 18: Section 7: Reference

    Section 7: Reference Balanced vs. Unbalanced Lines Your EON 210P PA system can accept either type of input. There are two basic types of audio system interconnections for audio signals: Balanced and Unbalanced. Balanced Lines In audio, a balanced line is a three-conductor system in which the two signal wires carry an equal, but opposite voltage with respect to the ground wire.

  • Page 19: Section 8: Cables And Connectors

    Section 8: Cables and Connectors The standard cable for interconnection of microphone and XLR/F to XLR/M Microphone Cable line level signal in professional audio systems. • Microphone to mixer For connecting balanced devices with 1/4 inch phone and TRS (balanced) 1/4 inch phone jack to XLR/M maybe used interchangeably.

  • Page 20: Section 9: Trouble Shooting

    Section 9: Trouble Shooting Symptom Likely Cause What to do Make sure that the AC cord is properly seated into the AC receptacle both at the wall outlet and on the mixer. Make sure the AC switch is in No Power the "ON"...
  • Page 21 Symptom Likely Cause What to do Disconnect the devices that are connected to your mixer one at a Noisy source device time. If the noise goes away, the problem is with the source or the connecting cable. Noise or hiss heard at outputs Unused channel volumes Lower the channel volume on unused channels to “0”...

  • Page 22: Section 10: Contact Information

    On The World Wide Web: www.jblpro.com Professional Contacts, Outside the USA: Contact the JBL Professional Distributor in your area. A complete list of JBL Professional international distributors is provided at our U.S.A. website: www.jblpro.com Product Registration: Register your product online at www.jblpro.com...

  • Page 23: Section 11: Warranty Information

    Department), 8500 Balboa Boulevard, PO. Box 2200, Northridge, California 91329 (818-893-8411). We may direct you to an authorized JBL Service Agency or ask you to send your unit to the factory for repair. Either way, you’ll need to present the original bill of sale to establish the date of purchase. Please do not ship your JBL product to the factory without prior authorization.
  • Page 24 Part Number: 445709-001 11-202010...
