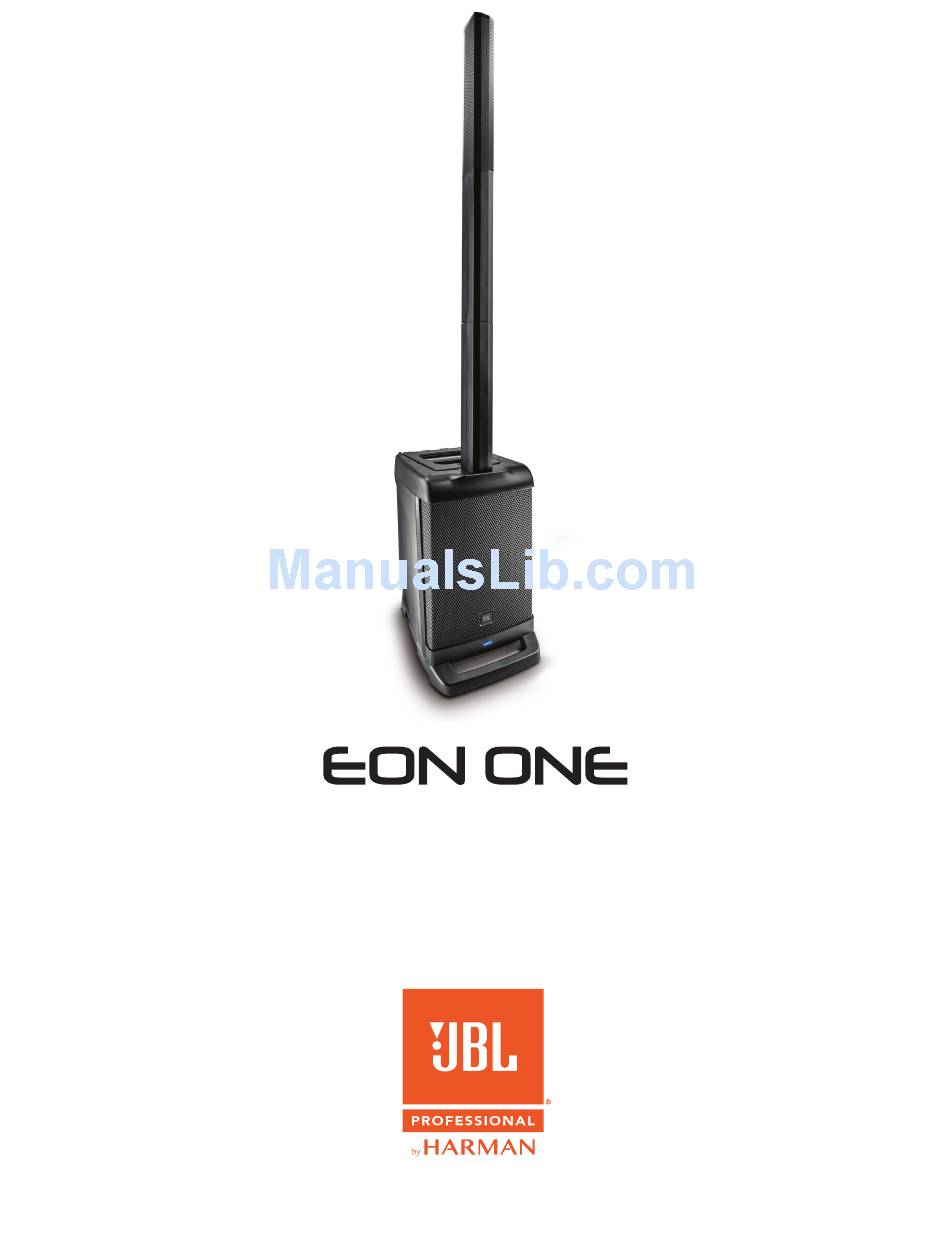

ALL-IN-ONE LINEAR-ARRAY
PA SYSTEM
USER'S GUIDE
For: Français, Deutsch, Español, visit www.jblpro.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EON ONE and is the answer not in the manual?

Questions and answers

Summary of Contents for JBL EON ONE

  • Page 1 ALL-IN-ONE LINEAR-ARRAY PA SYSTEM USER’S GUIDE For: Français, Deutsch, Español, visit www.jblpro.com...
  • Page 2: Table Of Contents

    Section 1: Important Safety Instructions ���������������������������������������������������������� 1 Care & Cleaning ��������������������������������������������������������������������������������������������������������������������������������������������������2 Section 2: Precautions ���������������������������������������������������������������������������������������� 3 Section 3: EON ONE PA System Declaration of Conformity ��������������������������� 4 Section 4: Introduction to the EON ONE PA System ���������������������������������������� 5 Getting Started ����������������������������������������������������������������������������������������������������������������������������������������������������5 Getting Acquainted with the EON ONE Powered Mixer ��������������������������������������������������������������������������������������7...
  • Page 3: Section 1: Important Safety Instructions

    Section 1: Important Safety Instructions 1� Read these instructions� 2� Keep these instructions� 3� Heed all warnings� 4� Follow all instructions� 5� Do not use this apparatus near water� 6� Clean only with dry cloth� 7� Do not block any ventilation openings� Install in accordance with the manufacturer’s instructions� 8�...
  • Page 4: Care & Cleaning

    CArE & ClEANINg EON ONE systems may be cleaned with a dry cloth� Do not get moisture into any of the openings in the system� Ensure that the system is unplugged from the AC outlet before cleaning� THIS APPARATUS CONTAINS POTENTIALLY LETHAL VOLTAGES� TO PREVENT ELECTRIC SHOCK OR HAZARD, DO NOT REMOVE CHASSIS, MIXER MODULE, OR AC INPUT COVERS�...
  • Page 5: Section 2: Precautions

    Section 2: Precautions The EON ONE PA system covered by this manual is not intended for use in high moisture environments� Moisture can damage the speaker cone and surround and cause corrosion of electrical contacts and metal parts� Avoid exposing the speakers to direct moisture�...
  • Page 6: Section 3: Eon One Pa System Declaration Of Conformity

    Section 3: EON ONE PA System Declaration of Conformity This equipment complies with the EMC directive 89/336/EEC Modified by 92/31/EEC 93/68/EEC 98/13/EEC and LVD 73/23/EEC modified by 93/68/EEC   This product meets safety standards: EN60065:2002 UL6500 7th Edition: 2003 UL 60065 - STANDARD FOR AUDIO, VIDEO AND SIMILAR ELECTRONIC APPARATUS - SAFETY EQUIREMENTS - Edition 7 - Revision Date 2007/12/11 CSA C22�2 NO 60065-03 - AUDIO, VIDEO AND SIMILAR ELECTRONIC...
  • Page 7: Section 4: Introduction To The Eon One Pa System

    And with a design that stores all the components into one unit for a one-hand carry, the EON ONE is perfect for situations where ease and portability are just as important as our legendary JBL sound�...
  • Page 8 4� Connect the female end of the power cable to the mixer and plug the male end into the wall socket or extension cord� Turn the “MASTER VOLUME” control all the way to the left� Now turn the power switch to the “on”...
  • Page 9: Getting Acquainted With The Eon One Powered Mixer

    AUDIO INPUTS The EON ONE has 6 inputs: 2 mono inputs and 2 stereo inputs� All of the inputs will route to the speakers and to the MONITOR OUTPUT SECTION� EON ONE also includes Bluetooth audio streaming from your favorite...
  • Page 10: Mono Mic/Line Inputs

    The EON ONE comes equipped with the ability to stream Bluetooth audio� To connect a Bluetooth device, first press the BLUETOOTH PAIR button on the back of the EON ONE. Then select "EON ONE" from the source device to complete the pairing� Once paired, the blinking...
  • Page 11: Stereo Inputs

    STErEO INPUTS The EON ONE has two stereo inputs and these are used primarily for MP3 or CD players but could be used with the stereo output of an electronic keyboard, instrument pre-amp or processor, or an electronic drum machine�...
  • Page 12: Section 5: System Specifications

    Section 5: System Specifications EON ONE System System Type: Portable Line Array with powered mixer Maximum SPL Output: 118 dB peak system output (pink noise) Frequency Range (-10dB): 37�5Hz – 18�5kHz Frequency Response (-3dB): 45Hz – 18kHz AC input :...
  • Page 13: Section 6: Cables & Connectors

    Section 6: Cables & Connectors The standard cable for interconnection of microphone and line- XLR/F to XLR/M microphone cable level signals in professional audio systems� Example: Microphone to mixer� For connecting balanced devices with 1/4" phone; may be TRS (balanced) 1/4" phone to XLR/M cable used interchangeably�...
  • Page 14: Section 7: Contact Information

    On The World Wide Web: www�jblpro�com Professional Contacts, Outside the USA: Contact the JBL Professional Distributor in your area� A complete list of JBL Professional international distributors is provided at our U�S�A� website: www�jblpro�com Product Registration: Register your product online at www�jblpro�com...
  • Page 15: Section 8: Warranty Information

    Department), 8500 Balboa Boulevard, PO. Box 2200, Northridge, California 91329 (818-893-8411). We may direct you to an authorized JBL Service Agency or ask you to send your unit to the factory for repair� Either way, you’ll need to present the original bill of sale to establish the date of purchase� Please do not ship your JBL product to the factory without prior authorization�...
  • Page 16 Rev A...
